| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-WD6A |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Instrument Category | Reaction Vessel |
| Usable Volume | Large-scale (35 L cavity |
| Construction Material | AISI 304 Stainless Steel |
| Operating Pressure | High-pressure capable (vacuum-compatible) |
| Capacity | 35 L total cavity volume |
| Microwave Frequency | 2450 MHz |
| Max. Temperature | 1700 °C |
| Microwave Power Output | 6–30 kW (continuous, non-pulsed, infinitely variable) |
| Power Density | ≥170 W/L |
| Microwave Leakage | <5 mW/cm² (per GB 10436 & IEC 62233) |
| Compliance | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

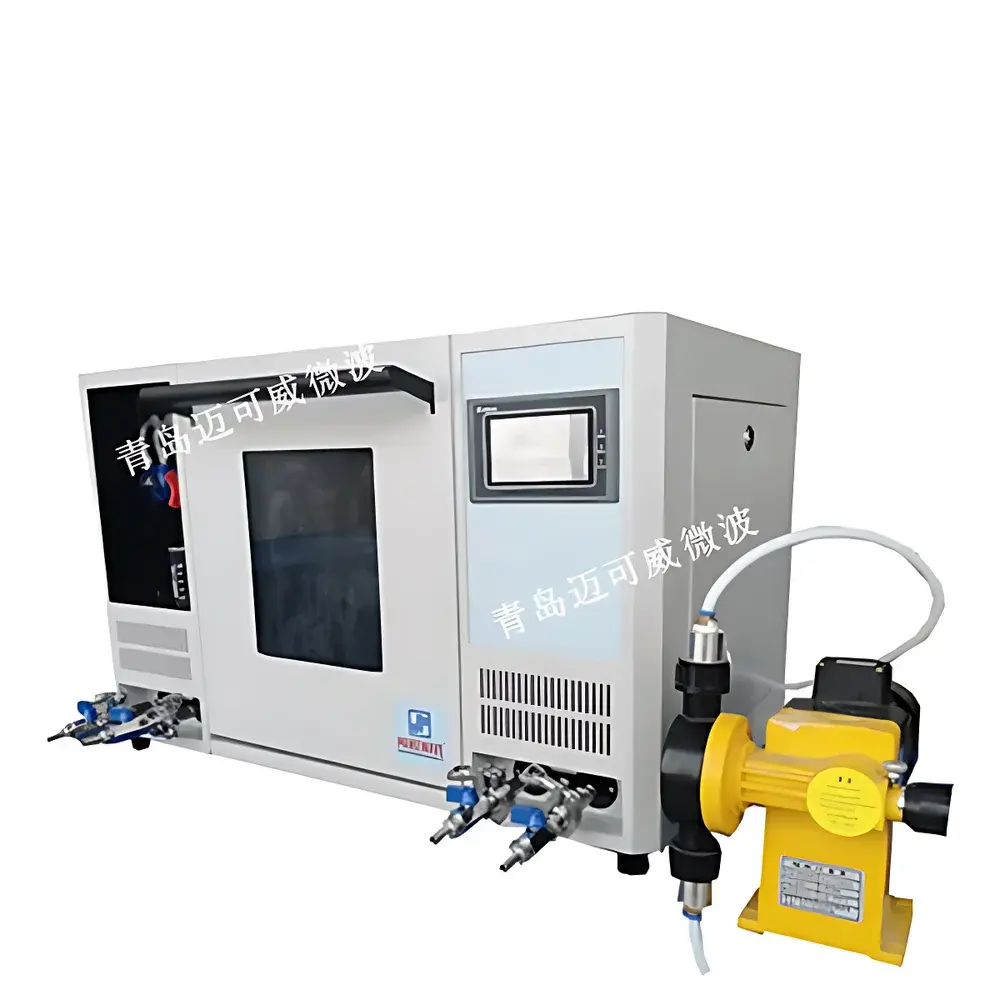

| Model | MKG-H1C1B |
| Reactor Type | Benchtop Continuous-Flow Microwave Reactor |
| Vessel Capacity | 20 L |
| Construction Material | 316 Stainless Steel |
| Operating Pressure Range | 0–0.5 MPa (optional up to 2 MPa) |
| Vacuum Capability | Up to 2 MPa (gauge, negative pressure) |
| Microwave Power Output | 0–800 W (continuous, non-pulsed, linearly adjustable) |
| Frequency | 2450 ± 50 MHz |
| Reaction Temperature Range | 0–100 °C (optional up to 200 °C) |
| Flow Rate Range | 0–1000 mL/min |
| Tubing Diameter | Φ6 mm (Φ1–Φ10 mm optional) |
| Control System | PLC-based with 7-inch color touchscreen HMI |
| Safety Compliance | Microwave leakage < 5 mW/cm² (per GB 10436 & IEC 61000-3-2), door interlock, pressure/temperature monitoring, forced-air exhaust, overpressure relief |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKM-CH1GA |
| Price Range | USD 14,000–28,000 (FOB) |
| Temperature Range | 0–500 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Units | 1 |
| Maximum Reaction Volume | 1 L |
| Microwave Source | Solid-State, 0–1000 W at 2450 MHz |
| VSWR | ≤5 |
| Cavity Material | Welded Stainless Steel, Positive-Pressure Sealed, Top-Opening Design |
| Cavity Volume | 1 L Annular Single-Mode Chamber with PTFE Coating |
| Reaction Vessels | Helical Tubing (PTFE or Borosilicate Glass) |
| Temperature Sensing | Radial Infrared (0–500 °C), Axial Fiber-Optic (0–300 °C, Optional) |
| Control System | PLC-Based Intelligent Controller with Color Touchscreen |
| Data Logging | Real-Time Temperature/Power Curves, Multi-Protocol Memory, USB Export |
| Atmosphere Control | Inlet/Outlet Gas Ports for Inert, Reducing, or Oxidizing Environments |
| Dimensions (W×D×H) | 615 × 450 × 500 mm |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

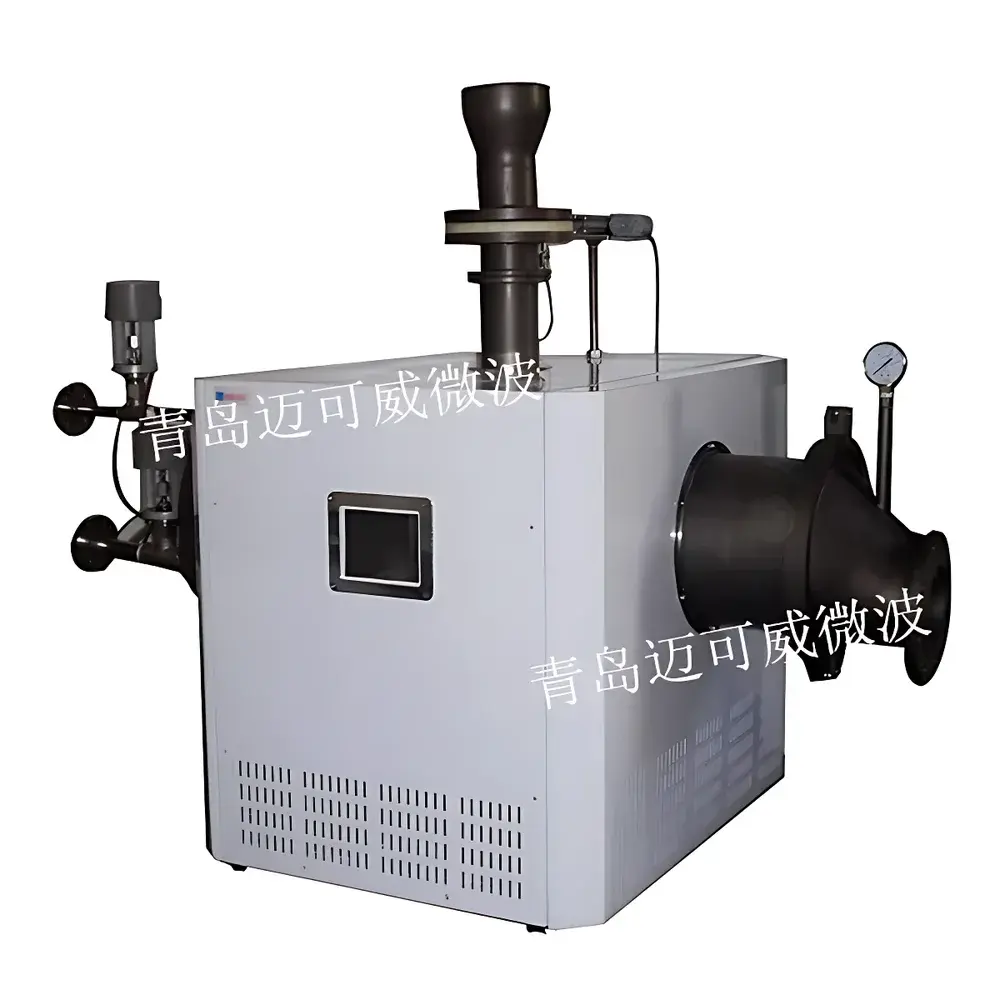

| Model | MKG-M5TB |
| Chamber Volume | Small-scale |
| Construction Material | Stainless Steel |
| Operating Pressure | Low-pressure |
| Capacity | 1 m³ |
| Vacuum Level | –0.098 Pa |
| Microwave Frequency | 2450 MHz |
| Microwave Power Output | 4 kW |
| Input Power Requirement | 3-phase, 380 V ±5%, 50 Hz |
| Total Electrical Load | ≥7.5 kVA |
| Internal Cavity Dimensions | 400 × 400 × 400 mm (W × H × D) |
| Borosilicate Glass Tube Dimensions | Horizontal section — 700 mm length × 230 mm OD |
| Microwave Leakage | <5 mW/cm² (per GB 10436-2008 / IEC 62233) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MGX-J Series |
| Price Range | USD 21,000 – 42,500 (FOB) |
| Usable Volume | Large-scale (1000 L) |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | Low-pressure (≤0.6 MPa gauge) |
| Vacuum Capability | Atmospheric operation only (no vacuum rating) |
| Frequency | 2450 MHz |
| Microwave Power Output | 8–50 kW (adjustable, industrial-grade frequency-variable magnetron source) |
| Auxiliary Electric Heating Power | 30–100 kW |
| Temperature Range | Ambient to 250 °C |
| Control Interface | PLC-based HMI touchscreen terminal |
| Compliance | GB 5959.6–2008, ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H2G1A |
| Price Range | USD 14,000 – 28,000 (FOB) |
| Temperature Range | 0–220 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Volume | 40 L (cavity capacity) |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 1600 W (continuous, non-pulsed output) |
| Safety Leakage | <5 mW/cm² |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 3000 W |
| Net Weight | 80 kg |
| Dimensions (W×H×D) | 782 × 610 × 523 mm |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |

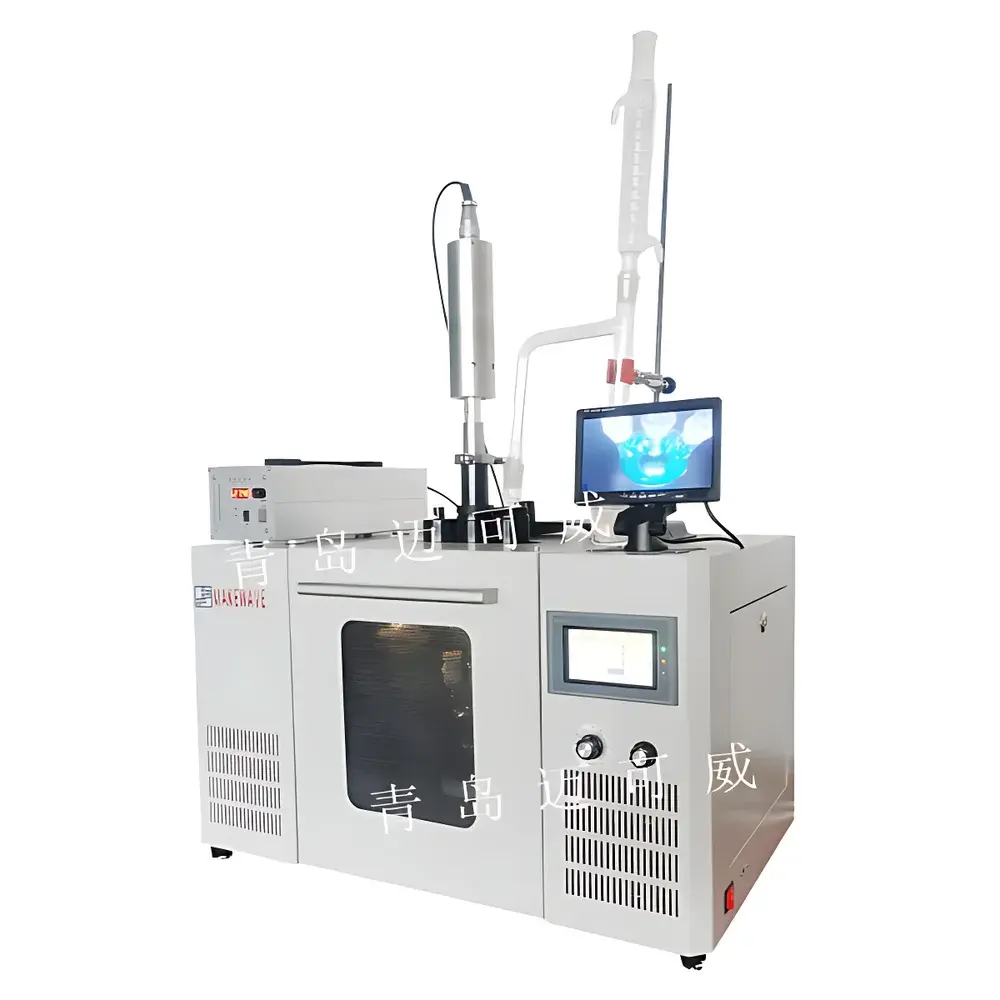

| Model | MKX-H1C1M |
| Temperature Range | 0–300 °C |
| Pressure Rating | Atmospheric (Ambient Pressure) |
| Microwave Output Power | 0–900 W (Linear, Continuous, Non-Pulsed) |
| Magnetron Frequency | 2450 MHz |
| Stirring Method | Mechanical + Magnetic Stirring |
| Reaction Volume Capacity | 20 L |
| Ultrasonic Frequency | 28 kHz (Adjustable Range: 15–40 kHz) |
| Ultrasonic Power Output | 1000 W |
| Microwave Cavity Dimensions | 250 × 285 × 275 mm (W × H × D) |
| Overall Dimensions (Excl. Stand) | ~670 × 460 × 450 mm (W × H × D) |
| Microwave Leakage Level | <5 mW/cm² (Compliant with GB 10436–2008) |
| Control Interface | Touchscreen PLC-based System with USB Data Export |
| Temperature Sensing | Infrared Sensor (0–300 °C, ±1 °C Accuracy) |
| Input Power | 1200 W (220 V ±10%, 50 Hz ±1%) |
| Cavity Material | 304 Stainless Steel with PTFE Coating |
| External Housing | Powder-Coated Carbon Steel |
| Safety Features | Interlocked Door Switch, Microwave Shielding Structure, Over-Temperature & Over-Current Protection |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H1C1S |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Temperature Range | 0–300 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Vessel | Borosilicate Glass Three-Neck Round-Bottom Flask |
| Maximum Reaction Volume | 500 mL |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | MKM-H1AB |
| Temperature Range | 0–250 °C (infrared non-contact or axial fiber-optic probe) |
| Pressure Range | 0–3 MPa (pipeline pressure sensor) |
| Microwave Power | 0–600 W, continuously adjustable |
| Frequency | 2450 MHz |
| Stirring Modes | Mechanical stirring (Function A) / Magnetic stirring (Functions A & B) |
| Reaction Volume | 1 L |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | MGX-J Series |
| Price Range | USD 14,000 – 21,000 |
| Usable Volume | Large-scale |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | High-pressure |
| Capacity | 100 L – 2000 L |
| Vacuum Capability | Not applicable |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | MKJ-J1-3 |
| Temperature Range | 0–300 °C |
| Pressure Operation | Ambient / Slight Positive Pressure |
| Microwave Power Output | 800 W (continuous, non-pulsed) |
| Magnetron Frequency | 2450 MHz |
| Stirring Method | Mechanical (PTFE anchor stirrer with adjustable-speed motor) |
| Reaction Volume | 0.5 L |
| Microwave Leakage | <5 mW/cm² |
| Power Supply | 220 V AC, 50 Hz |
| Overall Power Consumption | 1300 W |
| Cavity Volume | ~18 L |
| Dimensions (W×H×D) | 432 × 466 × 318 mm |
| Weight | 40 kg |
| Quality Certification | ISO 9001 |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H4G1A |
| Reactor Type | High-Pressure Batch Reactor |
| Vessel Capacity | 3 L |
| Working Pressure | Up to 3 MPa |
| Operating Temperature | Up to 220 °C |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 3200 W (continuous, non-pulsed) |
| Cavity Volume | 120 L |
| Construction Material | 304 Stainless Steel with Multi-Layer PTFE Coating |
| Stirring | Magnetic Stirring with PTFE-Coated Stir Bar |
| Temperature Sensing | Fiber-Optic Probe (Insertion Type) |
| Pressure Sensing | Integrated Piezoresistive Sensor |
| Microwave Leakage | <5 mW/cm² |
| Safety Compliance | ISO 9001 Certified |
| Power Supply | 220/380 VAC, 50 Hz |
| Total Power Consumption | 6 kW |
| Dimensions (W×H×D) | 920 × 966 × 685 mm |
| Net Weight | 120 kg |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H1G6A |
| Price Range | USD 150–750 (FOB) |
| Temperature Range | 0–220 °C (short-term max 230 °C) |
| Pressure Range | 0–2.5 MPa (short-term max 3 MPa) |
| Microwave Power | 800 W (continuous, non-pulsed, 2450 MHz) |
| Stirring Mode | Reciprocating 360° rotary motor drive |
| Total Reaction Volume | ~20 L (6 × 80 mL PFA-lined hydrothermal vessels) |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer | Makewave Co., Ltd. |

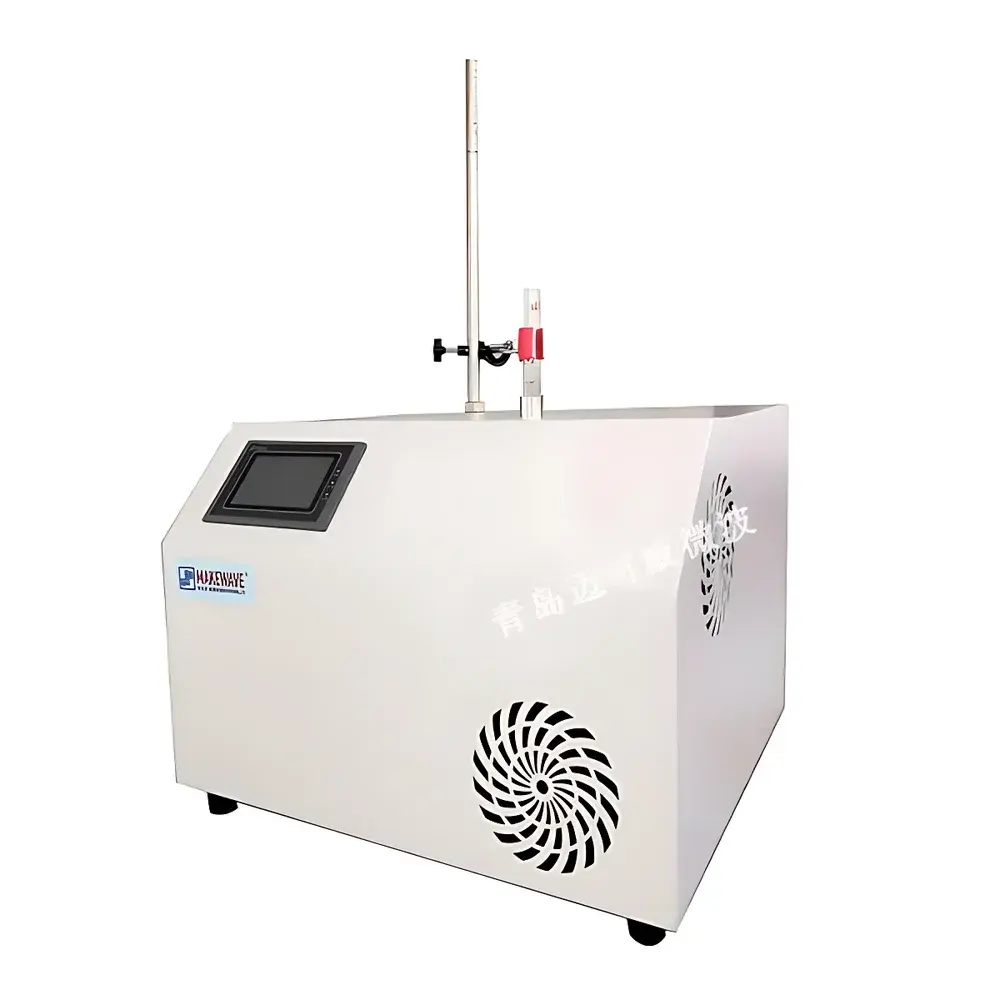

| Model | MKM-RH1P |
| Temperature Range | 0–1500 °C |
| Microwave Power | 0–500 W (2450 MHz, continuous non-pulsed output) |
| Reaction Volume | 1–10 mL |
| Cavity Volume | ~150 mL |
| Safety Leakage | <5 mW/cm² |
| Power Supply | 220 V AC / 50 Hz |
| Dimensions (W×H×D) | 500×400×400 mm |
| Weight | 50 kg |
| Compliance | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

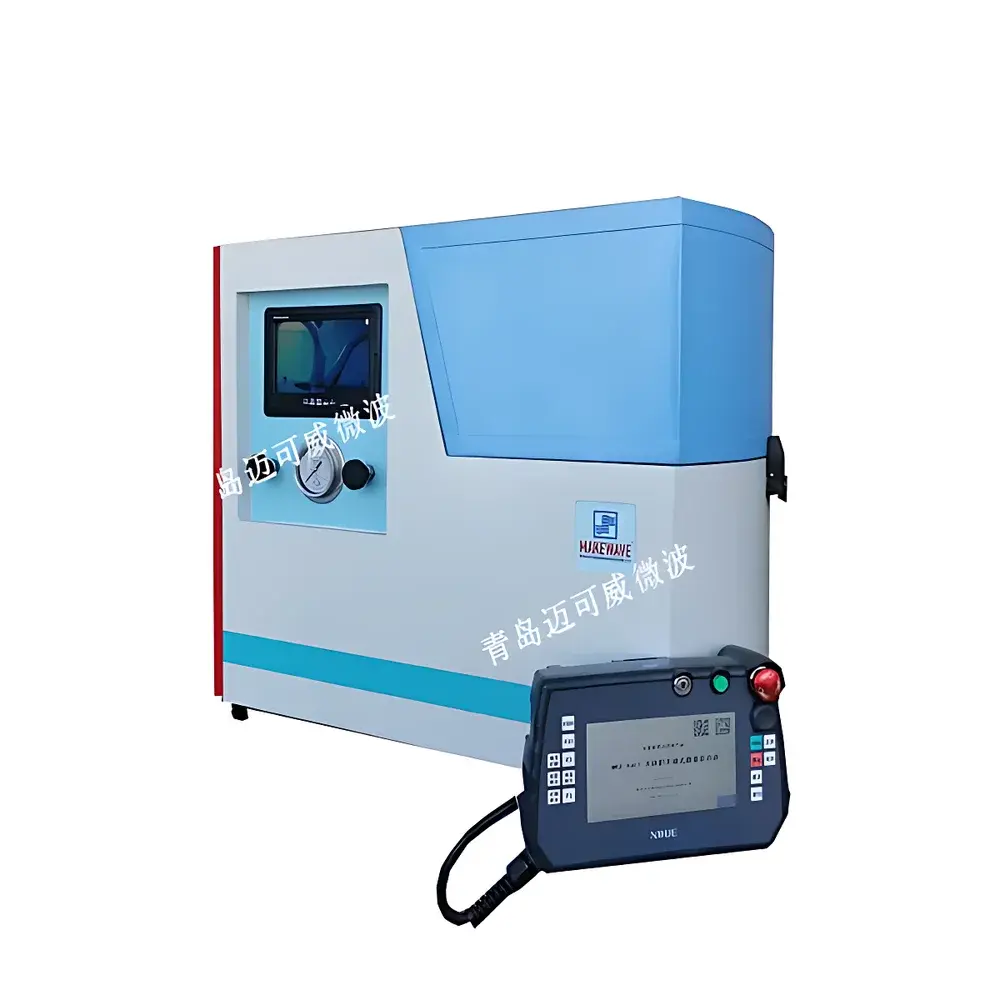

| Model | MKM-SH1B |
| Price Range | USD 7,000–14,000 (FOB) |
| Usable Volume | Large-scale |
| Construction Material | Stainless Steel (316L grade) |
| Operating Pressure | Up to 10 MPa (1,450 psi) |
| Reaction Vessel Capacity | 500–1,000 mL |
| Vacuum Rating | 10 MPa (rated for pressurized operation, not vacuum service) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKG-WM2TA |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Instrument Category | Tube Reactor |
| Volume Capacity | 5 L |
| Construction Material | AISI 304 Stainless Steel |
| Operating Pressure | Low-Pressure (up to 0.1 MPa gauge) |
| Vacuum Capability | Not equipped for vacuum operation |
| Compliance | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

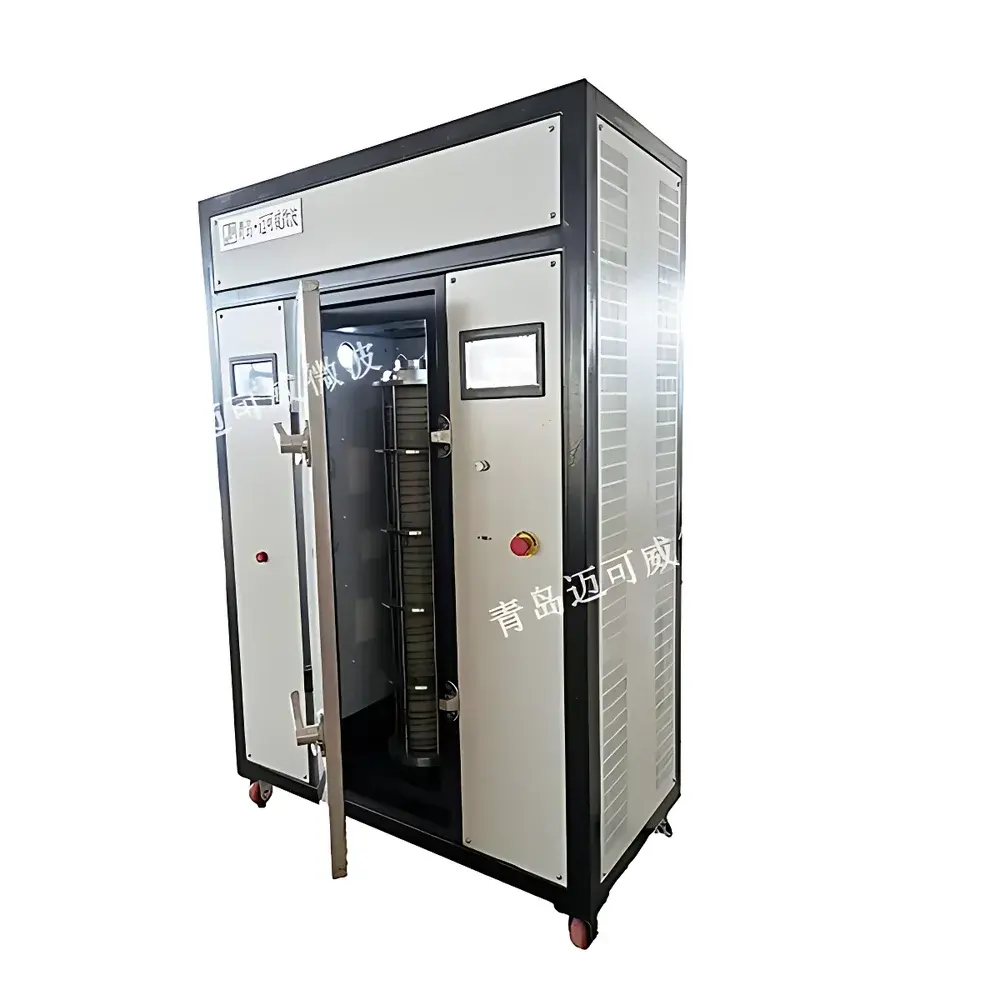

| Model | MKX-XL10 |
| Usable Volume | Large (8 L) |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | Medium-Pressure (up to 3 MPa) |
| Vacuum Capability | 3 MPa |
| Rated Microwave Power | 8000 W (2450 MHz, continuous non-pulsed output) |
| Max. Temperature | 220 °C |
| Max. Pressure | 3 MPa |
| Control System | PLC-based with touchscreen HMI |
| Safety Compliance | Microwave leakage < 5 mW/cm² (exceeding GB standard) |
| Weight | 120 kg |
| Dimensions (W×H×D) | 1100 × 1800 × 600 mm |
| Power Supply | 380 VAC / 50 Hz |
| Total Power Consumption | 15 kW |
| Certifications | ISO 9001 |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

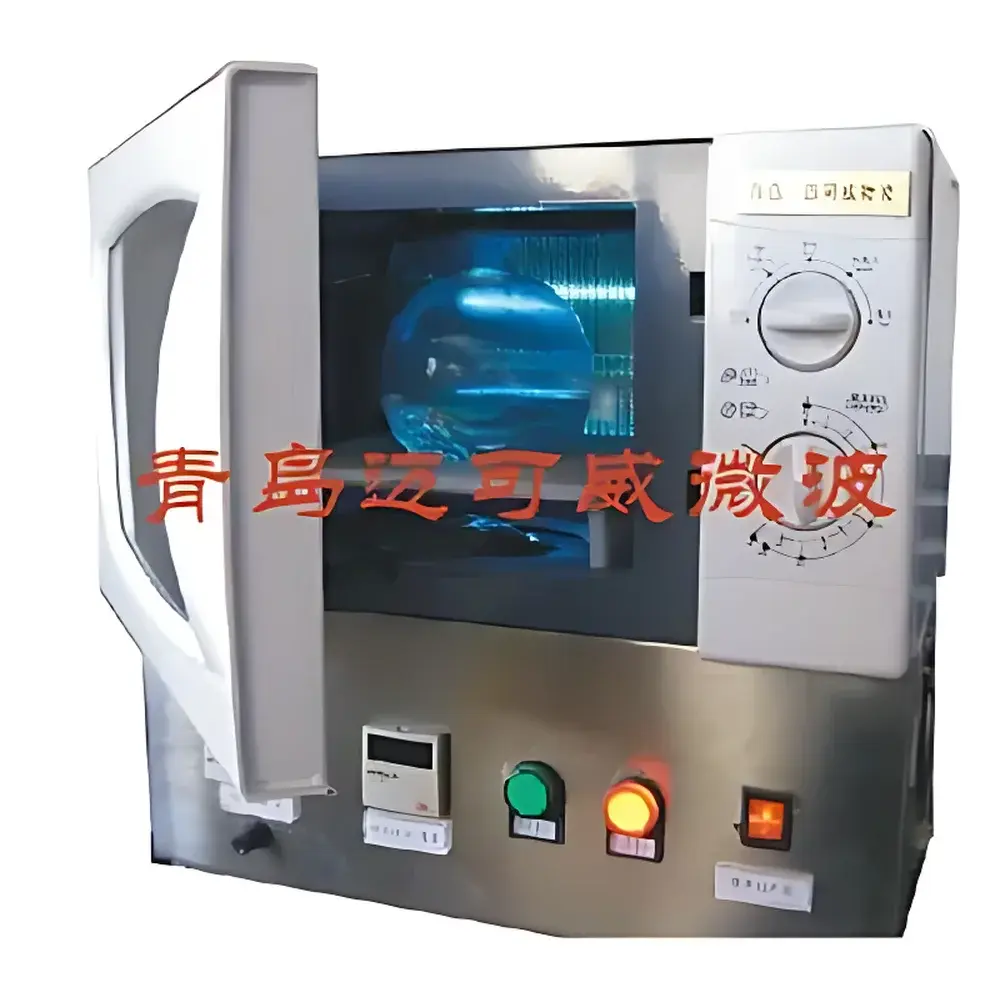

| Model | MKJ-J1-5 |
| Temperature Range | 0–300 °C |
| Pressure Condition | Ambient (Atmospheric) |
| Microwave Output Power | 800 W (0–900 W continuously adjustable) |
| Magnetron Frequency | 2450 MHz |
| Stirring Method | Mechanical Stirring |
| Reaction Vessel Capacity | 0.5 L |
| Power Supply | 220 V / 50 Hz |
| External Dimensions (W×D×H) | ≈500 × 220 × 500 mm |
| Microwave Leakage | Compliant with GB 4706.21 (Chinese National Standard for Microwave Oven Safety) |
| Control Interface | Rotary Knob + Digital Millisecond Timer |
| Optional Integration | RS232 Serial Interface, PLC Automation Upgrade |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | MKM-H1B |
| Price Range | USD 7,000–14,000 (FOB) |
| Temperature Range | 0–230 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Reaction Units | 1 |
| Reaction Vessel Capacity | 80–1000 mL |
| Maximum Pressure Rating | 3 MPa |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 500 W (continuous, non-pulsed output) |
| Cavity Material | 304 Stainless Steel with Multi-Layer PTFE Coating |
| Microwave Leakage | <5 mW/cm² |
| Safety Compliance | Meets GB 10436 & IEC 61000-4-3 |
| Quality Certification | ISO 9001 Certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

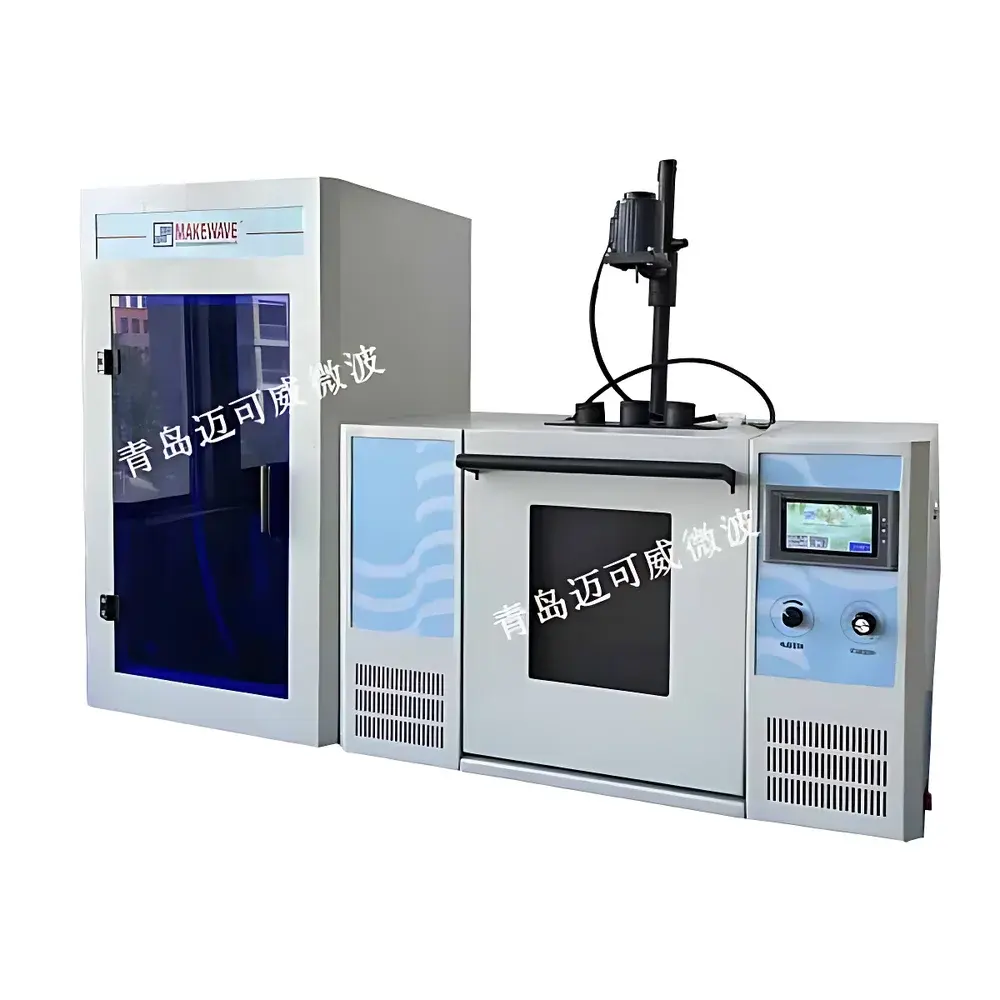

| Model | MKG-H1C1A |
| Reactor Type | High-Pressure Continuous Flow Reactor |
| Vessel Capacity | 20 L |
| Construction Material | 304 Stainless Steel with 5-Layer PTFE Coating |
| Operating Pressure Range | 0–1 MPa (optional up to 2 MPa) |
| Operating Temperature Range | 0–170 °C (optional up to 200 °C) |
| Microwave Frequency | 2450 ± 50 MHz |
| Microwave Power Output | 0–800 W (continuous, non-pulsed, linearly adjustable) |
| Flow Rate Range | 0–50 mL/min |
| Reaction Tubing | Φ1 mm × 10 m PEEK/PTFE composite tubing |
| Vacuum Capability | 2 Pa |
| Safety Compliance | Microwave leakage < 5 mW/cm² (IEC 61000-4-3 compliant) |
| Dimensions (W×H×D) | 782 × 492 × 450 mm |
| Weight | 50 kg |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 1300 W |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

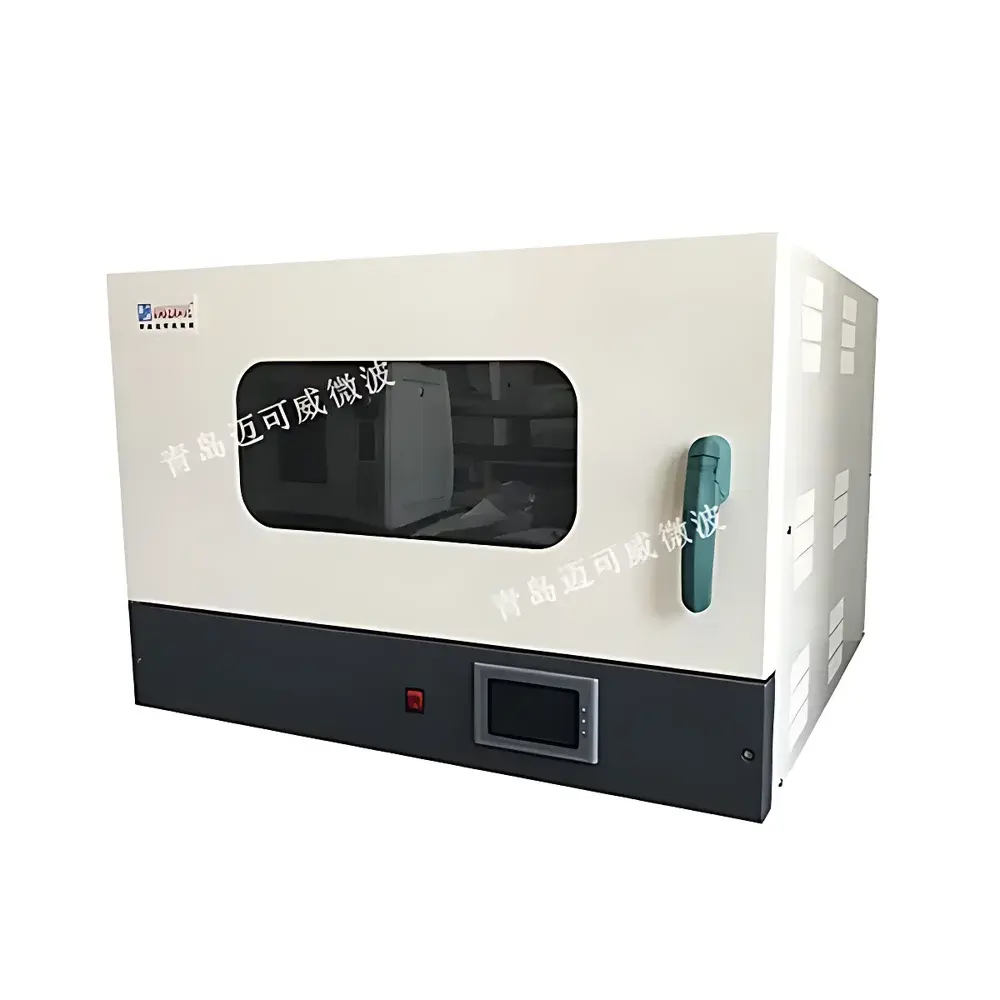

| Model | MKX-J4A |
| Temperature Range | 0–150 °C |
| Pressure Range | Atmospheric |
| Microwave Power | 4000 W (continuous, non-pulsed) |
| Magnetron Frequency | 2450 MHz |
| Stirring Method | Mechanical + Magnetic Stirring |
| Reaction Volume | 90 L (standard configuration: 4 parallel vessels) |
| Internal Cavity Dimensions | 550 × 300 × 550 mm (W × H × D) |
| Power Supply | 380 V AC / 50 Hz |
| Total Power Consumption | 6000 W |
| Weight | 80 kg |
| Microwave Leakage | <5 mW/cm² (compliant with GB 10436 & IEC 61000-3-2) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

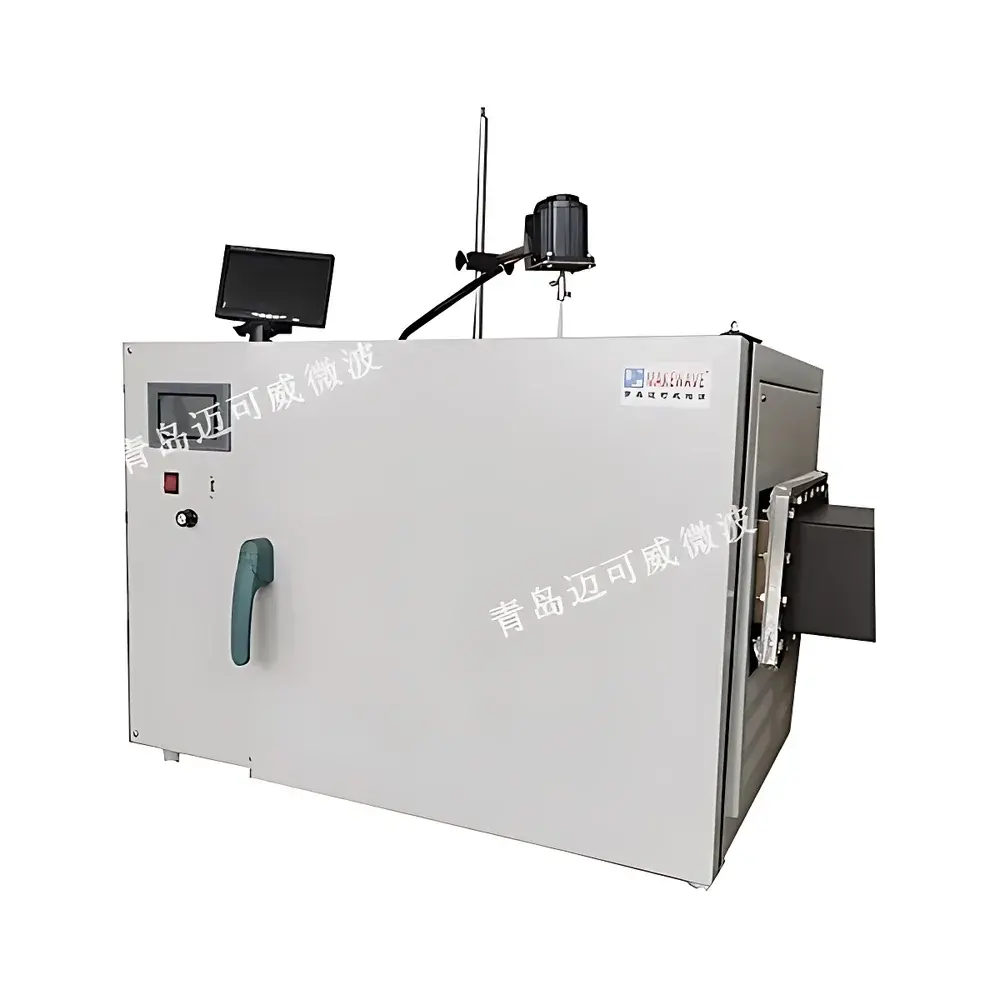

| Model | MKX-H4D915 |
| Price Range | USD 21,000–42,000 (FOB) |
| Usable Volume | Large-scale (76 L cavity) |
| Construction Material | Industrial-grade 304 stainless steel with multi-layer PFA fluoropolymer coating |
| Operating Pressure Class | Medium-pressure rated (up to 2 MPa typical design) |
| Capacity | 76 L cavity volume |
| Microwave Frequencies | 2450 MHz (0–2400 W) and 915 MHz (0–1000 W), independently controllable |
| Temperature Range | 0–300 °C continuous |
| Temperature Measurement | Non-contact infrared pyrometry (0–500 °C) |
| Stirring Options | Dual-mode — overhead mechanical stirring + internal magnetic stirring, speed continuously adjustable |
| Control System | PLC-based intelligent controller with 7″ color touchscreen interface |
| Data Logging | Real-time dynamic curves (time/temperature/power), multi-segment program storage, USB export capability |
| Safety Compliance | Microwave leakage <5 mW/cm² (per GB 10436-2008), interlocked door safety, explosion-resistant viewport, integrated exhaust port, overtemperature/overpressure/overcurrent protection |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

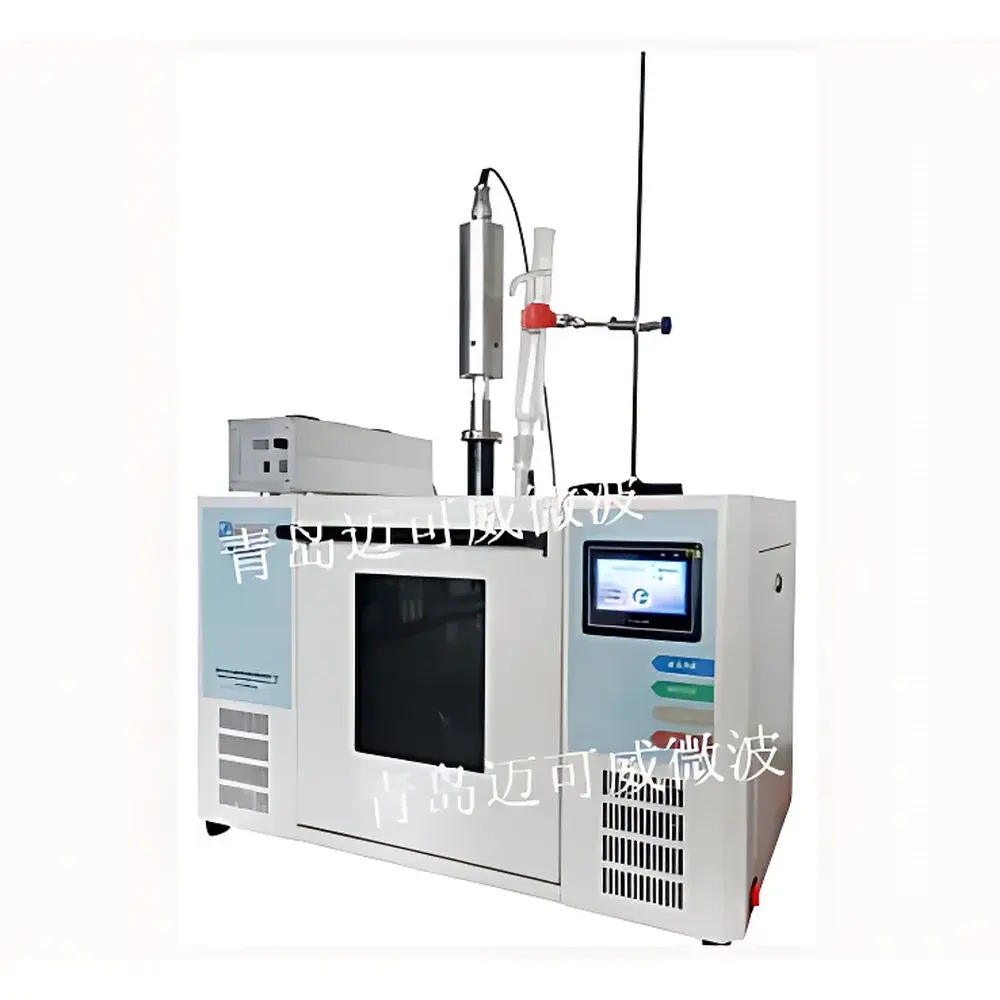

| Model | MKX-H1C1UM |
| Temperature Range | 0–300 °C |
| Pressure Condition | Ambient (Atmospheric) |
| Microwave Output Power | 900 W |
| Magnetron Frequency | 2450 MHz |
| Stirring Modes | Mechanical Stirring & Magnetic Stirring |
| Reaction Vessel Capacity | 500 mL |
| UV Wavelength Options | 254 nm and/or 365 nm (Selectable) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | MKJ-J1N |
| Temperature Range | 0–300 °C |
| Pressure Rating | Atmospheric (Ambient Pressure) |
| Microwave Output Power | 800 W (Continuous, Non-pulsed) |
| Frequency | 2450 MHz |
| Stirring Method | Mechanical Stirring (PTFE Anchor Stirrer) / Optional Magnetic Stirring |
| Cavity Volume | ~18 L |
| Safety Leakage | <5 mW/cm² |
| Power Supply | 220 VAC, 50 Hz |
| Total Power Consumption | 1300 W |
| Weight | 40 kg |
| Compliance | ISO 9001 Certified |
Show next
