| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-WD6A |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Instrument Category | Reaction Vessel |
| Usable Volume | Large-scale (35 L cavity |
| Construction Material | AISI 304 Stainless Steel |
| Operating Pressure | High-pressure capable (vacuum-compatible) |
| Capacity | 35 L total cavity volume |
| Microwave Frequency | 2450 MHz |
| Max. Temperature | 1700 °C |
| Microwave Power Output | 6–30 kW (continuous, non-pulsed, infinitely variable) |
| Power Density | ≥170 W/L |
| Microwave Leakage | <5 mW/cm² (per GB 10436 & IEC 62233) |
| Compliance | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKG-H1C1B |
| Reactor Type | Benchtop Continuous-Flow Microwave Reactor |
| Vessel Capacity | 20 L |
| Construction Material | 316 Stainless Steel |
| Operating Pressure Range | 0–0.5 MPa (optional up to 2 MPa) |
| Vacuum Capability | Up to 2 MPa (gauge, negative pressure) |
| Microwave Power Output | 0–800 W (continuous, non-pulsed, linearly adjustable) |
| Frequency | 2450 ± 50 MHz |
| Reaction Temperature Range | 0–100 °C (optional up to 200 °C) |
| Flow Rate Range | 0–1000 mL/min |
| Tubing Diameter | Φ6 mm (Φ1–Φ10 mm optional) |
| Control System | PLC-based with 7-inch color touchscreen HMI |
| Safety Compliance | Microwave leakage < 5 mW/cm² (per GB 10436 & IEC 61000-3-2), door interlock, pressure/temperature monitoring, forced-air exhaust, overpressure relief |
| Brand | Makewave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKG-M5TB |
| Chamber Volume | Small-scale |
| Construction Material | Stainless Steel |
| Operating Pressure | Low-pressure |
| Capacity | 1 m³ |
| Vacuum Level | –0.098 Pa |
| Microwave Frequency | 2450 MHz |
| Microwave Power Output | 4 kW |
| Input Power Requirement | 3-phase, 380 V ±5%, 50 Hz |
| Total Electrical Load | ≥7.5 kVA |
| Internal Cavity Dimensions | 400 × 400 × 400 mm (W × H × D) |
| Borosilicate Glass Tube Dimensions | Horizontal section — 700 mm length × 230 mm OD |
| Microwave Leakage | <5 mW/cm² (per GB 10436-2008 / IEC 62233) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MGX-J Series |
| Price Range | USD 21,000 – 42,500 (FOB) |
| Usable Volume | Large-scale (1000 L) |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | Low-pressure (≤0.6 MPa gauge) |
| Vacuum Capability | Atmospheric operation only (no vacuum rating) |
| Frequency | 2450 MHz |
| Microwave Power Output | 8–50 kW (adjustable, industrial-grade frequency-variable magnetron source) |
| Auxiliary Electric Heating Power | 30–100 kW |
| Temperature Range | Ambient to 250 °C |
| Control Interface | PLC-based HMI touchscreen terminal |
| Compliance | GB 5959.6–2008, ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | MGX-J Series |
| Price Range | USD 14,000 – 21,000 |
| Usable Volume | Large-scale |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | High-pressure |
| Capacity | 100 L – 2000 L |
| Vacuum Capability | Not applicable |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H4G1A |
| Reactor Type | High-Pressure Batch Reactor |
| Vessel Capacity | 3 L |
| Working Pressure | Up to 3 MPa |
| Operating Temperature | Up to 220 °C |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 3200 W (continuous, non-pulsed) |
| Cavity Volume | 120 L |
| Construction Material | 304 Stainless Steel with Multi-Layer PTFE Coating |
| Stirring | Magnetic Stirring with PTFE-Coated Stir Bar |
| Temperature Sensing | Fiber-Optic Probe (Insertion Type) |
| Pressure Sensing | Integrated Piezoresistive Sensor |
| Microwave Leakage | <5 mW/cm² |
| Safety Compliance | ISO 9001 Certified |
| Power Supply | 220/380 VAC, 50 Hz |
| Total Power Consumption | 6 kW |
| Dimensions (W×H×D) | 920 × 966 × 685 mm |
| Net Weight | 120 kg |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKM-SH1B |
| Price Range | USD 7,000–14,000 (FOB) |
| Usable Volume | Large-scale |
| Construction Material | Stainless Steel (316L grade) |
| Operating Pressure | Up to 10 MPa (1,450 psi) |
| Reaction Vessel Capacity | 500–1,000 mL |
| Vacuum Rating | 10 MPa (rated for pressurized operation, not vacuum service) |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKG-WM2TA |
| Price Range | USD 7,000 – 14,000 (FOB) |
| Instrument Category | Tube Reactor |
| Volume Capacity | 5 L |
| Construction Material | AISI 304 Stainless Steel |
| Operating Pressure | Low-Pressure (up to 0.1 MPa gauge) |
| Vacuum Capability | Not equipped for vacuum operation |
| Compliance | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-XL10 |
| Usable Volume | Large (8 L) |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | Medium-Pressure (up to 3 MPa) |
| Vacuum Capability | 3 MPa |
| Rated Microwave Power | 8000 W (2450 MHz, continuous non-pulsed output) |
| Max. Temperature | 220 °C |
| Max. Pressure | 3 MPa |
| Control System | PLC-based with touchscreen HMI |
| Safety Compliance | Microwave leakage < 5 mW/cm² (exceeding GB standard) |
| Weight | 120 kg |
| Dimensions (W×H×D) | 1100 × 1800 × 600 mm |
| Power Supply | 380 VAC / 50 Hz |
| Total Power Consumption | 15 kW |
| Certifications | ISO 9001 |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKG-H1C1A |
| Reactor Type | High-Pressure Continuous Flow Reactor |
| Vessel Capacity | 20 L |
| Construction Material | 304 Stainless Steel with 5-Layer PTFE Coating |
| Operating Pressure Range | 0–1 MPa (optional up to 2 MPa) |
| Operating Temperature Range | 0–170 °C (optional up to 200 °C) |
| Microwave Frequency | 2450 ± 50 MHz |
| Microwave Power Output | 0–800 W (continuous, non-pulsed, linearly adjustable) |
| Flow Rate Range | 0–50 mL/min |
| Reaction Tubing | Φ1 mm × 10 m PEEK/PTFE composite tubing |
| Vacuum Capability | 2 Pa |
| Safety Compliance | Microwave leakage < 5 mW/cm² (IEC 61000-4-3 compliant) |
| Dimensions (W×H×D) | 782 × 492 × 450 mm |
| Weight | 50 kg |
| Power Supply | 220 V AC / 50 Hz |
| Total Power Consumption | 1300 W |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | MKX-H4D915 |
| Price Range | USD 21,000–42,000 (FOB) |
| Usable Volume | Large-scale (76 L cavity) |
| Construction Material | Industrial-grade 304 stainless steel with multi-layer PFA fluoropolymer coating |
| Operating Pressure Class | Medium-pressure rated (up to 2 MPa typical design) |
| Capacity | 76 L cavity volume |
| Microwave Frequencies | 2450 MHz (0–2400 W) and 915 MHz (0–1000 W), independently controllable |
| Temperature Range | 0–300 °C continuous |
| Temperature Measurement | Non-contact infrared pyrometry (0–500 °C) |
| Stirring Options | Dual-mode — overhead mechanical stirring + internal magnetic stirring, speed continuously adjustable |
| Control System | PLC-based intelligent controller with 7″ color touchscreen interface |
| Data Logging | Real-time dynamic curves (time/temperature/power), multi-segment program storage, USB export capability |
| Safety Compliance | Microwave leakage <5 mW/cm² (per GB 10436-2008), interlocked door safety, explosion-resistant viewport, integrated exhaust port, overtemperature/overpressure/overcurrent protection |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

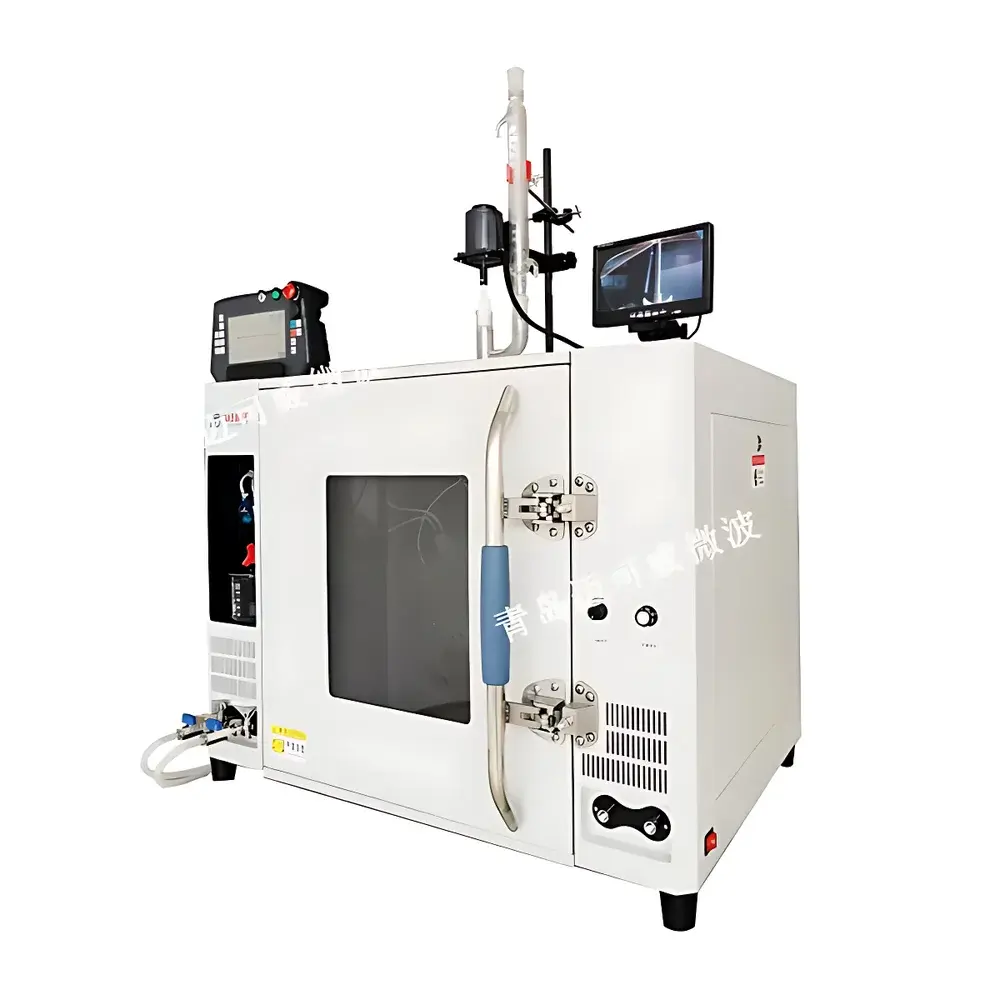

| Model | MKD-H4C1 |
| Price Range | USD 14,000–21,000 (FOB) |
| Usable Volume | 80 L |
| Construction Material | 304 Stainless Steel |
| Operating Pressure | Atmospheric (0.1 MPa nominal) |
| Vacuum Capability | Not applicable (open-mode design) |
| Microwave Frequency | 2450 MHz |
| Rated Microwave Power | 4000 W (continuously adjustable, non-pulsed) |
| Max. Operating Temperature | 300 °C |
| Cooling Requirement | External chilled water supply for condenser |
| Safety Compliance | Microwave leakage < 5 mW/cm² (per GB 10436 & IEC 61000-3-2) |
| Weight | 100 kg |
| Dimensions (Main Unit) | 900 × 920 × 600 mm (W × H × D) |
| Top Support Frame Height | +500 mm |
| Certifications | ISO 9001 certified |
| Brand | MakeWave |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

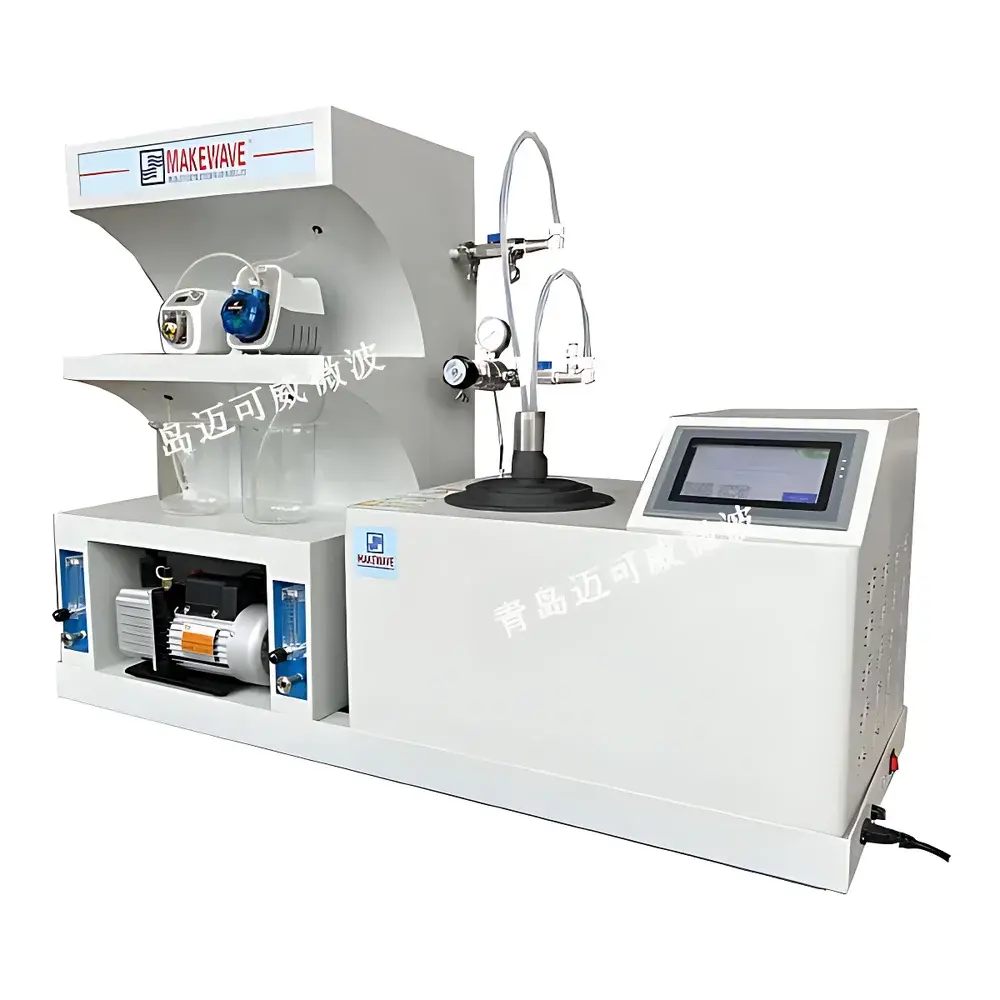

| Model | MKM-CH1E |
| Vessel Volume | 1 L |
| Construction Material | 304 Stainless Steel (Internally PFA-Coated) |
| Operating Pressure Range | 0–0.5 MPa |
| Microwave Frequency | 2450 MHz |
| Microwave Power Output | 700 W (Continuously Adjustable, Non-Pulsed) |
| Temperature Control Range | 0–200 °C (Extended to 300 °C) |
| Flow Rate Range | 0–1000 mL/min |
| Reaction Tube Options | PFA tubing (Φ1 mm, Φ3 mm, Φ6 mm), Optional Glass Coiled Tubing |
| Safety Compliance | Microwave Leakage < 5 mW/cm² (IEC 61000-4-3 Equivalent), Interlocked Access Door, λ/4 Choke Seal, Real-Time Thermal & Overpressure Monitoring |
| Power Supply | 220 VAC / 50 Hz |
| Total Power Consumption | ≤1300 W |
| Dimensions (W×H×D) | 1270 × 923 × 472 mm |
| Net Weight | 75 kg |
