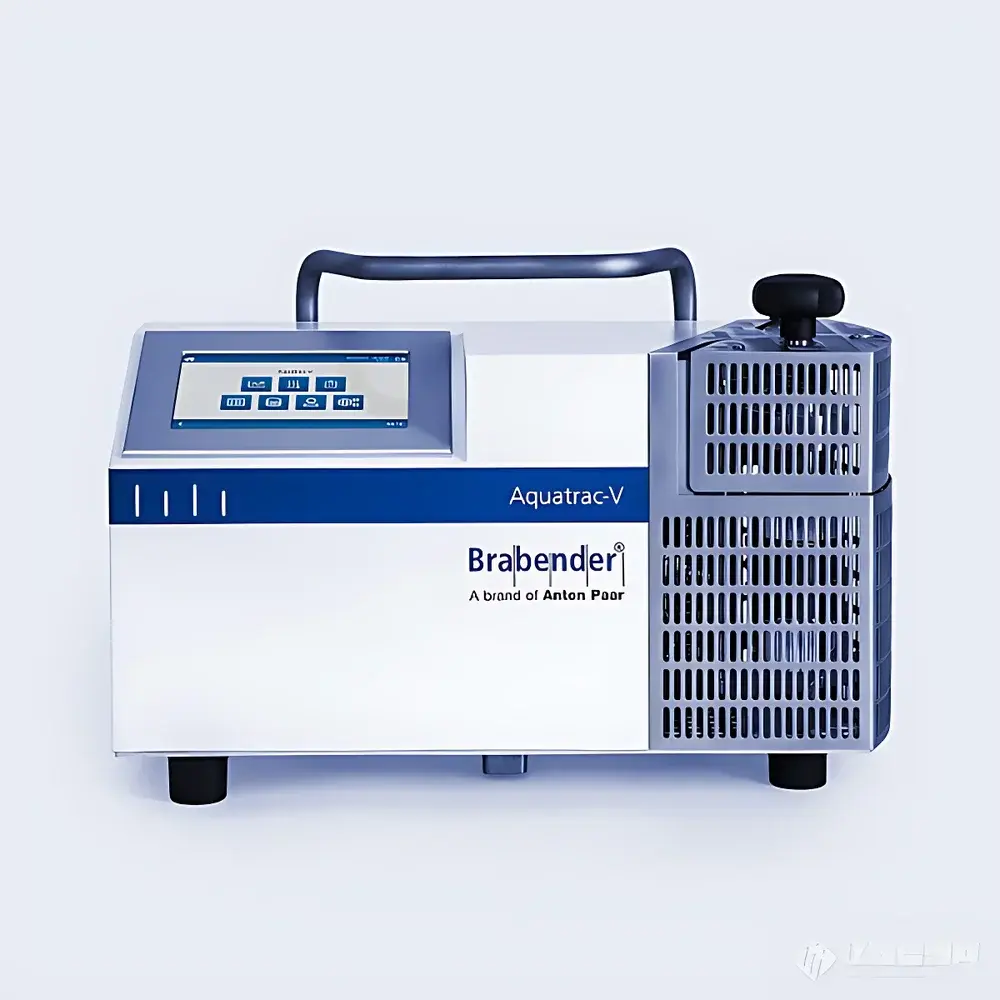

| Brand | Anton Paar Brabender |
|---|---|
| Origin | Germany |
| Model | Aquatrac-V |
| Measurement Principle | Calcium Hydride Reaction (DIN EN ISO 15512:2019) |
| Resolution | 0.0001% H₂O |
| Application | Residual Moisture Analysis in Thermoplastics & MFR Sample Preparation |
| Compliance | Fully compliant with DIN EN ISO 15512:2019 for selective water determination in plastics |
| Software | Aquatrac Control Software with LIMS/ERP integration capability |
| Data Integrity | Audit trail, user access levels, electronic signatures (21 CFR Part 11 ready) |
| Brand | SPECTRUMA |
|---|---|
| Origin | Germany |
| Model | GDA 750 / GDA 550 |
| Detection Principle | Glow Discharge Optical Emission Spectroscopy (GD-OES) |
| Spectral Range | 190–800 nm (standard PMT system) |
| Spectral Resolution | <20 pm FWHM (PMT) |
| Optical System | Paschen-Runge mount, 750 mm focal length, holographically ruled grating (2400 lines/mm) |
| Max. Analytical Depth | >200 µm |
| Depth Resolution | ≤1 nm |
| Elemental Coverage | H, O, N, Cl, C, and all elements from Li to U |
| Detection Limits | Sub-ppm (matrix-dependent) |
| Sputter Diameter | 1–8 mm (adjustable, same source) |
| DC Source | Up to 1500 V, 250 mA, fully programmable |
| RF Source | Up to 150 W, pulsed mode optional (GDA 750 only) |
| Sample Thickness Range | 50 µm – 45 mm |
| Vacuum System | Dual-stage rotary vane pump (<50 dB), oil-free pump for source chamber |
| Optional Accessories | High-resolution CCD optical system, RF pulse generator, load-lock transfer chamber, 100-position autosampler, monochromator with triple-grating turret |
| Brand | Kunyuan Instruments |
|---|---|
| Origin | Tianjin, China |
| Model | Sparkle |
| Cooling | Liquid Nitrogen (Ambient Pressure) |
| Resolution Modes | 400 / 4000 / 10,000 (switchable in <1 s) |
| Detection Limit | Sub-ppb (typical), down to low-ppt (element-dependent) |
| Dynamic Range | 12 decades (Faraday cup + electron multiplier) |
| Sample Throughput | Full-element scan (78 elements) <5 min |
| Depth Resolution | Sub-micrometer |
| Gas Consumption | Ar, ≥99.9995% purity |
| Dimensions | 2160 × 2040 × 1480 mm (L×W×H) |
| Power | AC 220 V / 50 Hz, grounding resistance <2 Ω |
| Cooling | External chiller (500 W) for turbo pumps & magnet |
| Ambient | 18–24 °C, 40–60% RH |

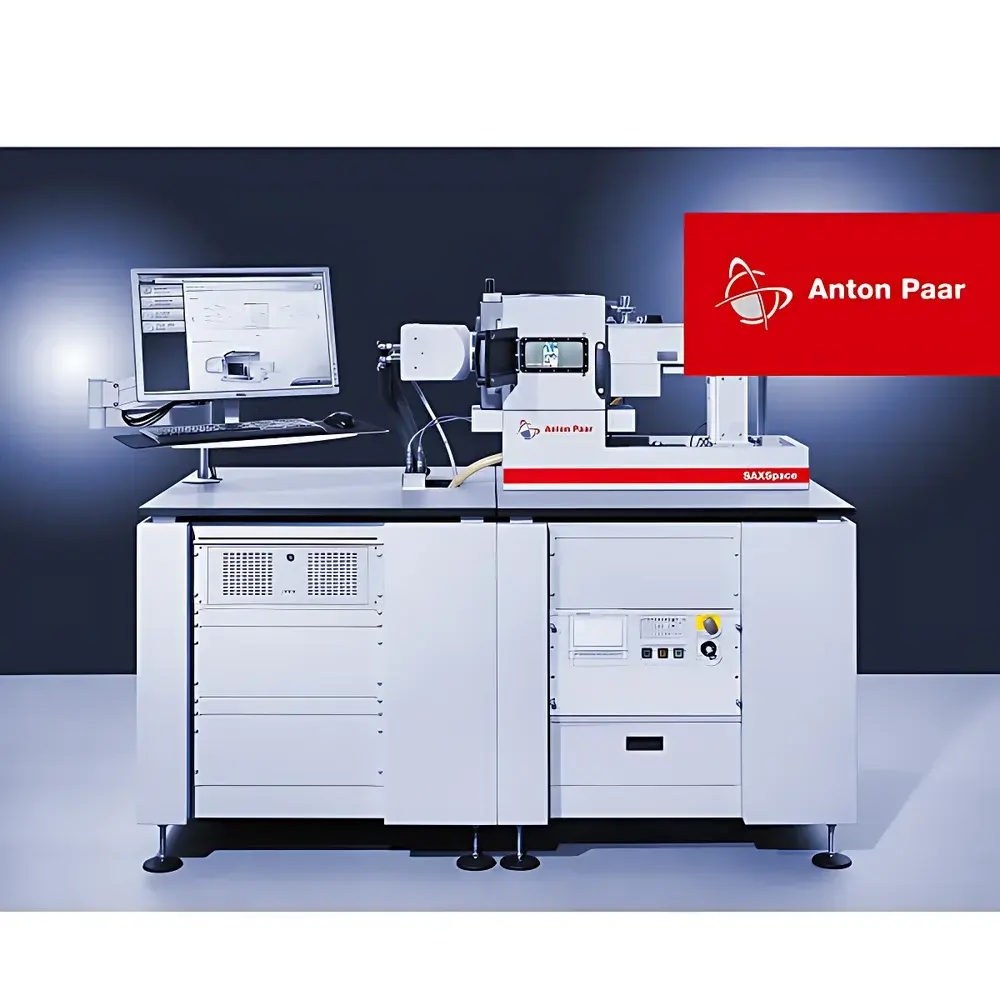

| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Model | SAXSpace |
| Instrument Type | Small-Angle and Wide-Angle X-ray Scattering (SAXS/WAXS) System |
| q-Range | 0.03–49 nm⁻¹ |
| Real-Space Resolution Range | 0.13–200 nm |
| Maximum 2θ | 74° |
| X-ray Source | Sealed-tube (line or point focus) |
| Beam Size | 20 × 0.3 mm² (line), 0.3 × 0.3 mm² (point) |
| Operating Voltage | 40 kV |
| Operating Current | 50 mA |
| Minimum Sample Volume | 7 µL (liquid), few mg (solid) |
| Temperature Control Range | −150 to 300 °C (±0.1 °C stability) |
| Measurement Time | 1–60 min |
| Automation | Motorized optical alignment, in situ heating/cooling, liquid handling compatibility |
