| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |

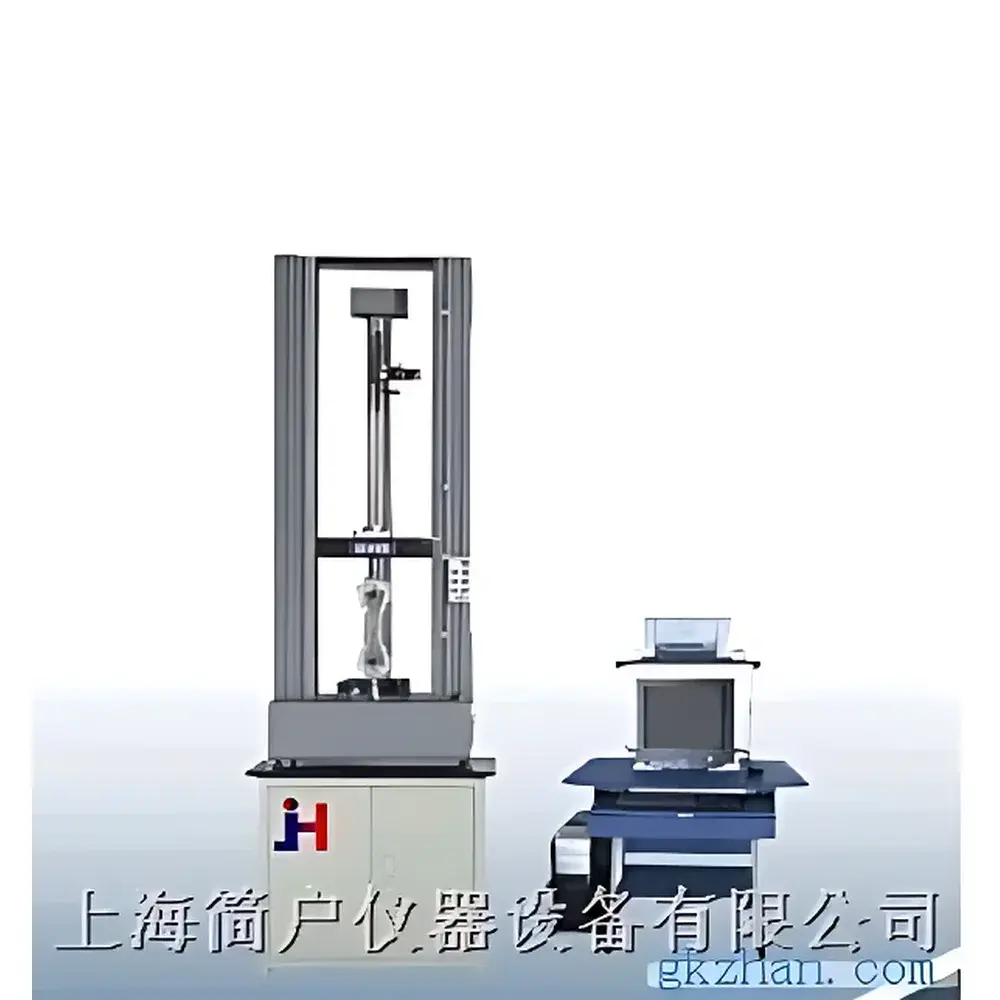

| Model | JH-8000 Series |
| Load Capacity | 0–500 kgf to 30,000 kgf (configurable by model) |
| Load Accuracy | ±0.25% (servo models) or ±1% (economy/microcomputer models) |
| Test Speed Range | 0.001–1000 mm/min (model-dependent) |
| Crosshead Travel | 150–1000 mm (selectable) |
| Effective Width | 400–500 mm |
| Drive System | Panasonic AC servo motor (JH-8000, JH-8000A, JH-8010) or AC frequency inverter motor (JH-8003/04/07/08) |
| Control Interface | Dell PC with proprietary software (high-end models) or large LCD + dual digital display (economy/microcomputer models) |
| Frame Type | Dual-column portal (JH-8000/JH-8000A/JH-8001) or single-column (JH-8010/JH-8002/JH-8003–JH-8007) or horizontal/desktop (JH-8006/JH-8008) |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-200/300 kN |
| Load Capacity | 200 kN / 300 kN |
| Load Measurement Range | 2–100% of full scale |
| Load Accuracy | ±1% or better |
| Effective Tensile Stroke | 650 mm (customizable) |
| Speed Range | 0.05–200 mm/min |
| Speed Accuracy | ±1% |
| Displacement Resolution | 0.01 mm |
| Power Supply | 220 V ±10%, 1 kW |
| Fixture Standard | One set of tensile grips and one set of compression platens |
| Interface Option | RS-232 or USB for external PC connection |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Classification | Domestic (PRC) |
| Model | DV-500E |
| Price | Upon Request |
| Max Load Capacity | 500 N |
| Speed Range | 10–180 mm/min |
| Dimensions (L×W×H) | 400 × 320 × 620 mm |
| Net Weight | 30 kg |
| Maximum Travel | 200 mm (excluding fixtures) |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | JH Series |
| Instrument Category | Universal Tensile Tester (Single-Column Configuration) |
| Quotation | Available Upon Request |
| Key Specifications | Max Load Options — 500 N / 1 kN / 2 kN / 5 kN / 10 kN |
| Load Measurement Range | 2–100% of Full Scale |
| Load Accuracy | ±1% of Indicated Value |
| Extension Range | 0–700 mm (customizable) |
| Displacement Resolution | 0.01 mm |
| Displacement Accuracy | ±1% of Reading |
| Speed Range | 0.01–500 mm/min (infinitely variable, closed-loop controlled) |
| Standard Fixture | One Set of Tensile Grips (customizable per ISO 527, ASTM D638, GB/T 1040) |
| Core Components | Panasonic AC Servo Drive & Motor (High-End Config), Taiwan-Made AC Servo System (Standard Config), High-Precision Photoelectric Encoder, U.S.-Sourced Load Cell, Precision Ground Ball Screw Assembly, Aluminum Alloy Enclosure |
| Dimensions (W×D×H) | 435 × 275 × 1500 mm |
| Power Supply | Single-Phase 220 VAC, 50 Hz |
| Net Weight | 150 kg |
| Origin | Shanghai |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |

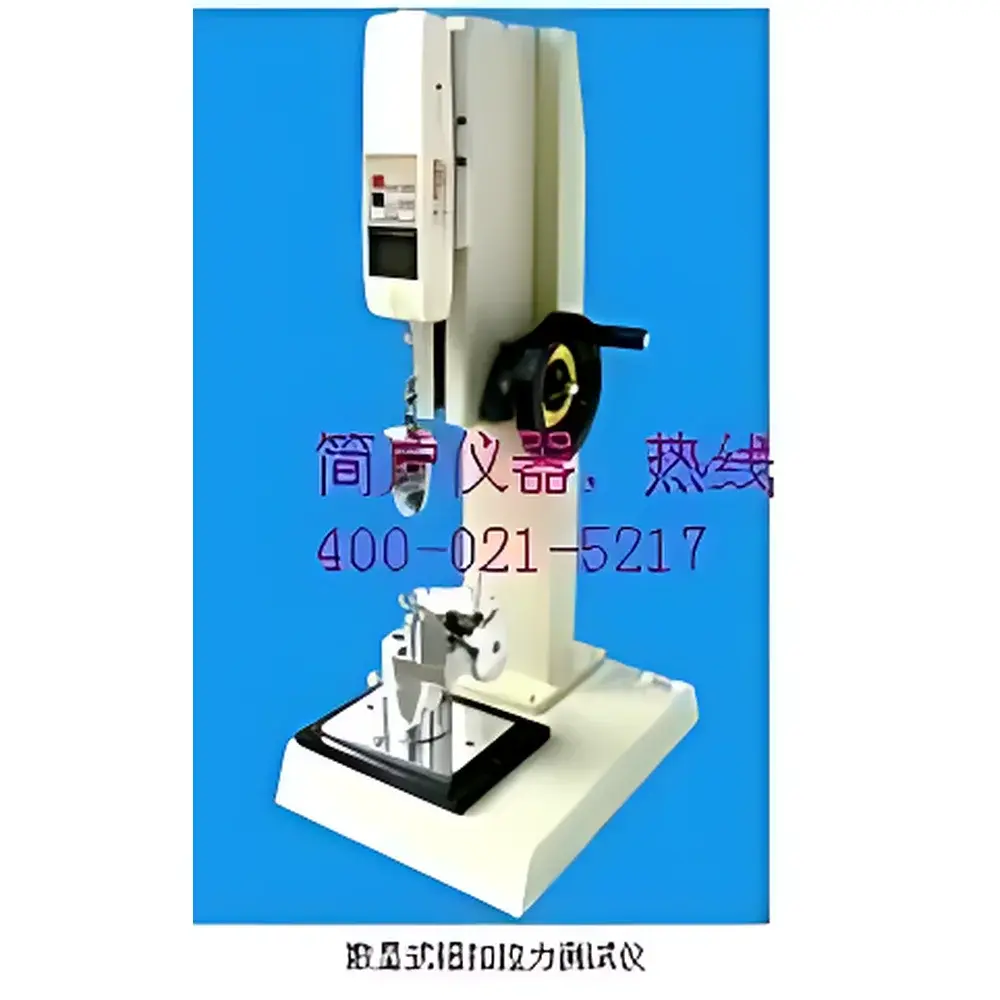

| Model | JH Q Series |
| Pricing | Upon Request |
| Maximum Load Capacity | 300 N |
| Effective Stroke | 180 mm |
| Dimensions (L×W×H) | 260 mm × 360 mm × 700 mm |
| Net Weight | ~20 kg |
| Digital Force Gauge | Optional Accessory |
| Analog (Dial) Force Gauge | Compatible |
| Dedicated Button Fixtures | Included |
| Brand | Jinhoo |
|---|---|
| Model | JHR-500P |
| Type | Electromechanical Tensile & Compression Testing System |
| Load Capacity | 5 kN |
| Force Sensor Standard | 20 N (2 kgf), expandable with optional multi-range load cells |
| Accuracy Class | 0.2 |
| Force Measurement Range | 0.4–100% FS |
| Force Resolution | ±1/300,000 of full scale, unsegmented across entire range |
| Deformation Measurement Range | 0.2–100% FS |
| Deformation Accuracy | ±0.2% of reading |
| Deformation Resolution | ±1/300,000 of maximum deformation |
| Displacement Accuracy | ±0.2% of reading |
| Displacement Resolution | 0.02 µm |
| Crosshead Speed Range | 0.001–200 mm/min |
| Speed Control Accuracy | ±0.2% of set value |
| Strain Rate Range | 0.001–2% FS/min |
| Strain Rate Control Accuracy | ±0.2% of set value |
| Effective Test Width | 370 mm or 210 mm (configurable) |
| Maximum Tensile Travel | 700 mm or 1200 mm (configurable) |
| Maximum Compression Stroke | 700 mm |
| Frame Type | Dual-column portal structure |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 0.4 kW |
| Net Weight | 160 kg |
| Dimensions (W×D×H) | 800 × 410 × 1600 mm |
| Compliance | ASTM E4, ASTM E8/E21, ISO 6892-1, ISO 7500-1, GB/T 228.1, JIS Z2241, DIN 50125 |
| Software Platform | Windows 2000/XP/7 compatible, bilingual (English/Chinese), GLP-compliant data handling |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | Jianhu |
| Pricing | Available Upon Request |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Domestic Distributor |
| Product Origin | China |
| Model | JH-8006 |
| Pricing | Upon Request |
| Capacity | 50 kgf |
| Resolution | 1/200 |
| Stroke | 150 mm |
