| Origin | China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | JH-7126 / JH-7125 |
| Table Dimensions (L×W) | 100×100 mm / 100×120 mm |
| Max Load Capacity | 100 kg |
| Frequency Range | 100–300 rpm |
| Amplitude | 25.4 mm |
| Timer Range | 0–99.99 h (selectable in s, min, or h) |
| Power Supply | 220 V AC, 50 Hz, 5 A |
| Compliance Basis | ASTM D4169, ISO 8564, ISTA 3A & 3E |

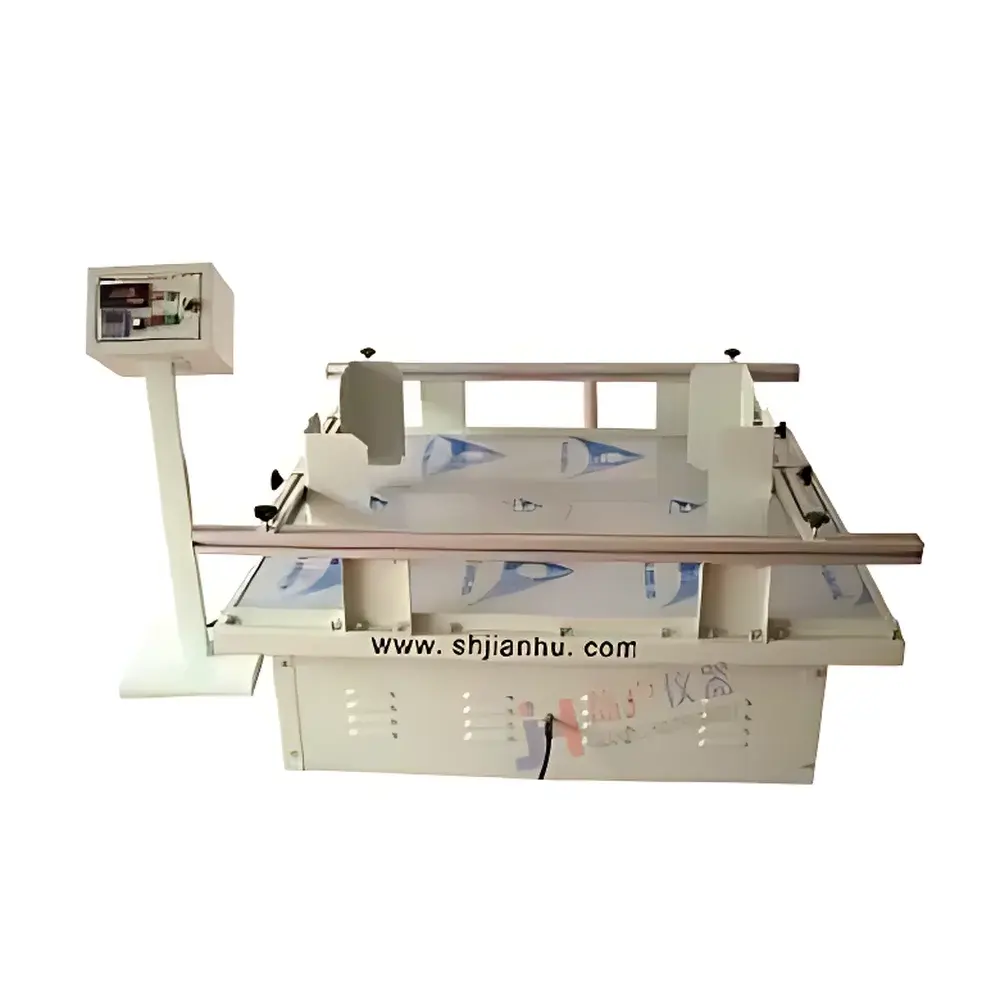

| Brand | SimuTran |
|---|---|
| Model | JH-7126 |
| Type | Electromechanical Rotary Vibration Shaker |
| Rated Thrust | 25.4 N |
| Frequency Range | 100–300 rpm |
| Max Test Load | 100 kg |
| Table Dimensions | 1000 × 1000 mm |
| Amplitude | 25.4 mm |
| Timer Range | 0–99.99 h (selectable in s, min, or h) |
| Power Supply | 220 V AC, 50 Hz, 5 A |
| Compliance | ASTM D999, ISTA 3A/3E, ISO 13355, GB/T 4857.23 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JDZD-7126 |
| Instrument Type | Mechanical Vibration Shaker |
| Rated Thrust | 25.4 kgf |
| Rated Frequency Range | 100–300 rpm |
| Maximum Test Load | 100 kg |
| Table Surface Dimensions | 100 × 100 mm |
| Maximum Acceleration | Not specified (material: stainless steel construction) |
| Timer Range | 0–99.99 h (selectable units: s, min, h) |
| Power Supply | Single-phase 220 V, 50 Hz, 5 A |
| Compliance Basis | Designed per ISO 8767, ASTM D999, and ISTA 3A/3E transport simulation standards |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Manufacturer |
| Regional Classification | Domestic (PRC) |
| Model | JH |
| Pricing | Upon Request |
| Origin | China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | JDZD-L / JDZD-H / JDZD-LH / JDZD-F / JDZD-HF / JDZD-TF |
| Frequency Range | 1–400 Hz |
| Scan Range | 1–400 Hz |
| Max. Load Capacity | 100 kg |
| Peak-to-Peak Amplitude | 0–5 mm |
| Max. Acceleration | 20 g |
| Vibration Axes | Vertical, Horizontal, or Dual-Axis (Vertical + Horizontal) |
| Waveform | Sinusoidal |
| Control Modes | Sine, Amplitude Modulation (AM), Sweep (Linear & Logarithmic), Programmable Profile, Octave Tracking, Time-Controlled Sequencing |
| Power Rating | 2.2 kW |
| Table Size | 50 cm × 50 cm |
| Input Voltage | 220 V ±20% |
| Compliance | GB/T 2423.10, IEC 60068-2-6 (Fc), JJG 189–1997, GB/T 13309–1991 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Electrodynamic Vibration Shaker |
| Rated Thrust | 2000 kgf |
| Frequency Range | 1–600 Hz / 1–3000 Hz / 1–5000 Hz (±0.1%) |
| Max Test Load | 0–100 kg |
| Table Dimensions | 500 × 6 × 500 mm |
| Max Acceleration | 0–20 g (0–196.2 m/s²) |
| Peak Sine Force | 2000 kgf |
| Displacement (p-p) | 0–5 mm |
| Programmable Segments | 15 |
| Precision | 0.01 Hz frequency resolution |
| Power Supply | 220 V ±20%, 50/60 Hz |
| Input Current | ≤10 A |
| Motor Power | 2.2 kW |
| Cooling | Natural Air Cooling |
| Operating Environment | –10 °C to +60 °C, 10–95% RH |
| Sound Pressure Level | ≤60 dB(A) |
| Magnetic Field Emission | ≤110 mG at 1 m |
| Communication Interface | RS-485 |
| Optional Accessories | Acceleration/Displacement Sensor Kit, Full PC Control Software Suite |
| Brand | Jianhu |
|---|---|
| Model | JDZD-HF |
| Type | Electrodynamically Driven Vibration Shaker |
| Rated Frequency Range | 1–5000 Hz |
| Maximum Test Load | 100 kg |
| Table Surface Dimensions | 500 mm × 500 mm |
| Peak-to-Peak Displacement | 0–5 mm |
| Maximum Acceleration | 20 g |
| Vibration Axes | Vertical, Horizontal, or Dual-Axis (Vertical + Horizontal) |
| Waveform | Sinusoidal |
| Drive Power | 2.2 kW |
| Input Voltage | 220 V ±20% |
| Compliance | GB/T 2423.10, IEC 60068-2-6 (Fc), JJG 189–1997, GB/T 13309–1991 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JDZD-TF |
| Vibration Mode | Vertical Only |
| Frequency Range | 1–400 Hz |
| Max. Load Capacity | 100 kg |
| Peak-to-Peak Amplitude | 0–5 mm |
| Acceleration Capability | Up to 20 g (peak) |
| Waveform | Sinusoidal |
| Control Mode | Programmable Sine, Sweep (Linear/Logarithmic), Amplitude Modulation, Time-Based Test Sequencing |
| Drive Power | 2.2 kW |
| Table Size | 50 cm × 50 cm |
| Input Voltage | 220 V ±20% |
| Compliance | GB/T 2423.10, IEC 60068-2-6 (Fc), JJG 189–1997, GB/T 13309–1991 |
| Software Interface | PC-based control with data logging and test report generation |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Type | Electrodynamically Driven 6-Axis Vibration Shaker |
| Rated Thrust | 0–900 kgf |
| Frequency Range | 1–600 Hz (display resolution: 0.01 Hz, accuracy: ±0.1 Hz) |
| Max. Test Load | 100 kg |
| Table Dimensions | 500 mm × 500 mm × 10 mm (L×W×H) |
| Peak Acceleration | 20 g (rms up to 14.1 g) |
| Displacement (p-p) | 0–5 mm |
| Power Consumption | 3.3 kW |
| Input Voltage | 220 V ±20% |
| Communication Interface | RS-485 |
| Compliance | Designed per ISO 5344, IEC 60068-2-6, and ASTM D999 test standards |
