| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-9050A / JH-9100A / JH-9200A / DJH-30L–DJH-1000L Series |
| Max Temperature | 400 °C (JH-A series) / 300 °C (DJH-L/M series) |
| Temperature Range | RT+10 °C to 400 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±1 °C |
| Power Supply | 220 V / 50 Hz (models ≤220 L), 380 V / 50 Hz (models ≥420 L) |
| Internal Volume | 30 L to 1000 L |
| Construction | Mirror-finish stainless steel inner chamber, powder-coated carbon steel outer casing |
| Air Circulation | Vertical forced convection with high-temp-rated imported centrifugal blower |
| Viewing Window | Double-layer tempered glass |
| Standard Shelving | 2–5 adjustable stainless steel trays |
| Timer Range | 1–9999 minutes |
| Compliance | Designed for GLP/GMP-aligned laboratory and industrial aging validation workflows |

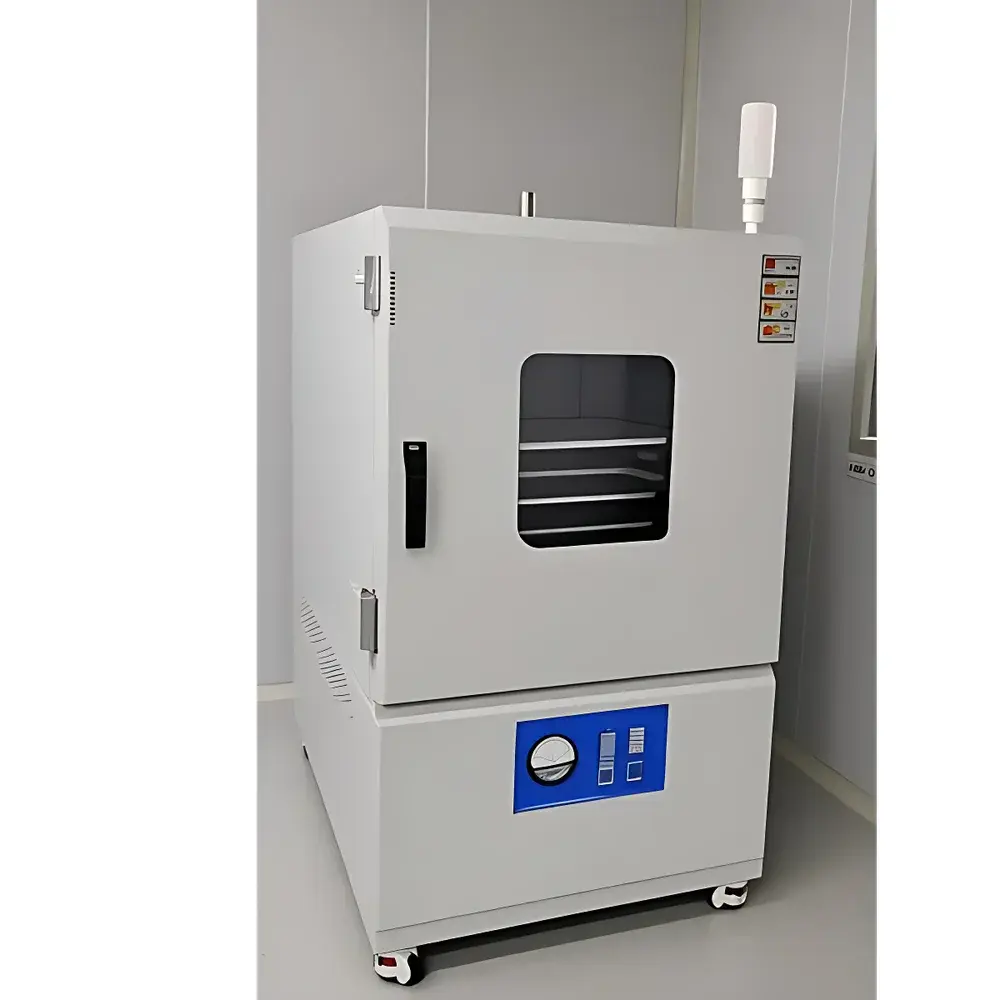

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Type | Vacuum-Enabled High-Temperature Aging Chamber |
| Temperature Range | 150°C to 260°C |
| Temperature Uniformity | ±0.3°C |
| Temperature Fluctuation | ±0.2°C to ±0.5°C |
| Temperature Deviation | ≤ ±2°C |
| Heating Rate | 1–3°C/min |
| Cooling Rate | ≤45 min from 150°C to –40°C |
| Chamber Dimensions | Customizable (standard volumes from 30 L to >2 m³) |
| Oxygen Control | Dynamic micro-oxygen purge system (≤5 ppm O₂) |
| Compliance | SEMI S2/S8 certified, ISO 9001 compliant, supports GLP/GMP audit trails |

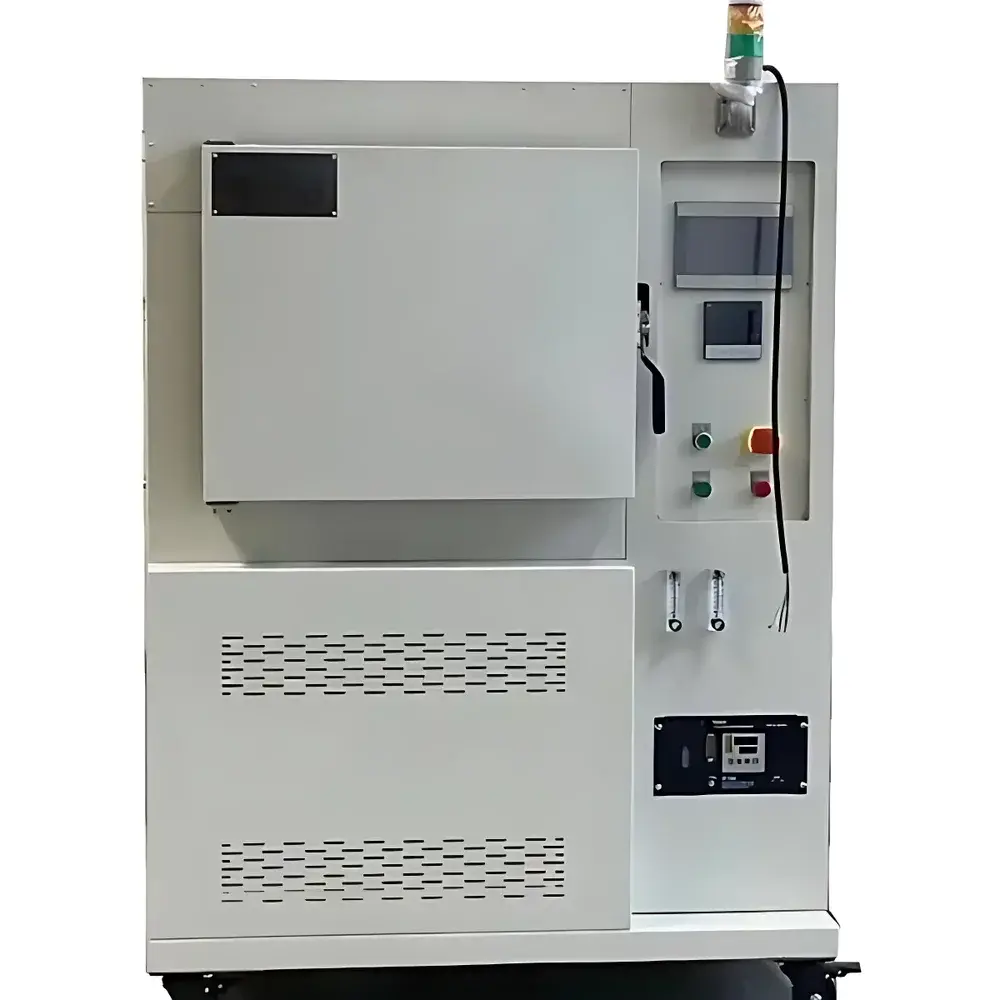

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | JH-Series Polyimide Vacuum Oxygen-Free Oven |
| Temperature Range | 150°C to 450°C |
| Temperature Uniformity | ±1.0°C |
| Temperature Stability | ±0.2°C to ±0.5°C |
| Temperature Deviation | ≤ ±2.0°C |
| Heating Rate | Up to 20°C/min |
| Cooling Rate | From 150°C to −40°C in ≤45 min |
| Vacuum Level | 5×10⁻⁴ Pa (with molecular pump + roots pump system) |
| Oxygen Concentration Control | ≤5 ppm (via laser-based O₂ sensor and adaptive N₂ purge algorithm) |
| Chamber Volume | Customizable (from 30 L to >5 m³) |
| Compliance | SEMI S2/S8, ISO 9001, AS9100D, GLP-ready architecture |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Vacuum Oxygen-Free Oven |
| Temperature Range | 150–260 °C |
| Max Operating Temperature | <150 °C (for PSPI process window) |
| Temperature Uniformity | ±0.3 °C |
| Temperature Fluctuation | ±0.2–±0.5 °C |
| Temperature Deviation | ≤±2 °C |
| Heating Rate | 1–3 °C/min |
| Cooling Rate | ≤45 min (150 °C to −40 °C) |
| Chamber Dimensions | Customizable (from tens of liters to several cubic meters) |
| Vacuum Capability | <10⁻³ Pa (optional configuration) |
| Oxygen Control | ≤5 ppm (with integrated N₂ purge & laser O₂ sensor) |

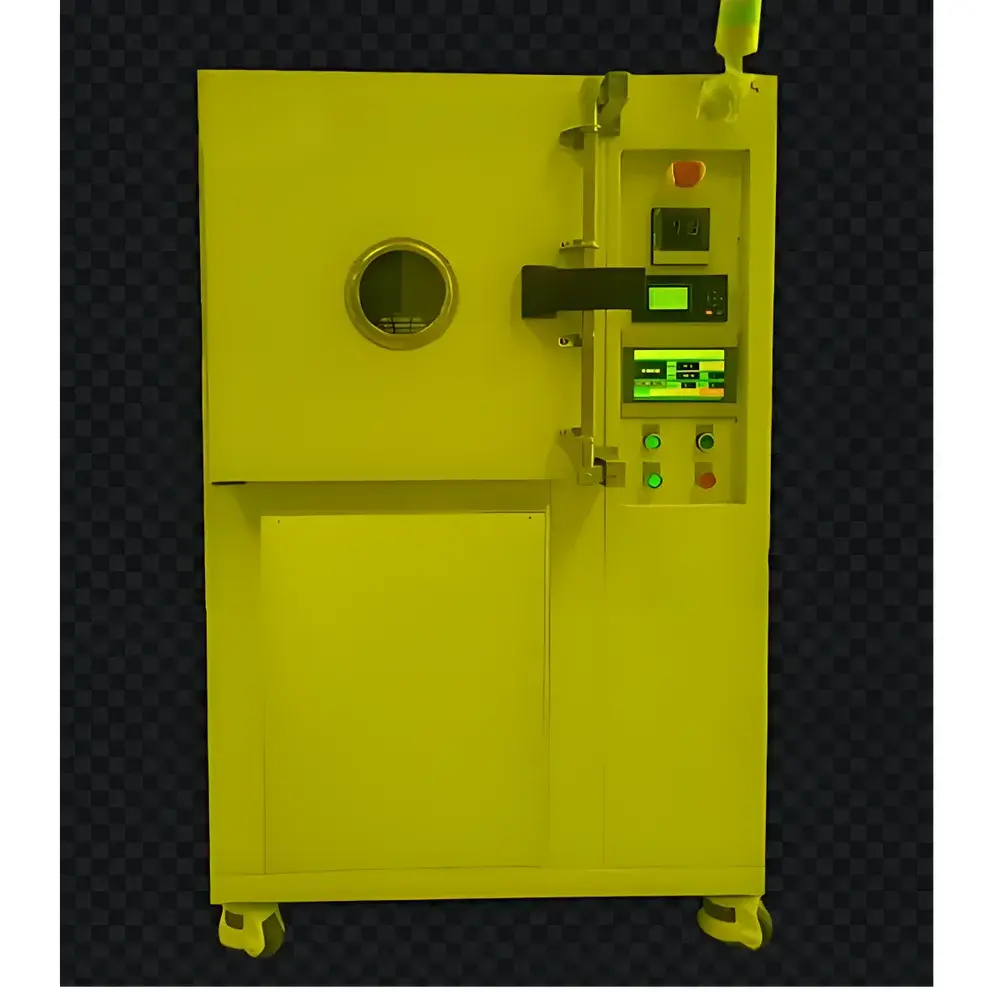

| Brand | JH Instruments |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | JH-PI Anaerobic Curing Oven |
| Price Range | USD 950 – 95,000 |
| Max Operating Temperature | 200–300 °C |
| Product Type | Air-Circulating Thermal Aging Chamber |
| Classification | High-Temperature Aging Test Chamber |
| Temperature Range | 150–260 °C |
| Temperature Uniformity | ±0.3 °C |
| Temperature Fluctuation | ±0.2–±0.5 °C |
| Temperature Deviation | ≤±2 °C |
| Heating Rate | 1–3 °C/min |
| Cooling Rate | ≤45 min (from 150 °C to –40 °C) |
| Air Exchange Rate | Custom-configurable per process requirement |
| Internal Chamber Dimensions (W×H×D) | Fully customizable — standard volumes range from 30 L to >3 m³ |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JH |
| Quotation | Upon Request |
| Max Operating Temperature | 300–400 °C |
| Vacuum Performance | ≤5×10⁻² Torr |
| Temperature Uniformity | ±2.0% |
| Voltage | 220 V AC |
| Power Rating | 12 kW |
| Internal Construction | SUS304 Stainless Steel |
| External Construction | SECC Steel with Powder-Coated Finish |
| Filtration | Integrated ISO Class 1000 (1,000 particles/ft³ ≥0.5 µm) Clean Air Recirculation |
| Control System | PID Microprocessor with PV/SV Dual Display, SSR-Driven Heating |
| Safety Systems | Independent Over-Temperature Cut-Off, Self-Diagnostic Routine, Overload Auto-Disconnection |
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | JH-Series High-Temperature Aging Test Chamber |
| Max Operating Temperature | ≤150 °C |
| Temperature Range | Consult Technical Support |
| Temperature Uniformity | Consult Technical Support |
| Temperature Fluctuation | Consult Technical Support |
| Temperature Deviation | Consult Technical Support |
| Brand | Jinhuhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |

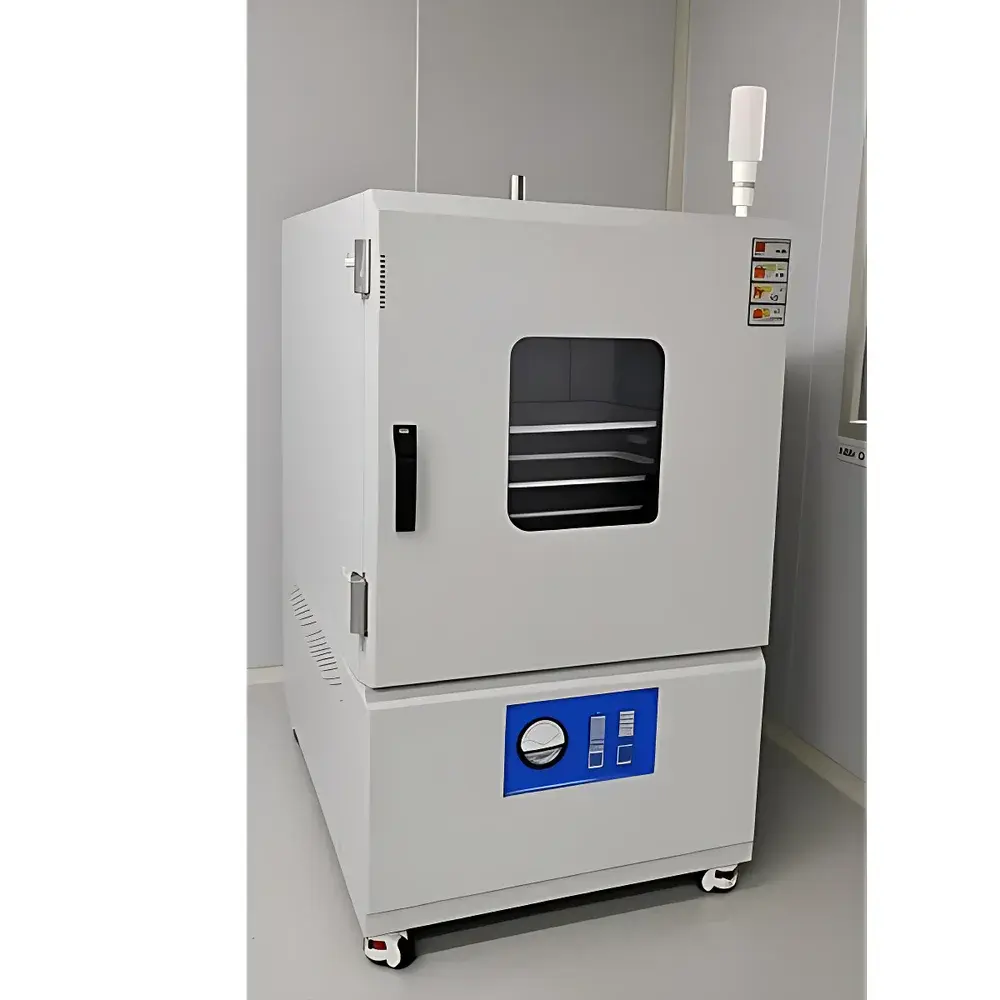

| Model | JH-Series Polyimide (PI) High-Temperature Vacuum Curing Oven |
| Temperature Range | 150 °C to 450 °C |
| Temperature Uniformity | ±1.0 °C (at 450 °C, 32-point measurement) |
| Temperature Stability | ±0.2 °C to ±0.5 °C |
| Temperature Deviation | ≤±2.0 °C |
| Heating Rate | Up to 20 °C/min |
| Cooling Rate | From 150 °C to −40 °C in ≤45 min |
| Oxygen Concentration Control | ≤5 ppm (real-time laser O₂ sensing + N₂ purge) |
| Vacuum Level | 5×10⁻⁴ Pa (turbomolecular + roots pump system) |
| Chamber Volume | Customizable (from 30 L to >5 m³) |
| Compliance | SEMI S2/S8, ISO 9001, AS9100D, GB/T 2423.2 |
| Brand | Jianhu |
|---|---|
| Origin | Jiangsu, China |
| Model | PCT Series |
| Temperature Range | +100°C to +132°C (saturated steam) |
| Humidity Range | 100% RH (saturated vapor) |
| Pressure Range | 0.5–2.0 kg/cm² (gauge), max safety capacity 3.5 kg/cm² |
| Time Setting Range | 0–999 h |
| Temperature Uniformity | ±2.0°C |
| Control Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Heating Time (RT → 132°C) | ≤35 min |
| Pressurization Time (0 → 2.0 kg/cm²) | ≤40 min |
| Internal Chamber Shape | Cylindrical |
| Construction Material | Stainless Steel (SUS304) |
| Safety Features | Vacuum pre-purge, auto-pressure release, over-pressure limit cutoff, dry-out cycle, auto-refill system |
| Compliance | ASTM D3574, IEC 60068-2-66, JIS C 0068, ISO 16750-4, MIL-STD-810H, NACE TM0177, UL 746C, CNS 12239 |

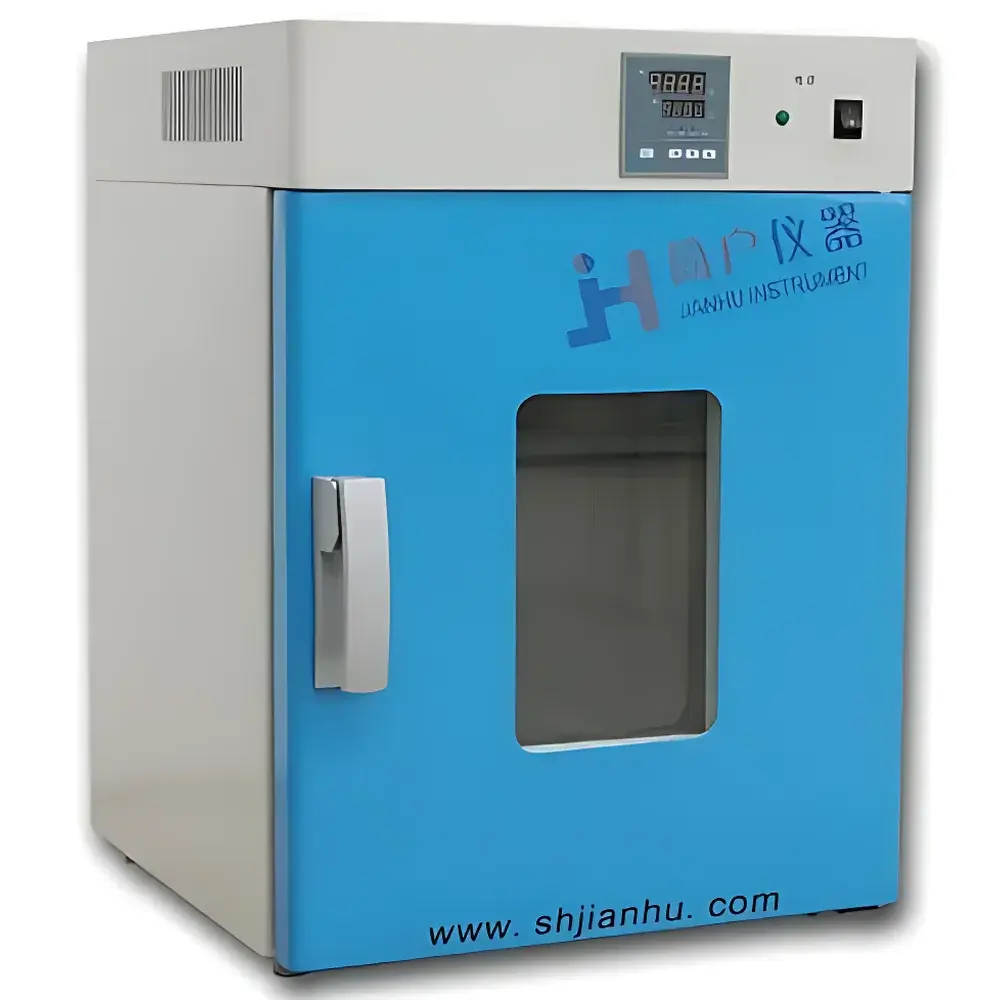

| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-High-Temperature Aging Test Chamber |
| Product Type | Forced-Air Thermal Aging Chamber |
| Temperature Range | +10°C to 200°C |
| Max Operating Temperature | 300–400°C (customizable) |
| Temperature Uniformity | Consult factory for specification |
| Temperature Fluctuation | ±1°C |
| Temperature Deviation | ≤ ±0.5°C |
| Heating Rate | ≤40 min (from ambient +20°C to 200°C) |
| Cooling Rate | 0.7–1.0°C/min |
| Air Exchange Rate | Factory-configurable |
| Internal Chamber Dimensions (W×H×D) | Custom-engineered per application |
| Compliance | Designed to support ASTM D573, ISO 188, ISO 2578, GB/T 3512, and USP <1151> thermal stability protocols |

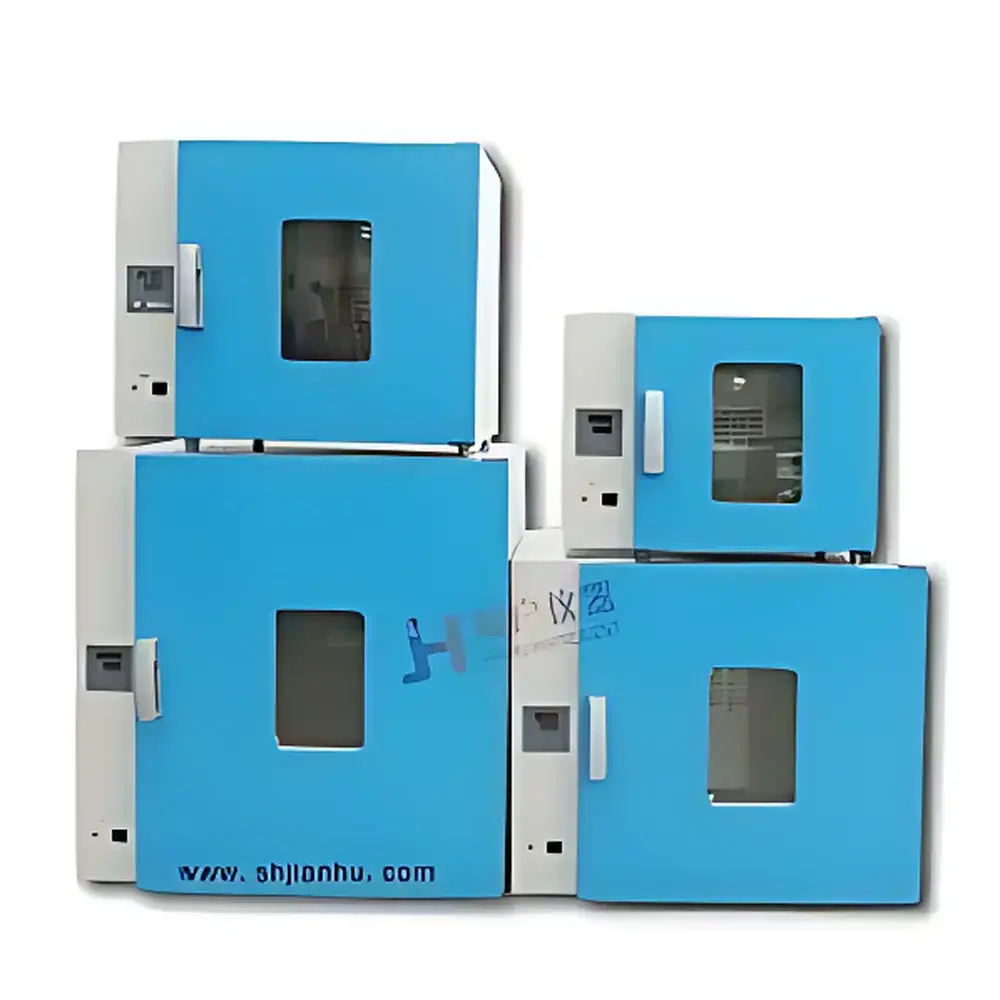

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DJH-24L-L to DJH-220L-M |
| Power Supply | 220 V, 50 Hz |
| Temperature Range | RT+10 °C to 250 °C (L-series) / RT+10 °C to 300 °C (M-series) |
| Temperature Resolution | ±0.1 °C |
| Temperature Uniformity | ±0.5 °C (L-series) / ±1.0 °C (M-series) |
| Operating Ambient Temperature | 5–40 °C |
| Input Power | 500–2870 W (model-dependent) |
| Chamber Dimensions (W×D×H, mm) | 300×300×270 to 600×550×750 |
| External Dimensions (W×D×H, mm) | 500×450×440 to 880×770×930 |
| Standard Shelving | 2 stainless-steel trays |
| Timer Range | 1–9999 min |
| Interface | RS485 (optional) |
| Brand | Jianhu |
|---|---|
| Model | DJH-30L-L |
| Origin | Hunan, China |
| Temperature Range | 100–500 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±1 °C |
| Interior Dimensions (W×D×H) | 350×350×400 mm |
| Capacity | 50 L |
| Power Supply | 220 V / 50 Hz |
| Input Power | 2800 W |
| Interior Material | Mirror-finish (brushed) stainless steel |
| Control System | PID-based digital temperature controller |
| Optional Features | Independent over-temperature protection alarm, 4–20 mA analog output, RS485 communication interface, Φ50 mm side access port |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Type | Vacuum-Enabled High-Temperature Aging Chamber |
| Temperature Range | 150–450 °C |
| Max Operating Temperature | 450 °C |
| Temperature Uniformity | ±1 °C (at 400 °C, 32-point mapping) |
| Temperature Stability | ±0.2–±0.5 °C |
| Temperature Deviation | ≤±2 °C |
| Heating Rate | Up to 20 °C/min |
| Cooling Rate | From 150 °C to –40 °C in ≤45 min |
| Oxygen Concentration Control | ≤5 ppm (real-time laser O₂ sensor, ±0.1 ppm accuracy) |
| Ultimate Vacuum | 5×10⁻⁴ Pa (turbomolecular + roots pump system) |
| Chamber Volume | Customizable from 30 L to >2 m³ |
| Compliance | SEMI S2/S8, ISO 9001, AS9100D, GLP/GMP-ready data logging |

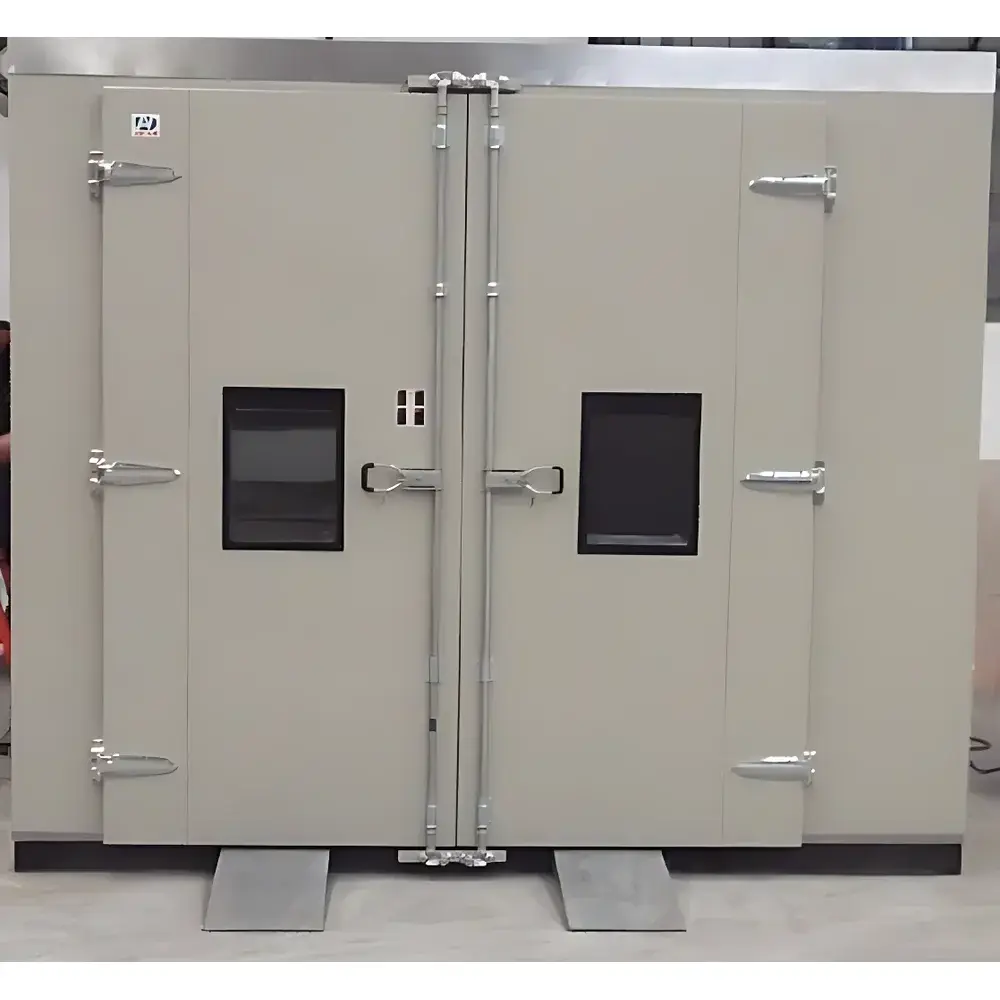

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Models | LTH, LCT, LRT |
| Max Operating Temperature | ≤150 °C |
| Temperature Range (Standard) | RT+5 °C to +60 °C |
| Temperature Uniformity | ≤±2 °C (empty & loaded, within 300 mm from chamber walls/floor/ceiling) |
| Setpoint Resolution | 1 °C |
| Ramp Rate | ≤30 min (from ambient to 60 °C) |
| Power Supply | 380 V / 3-Phase / 50 Hz |
| Control System | PLC-based with dual-stage PID regulation |
| Monitoring Points | Up to 6 independent real-time temperature sensors |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH Series |
| Temperature Range | RT+10°C to 250°C (model-dependent) |
| Vacuum Level | ≤133 Pa |
| Chamber Material | Stainless Steel (AISI 304 standard) |
| Control System | Microprocessor-based PID temperature controller with timer function |
| Power Supply | 220 V, 50 Hz |
| Internal Dimensions (W×D×H mm) | Up to 730×560×550 |
| Vacuum Seal | Molded silicone gasket with adjustable door tension |
| Viewing Window | Dual-layer tempered glass with inert gas purge port |
| Compliance | Designed for GLP-compliant drying protocols |
