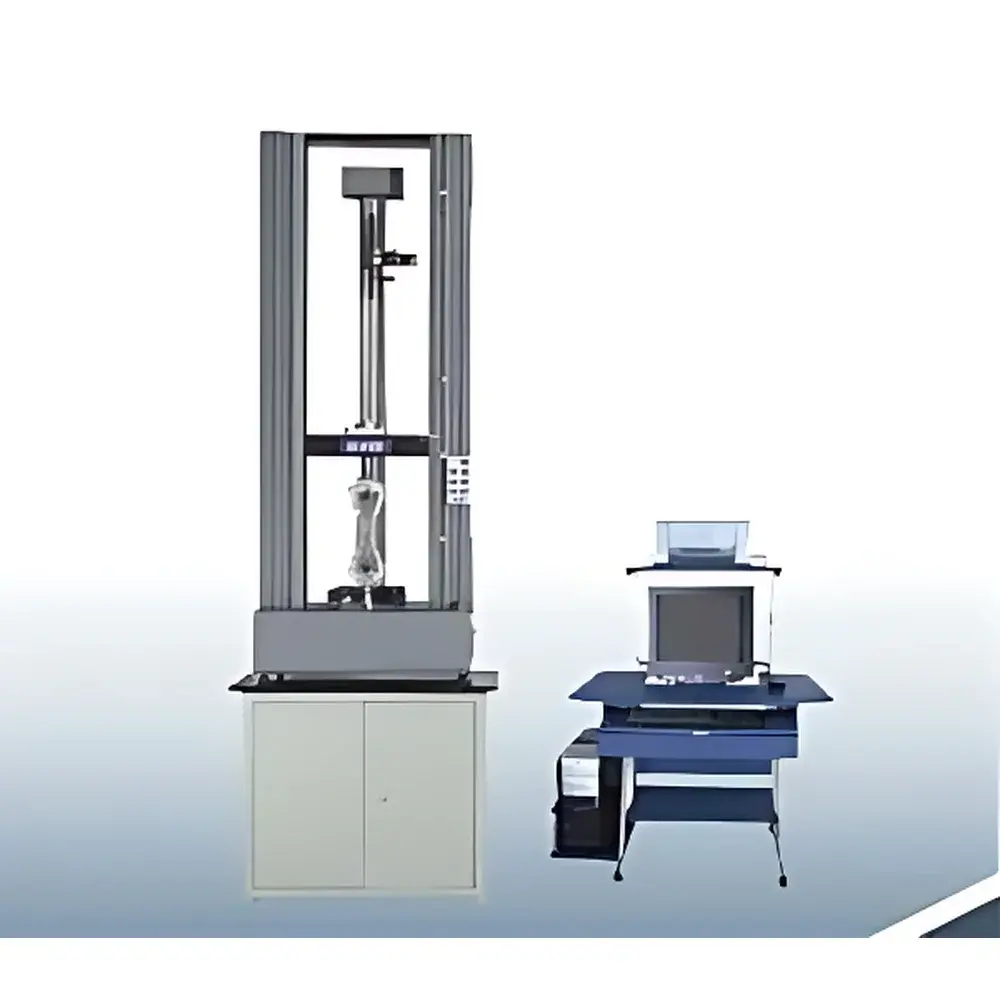

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | DV-10T |
| Max Load Capacity | 10 ton (US) |
| Load Cell Options | 5–10,000 kg (auto-ranging, resolution 1:200,000) |
| Force Accuracy | ±1% FS |
| Crosshead Speed Range | 0.00005–1000 mm/min (programmable, closed-loop control) |
| Displacement Resolution | 0.005 mm (1000 P/R encoder) |
| Test Space | 380 mm width × 1000 mm vertical travel |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L×W×H) | 88×48×215 cm (main frame) |
| Weight | ~480 kg |
| Compliance | ASTM E4, ASTM E8, ISO 6892-1, GB/T 228.1, EN 10002-1 |
| Software | Trapezium X v12.3 (Windows-based, FDA 21 CFR Part 11–ready audit trail, GLP/GMP-compliant reporting) |

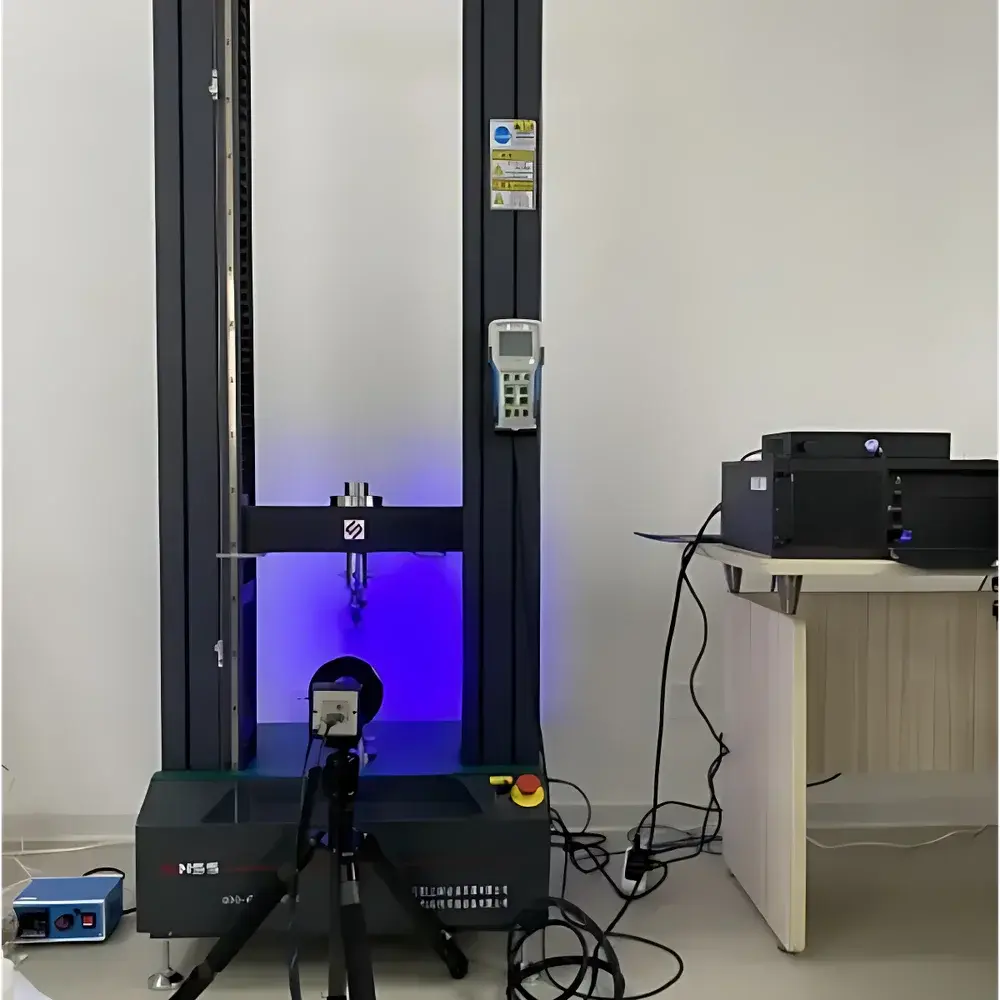

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | DV-UTM Series |
| Price Range | USD 850 – 8,500 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0.02 N to 300 kN |
| Load Accuracy | ±0.5% |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Instrument Type | Electromechanical Universal Testing Machine |
| Max Load Capacity | 10 ton (US) |
| Load Cell Options | 5–10,000 kg (auto-ranging, resolution 1:200,000) |
| Test Speed Range | 0.00005–1000 mm/min (programmable, multi-step & continuous) |
| Crosshead Travel | ~1000 mm |
| Test Width | ~380 mm |
| Displacement Resolution | 0.005 mm (Japan-made encoder, 1000 P/R) |
| Load Accuracy | ±1% FS |
| Control System | Windows-based Trapezium software with full PC integration |
| Safety Features | Upper/lower travel limit switches, automatic stop at break point |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L×W×H) | Main unit 88×48×215 cm |
| Weight | ~480 kg |
| Compliance | ASTM E4, ASTM E8, ISO 6892-1, ISO 178, ISO 14129, GB/T 228.1, GB/T 1449, GB/T 17657 |
| Software Capabilities | Real-time force–displacement curve plotting, multi-curve overlay analysis, customizable report generation, GLP-compliant audit trail (optional), user-defined test protocols, batch data management |

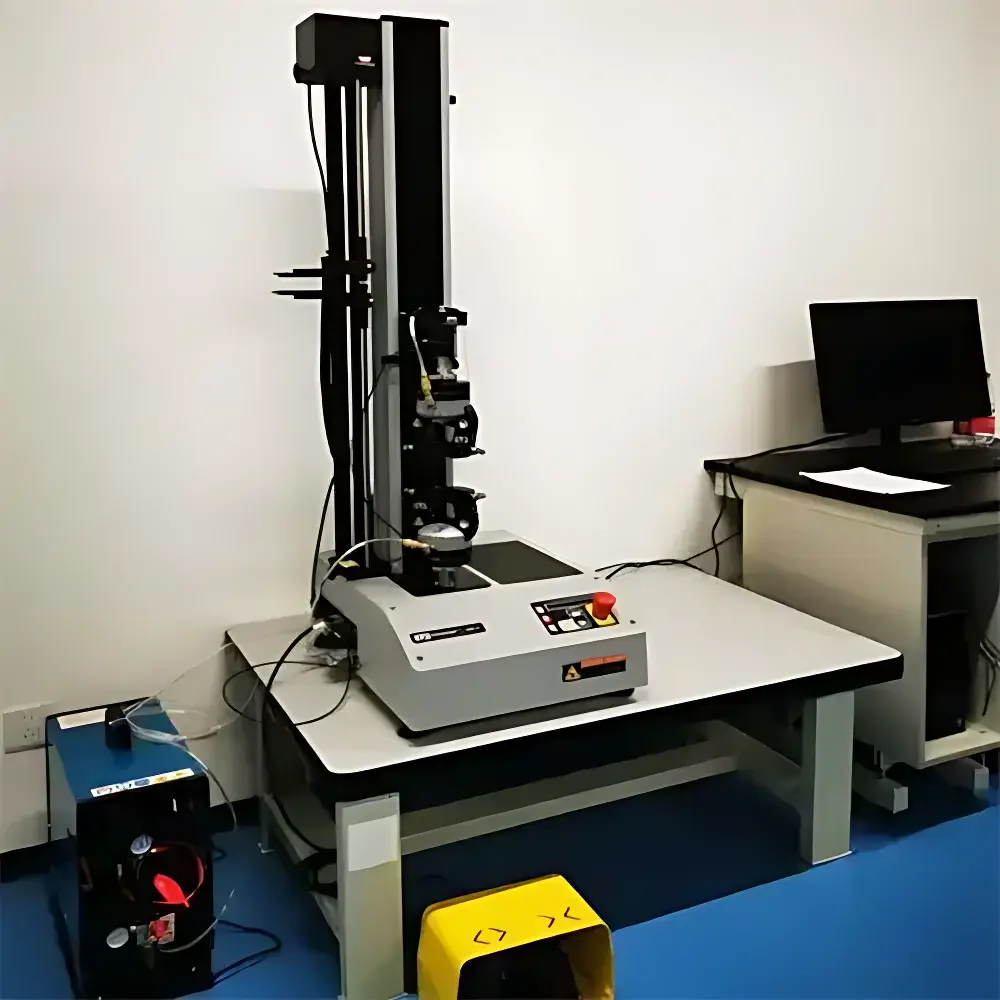

| Brand | Jinhoo |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & System Integrator |
| Product Category | Domestic |
| Model | JH-PI Series |
| Price Range | USD 1,200 – 12,500 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0.02 N to 300 kN |
| Load Accuracy | ±0.5% of Full Scale |
| Brand | Jianhu |
|---|---|
| Model | JH-60T |
| Type | Electromechanical Universal Testing Machine |
| Load Capacity | 5 kN |
| Force Sensor Standard | 2 kg (20 N), optionally upgradable with additional sensors |
| Force Accuracy Class | 0.2 |
| Force Measurement Range | 0.4–100% FS |
| Force Resolution | ±1/300,000 of full scale, unsegmented throughout range |
| Deformation Measurement Range | 0.2–100% FS |
| Deformation Error | < ±0.2% of reading |
| Deformation Resolution | ±1/300,000 of maximum deformation |
| Displacement Accuracy | ±0.2% of reading |
| Displacement Resolution | 0.02 µm |
| Crosshead Speed Range | 0.001–200 mm/min |
| Speed Control Accuracy | ±0.2% of set value |
| Strain Rate Range | 0.001–2% FS/min |
| Strain Rate Control Accuracy | ±0.2% of set value |
| Effective Test Width | 370 mm or 210 mm (configurable) |
| Max Tensile Travel | 700 mm or 1200 mm (configurable) |
| Max Compression Stroke | 700 mm |
| Control System | Full PC-based closed-loop control |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 0.4 kW |
| Machine Weight | 160 kg |
| Dimensions (W×D×H) | 800 × 410 × 1600 mm |
| Compliance | GB/T 228.1, ISO 6892-1, ASTM E8/E21, JIS Z2241, DIN 50125 |

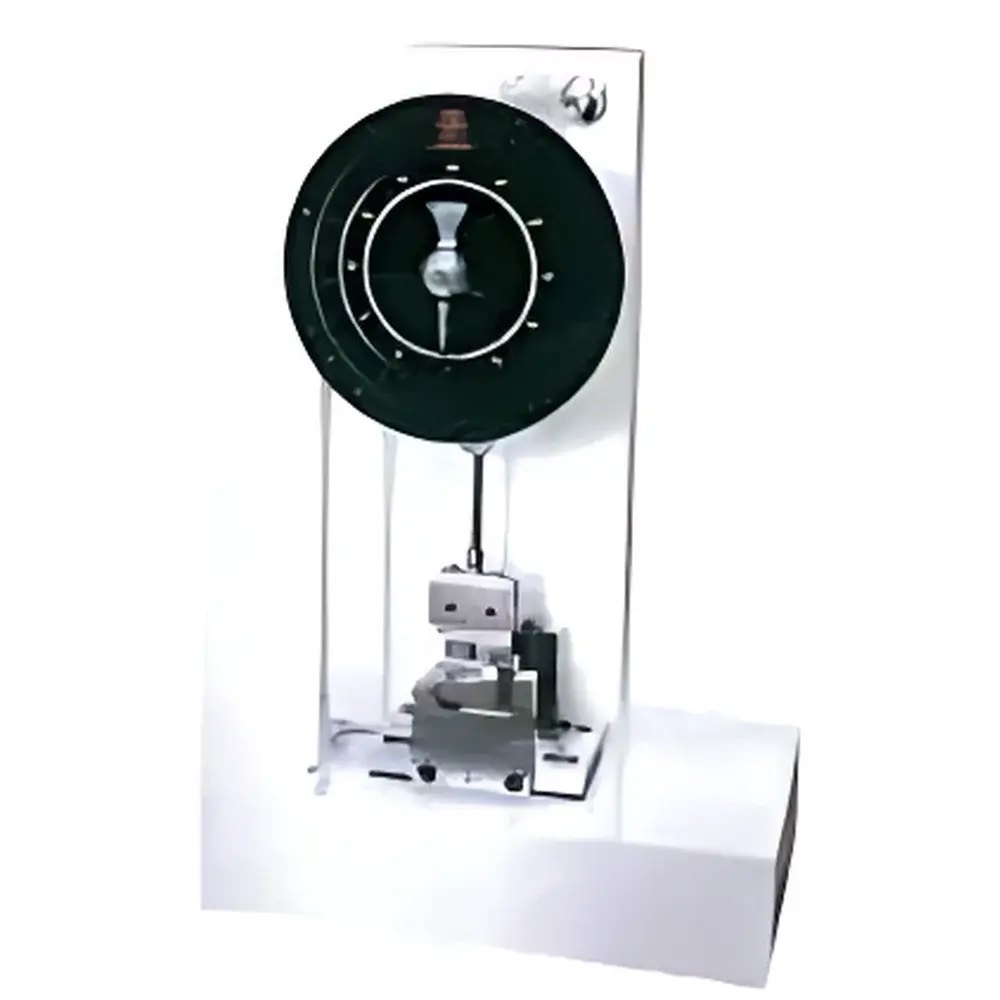

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH |
| Impact Velocity | 2.9–3.8 m/s |
| Impact Energy Range | 0.5, 1.0, 2.0, 4.0, 5.0, 7.5, 15.0, 25.0, 50.0 J |
| Pendulum Pre-lift Angle | 150° |
| Distance from Pivot to Strike Center | 230 mm / 395 mm |
| Specimen Support Span (Clamp Spacing) | 40, 60, 62, 70, 95 mm |
| Impact Blade Radius | R2.0 mm ± 0.5 mm |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L×W×H) | 550 × 300 × 900 mm |
| Net Weight | 145 kg |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Range | 0.02 N to 300 kN |
| Load Accuracy | ±0.5% (per ISO 7500-1 Class 0.5, ASTM E4, JIS B7721, BS 1610, DIN 51221, EN 10002-2 Grade 05) |
| Crosshead Speed Range | 0.0005 mm/min to 1500 mm/min |
| Speed Accuracy | Better than ±0.1% |
| Data Acquisition Rate | Up to 10,000 samples/sec (Force–Displacement–Strain) |
| Frame Stiffness | 180 kN/mm with Automatic Deflection Compensation |
| Alignment Compliance | ASTM E1012 Class 10 |
| Optical Extensometer | ≥500 mm field of view, ±0.5% measurement accuracy, video-synchronized strain tracking |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | JH-UTM Series |
| Price Range | USD 850 – 8,500 |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 0.02 N to 300 kN |
| Load Accuracy | ±0.5% |
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Series |
| Instrument Type | Electromechanical Universal Testing Machine |
| Compliance | ISO 13468-1, ISO 14782, ASTM D1003, GB/T 2410 |
| Measurement Principle | CIE Standard Illuminant D65, 0°/diffuse geometry for haze |
| Display | 7-inch capacitive touchscreen interface |
| Sample Capacity | Max. 100 mm × 100 mm (standard aperture), thickness ≤ 25 mm |
| Repeatability | ±0.2% T, ±0.3% H (n ≥ 10, standard PC film) |
| Data Output | CSV, PDF report with timestamp, operator ID, and instrument calibration traceability |
| Software Compliance | Audit trail enabled, user-level access control, FDA 21 CFR Part 11–ready configuration optional |
