| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | LTH-( )P(S)-(A/B/C/D), LCT-( )P(S)-(A/B/C/D), LRT-( )P(S) |
| Temperature Range | –60 °C to +80 °C (configurable by suffix A=0 °C, B=–20 °C, C=–40 °C, D=–60 °C) |
| Humidity Range | 30–95 %RH |
| Temperature Control Accuracy | ±0.5 °C (P-type), ±1.0 °C (S-type) |
| Humidity Control Accuracy | ±3 %RH (P-type), ±5 %RH (S-type) |
| Temperature Display Resolution | 0.01 °C (P), 0.1 °C (S) |
| Humidity Display Resolution | 0.1 %RH (P), 1 %RH (S) |
| Ramp Rates | ~60 min (heat-up), 90–210 min (cool-down, dependent on low-temp configuration) |
| Power Supply | AC 3-phase 380 V, 50 Hz |
| Safety Protections | Leakage current protection, overcurrent/overload protection, compressor overload protection, overtemperature cut-off, emergency power-off |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Series Walk-in Environmental Test Chamber |
| Price Range | USD 1,150 – 11,500 (FOB Shanghai) |
| Internal Volume | 30–50 m³ |
| Temperature Range | -70°C to +150°C |
| Temperature Uniformity | ±2.0°C |
| Temperature Control Stability | ±0.3°C |
| Heating Rate | 1.0–3.0°C/min |
| Humidity Range | 20–98% RH (optional with humidity control module) |
| Humidity Control Accuracy | ±2% RH (with humidity option) |
| Compliance | ISO 16750-4, IEC 60068-2-1, IEC 60068-2-2, ASTM D4332, GB/T 10586, GB/T 2423.1–2423.2 |
| Brand | Jianhu |
|---|---|
| Origin | Shenzhen, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

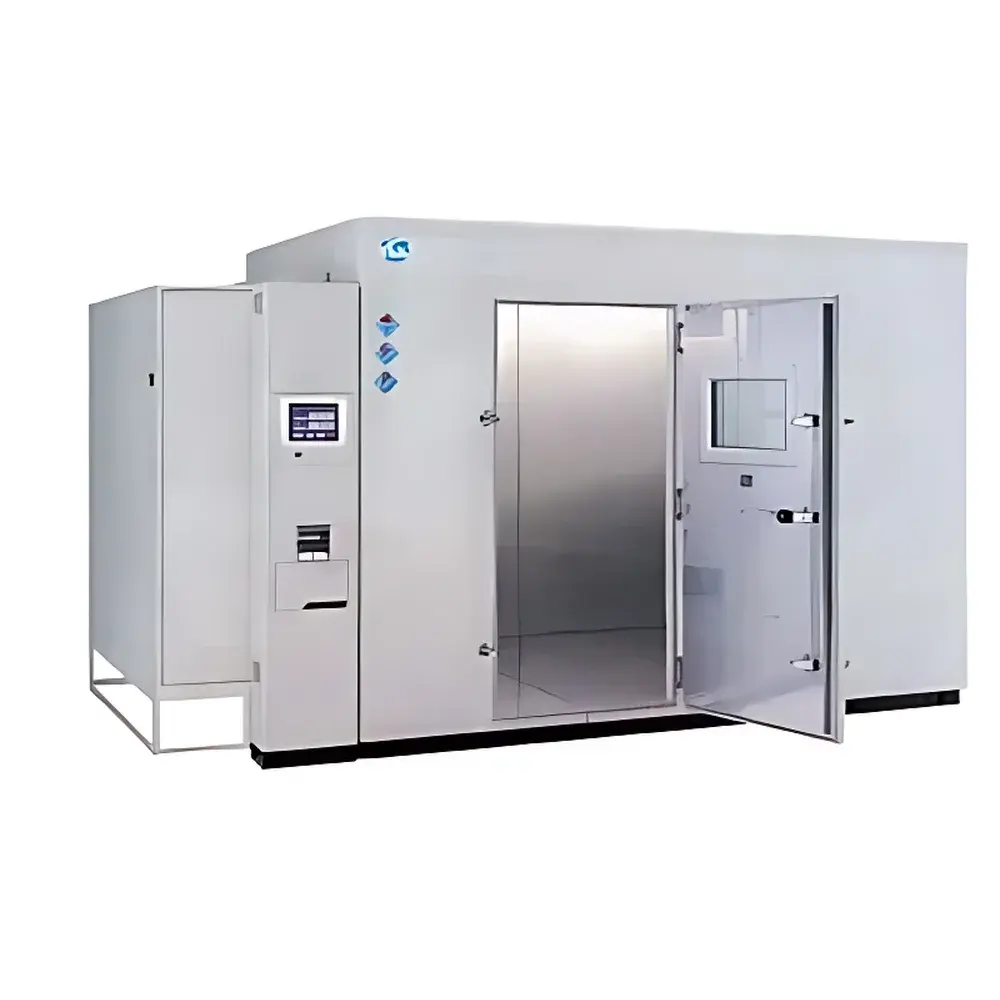

| Model | LTH-300P-AR |
| Pricing | Available Upon Request |
| Brand | Jianhu |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JTH-50P-AR |
| Temperature Range | −65 °C to +80 °C (configurable via low-temp option A–D) |
| Humidity Range | 20–95 % RH |
| Temp. Uniformity | ±1.5 °C |
| Humidity Uniformity | ±5.0 % RH |
| Temp. Stability | ±0.5 °C |
| Humidity Stability | ±3.0 % RH |
| Heating Rate | ~4.0 °C/min |
| Cooling Rate | 0.7–1.2 °C/min |
| Construction | Exterior – powder-coated color steel or brushed stainless steel |
| Refrigeration System | Water-cooled, two-stage compressor |
| Controller | TEMI (Korea) or OYO (Japan), programmable |
| Compressor | Tecumseh (France) |
| Power Supply | 3Φ 380 VAC ±10 %, 50/60 Hz |
| Compliance | GB/T 10586, GB/T 2423.1–4, IEC 60068-2-1 & -2, GJB 150.3/4/9 |
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Walk-in Chamber |
| Temperature Range | -70°C to +150°C |
| Temperature Uniformity | ≤ ±2°C |
| Temperature Control Accuracy | ±0.5°C |
| Heating Rate | 5.3°C/min (customizable) |
| Construction Type | Freestanding Walk-in Chamber |
| Compliance | Designed for ISO 17025, IEC 60068-2, MIL-STD-810, ASTM D4332, GB/T 2423 series |
| Software | Embedded PID controller with optional Ethernet/RS485 interface, data logging, alarm history, and user-accessible calibration records |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | JH Series Walk-in Environmental Test Chamber |
| Price Range | USD 1,100 – 115,000 (FOB Shanghai) |
| Internal Dimensions (D×W×H) | Customizable upon request |
| Temperature Range | −50 °C to +150 °C |
| Temperature Uniformity | ±2.0 °C |
| Temperature Control Resolution | 0.1 °C |
| Heating Ramp Rate | Up to 3 °C/min |
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JH Walk-in Environmental Test Chamber |
| Pricing | Available Upon Request |
| Internal Dimensions (D×W×H) | Custom-configurable per application |
| Temperature Range | -70°C to +180°C (standard configuration |
| Temperature Uniformity | ±0.5°C (at 1 m from chamber walls, per ISO 16750-4 & IEC 60068-3-5) |
| Control Resolution | 0.1°C / 0.1% RH |
| Ramp Rate | Up to 3°C/min (typical, dependent on load and configuration) |
| Compliance | ISO 16750, IEC 60068, ASTM D4332, MIL-STD-810G, GB/T 2423 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH |
| Type | Walk-in Environmental Test Chamber |
| Compliance | GB/T 5170.2–5170.6–1995 (IEC 60068-3 series equivalent) |
| Construction | Modular insulated chamber with SUS#304 interior and color-coated steel exterior |
| Refrigeration | Semi-hermetic German-made compressor |
| Humidity System | Steam-based humidification with RO-purified water supply |
| Control Interface | Color TFT touchscreen with programmable logic controller (PLC), multi-segment ramp-soak profiles, real-time fault logging, and timer-based auto-start/stop |
| Humidity Sensing | Capacitive polymer sensor (no wick maintenance, water-free measurement) |
| Control Method | Water vapor partial pressure (WVPP) feedback for stable RH regulation |
| Power Management | Staggered heating/humidification output to limit inrush current |
| Defrost | Hot-gas defrost circuit for uninterrupted low-temperature operation |
| Optional Refrigerant | HFC-based (R404A/R507 compliant |
| Safety | Integrated leakage circuit breaker, emergency egress door latch, dual-channel power interlock for DUT supply, and over-temperature/over-humidity cut-off |
| Standard Accessories | Built-in chart recorder, distilled water generator, and ESS (Environmental Stress Screening) mode preset |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer & R&D Enterprise |
| Product Category | Domestic |
| Model | NH-800 |
| Price Range | USD 7,000 – 12,500 |

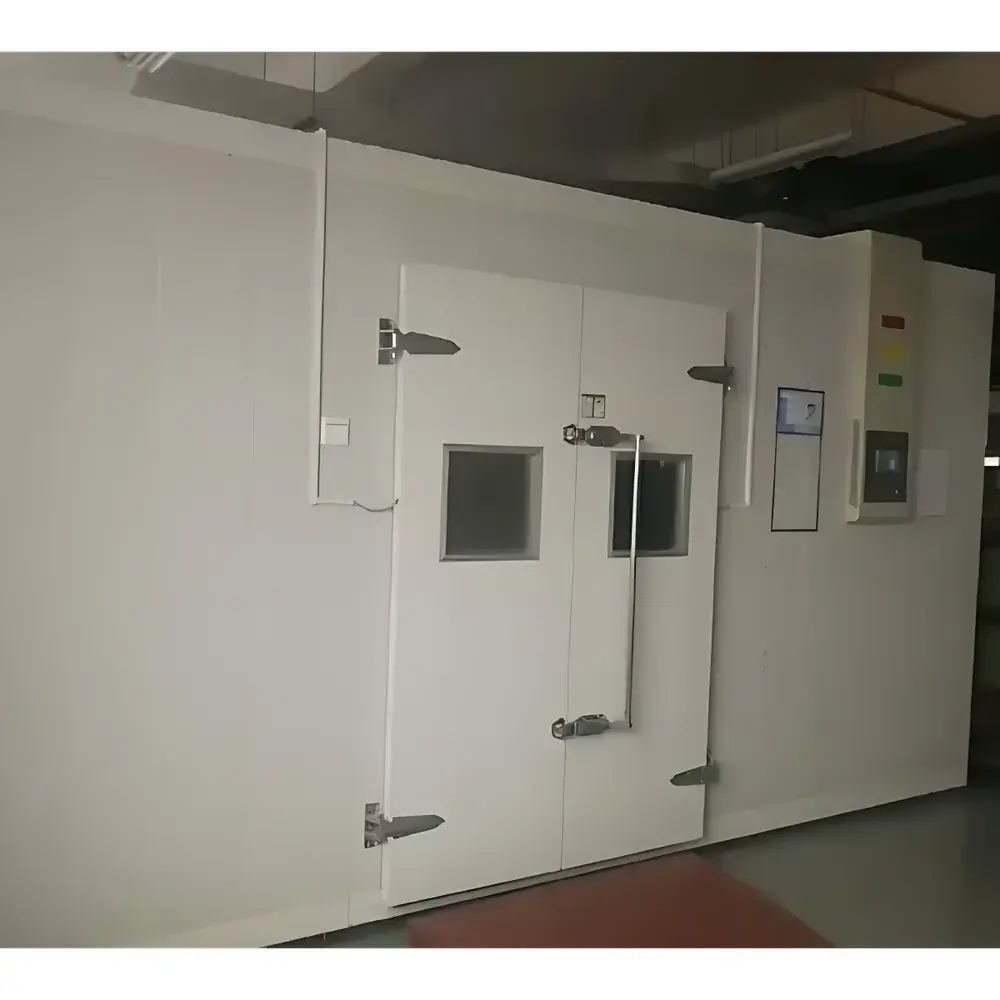

| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Model | JH-Series Variable-Frequency Drive Walk-in Environmental Test Chamber |
| Temperature Range | −50 °C to +150 °C |
| Temperature Uniformity | ±2.0 °C |
| Temperature Control Resolution | 0.1 °C |
| Heating Rate | 3 °C/min |
| Internal Dimensions | Customizable (D×W×H) |
| Humidity Control Capability | High-humidity simulation up to 98% RH |
| Viewing Window | Large optical-grade transparent viewport |
| Compliance | Designed per ISO 16750-4, IEC 60068-2-30, GB/T 2423.3–2016 (IEC 60068-2-3), and ASTM D4332 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Partner |
| Product Category | Domestic |
| Model | JH-Series Walk-in Constant Temperature & Humidity Chamber |
| Price Range | USD 1,150 – 115,000 (FOB Shanghai) |
| Internal Dimensions (D×W×H) | Customizable |
| Temperature Range | −20 °C to +100 °C (optional up to +150 °C) |
| Temperature Uniformity | ±2.0 °C |
| Temperature Control Resolution | 0.1 °C |
| Heating Rate | 3 °C/min |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Partner |
| Product Category | Domestic |
| Model | JH-Series Walk-in Environmental Test Chamber |
| Price Range | USD 1,100 – 110,000 (FOB Shanghai) |
| Internal Dimensions (D×W×H) | Customizable upon engineering consultation |
| Temperature Range | −50 °C to +150 °C |
| Temperature Uniformity | ±2.0 °C (at setpoint, steady-state, per IEC 60068-3-5) |
| Temperature Control Resolution | 0.1 °C |
| Heating Rate | 3 °C/min (typical, 25 °C to 85 °C, empty chamber, per ISO 16750-4) |
| Brand | JH |
|---|---|
| Origin | Shanghai, China |
| Model | JH Walk-in Programmable Environmental Test Chamber |
| Price Range | USD 1,100 – 110,000 (FOB) |
| Interior Dimensions | Customizable (D×W×H) |
| Temperature Range | −50 °C to +150 °C |
| Temperature Uniformity | ±2.0 °C |
| Temperature Control Resolution | 0.1 °C |
| Heating Rate | 3 °C/min |
| Humidity Control | Programmable RH range with dynamic coupling to temperature profile |
| Brand | JianHu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | JH Series Walk-in Environmental Test Chamber / JH Walk-in Laboratory |
| Price Range | USD 140 – 42,000 (FOB Shanghai) |
| Internal Dimensions (D×W×H) | Customizable per project specification |
| Temperature Range | −70 °C to +150 °C |
| Temperature Uniformity | ±0.5 °C |
| Temperature Control Stability | ≤ ±2.0 °C |
| Heating Rate | 1–3 °C/min |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & Solution Provider |
| Country of Origin | China |

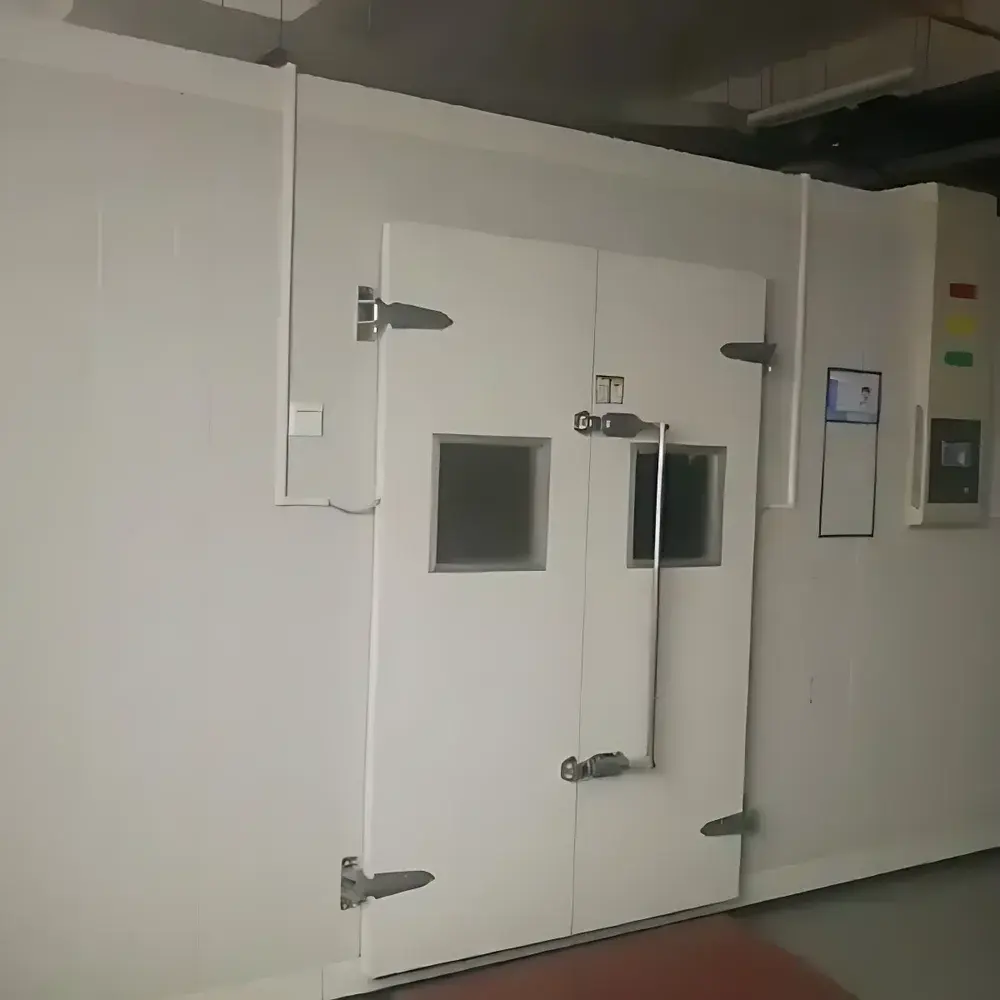

| Model | JH-2026 |
| Price Range | USD 7,300 – 13,800 (FOB Shanghai) |
| Internal Dimensions (D×W×H) | Fully Customizable |
| Temperature Range | -10°C to +85°C (Customizable per Application) |
| Humidity Range | 10% RH to 98% RH (Customizable) |
| Temperature Uniformity | ±0.5°C (at steady state, per IEC 60068-3-5) |
| Humidity Uniformity | ±2.0% RH (at steady state, per ISO 17025-accredited validation protocol) |
| Control Resolution | 0.1°C / 0.1% RH |
| Programmable Stages | Up to 99 segments with ramp/soak logic |
