| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Model | JH-SDT Series |
| Price Range | USD 1,350 – 13,500 (FOB Shanghai) |
| Sand Composition | 97–99% SiO₂ (quartz sand, angular, graded per IEC 60529 & MIL-STD-810H) |
| Sand Blowing Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s (adjustable, laminar-to-turbulent flow control) |
| Dust Concentration | 0.1–10.6 g/m³ ±7% (calibrated gravimetrically) |
| Dust Blowing Velocity | 8.9 m/s ±1.2 m/s (ISO 20623-compliant nozzle array) |
| Brand | Jinhuhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

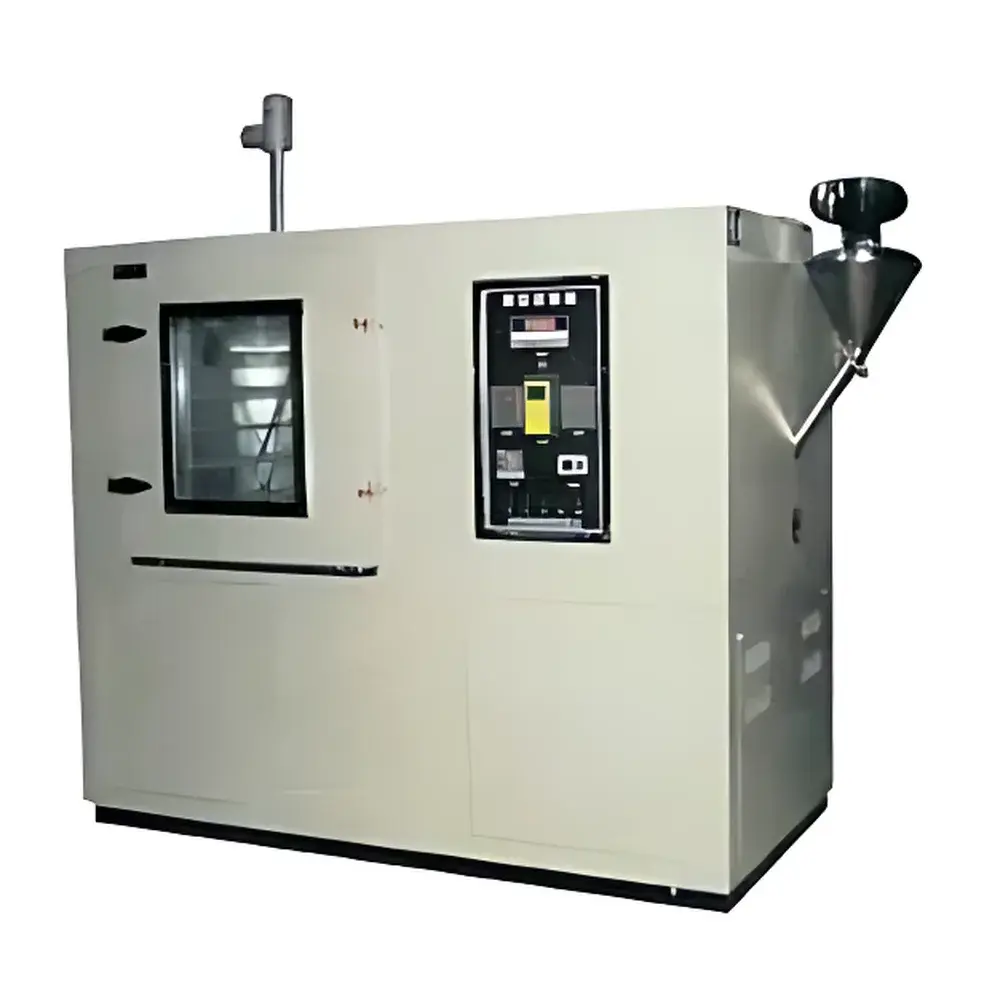

| Model | JH |
| Temperature Range | RT+10°C to 75°C |
| Sieve Mesh Specification | 50 µm wire diameter, 75 µm aperture spacing |
| Talcum Powder Loading | 2–4 kg/m³ |
| Dust Blowing Orientation | Top-down and bottom-up airflow configurations |
| Interior Construction | AISI 304 stainless steel |
| Exterior Construction | Cold-rolled steel with epoxy-polyester coating or optional AISI 304-2B stainless steel |
| Control System | Imported digital display controller |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Partner |
| Product Category | Domestic |
| Model | SH-IP5X6X |
| Price Range | USD 750 – 105,000 (FOB Shanghai) |
| Sand Composition | 97–99% SiO₂ (quartz sand, conforming to IEC 60529 Annex B) |
| Sand Blowing Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s (adjustable, calibrated per ISO 20623:2018) |
| Dust Concentration | 0.1–10.6 g/m³ ±7% tolerance |
| Dust Blowing Velocity | 8.9 m/s ±1.2 m/s |
| Compliance | GB/T 4208–2017, IEC 60529:2013, ISO 20623:2018, MIL-STD-810H Method 510.6 |
| Chamber Volume Options | 0.512 m³ (800×800×800 mm) to 4.5 m³ (1500×1500×2000 mm) |
| Airflow System | Closed-loop vertical circulation with programmable vibration-assisted particle dispersion |
| Calibration Traceability | NIST-traceable anemometry and gravimetric dust concentration verification |
| Data Logging | Real-time temperature, airflow velocity, dust concentration, cycle timing |
| Brand | Jinhoo |
|---|---|

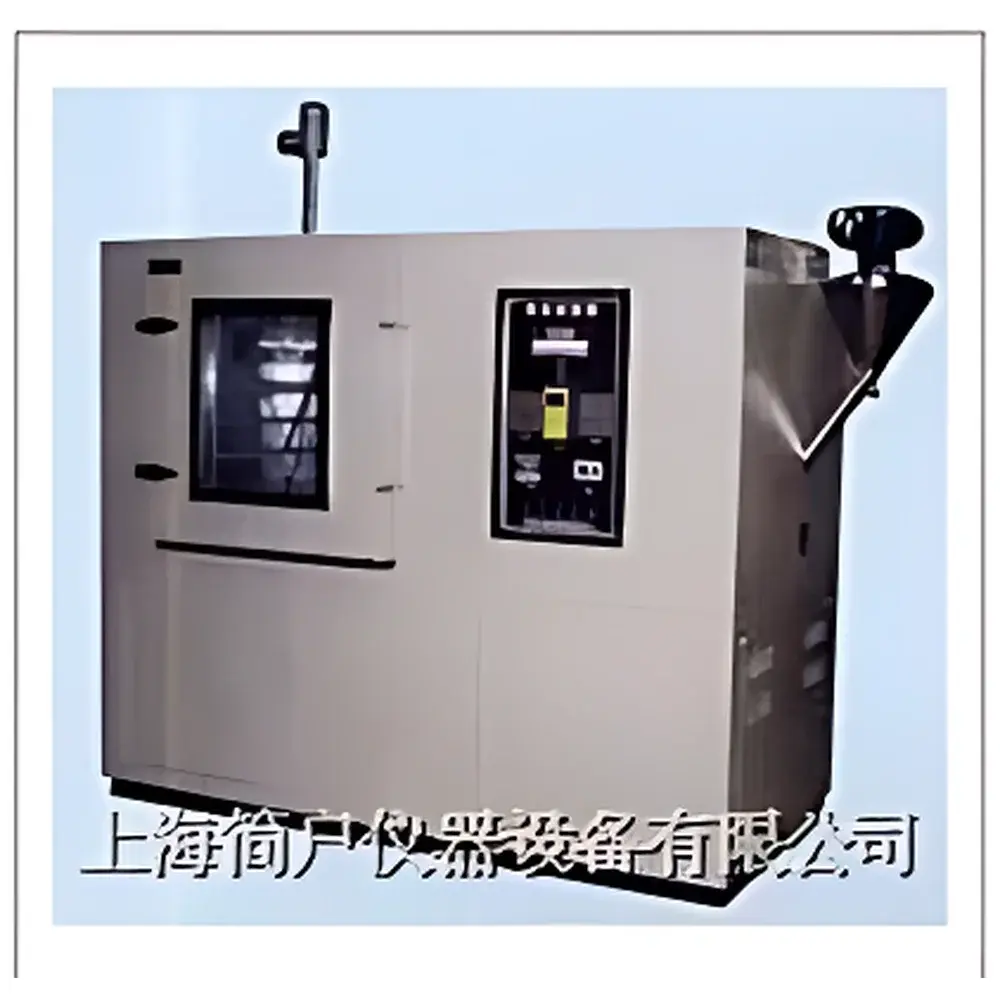

| Model | JHF-800 |
| Chamber Internal Dimensions (W×D×H) | 800 × 1000 × 1000 mm |
| External Dimensions (W×D×H) | 1030 × 1120 × 1860 mm |
| Power Consumption | 1.0 kW |
| Filtration Mesh | Wire Diameter 50 µm, Pitch 75 µm |
| Dust Concentration Range | 2–4 kg/m³ |
| Timer Range | 0–99 h 59 min (for vibration & fan control) |
| Vacuum System | Equipped with pressure gauge, air filter, and pressure regulator (vacuum pump not included) |
| Heating System | Stainless-steel mica-sheathed heating elements |
| Fan Type | Enclosed alloy low-noise centrifugal blower |
| Safety Protections | Leakage protection, short-circuit protection, overtemperature protection, motor overheat protection, overcurrent protection |
| Compliance | GB/T 4208 (IP5X/IP6X), GB/T 2423.37–2006, GB/T 4706.1, GB/T 10485–2007, DIN 40050-9 |
| Sample Compatibility | Enclosures up to IP6X-rated electrical/electronic equipment, automotive lighting assemblies, connectors, consumer appliance housings, and industrial control cabinets |
| Software & Control | Imported programmable logic controller (Moeller/Knorr, Germany), integrated microcomputer-based timing and sequence control |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & System Integrator |
| Product Category | Domestic |

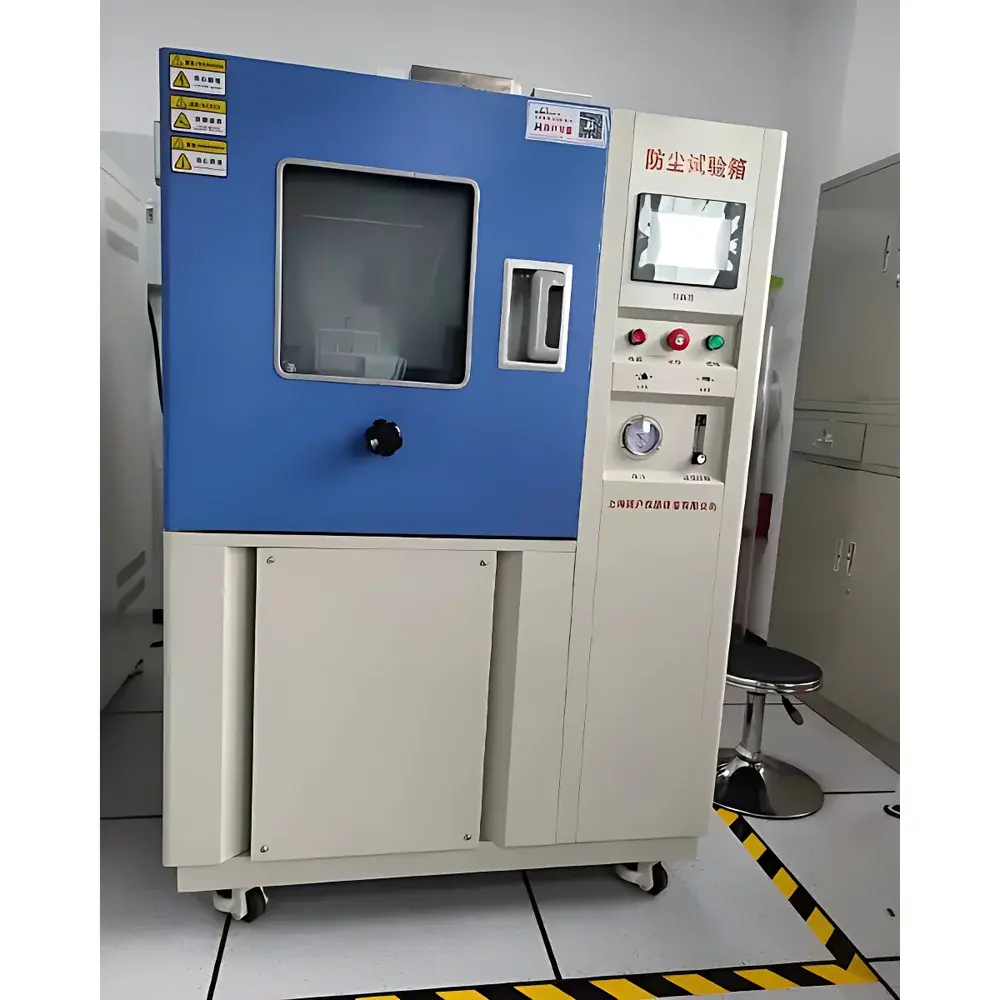

| Model | JH-SDT Series (Customizable Chamber Sizes) |
| Price Range | USD 850 – 11,500 |
| Sand Composition | 97–99% SiO₂ (quartz sand, ISO 12103-1 A4 fine test dust equivalent) |
| Sand Blasting Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blasting Velocity | 0–29 m/s (adjustable, calibrated per ISO 20623 Annex B) |
| Dust Concentration (IP5X/IP6X) | 0.1–10.6 g/m³ ±7% (traceable to NIST-traceable gravimetric calibration) |
| Dust Velocity (IP5X/IP6X) | 8.9 m/s ±1.2 m/s (turbulence-controlled vertical airflow) |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & System Integrator |
| Product Category | Domestic |
| Model | JH-IP6X |
| Price Range | USD 700 – 7,000 |
| Dust Composition | 97–99% Silica (SiO₂) or ASTM D1498-compliant talc (≤75 µm) |
| Sand Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Velocity | 0–29 m/s |
| Dust Concentration (IP6X) | 0.1–10.6 g/m³ ±7% |
| Dust Velocity (IP6X) | 8.9 m/s ±1.2 m/s |
| Brand | Jianhu |
|---|---|

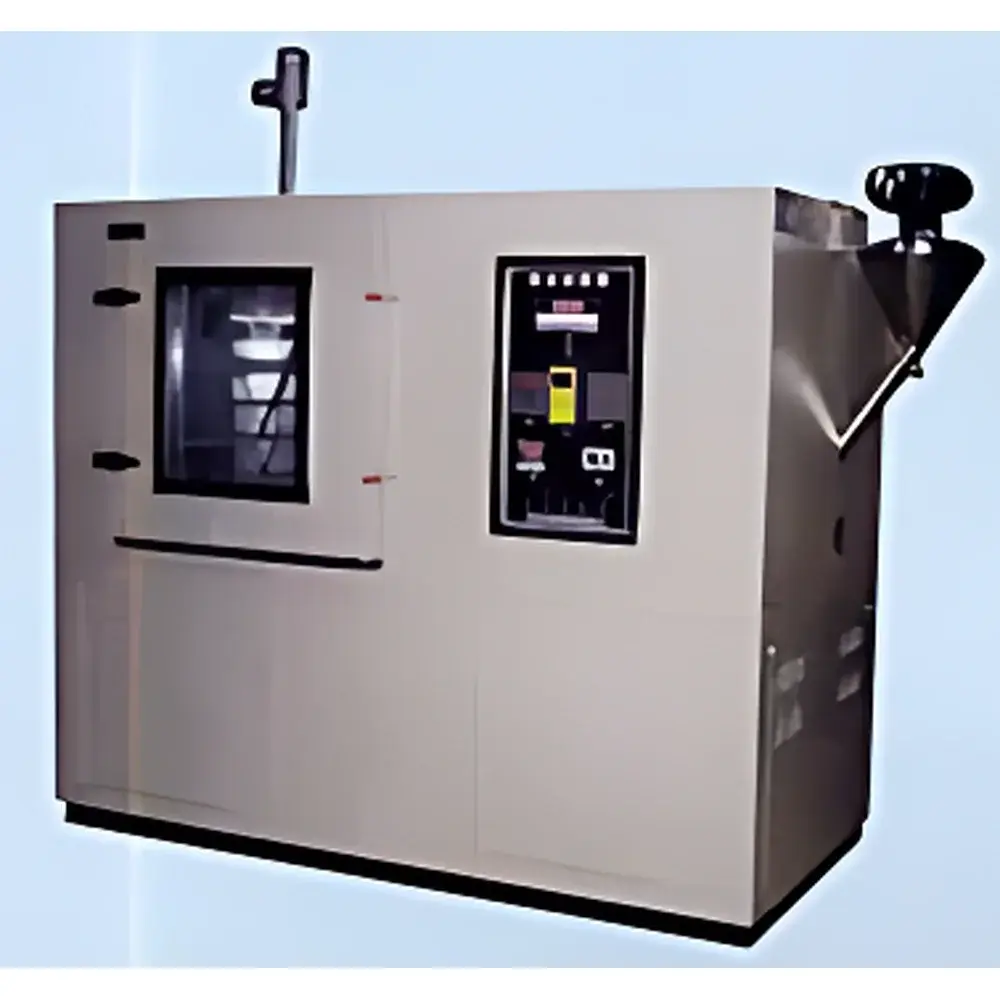

| Model | JHF-500 |
| Internal Chamber Dimensions | 800 × 800 × 800 mm (D × W × H) |
| Temperature Range | RT + 5°C to 50°C |
| Relative Humidity | 25%–75% RH |
| Sieve Mesh Specifications | 50 µm wire diameter with spacing options of 32 µm, 75 µm, and 250 µm |
| Ambient Pressure Range | 86–106 kPa |
| Airflow Velocity | Adjustable up to 1.5 m/s (displayed via integrated anemometer, KA22, 0–4.99 m/s ±2% FS) |
| Turntable Diameter | 400 mm, variable-speed (via TAIAN frequency inverter) |
| Dust Concentration | 5 g/m³ ±2 g/m³ |
| Power Supply | 3-phase 5-wire AC 380 V, 50 Hz |
| Compliance Standards | IEC 60529, GB 4208–1993, GB/T 2423.37–1989, GJB 150.12–1986, GB 10485–1989, DIN 40050 (IP5K0) |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JHF |
| Pricing | Available Upon Request |
| Internal Chamber Material | 304 Stainless Steel |
| External Cabinet Material | Cold-Rolled Steel with Powder Coating or 304-2B Stainless Steel |
| Control System | Imported Digital Display Controller |
| Applicable Standards | IEC 60529, GB/T 4208–2017 (equivalent to IP5X/IP6X), GB/T 2423.37–2006, GB 10485–2008, JIS C 0920, DIN 40050-9, MIL-STD-810G Method 510.6 |
| Temperature Range (optional) | RT+10 °C to 75 °C |
| Sieve Mesh Specification | Wire Diameter 50 µm, Mesh Opening 75 µm |
| Dust Concentration | 2–4 kg/m³ (talcum powder) |
| Dust Blowing Orientation | Top-down and Bottom-up configurations available |
| Chamber Dimensions (D×W×H, mm) | JHF-500: 800×800×800 |
| JHF-800 | 800×1000×1000 |
| JHF-1000 | 1000×1000×1000 |
| JHF-1500 | 1000×1500×1000 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | DV-SDP |
| Price Range | USD 800 – 80,000 |
| Silica Content | 97–99% SiO₂ |
| Sand Blowing Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ ±7 g/m³ |
| Dust Blowing Velocity | 8.9 m/s ±1.2 m/s |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Partner |
| Product Category | Domestic |
| Model | DH-IP5X6X |
| Price Range | USD 850 – 85,000 (FOB Shanghai) |
| Sand Composition | ≥97% SiO₂ (quartz sand, ISO 12103-1 A4 grade) |
| Sand Blowing Concentration | 1.1 g/m³ ± 0.25 g/m³ to 2.2 g/m³ ± 0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s (adjustable, calibrated per ISO 20625 Annex B) |
| Dust Concentration | 0.1–10.6 g/m³ ± 7% (slippery talc powder, particle size distribution 1–75 µm, compliant with IEC 60529:2024 Clause 14.2.5) |
| Dust Blowing Velocity | 8.9 m/s ± 1.2 m/s |
| Internal Volume Options | 0.512 m³ (800×800×800 mm) to 12.0 m³ (2000×2000×3000 mm) |
| Control System | 7-inch industrial touchscreen + PLC-based logic controller |
| Compliance | Fully aligned with IEC 60529:2024, GB/T 4208–2025, ISO 20625:2022, MIL-STD-810H Method 510.7 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor & OEM Partner |
| Product Category | Domestic |

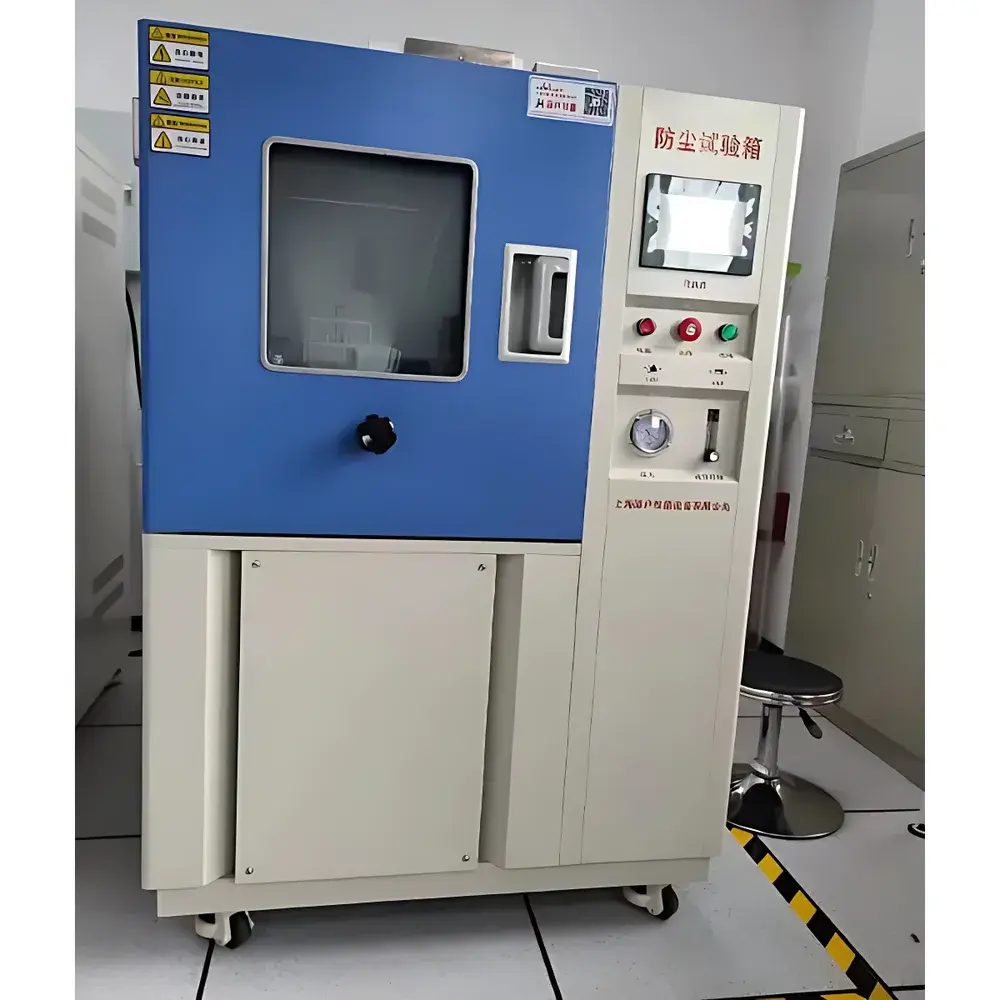

| Model | JH-IP5X for PV Modules |
| Price Range | USD 850 – 8,500 (FOB Shanghai) |
| Test Dust | 97–99% pure talc (SiO₂ equivalent, particle size distribution 1–75 µm) |
| Dust Concentration (Blowing Mode) | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Air Velocity (Blowing Mode) | 0–29 m/s (adjustable, calibrated) |
| Dust Concentration (Settling Mode) | 0.1–10.6 g/m³ ±7% tolerance |
| Air Velocity (Settling Mode) | 8.9 m/s ±1.2 m/s |
| Chamber Internal Dimensions | Optional from 800×800×800 mm to 2000×2000×3000 mm |
| Compliance | EN 60068-2-68:1994, GB/T 2423.37–2008, IEC 60529 IP5X, ISO 16750-3, SAE J575 |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

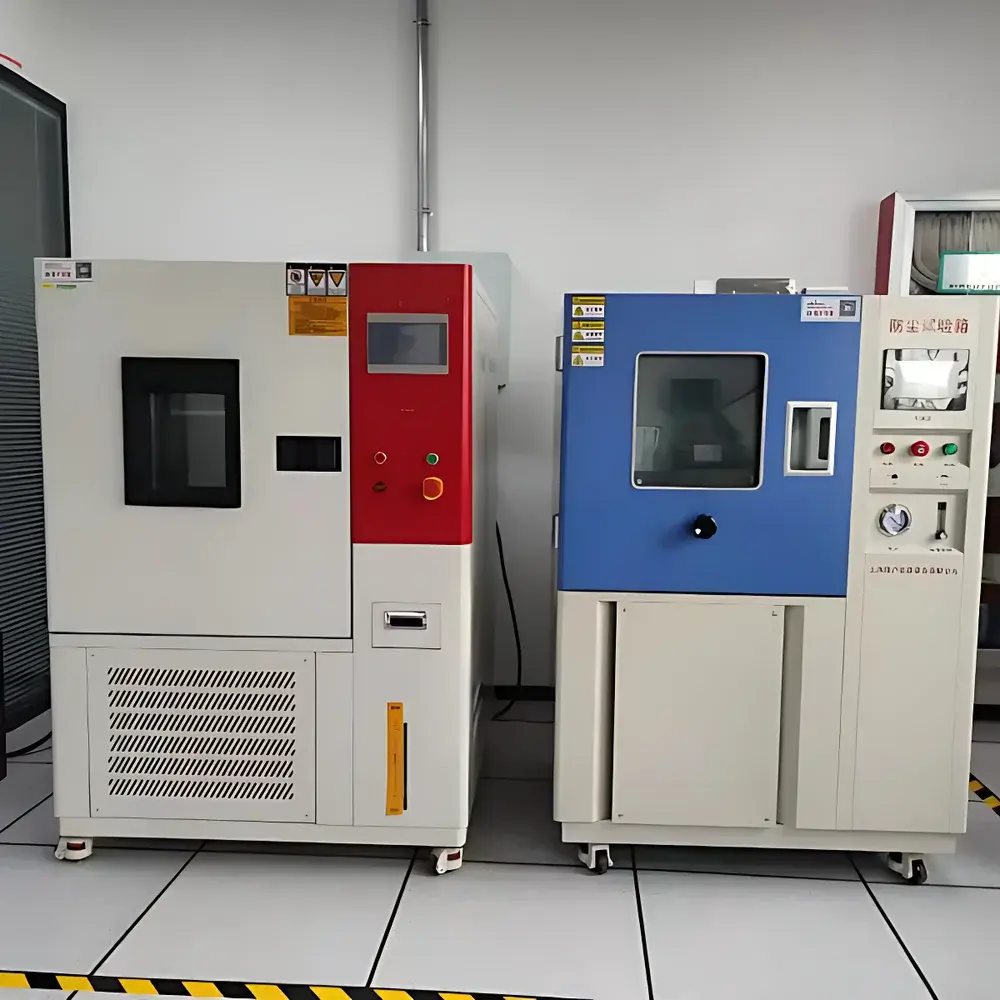

| Model | IPX56 Sand and Dust Test Chamber |
| Sand Composition | 97–99% crystalline silica (SiO₂) |
| Sand Blowing Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ ±7 g/m³ |
| Dust Blowing Velocity | 8.9 m/s ±1.2 m/s |
| Brand | Jianhu |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

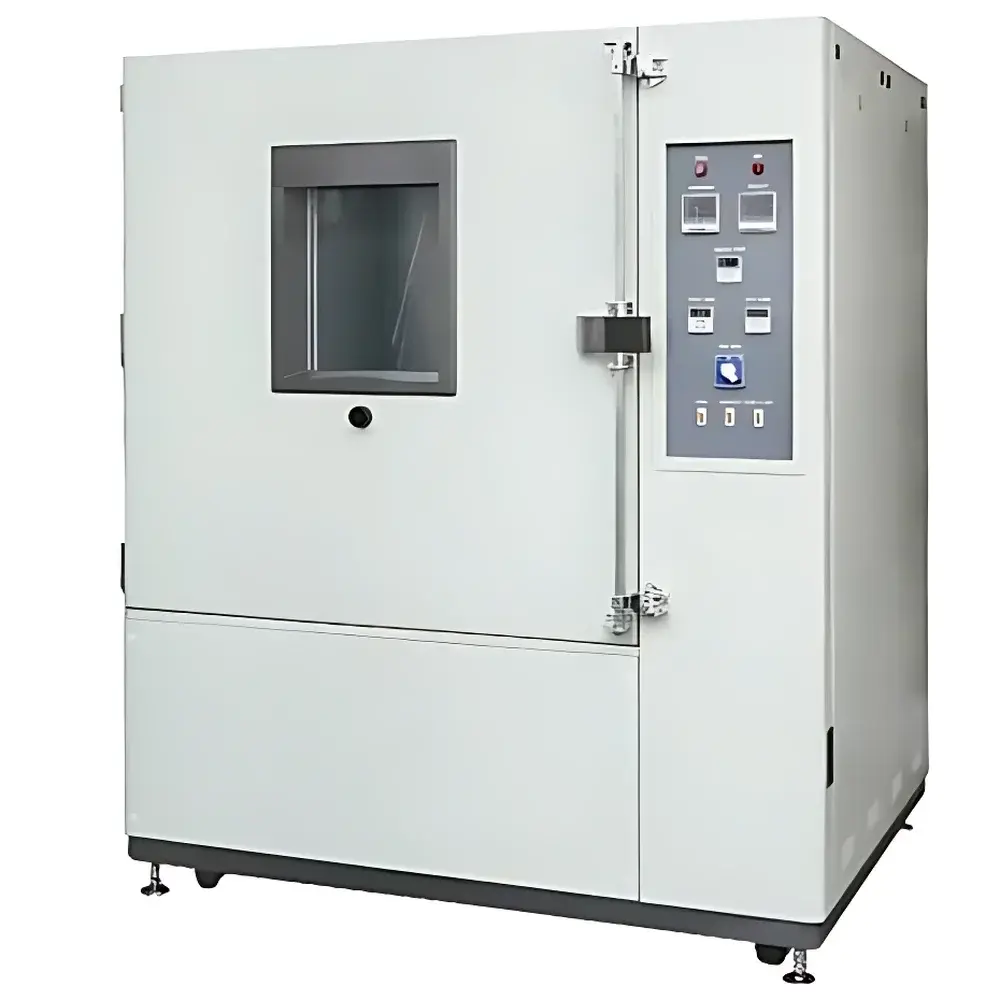

| Model | JHF Series (Customizable) |
| Price Range | USD 170 – 17,000 |
| Sand Composition | 97–99% SiO₂ (quartz silica) |
| Sand Blowing Concentration | 1.1 g/m³ ±0.25 g/m³ to 2.2 g/m³ ±0.5 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ ±7% |
| Dust Blowing Velocity | 8.9 m/s ±1.2 m/s |
