| Origin | Shanghai |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

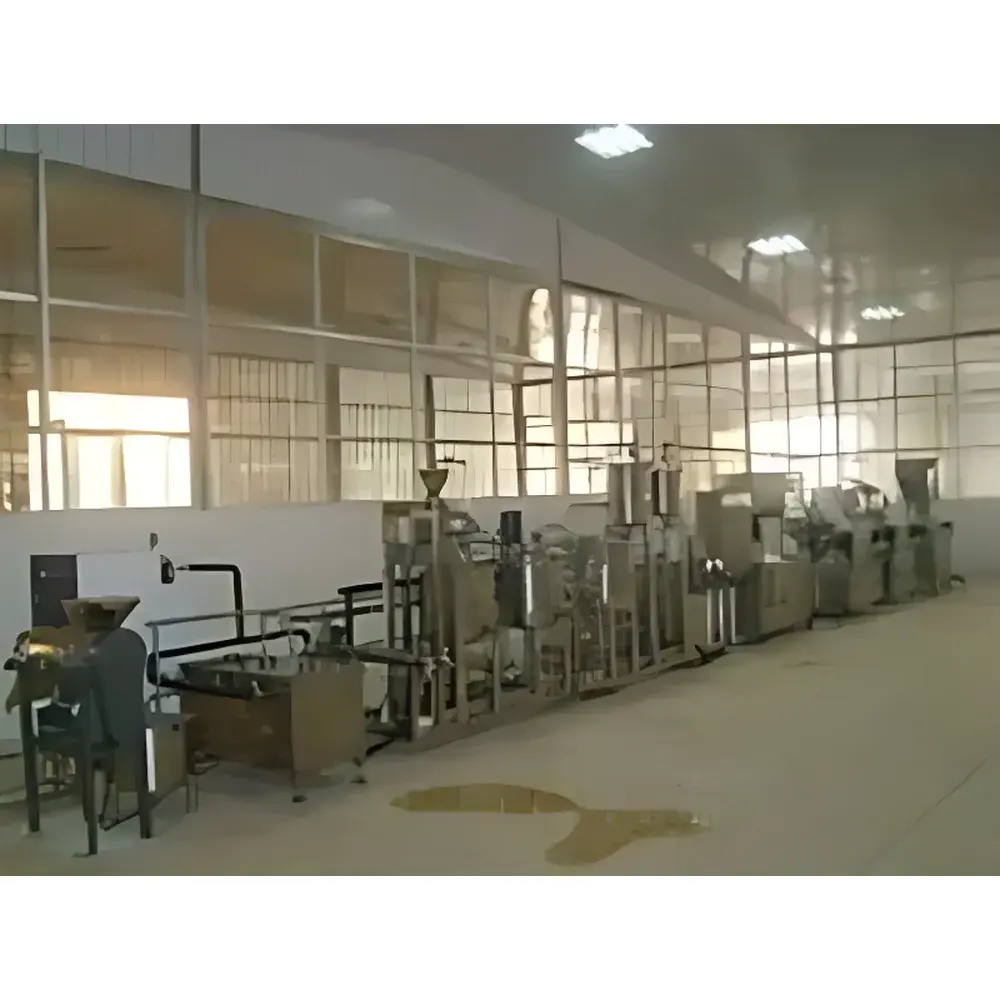

| Model | SY-100 |
| Pricing | Available Upon Request |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

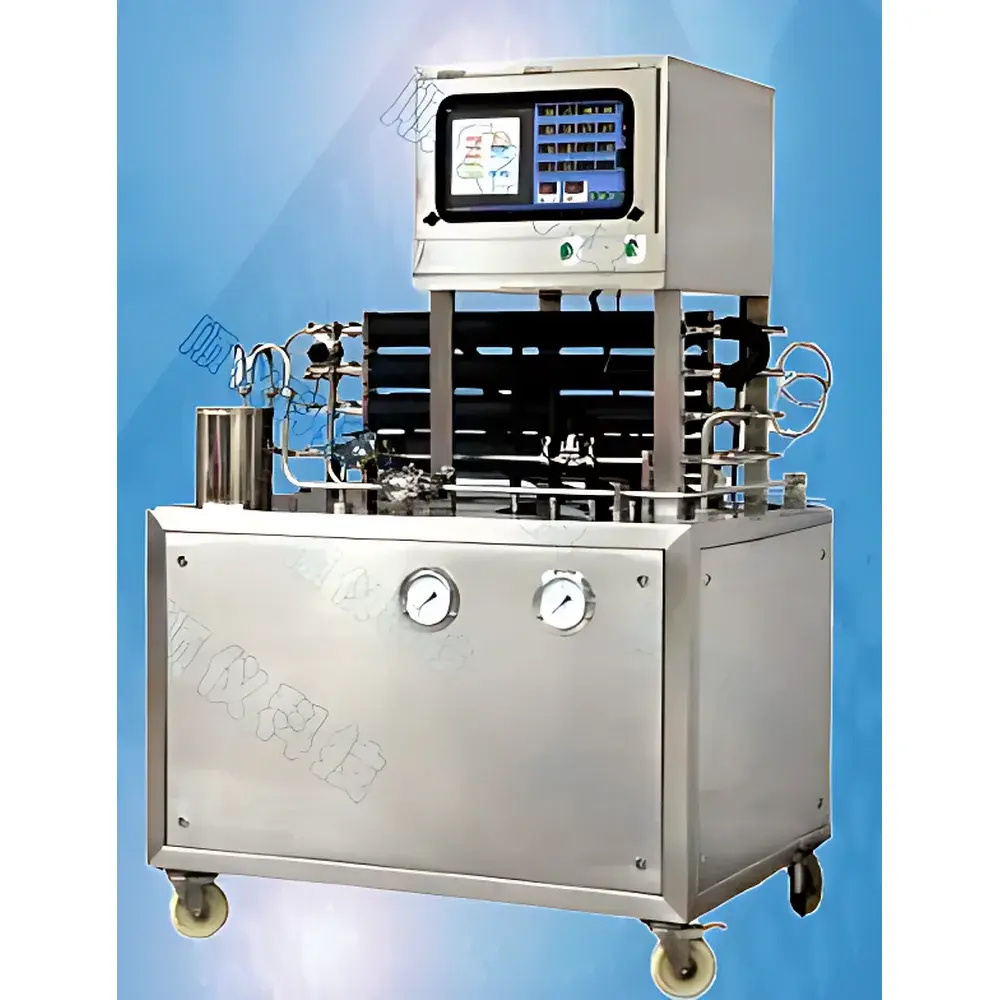

| Model | ST-20 |
| Pricing | Available Upon Request |
| Standard Throughput | 20 L/h (adjustable 5–40 L/h) |
| Minimum Batch Volume | 3–5 L |
| Max Sterilization Temp | 150 °C |
| Hold Time Options | 5 s, 15 s, 30 s (at 20 L/h) |
| Fill Temp Range | 20–90 °C |
| SIP Capability | Integrated |
| CIP Flow Rate | 400 L/h |
| Max System Pressure | 10 bar |
| Power Supply | 3-phase, 380 V, 10 kW |
| Dimensions (UHT Unit) | 1600 H × 1200 L × 950 W mm |
| CT-20 Aseptic Filling Chamber | HEPA Filtration Efficiency ≥99.999% @ 0.3 µm |
| Chamber Dimensions | 850 L × 660 W × 2100 H mm |
| Chamber Power | Single-phase, 220–240 V, 50 Hz, 0.25 kW |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Domestic (PRC) |

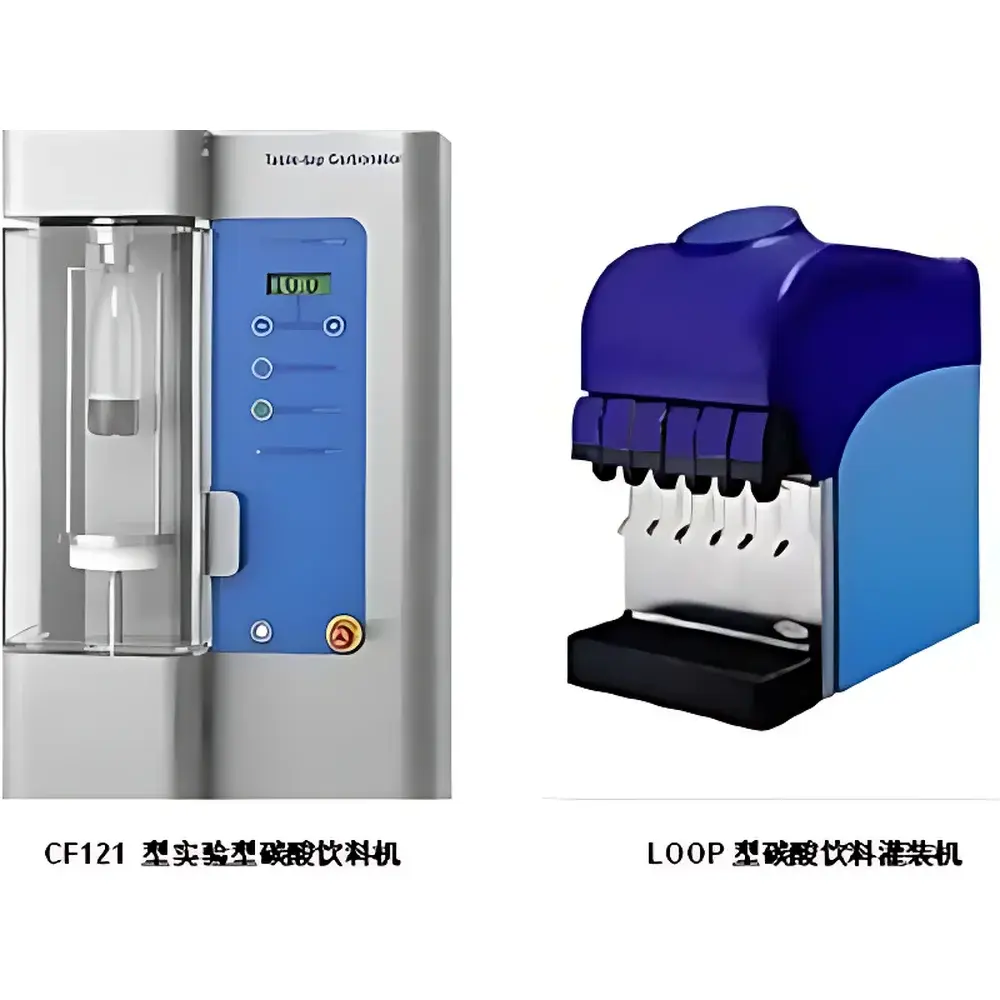

| Model | CF121 |
| Pricing | Available Upon Technical Inquiry |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | SY-100 |
| Pricing | Available Upon Request |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | ST-20 |
| Pricing | Upon Request |
| Standard Throughput | 20 L/h (adjustable 5–40 L/h) |
| Minimum Batch Volume | 3–5 L |
| Max Sterilization Temperature | 150 °C |
| Holding Time Options | 5 s, 15 s, 30 s (at 20 L/h) |
| Fill Temperature Range | 20–90 °C |
| SIP Capability | Yes |
| CIP Flow Rate | 400 L/h |
| Max System Pressure | 10 bar |
| Power Supply | 3-phase, 380 V, 10 kW |
| Dimensions (UHT Unit) | 1600 H × 1200 L × 950 W mm |
| Aseptic Filling Module (CT-20) | HEPA Filtration Efficiency ≥99.999% @ 0.3 µm |
| Cleanroom Class | ISO Class 5 (Fed. Std. 209E Class 100) |
| CT-20 Dimensions | 2100 H × 850 L × 660 W mm |
| CT-20 Power | Single-phase, 220–240 V, 50 Hz, 0.25 kW |
| (Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GL-20 |
| Pricing | Available Upon Request) |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | ST-20 |
| Pricing | Upon Request |
| Standard Throughput | 20 L/h (adjustable 5–40 L/h) |
| Minimum Batch Volume | 3–5 L |
| Max Sterilization Temp | 150 °C |
| Hold Time Options | 5 s / 15 s / 30 s (at 20 L/h) |
| Fill Temp Range | 20–90 °C |
| In-line SIP Capability | Yes |
| In-line CIP Flow Rate | 400 L/h |
| Max System Pressure | 10 bar |
| PID Temperature Control Accuracy | ±0.5 °C |
| Power Supply | 3-phase, 380 V, 10 kW |
| Dimensions (UHT Unit) | 1600 H × 1200 L × 950 W mm |
| CT-20 Aseptic Filling Chamber | ISO Class 5 (Fed. Std. 209E Class 100), HEPA Filtration Efficiency: 99.999% @ 0.3 µm |
| Chamber Dimensions | 850 L × 660 W × 2100 H mm |
| Chamber Power | Single-phase, 220–240 V, 50 Hz, 0.25 kW |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | CF121 |
| Pricing | Available Upon Request |
| Production Capacity | 25 L/h |
| Operating Pressure Range | 20–100 PSI |
| CO₂ Saturation Range | 5.0–10.0 g/L (adjustable in 0.5 g/L increments) |
| Cooling Temperature | 6 °C |
| Power Supply | 220 V, 50 Hz, 2.5 kW |
| Dimensions | 520 × 580 × 950 mm |
| Net Weight | 90 kg |
| Integrated Refrigeration Unit | Yes |
| Number of Filling Heads | 5 (for LOOP variant) |
| CF121 | single-station semi-automated carbonation-filling unit |
| Bottle Compatibility | Up to 1.5 L PET/glass containers |
| Pre-purge & Pressurized Filling | Yes |
| CO₂ Purge Before Filling | Yes |
| Oxygen Exclusion During Filling | Yes |
| Startup Time (Cooling + Saturation) | <15 min |
| Compliance | CE, NSF/ANSI 169 (Beverage Equipment) |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | SY-100 |
| Pricing | Available Upon Technical Consultation |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | ST-20 |
| Pricing | Upon Request |
| Standard Throughput | 20 L/h (adjustable 5–40 L/h) |
| Minimum Batch Volume | 3–5 L |
| Max Sterilization Temp | 150 °C |
| Holding Time Options | 5 s / 15 s / 30 s (at 20 L/h) |
| Fill Temp Range | 20–90 °C |
| SIP Capability | Integrated |
| CIP Flow Rate | 400 L/h |
| Max Operating Pressure | 10 bar |
| Power Supply | 3-phase, 380 V, 10 kW |
| Dimensions (UHT Unit) | 1600 H × 1200 L × 950 W mm |
| CT-20 Aseptic Filling Chamber | HEPA Filtration ≥99.999% @ 0.3 µm, Class 100 (Fed. Std. 209E), 850 × 660 × 2100 mm (L×W×H), 220–240 V / 50 Hz / 0.25 kW |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | ST-20 |
| Pricing | Available Upon Request |
| Standard Throughput | 20 L/h (adjustable 5–40 L/h) |
| Minimum Batch Volume | 3–5 L |
| Max Sterilization Temp | 150 °C |
| Holding Time Options | 5 s, 15 s, 30 s (at 20 L/h) |
| Fill Temp Range | 20–90 °C |
| SIP Capability | Integrated |
| CIP Flow Rate | 400 L/h |
| Max Operating Pressure | 10 bar |
| Power Supply | 3-phase, 380 V, 10 kW |
| Dimensions (UHT Unit) | 1600 H × 1200 L × 950 W mm |
| CT-20 Aseptic Filling Chamber | HEPA Filtration ≥99.999% @ 0.3 µm, Class 100 (Fed. Std. 209E), 850 × 660 × 2100 mm (L×W×H), 220–240 V / 50 Hz / 0.25 kW |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-made) |
| Model | SY-100 |
| Pricing | Available Upon Request |

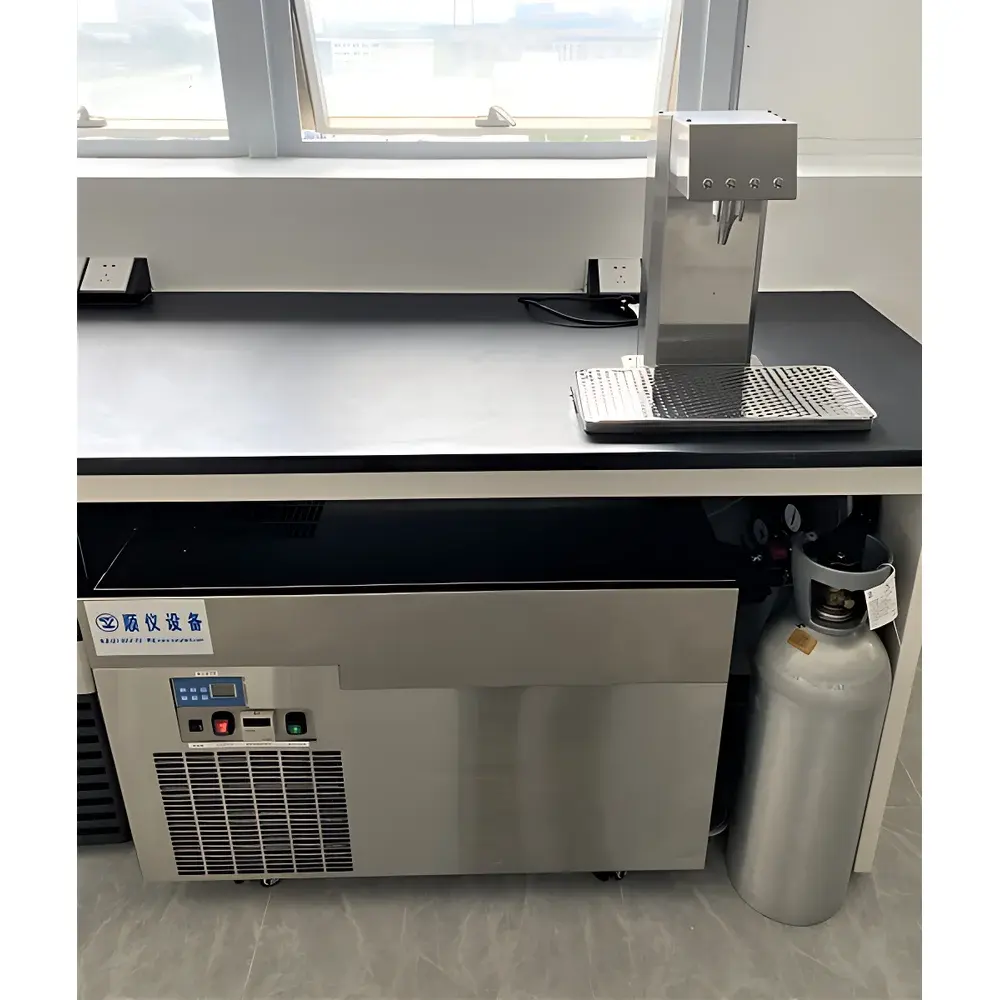

| Brand | Sunyitech |
|---|---|
| Model | SY-350 |
| Origin | Shanghai, China |
| Production Capacity | 20–50 L/h |
| CO₂ Saturation Range | Up to 4.5 vol CO₂ (adjustable) |
| Refrigeration System | Integrated imported compressor, setpoint 5 °C |
| Pressure Control | Single-stage precision CO₂ regulator valve |
| Filling Mode | Continuous inline carbonated liquid dispensing |
| Control System | SUNYITECH proprietary integrated PLC-based HMI interface |
| Power Supply | 3 kW, 220 V AC |
| Wetted Materials | SUS316L stainless steel |
| Filtration | Integrated inlet water filter + CO₂ pressure-reducing regulator with gauge |
| Dimensions (W×D×H) | 1500 × 800 × 1600 mm |
| Includes | Stainless steel operator workstation |
