| Brand | Mad City Labs (MCL Think Nano) |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | MicroMirror TIRF System |
| Instrument Type | Inverted Fluorescence Microscope |
| Excitation Source | Metal Halide Lamp |
| Eyepiece Compatibility | Universal Eyepiece Mount |
| Objective Compatibility | Universal Objective Mount |
| Fluorescence Configuration | Integrated Through-Objective Total Internal Reflection Fluorescence (TIRF) |
| Illumination Flexibility | Multi-Source Compatible |
| Observation Head | Monocular, Full-Internal-Reflection Optical Path |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | TIRF Lock™ |
| Instrument Type | Inverted Fluorescence Microscope Add-on Module |
| Excitation Source | Metal Halide Lamp |
| Eyepiece | Standard |
| Objective | Standard |
| Fluorescence Configuration | Epi-Fluorescence |
| Compatible Light Sources | Any Illumination Source |
| Observation Head | Inverted |
| Wavelength Range | 400–1000 nm |
| Peak Responsivity | 0.4 A/W @ 635 nm, 0.67 A/W @ 900 nm |
| Recommended Input Beam Diameter | 300 µm – 1.5 mm |
| Sensor Active Area | 2.4 mm × 2.4 mm |
| Clear Aperture | 12.5 mm (0.5 inch) |
| Aperture Threading | SM05 (0.535-40) |
| Detector Head Mounting Thread | 8-32 or M4 |
| Base Mounting Thread | 1/4-20 or M6 (magnetic base & clamping fork included) |
| Detector Cable Length | 1.83 m (6 ft) |
| Power Supply | 90–260 V AC |
| Controller Dimensions | 212.7 mm × 88.9 mm × 304.8 mm (8.375″ × 3.5″ × 12″) |
| PC Interface | USB 2.0 |
| OS Compatibility | Windows XP Pro / Vista / 7 / 8 (32- or 64-bit) |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | RM21™ Microscope Platform |
| Instrument Type | Inverted Fluorescence Microscope |
| Excitation Source | Metal Halide Lamp |
| Eyepiece Compatibility | Standard 23.2 mm or 30 mm Mounts |
| Objective Compatibility | Standard RMS or M25 Thread Mounts |
| Fluorescence Configuration | Epi-illumination (Reflected Light) |
| Illumination Flexibility | Compatible with Broadband, LED, and Laser Sources |
| Observation Geometry | Inverted Optical Layout |
| Z-Axis Travel | 50 mm (2 in) with 95 nm Step Resolution |
| XY Positioning | Manual or Motorized Micropositioner (Optional) |
| Encoder Option | Closed-Loop Encoders Available for X, Y, and Z Axes |
| Integration Ready | Fully Compatible with Nano-Cyte® 3D Stability System, Nano-LPS/Nano-LPQ Linear Positioners, Nano-OP/Nano-F Objective Positioners, and LCC-Focus™ Autofocus Modules |

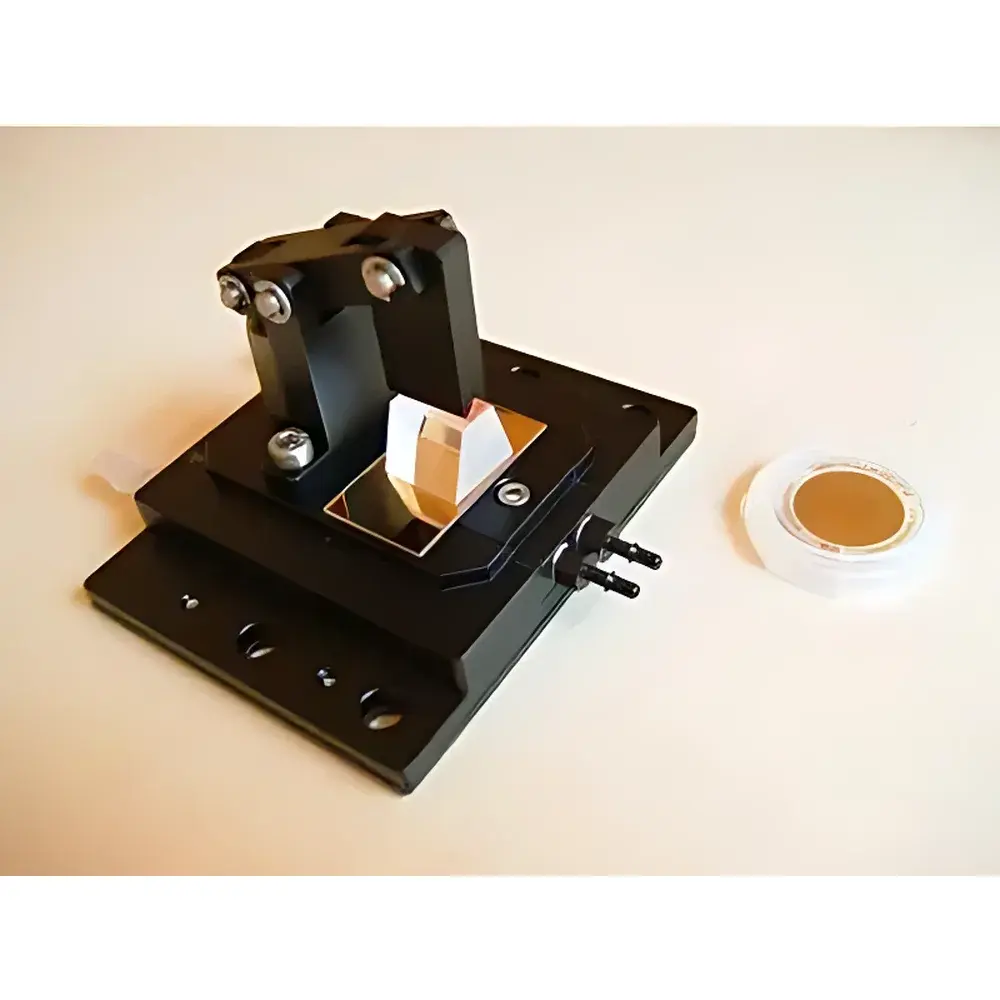

| Brand | Optrel |
|---|---|
| Origin | Germany |
| Model | Multiskop-SPR |
| Configuration | Kretschmann-based angular interrogation SPR system |
| Angular scanning range | 20–120° |
| Angular resolution | ≤0.002° (2 mdeg) |
| Kinetic sampling interval | ≥50 ms |
| Imaging capability | Integrated SPR imaging module |
| Sensor chip compatibility | Standard Au-coated glass prism substrates (e.g., 50 nm Au on SF10/BK7) |
| Brand | Mad City Labs |
|---|---|
| Origin | USA |
| Model | TIRF Module |
| Microscope Type | Inverted Fluorescence Microscope |
| Excitation Source | Metal Halide Lamp |
| Eyepiece | Standard Eyepiece |
| Objective | Standard Objective |
| Fluorescence Configuration | Epi-Fluorescence |
| Compatible Light Sources | Universal (Any Illumination Source) |
| Observation Head | Inverted |
| Illumination Modes | Epi-Fluorescence, Total Internal Reflection Fluorescence (TIRF), Highly Inclined and Laminated Optical (HILO) |
| Beam Steering Precision | Micrometer-Driven Mirror Translation (M2), Axial Lens Adjustment (L1), Fixed-Angle Steering Mirror (M1) |
| Output Coupling | TIRF Lock™ Interface for Z-Axis Feedback Stabilization |
| Compatibility | RM21™ and MicroMirror™ TIRF Platforms |
| Mounting | Modular, Tool-Free Alignment Design |
| Optical Path Control | Full Continuum from 0° (Epi) to >Critical Angle (TIR) |
