| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Translation Stage |
| Model | Mad-Deck™ |
| Drive Type | Motorized (Stepper-Based) |
| Motion Axes | X, Y, Z (All Motorized) |
| Linear Encoder Resolution (Optional) | 50 nm |
| Micropositioning Step Size | 95 nm |
| Max. Speed | 1.5 mm/sec |
| Native Accuracy | 1.0 µm |
| Native Repeatability | < 100 nm |
| Body Material | Aluminum |
| Controller | Micro-Drive™ |
| Interface | Bidirectional USB |
| Software Compatibility | LabVIEW-based GUI, Custom VI Development, Third-Party Integration |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-METZ |
| Motion Range | 5 µm |
| Positioning Resolution | 0.005 nm |
| Resonant Frequency | 14.5 kHz |
| Position Noise Floor | < 400 fm/√Hz |
| Max. Load (Horizontal/Vertical) | 0.1 kg |
| Body Material | Aluminum or Titanium |
| Controller | Nano-Drive® |
| Product Type | Closed-Loop Electric Nanopositioning Stage |
| Brand | Ekspla |
|---|---|
| Type | DPSS Q-Switched Solid-State Laser |
| Wavelength | 1064 nm |
| Pulse Duration | Nanosecond Range |
| Repetition Rate | Up to 100 kHz |
| Average Output Power | Up to 15 W |
| Pump Source | Semiconductor Diode |
| Gain Medium | Nd:YVO₄ Crystal |
| Cooling | Water-Cooled (Standard) |
| Beam Quality (M²) | Typically <1.3 |
| Polarization | Linear, >100:1 Extinction Ratio |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Theta |
| Product Type | Motorized Rotational Translation Stage |
| Motion Range | 2.0 mrad |
| Resolution | 4 nrad |
| Resonant Frequency (unloaded) | 2.0 kHz ±20% |
| Body Material | Aluminum or Invar |
| Control Architecture | Closed-loop with integrated PicoQ® position sensing |
| Controller | Nano-Drive® |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Laser System |
| Model | Atlantic 6 |
| Output Power | 5 W @ 1064 nm |
| Repetition Rate | Up to 1 MHz |
| Pulse Energy | Up to 30 µJ |
| Pulse Duration | < 10 ps |
| Beam Quality | M² < 1.3 |
| Cooling | Forced-air (dry laser head) |
| Triggering | Smart external synchronization (TTL, LVDS) |
| Operating Voltage | Single-phase AC, 100–240 V |
| Enclosure | IP54-rated sealed industrial housing |
| Maintenance Interval | > 20,000 hours MTBF |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PhotoSonus-1 |
| Core Technology | Diode-Pumped Solid-State (DPSS) Laser with Integrated Optical Parametric Oscillator (OPO) |
| Pulse Repetition Rate | 10 Hz or 20 Hz |
| Max Output Energy | 200 mJ |
| Tuning Speed | Full Spectral Range in <100 ms |
| Tuning Range (Signal + Idler) | 210–2300 nm |
| Pump Wavelength Options | 1064 nm and 532 nm (switchable) |
| Trigger Interface | TTL-compatible external trigger input |
| Control Interface | USB 2.0 with LabVIEW™ drivers |
| Form Factor | Integrated mobile rack-mounted platform |
| Optional Components | Motorized variable attenuator, calibrated energy meter, fiber-coupled output module |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-SPMZ |
| Product Type | Motorized Translation Stage |
| Motion Range (Coarse) | 25 mm |
| Coarse Step Size | 95 nm |
| Encoder Resolution (Optional) | 20 nm |
| Nanopositioning Range | 30 µm |
| Nanopositioning Resolution | 0.06 nm |
| Resonant Frequency (Unloaded) | 4 kHz ±20% |
| Resonant Frequency (100 g Load) | 2 kHz ±20% |
| Stiffness | 3.0 N/µm ±20% |
| Max Horizontal Load | 1.0 kg |
| Max Vertical Load | 0.5 kg |
| Body Material | Aluminum |
| Controller | MicroDrive® + Nano-Drive® |
| Interface | Bidirectional USB |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |

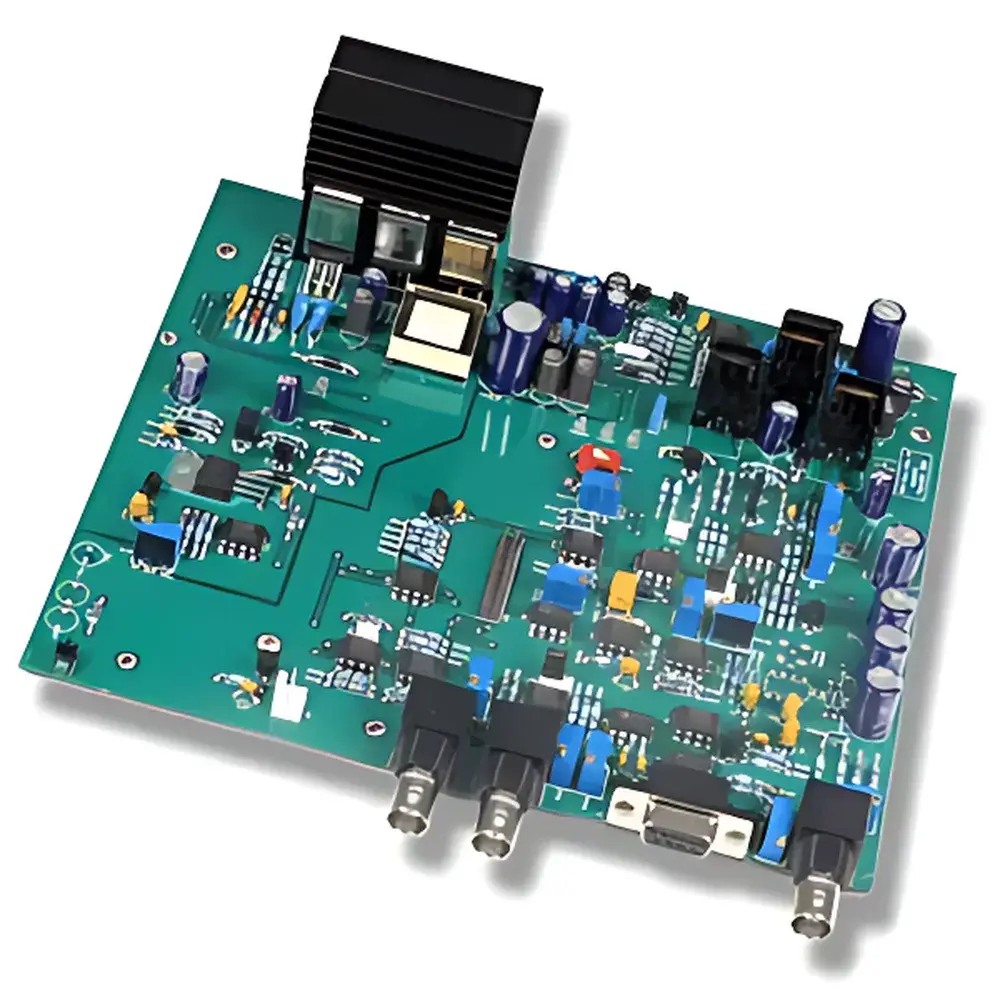

| Model | OEM Nano-Drive® Series |
| Product Type | Motorized Translation Stage |
| Compliance | RoHS, CE (2004/108/EC, 2006/95/EC) |
| Power Input | 12 W @ 24 VDC |
| Amplifier Output Voltage Range | −20 V to +165 V |
| Continuous Power Output | 10 W |
| Max Continuous Drive Current | 50 mA |
| Feedback Sensor | PicoQ® capacitive position sensor |
| Control Loop | Proportional-Integral (PI) closed-loop servo |
| Analog Input | 0–10 V (configurable), BNC interface |
| Sensor Output | 0–10 V, BNC interface |
| USB Interface Option | 16-bit or 20-bit digital daughter board |
| Operating Temperature | 5–40 °C |
| Dimensions | 193.68 × 171.45 × 63.5 mm |
| Steady-State Power Consumption | <0.5 W |
| Input Impedance | 10 kΩ |
| Short-Circuit Protection | Yes |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | Nano-OPH |
| Drive Type | Motorized (Piezo-Based Direct Drive) |
| Motion Range Options | 30 μm / 50 μm / 100 μm |
| Closed-Loop Resolution | 0.06 nm (OPH30) / 0.1 nm (OPH50) / 0.2 nm (OPH100) |
| Resonant Frequency | 3.5 kHz (unloaded) ±20% |
| Stiffness | 3.0 N/μm ±20% |
| Angular Errors (Roll/Pitch) | ≤1 μrad |
| (Yaw) | ≤2 μrad |
| Max Horizontal Load | 1.0 kg |
| Max Vertical Load | 0.5 kg |
| Body Materials | Aluminum, Invar, or Titanium |
| Position Sensing | Integrated PicoQ® Absolute Piezoresistive Sensor |
| Controller | Nano-Drive® Platform |
| Aperture Diameter | 1.3 in (33 mm) |
| Stackable Architecture | Yes, for XYZ, XYθ, or custom multi-axis configurations |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | PG500 |
| Core Component | Solid-State Laser System |
| Tuning Range | 0.68–16 µm |
| Spectral Linewidth | < 6 cm⁻¹ |
| Pump Compatibility | SHG-Nd:YAG (532 nm), e.g., PL2140 Series |
| Pulse Duration | Picosecond |
| Control Interface | LabVIEW Drivers, Remote Operation Capable |
| Design | Compact, Integrated OPG Architecture |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-HS3M |
| Motion Range (XY) | 10 µm |
| Motion Range (Z) | 5 µm |
| Positioning Resolution | 0.01 nm |
| Resonant Frequency (X) | 1.6 kHz |
| Resonant Frequency (Y) | 1.5 kHz |
| Resonant Frequency (Z) | 13.5 kHz |
| Max. Horizontal Load | 0.1 kg |
| Max. Vertical Load | 0.1 kg |
| Body Material | Aluminum or Titanium |
| Position Noise | < 2 pm (all axes) |
| Control | Closed-loop with PicoQ® sensor technology |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-UHV50 |
| Motion Range (X/Y) | 50 µm × 50 µm |
| Resolution (XY) | 0.1 nm |
| Resonant Frequency (X) | 500 Hz ±20% |
| Resonant Frequency (Y) | 250 Hz ±20% |
| Stiffness | 0.5 N/µm |
| Angular Deviation (Roll/Pitch) | ≤1 µrad |
| Angular Deviation (Yaw) | ≤3 µrad |
| Max. Horizontal Load | 0.5 kg |
| Max. Vertical Load | 0.2 kg |
| Body Material | Invar or Titanium |
| Bakeout Temperature | 100 °C |
| UHV Compatibility | ≤1×10⁻¹⁰ Torr |
| Aperture | 25 mm (1 inch) |
| Position Sensing | PicoQ® closed-loop absolute sensing |
| Controller | Nano-Drive® |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Device Type | Fiber-Based Picosecond Seed Source |
| Model | FPS |
| Pulse Energy | >50 nJ (at rep rate <1 MHz) |
| Pulse Duration | <10 ps |
| Spectral Bandwidth | Near Fourier-Transform Limited |
| Repetition Rate Range | 20 kHz – 40 MHz (fiber-integrated AOM pulse picker, burst mode supported) |
| Output Configuration | Free-space collimated output optional (FPS10/FPS100-COL) |
| Synchronization | TTL-compatible interface for external triggering (FPS10/FPS100-AOM option) |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

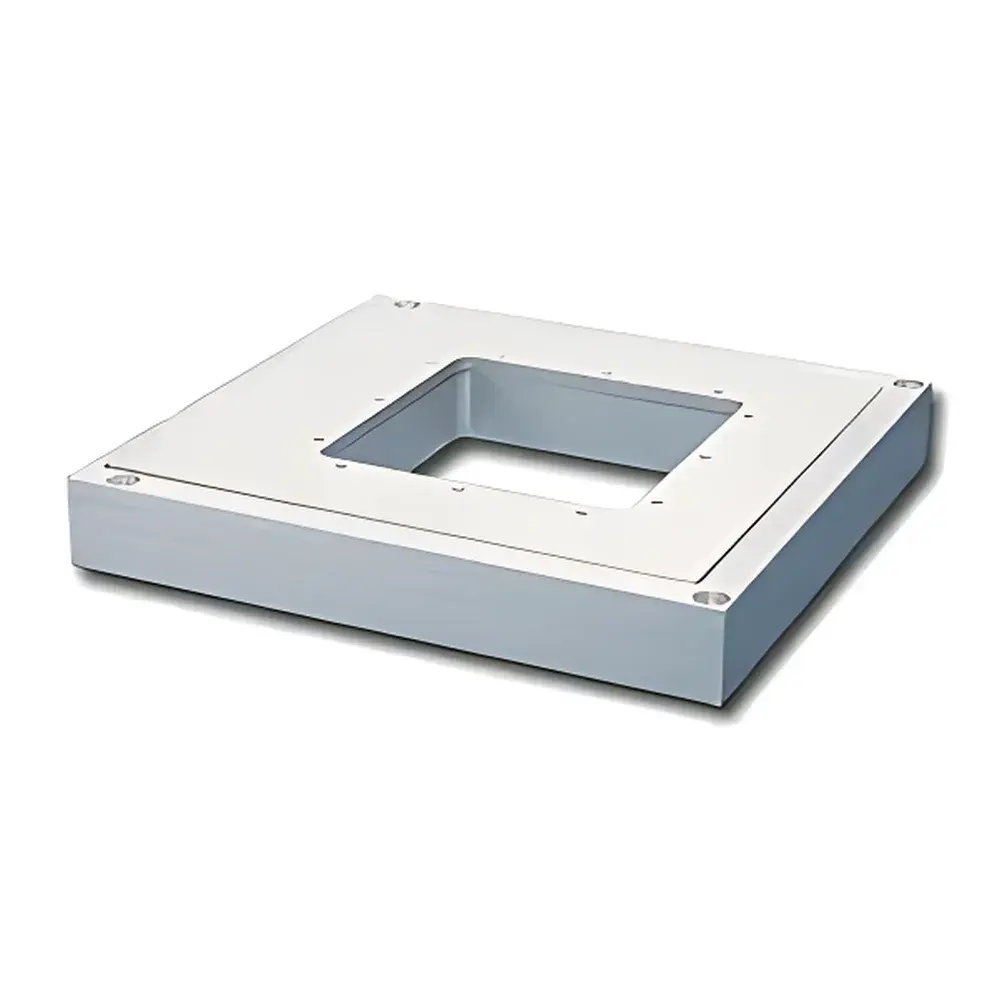

| Model | Nano-Align3 Series |
| Product Type | Motorized Precision Nanopositioning Stage |
| Motion Axes | Z, θX, θY |
| Profile Height | 0.8 in (20.3 mm) |
| Central Aperture | 2.6 in × 2.6 in (66 mm × 66 mm) |
| Z Travel Range | 100 µm or 200 µm |
| Angular Range (θX/θY) | 2 mrad or 4 mrad |
| Closed-Loop Resolution (Z/θ) | 0.2 nm / 4 nrad (Nano-Align3-100) or 0.4 nm / 8 nrad (Nano-Align3-200) |
| Resonant Frequency | 600 Hz ±20% (100 µm version) or 450 Hz ±20% (200 µm version) |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.2 kg |
| Body Materials | Aluminum, Titanium, or Invar |
| Controller | Nano-Drive® or Nano-Drive®85 |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Align5 Series |
| Type | Motorized 5-Axis Nanopositioning Stage (XYZ + θX + θY) |
| Travel Range (XYZ) | 100/200/300 µm |
| Angular Range (θX/θY) | up to 3.3/4.5 mrad |
| Resolution (XYZ) | 0.2–0.6 nm |
| Resolution (θX/θY) | 2.2–9.0 nrad |
| Center Aperture | 66 mm × 66 mm |
| Body Material | Aluminum (standard), optional Invar or Titanium |
| Resonant Frequency | 250–450 Hz |
| Stiffness | 1.0 N/µm |
| Max Load (horizontal) | 0.5 kg |
| Max Load (vertical) | 0.2 kg |
| Controller | Nano-Drive® |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |

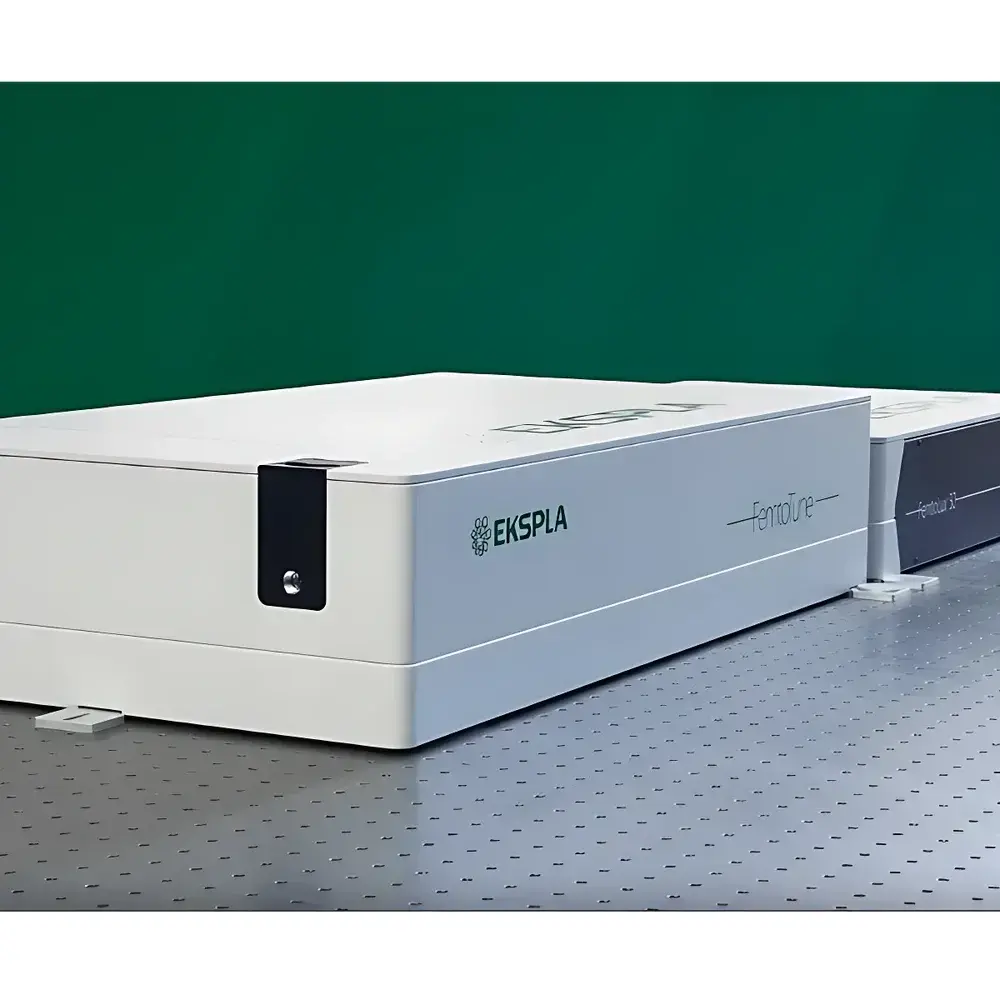

| Model | FemtoTune |
| Core Architecture | Solid-State Femtosecond Pumped Optical Parametric Amplifier (OPA) |
| Repetition Rate | Up to 100 kHz |
| Pulse Duration | < 50 fs |
| Tuning Range (Standard) | 650–950 nm & 1000–2000 nm |
| Extended Tuning Options | UV-Vis (330–470 nm, 550–650 nm), Mid-IR (2300–10,000 nm) |
| Synchronization | Fully motorized, time-synchronized wavelength tuning |
| Scan Speed | Full spectral sweep in seconds |
| Narrowband Option | Centered at 1030 nm or 515 nm, spectral bandwidth < 8 cm⁻¹ (down to < 3 cm⁻¹ with synchronized ps pump) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported High-Energy Pulsed Solid-State Laser |

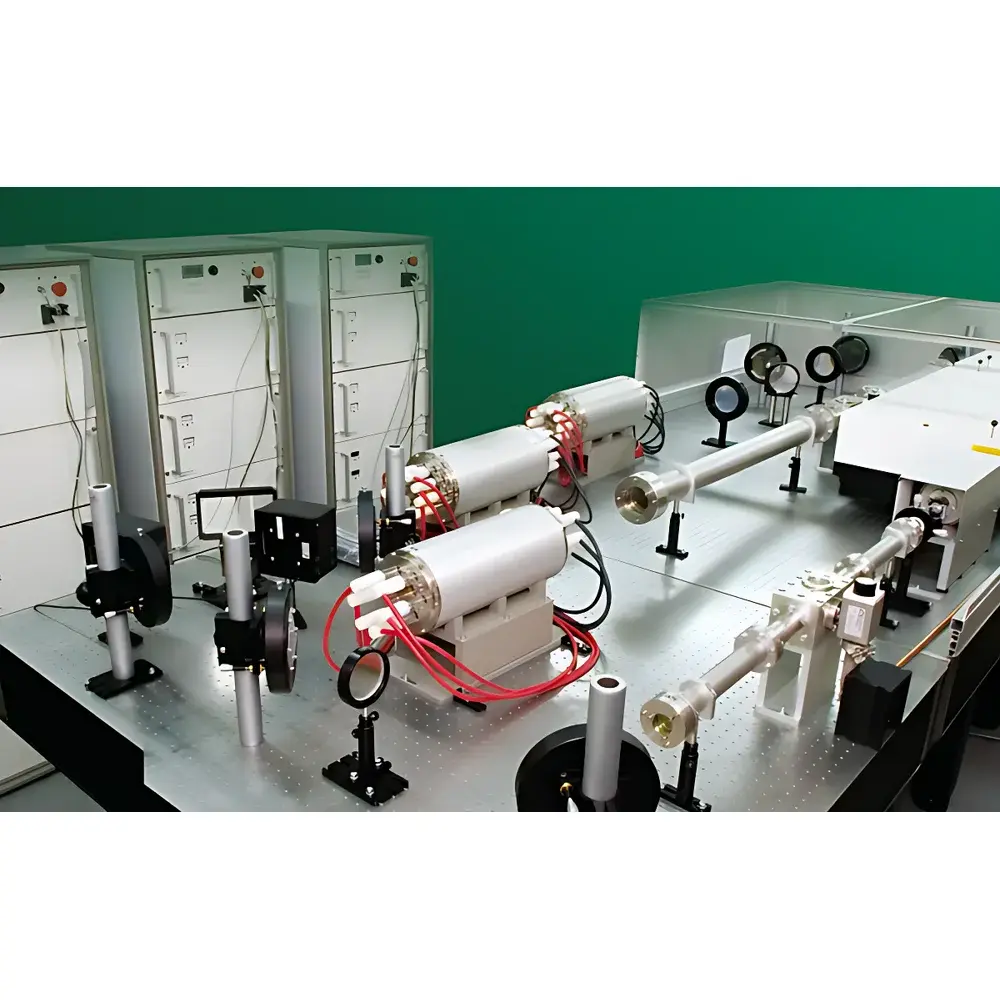

| Model | Nd:Glass |
| Output Pulse Duration | Nanosecond (ns) Range |
| Gain Medium | Neodymium-Doped Phosphate Glass (Nd:Glass) |
| Oscillator Architecture | Diode-Pumped Single-Longitudinal-Mode (SLM) or Multi-Mode (MM) Master Oscillator |
| Amplifier Configuration | Flashlamp- or Laser-Diode-Pumped Pre-Amplifier + Final Flashlamp-Pumped Power Amplifier |
| Max Aperture | 60 mm |
| Beam Wavefront Correction | Deformable Mirror-Based Adaptive Optics |
| Optional Pulse Compression | Stimulated Brillouin Scattering (SBS) Compressor |
| Harmonic Generation Options | Second-Harmonic (532 nm) and Third-Harmonic (355 nm) Modules Available |
| Control System | Microprocessor-Based with Diagnostic GUI Software |
| Compliance | CE Marked, RoHS Compliant, Designed for ISO/IEC 17025 Laboratory Environments |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

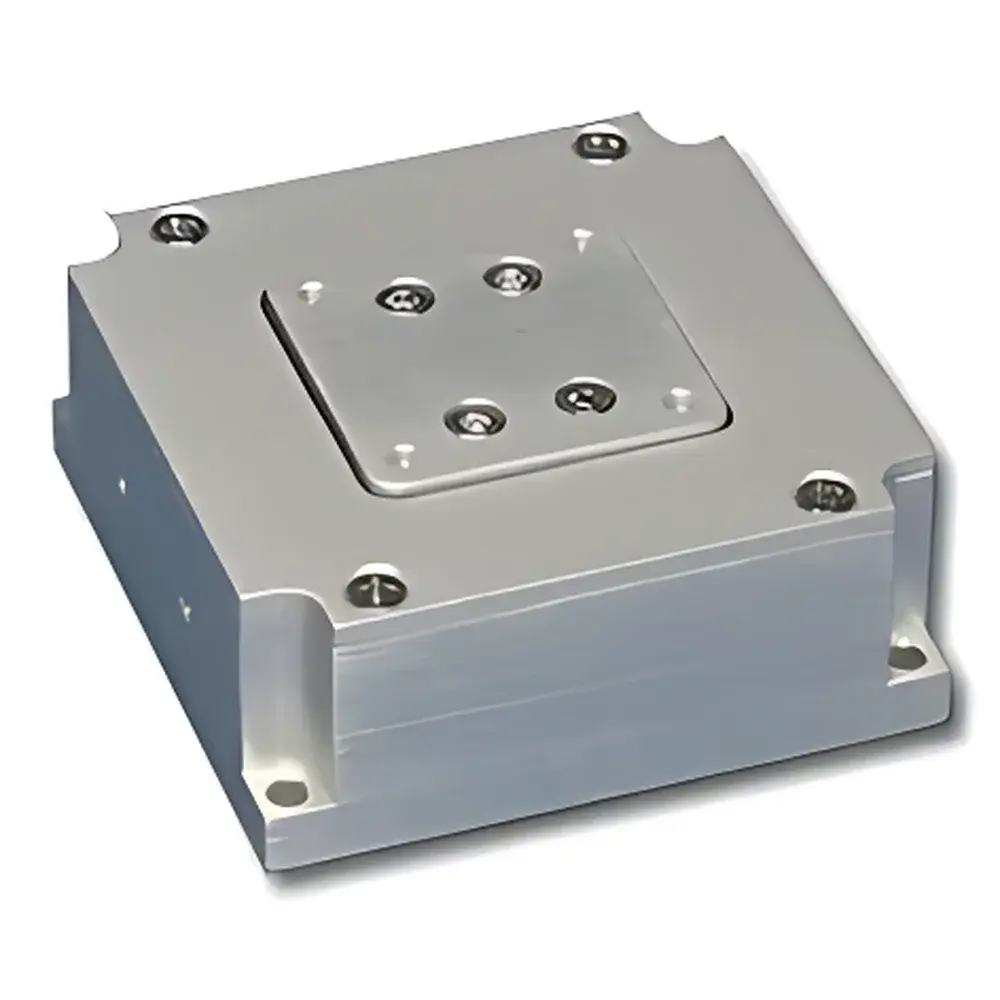

| Model | Nano-CZ200 |
| Motion Axis | Z-axis only |
| Travel Range | 200 µm |
| Resolution | 0.4 nm |
| Resonant Frequency | 500 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.1 kg |
| Body Material | Aluminum |
| Control | Closed-loop with integrated PicoQ® position sensing |
| Optional Center Aperture | Up to 0.25" diameter |
| Controller | Nano-Drive® |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Laser Source |

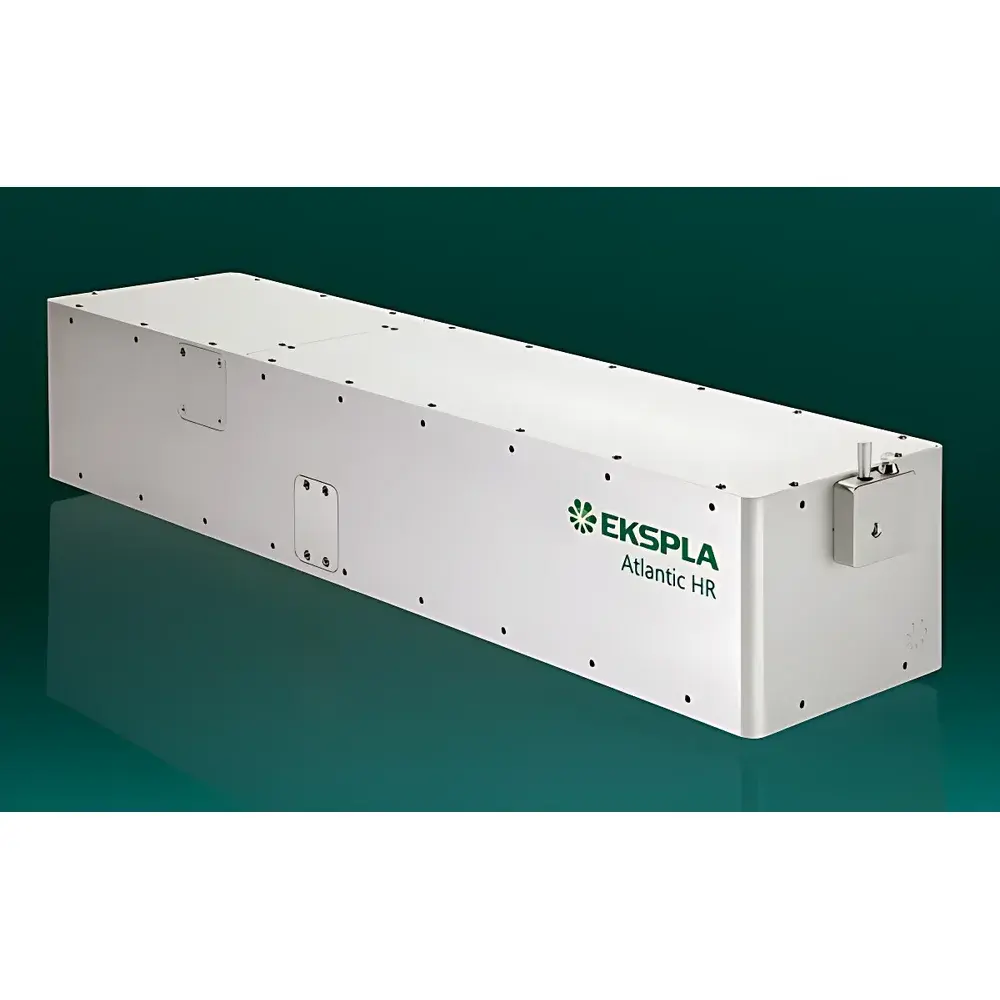

| Model | Atlantic HR |
| Output Wavelengths | 1064 nm / 532 nm / 355 nm |
| Average Output Power | Up to 16 W |
| Repetition Rate | Up to 88 MHz |
| Pulse Duration | < 8 ps |
| Beam Quality (M²) | < 1.3 |
| Cooling | Air-Cooled |
| Power Supply | Single-Phase AC |
| Design | Compact, Sealed, Industrial-Grade Enclosure |
| Maintenance Requirement | Minimal |
| Primary Use Cases | Ultrafast Micromachining, Optical Parametric Amplifier (OPA) Seeding, OPO Pumping, Precision Ablation |

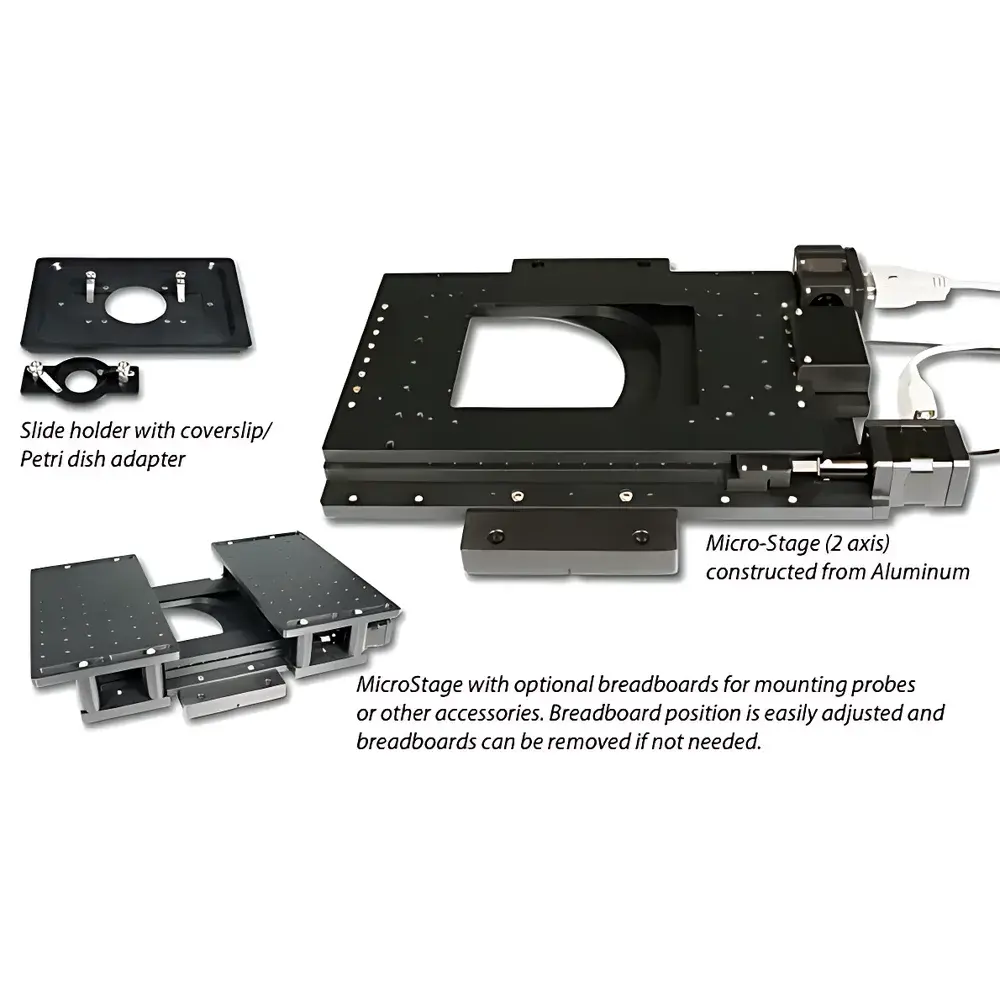

| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | MicroStage Automated Micropositioner |
| Motion Axes | XY |
| Travel Range | 25 mm per axis |
| Encoder Resolution (optional) | 20 nm |
| Step Size | 95 nm |
| Max Speed | 4 mm/sec |
| Controller | Micro-Drive™ USB |
| LabVIEW Compatibility | Yes |
| Load Capacity (horizontal) | 5 kg |
| Body Material | Aluminum |
| Microscope Compatibility | Olympus IX/IX2, Nikon TE2000/Ti, Leica DMI, Zeiss Axiovert/Axio Observer, RM21™ Platform |
| Software Interface | USB 2.0 |
| Control Options | PC-driven motion commands, optional wireless joystick |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | OEM Laser Manufacturer |
| Product Category | Imported |
| Model | PL10100 |
| Core Technology | Diode-Pumped Solid-State (DPSS) Mode-Locked Nd:YVO₄ Oscillator + Regenerative Amplifier |
| Output Power | 10 W @ 1064 nm |
| Pulse Energy | up to 200 µJ |
| Repetition Rate | up to 100 kHz |
| Pulse Duration | ~10 ps |
| Beam Quality | M² < 1.5 |
| Harmonics Options | 532 nm, 355 nm, 266 nm |
| Cooling | Air-Cooled |
| Electrical Supply | Single-Phase AC |
| Control Interface | PC-Controlled with Remote Keypad |
| Enclosure | Sealed, Monolithic Aluminum Alloy Housing |
| Maintenance | Field-Serviceable Consumables by Trained Technicians |
| Brand | VENTEON |
|---|---|
| Origin | Germany |
| Model | ULTRABROAD Edition (UE) |
| Pump Laser | Integrated 3–4 W DPSS, umbilical-free |
| Spectral Bandwidth | >200 nm (@ −10 dBc) |
| Pulse Duration | <8 fs |
| Pulse Energy | >2.5 nJ |
| Repetition Rate | 80 MHz |
| RMS Intensity Noise | <0.5% |
| Beam Height | 76.2 mm |
| Dimensions (L×W×H) | 608 × 268 × 117 mm |
| Weight | ~40 kg |
| Cooling | Optional water-cooled base plate |
| Design | Monolithic, rigid optomechanical architecture |
| Compliance | Designed for GLP-compliant lab environments |
| compatible with ISO 10110 optical surface standards and IEC 60825-1 | 2014 Class 4 laser safety requirements |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | NanoStar |
| Sensor | 2048 × 2048 sCMOS, 16-bit |
| Frame Rate | 104 fps (full frame, 16-bit, uncompressed) |
| Exposure Time | 4 ns – 1 s |
| Image Intensifier | 25 mm aperture, high-resolution |
| Coupling | Optimized lens cascade coupling |
| Interface | Camera Link HS over fiber optic |
| Software Control | DaVis platform |
| Compliance | Designed for GLP/GMP- and ISO/IEC 17025-aligned laboratory environments |
Show next
