| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | StrainM PT |
| System Type | Turnkey Portable Digital Image Correlation System |
| Camera Configuration | Dual high-sensitivity Imager E-Lite cameras |
| Illumination | Cold LED illumination system |
| Computing Platform | Integrated industrial-grade laptop |
| Software | StrainMaster PT v5.x with guided workflow and real-time 3D surface height & displacement calculation |
| Application Scope | Full-field shape, deformation, and strain measurement on static and quasi-static specimens |
| Compliance | Designed for ISO/IEC 17025-aligned testing environments |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlameMaster3D |
| Type | Tomographic Laser-Induced Fluorescence (LIF) and Chemiluminescence Imaging System |
| Configuration | Multi-camera or single-camera time-averaged volumetric acquisition |
| Compatible with | OH*, CH*, C₂*, and other flame radical emissions |
| Integrated with | FlowMaster Tomo PIV for concurrent 3D flow–flame coupling |
| Brand | SINTERFACE |
|---|---|
| Origin | Germany |
| Model | ZETAPHOREMETER IV |
| Measurement Principle | Laser Doppler Microelectrophoresis |
| Particle Size Range | 50 nm – 50 µm |
| Electrode Configuration | Dual Palladium Electrode Pairs |
| Temperature Control | Integrated Micro-Thermosensor with Active Stabilization |
| Automation Level | Fully Automated Image-Based Particle Tracking |
| Compliance | ISO 13099, ASTM D7826, IUPAC Recommendations for Electrophoretic Mobility Reporting |

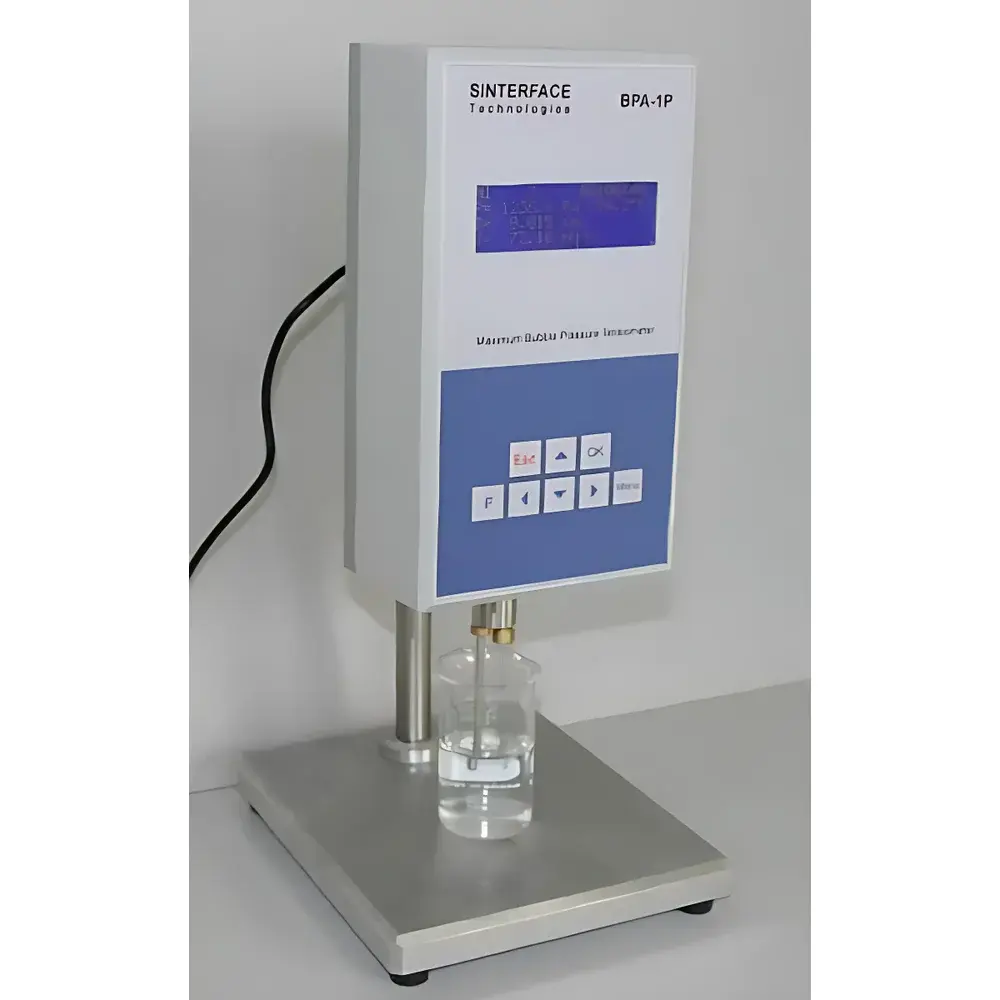

| Brand | SINTERFACE |
|---|---|
| Origin | Germany |
| Model | BPA-1P |
| Surface & Interfacial Tension Range | 10–100 mN/m |
| Repeatability | ±0.1 mN/m |
| Accuracy | ±0.25 mN/m |
| Dynamic Time Range | 10 ms – 10 s |
| Minimum Sample Volume | 1 mL |
| Temperature Range | Ambient (optional jacket: 0–80 °C) |
| Measurement Duration | 4–30 min (mode-dependent) |
| Onboard Memory | 2 MB (180 full scans or >30,000 constant-mode points) |
| Display | Text (4×20 chars) or Graphic (320×240 px monochrome) |
| Interface | RS-232 / USB |
| Power | 12 V DC (main unit), 100–240 V AC input |
| Dimensions (measuring unit) | 70 × 110 × 200 mm |
| Weight (measuring unit) | 1 kg |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | SprayMaster inspex |
| Dispersion Method | Dry & Wet Dispersion |
| Measurement Range | 6–3500 µm |
| Repeatability | <1% |
| Measurement Time | 10–15 s |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SprayMaster SLIPI |
| Pricing Range | USD 105,000 – 132,000 (FOB Hamburg) |
| Dispersion Method | Dry & Wet Dispersion |
| Instrument Type | Laboratory Laser-Based Planar Imaging System |
| Measurement Range | 5–3500 µm |
| Repeatability | <1% (RSD, N≥10, monodisperse PSL standards) |
| Measurement Time per Frame Sequence | 10–15 s |
| Core Technology | Structured Laser Illumination Planar Imaging (SLIPI) |
| Primary Detection Modes | Mie Scattering & Laser-Induced Fluorescence (LIF) |
| Optical Configuration | Synchronized Pulsed Nd:YAG Laser (532 nm or 266 nm), High-Speed CMOS Camera (≥1 MP, ≥10 kHz full-frame), Motorized SLIPI Grating Module, Precision Translation Stages |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlameMaster Tunable LIF |
| Application | Planar Laser-Induced Fluorescence (PLIF) imaging of diatomic flame species and radicals |
| Laser Type | Tunable pulsed dye laser integrated with Nd:YAG pump laser |
| Wavelength Range | Typically 210–800 nm (dependent on dye and harmonics) |
| Control Interface | Fully integrated with DaVis 10+ software platform |
| Calibration | Automated spectral calibration via LIF-excitation scan |
| Quantification Support | Reference burner-based concentration calibration |
| System Mounting | Modular rail-mounted configuration for flexible optical alignment |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | EngineMaster inspex |
| Application Domain | Internal Combustion Engine Research |
| Core Function | Crank-Angle-Synchronized Endoscopic Spray & Combustion Visualization with Quantitative Image-Based Diagnostics |
| Compliance Context | Designed for ASTM D7463, ISO 8178-4, and GLP/GMP-aligned R&D environments |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Type | Industrial Laser-Compatible Endoscopic Imaging System |
| Model Series | Endoscopes (VIS/UV, Camera & Illumination Variants) |
| Application Domain | High-Speed Combustion Diagnostics, PIV, LIF, Flame & Spray Visualization in IC Engines and Gas Turbines |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | ParticleMaster-IMI |
| Price Range | USD 105,000 – 132,000 (FOB Hamburg) |
| Dispersion Method | Dry & Wet Dispersion |
| Measurement Range | 5 µm – 3500 µm |
| Repeatability | <1% RSD |
| Measurement Time | 10–15 seconds per acquisition |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | StrainMaster 2D-/3D Stereo |
| Type | Stereoscopic Digital Image Correlation (DIC) System |
| Measurement Capability | Full-field 2D in-plane and 3D surface displacement & strain tensor mapping |
| Camera Configuration | Dual high-resolution synchronized cameras with calibrated stereo geometry |
| Calibration Standard | ISO/IEC 17025 traceable volumetric calibration protocol |
| Data Output Format | ASCII, HDF5, MATLAB .mat, DIC-compatible binary |
| Software Platform | DaVis v10.3+ with real-time correlation engine |
| Compliance | Supports GLP/GMP audit trails, ASTM E837–22 (strain measurement validation), ISO 12232 (image sensor characterization) |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | StrainMaster DVC |
| Application Domain | 3D Full-Field Internal Strain & Displacement Mapping |
| Imaging Modality Compatibility | X-ray CT, MRI, OCT, Optical Tomography |
| Technique Principle | Digital Volume Correlation (DVC) |
| Compliance Framework | Supports GLP/GMP-aligned data traceability and ASTM E2774–19 (Standard Guide for Digital Image Correlation) |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlameMaster Multifunctional |
| Pricing | Available Upon Request |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlameMaster-PIV |
| Application Domain | Simultaneous PIV and OH-PLIF in reactive flows |
| Platform Integration | DaVis v10+ Synchronized Acquisition & Processing |
| Compliance Framework | ASTM E2912, ISO 20486 (Optical Diagnostics in Combustion), GLP-aligned Data Audit Trail |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | StrainMaster-sys |
| Type | Turnkey Optical DIC System for Full-Field Deformation, Displacement & Strain Measurement |
| Compliance | Designed for ASTM E837, ISO/IEC 17025-aligned laboratory environments, supports GLP/GMP data integrity requirements via DaVis software audit trail functionality |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | SprayMaster |
| Dispersion Method | Dry & Wet |
| Measurement Range | 5–3500 µm |
| Repeatability | <1% |
| Measurement Time | 10–15 s |
| Brand | SINTERFACE |
|---|---|
| Origin | Germany |
| Model | ISR-1 |
| Interface Shear Viscosity Range | 1 µN·s/m to 100 mN·s/m |
| Interface Shear Elasticity Range | 1 µPa·m to 100 mPa·m |
| Frequency Range | 0.02–0.2 Hz |
| Torsion Angle Resolution | 0.01° |
| Position Sensor Angular Resolution | 0.01° |
| Temperature Control Range | 10–50 °C |
| Dimensions (L×W×H) | 500 × 500 × 700 mm |
| Weight | 50 kg |
| Power Supply | 100–240 V AC, 50–60 Hz, 110 W |
| Data Interface | RS-232 |
| DAQ Hardware | National Instruments high-fidelity I/O board |
| Operating System | Windows-compatible software |
| Sample Interfaces | Air/liquid and liquid/liquid interfaces |
| Optional Accessory | Liquid/liquid interface trough |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | ICOS |
| Application | In-cylinder crank-angle-resolved optical sensing for air/fuel ratio, EGR rate, CO₂ concentration, gas temperature, and H₂O concentration |
| Probe Integration | Spark plug–, glow plug–, or M5-threaded mounting |
| Measurement Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) with wavelength modulation spectroscopy (WMS) |
| Data Resolution | Crank-angle-resolved (≤0.1° CA), single-cycle capable |
| Response Time | <10 µs |
| Compatibility | Gasoline, Diesel, CNG, and multi-fuel engines |
| Certification Compliance | Designed for ISO 8178, ASTM D975/D3606, and EU Stage V R96-compliant test bed environments |
| Software Interface | Compatible with LaVision DaVis and third-party DAQ systems (e.g., NI VeriStand, dSPACE SCALEXIO) via TTL/encoder synchronization |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlameMaster inspex |
| Application | Optical diagnostics of combustion processes via chemiluminescence imaging, two-color pyrometry, Abel-inverted 2D reconstruction, endoscopic high-temperature imaging, and high-speed flame dynamics analysis |
| Compliance | Designed for research-grade combustion laboratories compliant with ISO/IEC 17025-aligned measurement traceability and compatible with GLP/GMP-relevant data integrity frameworks (e.g., audit-trail-enabled software logging) |
| Brand | Optrel |
|---|---|
| Origin | Germany |
| Model | Multiskop-CA |
| Type | Video-based Optical Contact Angle Measurement System |
| Integration | Modular add-on for Multiskop ellipsometry platform |
| Imaging | High-resolution CCD camera with programmable LED backlighting array |
| Sample stage | Motorized XYZ translation stage with thermal coupling capability |
| Analysis engine | Automated contour tracing algorithm based on Young–Laplace equation fitting |
| Compliance | Designed for ISO 19403-2, ASTM D7334, and ISO 21365-compliant surface energy evaluation workflows |
| Software | CAM (Contact Angle Module) with audit-trail-enabled data logging |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | ParticleMaster-Shadow |
| Dispersion Method | Dry & Wet |
| Measurement Range | 5–3500 µm |
| Repeatability | <1% |
| Measurement Time | 10–15 s |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ParticleMaster Inspex |
| Dispersion Method | Dry & Wet Dispersion |
| Instrument Type | Laboratory Laser Imaging Analyzer |
| Measurement Range | 10–5000 µm |
| Repeatability | ±1% (relative) |
| Measurement Speed | Transient imaging at 25–50 Hz frame rate |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | StrainMaster Compact |
| Pricing | Available Upon Request |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | ParticleMaster inspex |
| Dispersion Method | Dry & Wet |
| Measurement Range | >5 µm |
| Repeatability | <1% |
| Measurement Time | 30–60 s |
| Compliance | IP54 |
| Light Source | LED (Eye-Safe) |
| Calibration | Factory-Preconfigured Particle Size & Depth-of-Field Calibration |
| Installation | Fixed-Mount Integrated Probe with Coaxial Illumination |
