| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Translation Stage |
| Model | Mad-Deck™ |
| Drive Type | Motorized (Stepper-Based) |
| Motion Axes | X, Y, Z (All Motorized) |
| Linear Encoder Resolution (Optional) | 50 nm |
| Micropositioning Step Size | 95 nm |
| Max. Speed | 1.5 mm/sec |
| Native Accuracy | 1.0 µm |
| Native Repeatability | < 100 nm |
| Body Material | Aluminum |
| Controller | Micro-Drive™ |
| Interface | Bidirectional USB |
| Software Compatibility | LabVIEW-based GUI, Custom VI Development, Third-Party Integration |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-METZ |
| Motion Range | 5 µm |
| Positioning Resolution | 0.005 nm |
| Resonant Frequency | 14.5 kHz |
| Position Noise Floor | < 400 fm/√Hz |
| Max. Load (Horizontal/Vertical) | 0.1 kg |
| Body Material | Aluminum or Titanium |
| Controller | Nano-Drive® |
| Product Type | Closed-Loop Electric Nanopositioning Stage |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Theta |
| Product Type | Motorized Rotational Translation Stage |
| Motion Range | 2.0 mrad |
| Resolution | 4 nrad |
| Resonant Frequency (unloaded) | 2.0 kHz ±20% |
| Body Material | Aluminum or Invar |
| Control Architecture | Closed-loop with integrated PicoQ® position sensing |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-SPMZ |
| Product Type | Motorized Translation Stage |
| Motion Range (Coarse) | 25 mm |
| Coarse Step Size | 95 nm |
| Encoder Resolution (Optional) | 20 nm |
| Nanopositioning Range | 30 µm |
| Nanopositioning Resolution | 0.06 nm |
| Resonant Frequency (Unloaded) | 4 kHz ±20% |
| Resonant Frequency (100 g Load) | 2 kHz ±20% |
| Stiffness | 3.0 N/µm ±20% |
| Max Horizontal Load | 1.0 kg |
| Max Vertical Load | 0.5 kg |
| Body Material | Aluminum |
| Controller | MicroDrive® + Nano-Drive® |
| Interface | Bidirectional USB |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | OEM Nano-Drive® Series |
| Product Type | Motorized Translation Stage |
| Compliance | RoHS, CE (2004/108/EC, 2006/95/EC) |
| Power Input | 12 W @ 24 VDC |
| Amplifier Output Voltage Range | −20 V to +165 V |
| Continuous Power Output | 10 W |
| Max Continuous Drive Current | 50 mA |
| Feedback Sensor | PicoQ® capacitive position sensor |
| Control Loop | Proportional-Integral (PI) closed-loop servo |
| Analog Input | 0–10 V (configurable), BNC interface |
| Sensor Output | 0–10 V, BNC interface |
| USB Interface Option | 16-bit or 20-bit digital daughter board |
| Operating Temperature | 5–40 °C |
| Dimensions | 193.68 × 171.45 × 63.5 mm |
| Steady-State Power Consumption | <0.5 W |
| Input Impedance | 10 kΩ |
| Short-Circuit Protection | Yes |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | Nano-OPH |
| Drive Type | Motorized (Piezo-Based Direct Drive) |
| Motion Range Options | 30 μm / 50 μm / 100 μm |
| Closed-Loop Resolution | 0.06 nm (OPH30) / 0.1 nm (OPH50) / 0.2 nm (OPH100) |
| Resonant Frequency | 3.5 kHz (unloaded) ±20% |
| Stiffness | 3.0 N/μm ±20% |
| Angular Errors (Roll/Pitch) | ≤1 μrad |
| (Yaw) | ≤2 μrad |
| Max Horizontal Load | 1.0 kg |
| Max Vertical Load | 0.5 kg |
| Body Materials | Aluminum, Invar, or Titanium |
| Position Sensing | Integrated PicoQ® Absolute Piezoresistive Sensor |
| Controller | Nano-Drive® Platform |
| Aperture Diameter | 1.3 in (33 mm) |
| Stackable Architecture | Yes, for XYZ, XYθ, or custom multi-axis configurations |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-HS3M |
| Motion Range (XY) | 10 µm |
| Motion Range (Z) | 5 µm |
| Positioning Resolution | 0.01 nm |
| Resonant Frequency (X) | 1.6 kHz |
| Resonant Frequency (Y) | 1.5 kHz |
| Resonant Frequency (Z) | 13.5 kHz |
| Max. Horizontal Load | 0.1 kg |
| Max. Vertical Load | 0.1 kg |
| Body Material | Aluminum or Titanium |
| Position Noise | < 2 pm (all axes) |
| Control | Closed-loop with PicoQ® sensor technology |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-UHV50 |
| Motion Range (X/Y) | 50 µm × 50 µm |
| Resolution (XY) | 0.1 nm |
| Resonant Frequency (X) | 500 Hz ±20% |
| Resonant Frequency (Y) | 250 Hz ±20% |
| Stiffness | 0.5 N/µm |
| Angular Deviation (Roll/Pitch) | ≤1 µrad |
| Angular Deviation (Yaw) | ≤3 µrad |
| Max. Horizontal Load | 0.5 kg |
| Max. Vertical Load | 0.2 kg |
| Body Material | Invar or Titanium |
| Bakeout Temperature | 100 °C |
| UHV Compatibility | ≤1×10⁻¹⁰ Torr |
| Aperture | 25 mm (1 inch) |
| Position Sensing | PicoQ® closed-loop absolute sensing |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Align3 Series |
| Product Type | Motorized Precision Nanopositioning Stage |
| Motion Axes | Z, θX, θY |
| Profile Height | 0.8 in (20.3 mm) |
| Central Aperture | 2.6 in × 2.6 in (66 mm × 66 mm) |
| Z Travel Range | 100 µm or 200 µm |
| Angular Range (θX/θY) | 2 mrad or 4 mrad |
| Closed-Loop Resolution (Z/θ) | 0.2 nm / 4 nrad (Nano-Align3-100) or 0.4 nm / 8 nrad (Nano-Align3-200) |
| Resonant Frequency | 600 Hz ±20% (100 µm version) or 450 Hz ±20% (200 µm version) |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.2 kg |
| Body Materials | Aluminum, Titanium, or Invar |
| Controller | Nano-Drive® or Nano-Drive®85 |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Align5 Series |
| Type | Motorized 5-Axis Nanopositioning Stage (XYZ + θX + θY) |
| Travel Range (XYZ) | 100/200/300 µm |
| Angular Range (θX/θY) | up to 3.3/4.5 mrad |
| Resolution (XYZ) | 0.2–0.6 nm |
| Resolution (θX/θY) | 2.2–9.0 nrad |
| Center Aperture | 66 mm × 66 mm |
| Body Material | Aluminum (standard), optional Invar or Titanium |
| Resonant Frequency | 250–450 Hz |
| Stiffness | 1.0 N/µm |
| Max Load (horizontal) | 0.5 kg |
| Max Load (vertical) | 0.2 kg |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-CZ200 |
| Motion Axis | Z-axis only |
| Travel Range | 200 µm |
| Resolution | 0.4 nm |
| Resonant Frequency | 500 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.1 kg |
| Body Material | Aluminum |
| Control | Closed-loop with integrated PicoQ® position sensing |
| Optional Center Aperture | Up to 0.25" diameter |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | MicroStage Automated Micropositioner |
| Motion Axes | XY |
| Travel Range | 25 mm per axis |
| Encoder Resolution (optional) | 20 nm |
| Step Size | 95 nm |
| Max Speed | 4 mm/sec |
| Controller | Micro-Drive™ USB |
| LabVIEW Compatibility | Yes |
| Load Capacity (horizontal) | 5 kg |
| Body Material | Aluminum |
| Microscope Compatibility | Olympus IX/IX2, Nikon TE2000/Ti, Leica DMI, Zeiss Axiovert/Axio Observer, RM21™ Platform |
| Software Interface | USB 2.0 |
| Control Options | PC-driven motion commands, optional wireless joystick |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

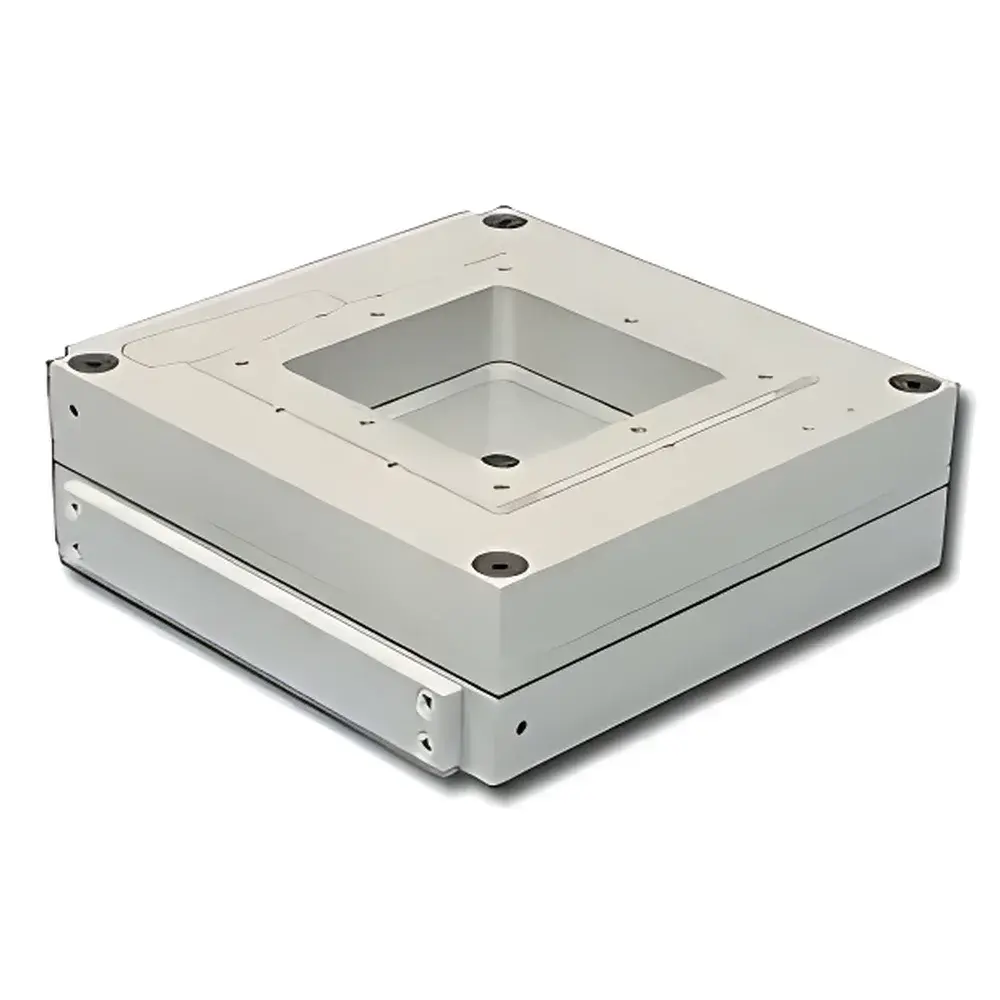

| Model | Nano-H Series |
| Motion Range | 50 μm × 50 μm or 100 μm × 100 μm |
| Resolution | 0.1 nm (Nano-H50) / 0.2 nm (Nano-H100) |
| Resonant Frequency (X) | 500 Hz ±20% |
| Resonant Frequency (Y) | 250 Hz ±20% |
| Stiffness | 1.0 N/μm |
| Angular Deviation (Roll/Pitch) | ≤1 μrad |
| Angular Deviation (Yaw) | ≤3 μrad |
| Max Load (Horizontal) | 0.5 kg |
| Max Load (Vertical) | 0.2 kg |
| Body Material Options | Aluminum, Invar, Titanium |
| Controller | Nano-Drive® |
| Closed-Loop Position Sensing | PicoQ® Technology |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

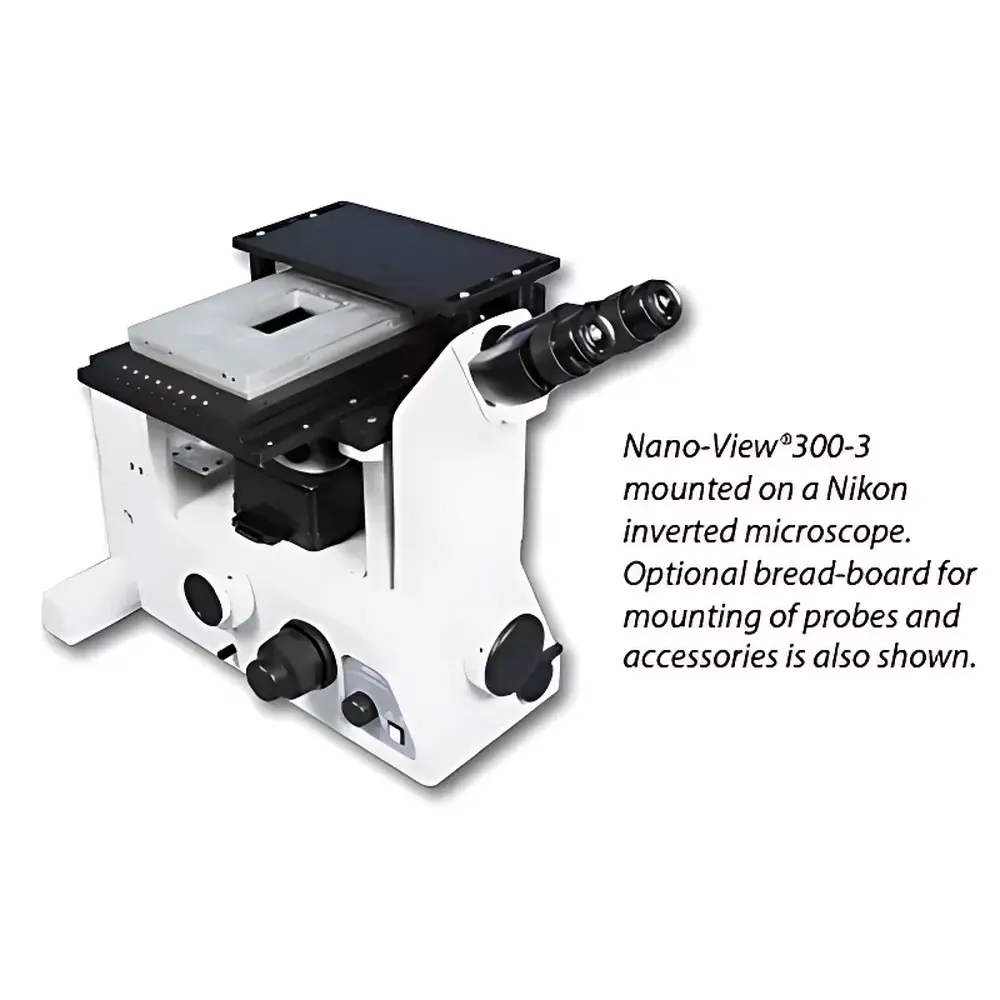

| Model | Nano-View® Series |
| Type | Motorized Translation Stage with Integrated Piezoelectric Nanopositioners |
| Travel (Micropositioning) | 25 mm per axis (X/Y) |
| Travel (Nanopositioning) | up to 300 µm per axis (X/Y/Z) |
| Micropositioner Step Size | 95 nm |
| Micropositioner Repeatability | 50 nm |
| Encoder Resolution (optional) | 20 nm |
| Nanopositioner Resolution | 0.2–0.6 nm (depending on range) |
| Closed-Loop Positioning Accuracy | Picometer-level (PicoQ® sensor technology) |
| Stiffness | 1.0 N/µm |
| Angular Deviation (Roll/Pitch) | ≤1 µrad |
| Angular Deviation (Yaw) | ≤3 µrad |
| Max Horizontal Load | 0.5 kg |
| Body Materials | Aluminum, Invar, or Titanium |
| Controllers | Nano-Drive® (nanopositioning) + Micro-Drive™ (micropositioning), USB interface |
| Software Compatibility | LabVIEW-ready, includes native motion control routines |
| Microscope Compatibility | Olympus IX/IX2, Nikon TE2000/Ti, Leica DMI, Zeiss Axiovert/Axio Observer, MCL RM21™ Platform |
| Brand | OWIS |
|---|---|
| Origin | Germany |
| Model | LIMES170 |
| Type | Motorized Linear Translation Stage |
| Travel Options | 400 mm / 600 mm / 1000 mm / 1500 mm |
| Drive Options | Stepper Motor or DC Servo Motor |
| Max Speed | 80 mm/s (stepper) / 150 mm/s (servo) |
| Max Load Capacity | 1500 N |
| Max Thrust Force | 400 N (stepper) / 150 N (servo) |
| Lead Screw Pitch | 5 mm |
| Bidirectional Repeatability | < 3 µm |
| Positioning Error | < 10 µm per 100 mm |
| Tilt & Pitch Errors | < 75 µrad (stepper), < 150 µrad (servo) |
| Vertical & Horizontal Deviation | < 2 µm per 100 mm |
| Motor Voltage | up to 40 V (stepper), up to 50 V (servo) |
| Max Current | 1.4 A – 4.9 A (depending on drive type) |
| Steps per Revolution | 200 (stepper), 10,000 (servo) |
| Optional Encoders | Incremental linear encoder (±3 µm/m accuracy, 0.1 µm resolution) |
| Housing Material | Anodized black electroplated aluminum alloy |
| Bearing System | Preloaded spherical bearing assembly |
| Guiding Mechanism | Precision recirculating ball guide rail with zero backlash |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-M3Z |
| Product Type | Motorized Nanopositioning Stage |
| Motion Axes | Z, θX, θY |
| Center Aperture | 0.25" (6.35 mm) diameter |
| Height | 0.8" (20.3 mm) |
| Closed-Loop Control | Yes |
| Position Sensing Technology | PicoQ® capacitive sensors |
| Body Material Options | Aluminum or Invar |
| Z Range | 25 µm |
| θX / θY Range | ±1 mrad each |
| Z Resolution | 0.05 nm |
| θX / θY Resolution | 2 nrad each |
| Resonant Frequency | 700 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.2 kg |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | Nano-UHV100 |
| Product Type | Motorized Translation Stage |
| Motion Range (X/Y) | 100 µm × 100 µm |
| Resolution (XY) | 0.2 nm |
| Resonant Frequency (X) | 500 Hz ±20% |
| Resonant Frequency (Y) | 250 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Angular Deviation (Roll/Pitch) | ≤1 µrad |
| Angular Deviation (Yaw) | ≤3 µrad |
| Max. Horizontal Load | 0.5 kg |
| Max. Vertical Load | 0.2 kg |
| Body Material | Invar or Titanium |
| Bakeout Temperature | 100 °C |
| Vacuum Compatibility | ≤10⁻¹⁰ Torr |
| Control | Closed-loop with PicoQ® position sensing |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-Align6 Series |
| Product Type | Motorized 6-Axis Nanopositioning Stage |
| Motion Ranges (Nano-Align6-100) | 100 μm × 100 μm × 100 μm × 1.1 mrad × 1.5 mrad × 5 mrad |
| Motion Ranges (Nano-Align6-200) | 200 μm × 200 μm × 200 μm × 2.3 mrad × 3.0 mrad × 5 mrad |
| Resolution (Nano-Align6-100) | 0.2 nm (XYZ), 2.2 nrad (θX), 3.0 nrad (θY), 10 nrad (θZ) |
| Resolution (Nano-Align6-200) | 0.4 nm (XYZ), 4.6 nrad (θX), 6.0 nrad (θY), 10 nrad (θZ) |
| Center Aperture | 35 mm diameter |
| Control | Closed-loop with integrated PicoQ® capacitive sensors |
| Body Materials | Aluminum, Titanium, or Invar |
| Recommended Max Load (horizontal) | 0.5 kg |
| Recommended Max Load (vertical) | 0.2 kg |
| Resonant Frequencies | X (450/400 Hz), Y (350/300 Hz), Z (450/350 Hz), ±20% |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-YT500 |
| Motion Axis | Single-axis (X) |
| Travel Range | 500 µm |
| Resolution | 1.0 nm |
| Resonant Frequency | 150 Hz ±20% |
| Stiffness | 0.8 N/µm |
| Max Horizontal Load | 0.5 kg |
| Max Vertical Load | 0.1 kg |
| Guiding Mechanism | Monolithic Flexure |
| Sensor Technology | PicoQ® Absolute Position Sensing |
| Control Architecture | Closed-loop with Nano-Drive® Controller |
| Body Material | Aluminum |
| Cycle Life | >1,000,000 full-range cycles |
| Aperture | Central rectangular optical pass-through |
| Orientation Independence | Yes |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Model | Nano-CZ500 |
| Motion Axis | Z-axis only |
| Travel Range | 500 µm |
| Resolution | 1.0 nm |
| Resonant Frequency | 200 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Load (horizontal) | 0.5 kg |
| Max Load (vertical) | 0.1 kg |
| Body Material | Aluminum |
| Control | Closed-loop with integrated PicoQ® position sensor |
| Optional Center Aperture | Up to 0.5 in diameter |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

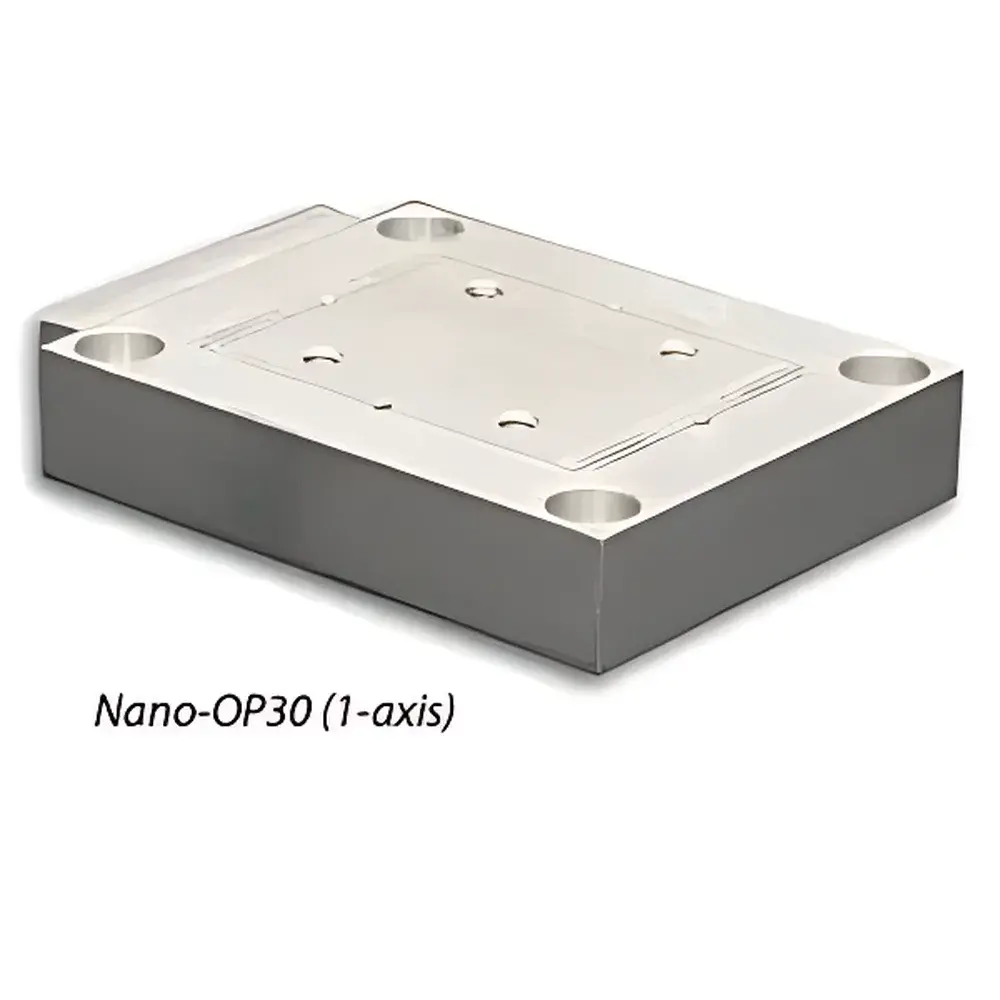

| Model | Nano-OP Series |
| Motion Range | 30 μm / 65 μm / 100 μm |
| Resolution | 0.06 nm / 0.13 nm / 0.2 nm |
| Resonant Frequency | 4 kHz (±20%) / 2 kHz (under 100 g load) |
| Stiffness | 3.0 N/μm (±20%) |
| Angular Deviation (Roll/Pitch) | ≤1 μrad |
| Angular Deviation (Yaw) | ≤2 μrad |
| Max Load (Horizontal) | 1.0 kg |
| Max Load (Vertical) | 0.5 kg |
| Body Material | Aluminum / Invar / Titanium |
| Control | Closed-loop with PicoQ® absolute position sensing |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

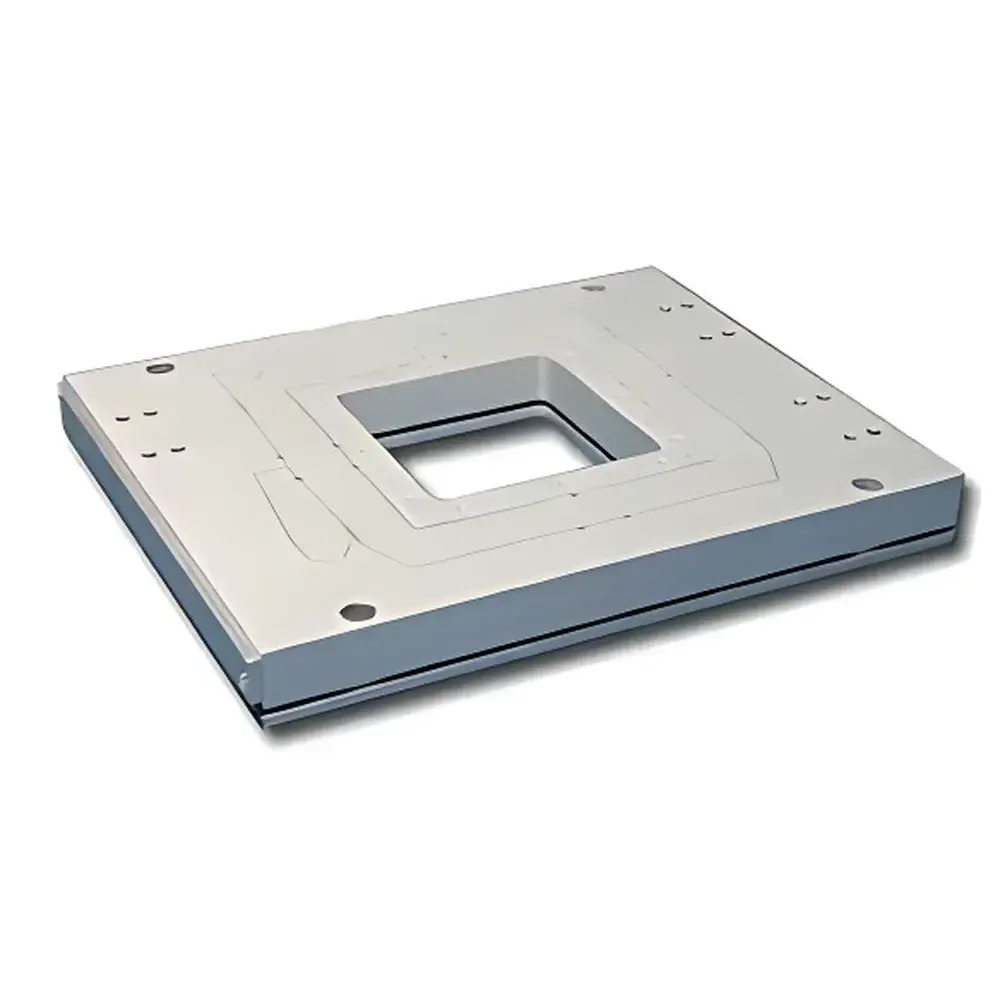

| Model | Nano-LP Series |
| Motion Range (XYZ) | 100/200/300 µm |
| Resolution | 0.2/0.4/0.6 nm |
| Resonant Frequency (X) | 450/400/350 Hz ±20% |
| Resonant Frequency (Y) | 350/300/250 Hz ±20% |
| Resonant Frequency (Z) | 450/350/250 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Angular Deviation (Roll/Pitch) | ≤1 µrad |
| Angular Deviation (Yaw) | ≤3 µrad |
| Max Load (Horizontal) | 0.5 kg |
| Max Load (Vertical) | 0.2 kg |
| Body Material | Aluminum (all), Invar or Titanium (Nano-LP100/Nano-LP200 only) |
| Control | Closed-loop with PicoQ® absolute position sensing |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Type | Motorized Precision Translation Stage |

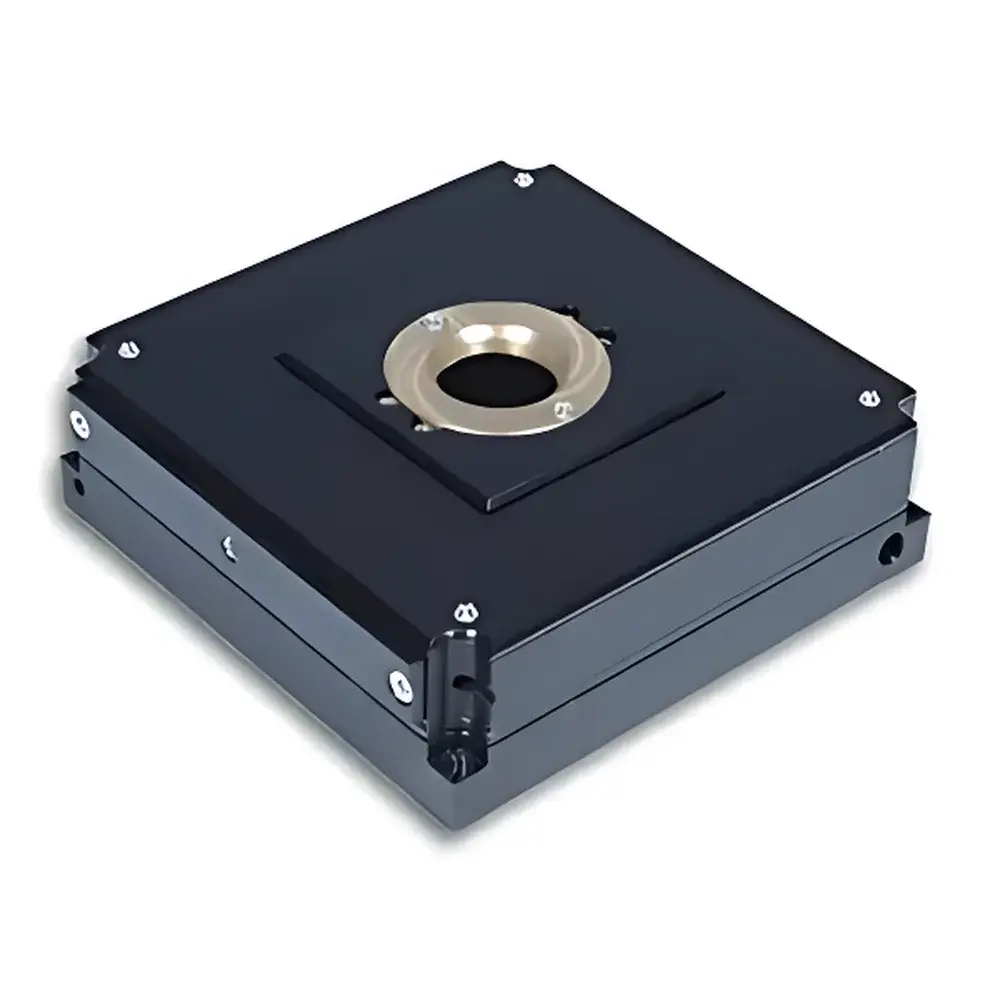

| Model | Nano-F3D |
| Motion Range (X/Y/Z) | 100 µm |
| Resolution | 0.2 nm |
| Resonant Frequency (X/Y/Z) | 300/200/400 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Max Recommended Load | 0.5 kg |
| Body Material | Aluminum and Brass |
| Compatible Threads | RMS, M25, M26 |
| Control | Closed-loop with proprietary on-axis position sensors |
| Controller | Nano-Drive® |
| Brand | MCL Think Nano |
|---|---|
| Origin | USA |

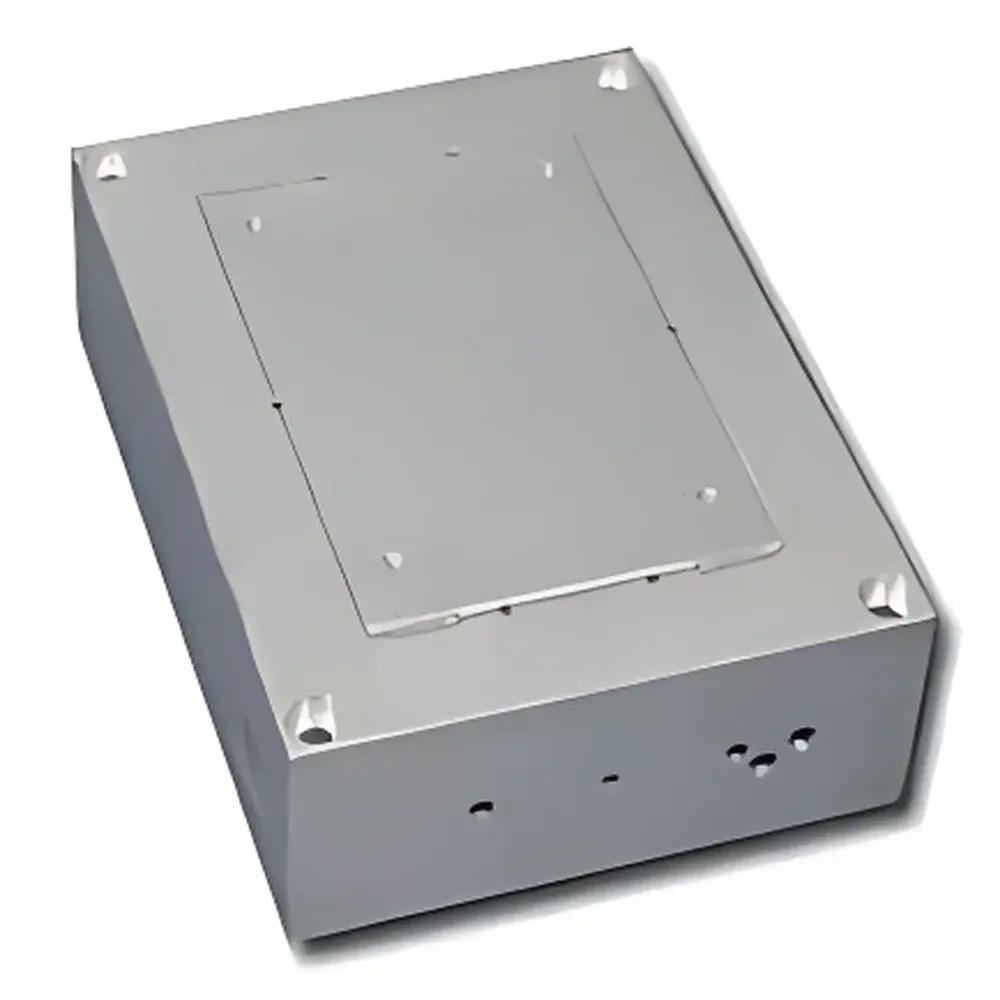

| Model | Nano-HL |
| Motion Axis | Single-Axis |
| Travel Range | 50/100/200 µm |
| Resolution | 0.1–0.4 nm (model-dependent) |
| Load Capacity | 10 kg (horizontal & vertical) |
| Control | Closed-loop with PicoQ® absolute position sensing |
| Body Material | Solid aluminum block (50 mm thick) |
| Resonant Frequency | 450 Hz ±20% |
| Stiffness | 1.0 N/µm |
| Controller | Nano-Drive® |
Show next
