| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlowMaster® thermographic |
| Measurement Capability | Planar (2D/3D) |
| Repetition Rate | 3 kHz |
| Velocity Range | ≤ 3.5 km/s |
| Temperature & Velocity Accuracy | ±1% of reading |
| Measurement Field Size | 200 mm × 200 mm |
| Particle Tracer | Micrometer-scale thermographic phosphor particles |
| Core Principle | Simultaneous phosphorescence lifetime-based thermometry and cross-correlation PIV |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster®-Endo |
| Measurement Domain | Planar (2D/3D) |
| Velocity Range | 0–2 km/s |
| Accuracy | ±1% of reading |
| Field of View | Up to 1 m × 1 m |
| Frame Rate | Low-frequency acquisition (typically < 100 Hz for high-resolution endoscopic configurations) |
| Optical Bandpass | Visible to UV (193–700 nm) |
| Compliance | Designed for integration with ASTM E2847, ISO 20456, and GLP/GMP-aligned experimental workflows |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster®-UW |
| Measurement Domain | Planar (2D/3D) |
| Measurement Frequency | Low-frequency operation |
| Velocity Range | 0–2,000 m/s |
| Accuracy | ±1% of measured velocity |
| Measurement Area | Up to 1 m × 1 m |
| Optical Architecture | Modular submersible configuration with surface-mounted electronics |
| Compliance | Designed for ISO/IEC 17025-aligned laboratory environments and GLP-compliant fluid dynamics research |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster®-Mitas |
| Measurement Domain | Planar (2D/3D) |
| Measurement Frequency | Low-Frequency |
| Velocity Range | 0–20 m/s |
| Accuracy | ±1% |
| Measurement Field Size | 0–1 mm |
| Microscope Objective Magnification | 5×–40× |
| CCD Resolution | 1376 × 1040 pixels |
| Quantum Efficiency | 65% @ 500 nm |
| Interframe Time (min) | 500 ns |
| Spatial Resolution (XYZ Stage) | 0.05 µm |
| Positioning Accuracy (XYZ Stage) | ±3 µm |
| Travel Range (X/Y) | 120 mm |
| Travel Range (Z) | 20 mm |
| Sample Opening | 84 × 70 mm |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlowMaster®-TR |
| Measurement Domain | 2D & 3D Planar |
| Frame Rate | >100 Hz (up to 100 kHz at reduced resolution) |
| Velocity Range | 0–8000 m/s |
| Accuracy | ±1% of measured velocity |
| Measurement Area | 400 × 400 mm |
| Camera Resolution | 1024 × 1024 pixels @ 5 kHz |
| Laser | High-Repetition Solid-State, Dual-Cavity, up to 50 mJ/pulse |
| Software Control | Fully integrated with DaVis® v10+ |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster®-surf |
| Measurement Domain | Planar (2D/3D) |
| Measurement Frequency | Low-frequency |
| Velocity Range | 0–2 km/s |
| Accuracy | ±1% of reading |
| Field of View | Up to 1 m × 1 m |
| Camera Requirement | Dual-camera stereo configuration |
| Core Technology | Digital Image Correlation (DIC) + Stereoscopic PIV |
| Software Platform | DaVis® v8.4+ |
| Compliance | ASTM E2847, ISO/IEC 17025-compatible workflows, GLP-aligned data traceability |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster® |
| Measurement Capability | 2D & 3D planar velocity fields |
| Velocity Range | 0–2000 m/s |
| Accuracy | <1% RMS error |
| Measurement Area | 400 × 400 mm |
| Laser Pulse Energy | up to 2 × 425 mJ per pulse |
| Camera Resolution Options | 1 MP to 29 MP |
| Temporal Resolution | Single-shot to MHz-rate TR-PIV |
| Correlation Precision | ≤0.1 pixel |
| SNR (Velocity Field) | >45 |
| High-Confidence Vector Yield (>0.1 px error threshold) | >90% |
| Compliance | ASTM E2847, ISO 20486, GLP/GMP-ready data audit trail support in DaVis |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlowMaster®-Tomo |
| Measurement Capability | 3D3C (Three-Dimensional, Three-Component) |
| Measurement Frequency | Low-to-Medium Repetition Rate (Typical Dual-Frame Acquisition) |
| Velocity Range | 0–2000 m/s |
| Accuracy | ±1% of measured velocity magnitude |
| Measurement Volume | 170 mm × 110 mm × 100 mm |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster 4D-PTV |
| Measurement Modality | Stereoscopic 3D3C (Three-Component, Three-Dimensional) |
| Temporal Resolution | >100 Hz |
| Velocity Range | 0–1000 m/s |
| Velocity Uncertainty | ±1% of measured value |
| Measurement Volume | 1000 mm × 1000 mm × 1000 mm |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |

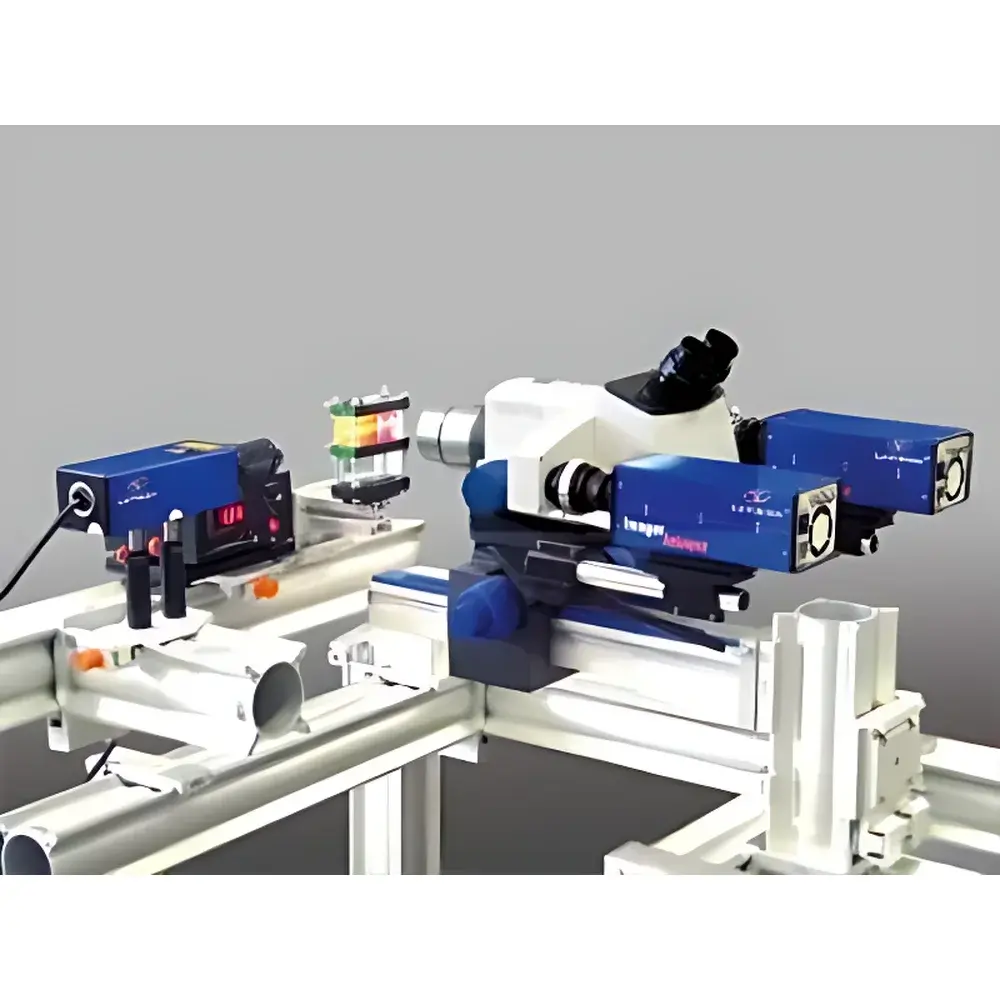

| Model | FlowMaster®-Micro |
| Measurement Domain | 2D & 3D planar velocity fields |
| Measurement Frequency | Low-frequency dual-pulse acquisition |
| Velocity Range | 0–10 m/s |
| Accuracy | ±1% of measured velocity |
| Field of View | 10 µm – 1 mm |
| Objective Magnification Range | 5× – 40× |
| Standard Camera | 1376 × 1040 pixels, 65% quantum efficiency @ 500 nm |
| Spatial Resolution | Down to ~0.1 pixel displacement uncertainty |
| Microscope Configuration | Upright or inverted fluorescence-compatible platform |
| Illumination Source | Dual-pulse Nd:YAG laser (typically 532 nm) |
| Tracer Compatibility | Fluorescent microspheres (e.g., Rhodamine B-doped polystyrene, 0.1–2 µm diameter) |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlowMaster®-Dual |
| Measurement Capability | 3D3C (Three-Dimensional, Three-Component) |
| Measurement Frequency | Low-Frequency Operation (Typical Repetition Rates: 1–15 Hz for Dual-Plane Acquisition) |
| Velocity Range | 0–2,000 m/s |
| Accuracy | ±1% of Measured Velocity Magnitude |
| Measurement Field of View | Up to 1.0 m × 1.0 m (Configurable via Lens and Laser Sheet Geometry) |
| Brand | LaVision GmbH |
|---|---|
| Country of Origin | Germany |
| Model | OA-STB |
| Measurement Capability | 3D3C (Three-Dimensional, Three-Component) |
| Measurement Frequency | Low-Frequency Temporal Resolution |
| Velocity Range | 0–1000 m/s |
| Accuracy | ±1% of measured velocity |
| Measurement Volume | 1 m × 1 m × 1 m |
| Software Requirement | DaVis 11.2 or later |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster®-Adaptive |
| Measurement Domain | 2D/3D Planar |
| Measurement Frequency | Low-Frequency |
| Velocity Range | 0–2 km/s |
| Accuracy | ±1% |
| Measurement Area | 1 m × 1 m |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FlowMaster-STB |
| Measurement Capability | True 3D, three-component (3D3C) volumetric velocity field |
| Measurement Frequency | Low-to-medium temporal resolution (suitable for transient and quasi-steady flows) |
| Velocity Range | 0–1000 m/s |
| Accuracy | ±1% of measured velocity magnitude |
| Measurement Volume | 1 m × 1 m × 1 m (adjustable via optical configuration and seeding density) |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster FSI |
| Measurement Capability | 3D3C (Three-Dimensional, Three-Component) |
| Frame Rate | >100 Hz |
| Velocity Range | 0–1000 m/s |
| Accuracy | ±1% of measured value |
| Measurement Volume | 1000 mm × 1000 mm × 1000 mm |
| Technique Integration | Synchronized Particle Image Velocimetry (PIV) and Digital Image Correlation (DIC) |
| Brand | LaVision GmbH |
|---|---|
| Origin | Germany |
| Model | FlowMaster® 3D |
| Measurement Dimensionality | 2D & 3D planar vector fields |
| Frame Rate | >100 Hz |
| Velocity Range | 0–3,000 m/s |
| Accuracy | ±1% of measured velocity |
| Measurement Field Size | 1 m × 1 m |
| Optical Configuration | Dual-camera stereoscopic imaging with Scheimpflug-aligned lenses |
| Calibration | Self-calibration enabled (target-free, off-field, distortion-corrected) |
| Software Platform | DaVis® v10+ |
