| Brand | auniontech |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |

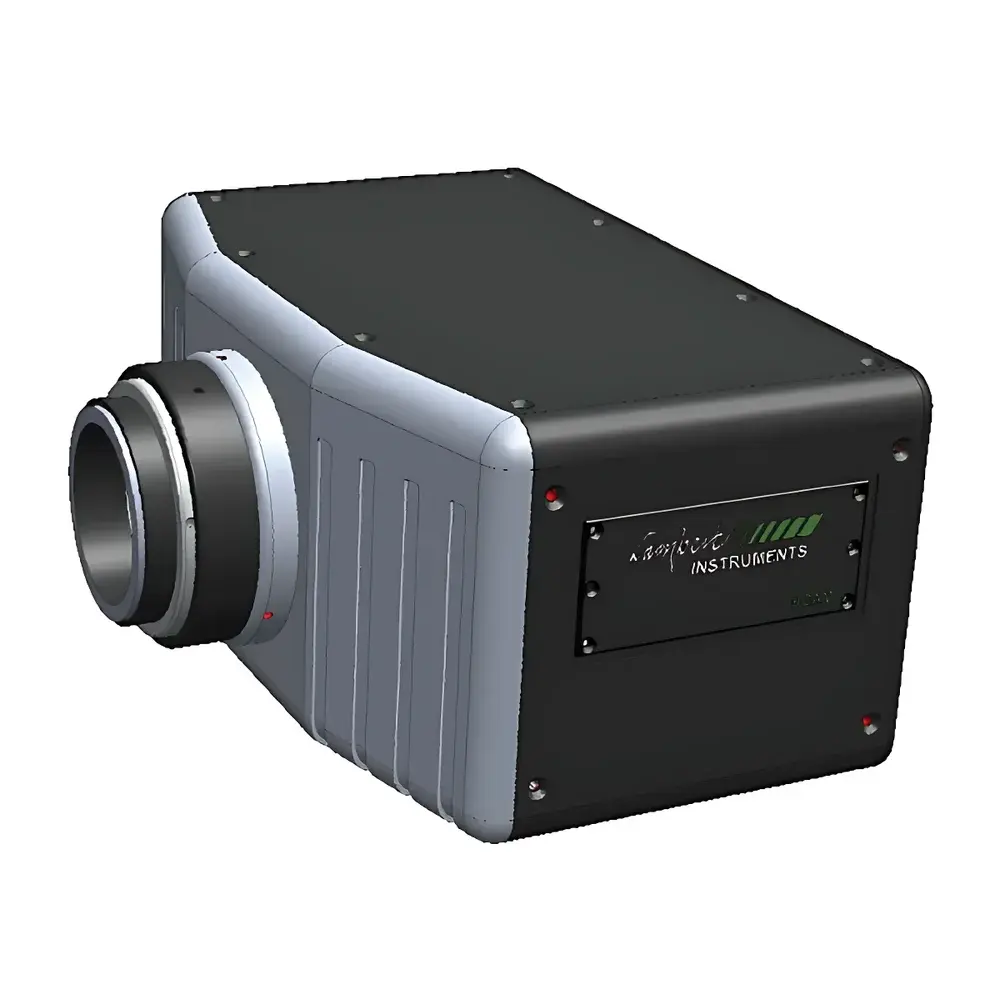

| Model | HiCAM Fluo |
| Max Frame Rate | 4000 fps |
| Sensor Resolution | 1280 × 1024 pixels |
| Minimum Exposure Time | 2 µs |
| Gating Pulse Width (FWHM) | 40 ns |
| Gating Repetition Rate | Up to 100 kHz |
| Image Intensifier | Gen III, fiber-optically coupled |
| Cooling | Peltier-cooled intensifier (−30 °C typical operating temperature) |
| Interface | CoaXPress v2.0 (quad-link) |
| Pixel Size | 6.6 × 6.6 µm |
| Software Support | CoaXPress SDK, LabVIEW drivers, optional real-time FPGA-based frame grabber integration |
| Brand | Alpao |
|---|---|
| Origin | France |
| Type | OEM Deformable Mirror |
| Diameter | 50 mm |
| Max. Piston Stroke | 100 µm (P-V) |
| Fitting Error | ≤2% RMS |
| Actuation Principle | Electromagnetic |
| Control Mode | Zernike Mode-Based Open-Loop or Closed-Loop |
| Compatibility | Windows/Linux/macOS, C/C++/Python/MATLAB APIs |
| Power Supply | Low-Voltage DC (<24 V), Low Power Consumption |
| Sensor Integration | Compatible with Shack-Hartmann and Pyramid Wavefront Sensors |
