| Brand | Auniontech |
|---|---|
| Model | VAHEAT |
| Temperature Range (Standard) | RT–105 °C |
| Temperature Range (Extended) | RT–200 °C |
| Max. Heating Rate | 100 °C/s |
| Temperature Stability | ±0.01 °C (rms) |
| Heating Area | 5 × 5 mm² |
| Controller Interface | USB |
| Compatible Microscopy Modes | TIRF, Confocal, AFM, iSCAT, STED, SIM, STORM, PALM, PAINT, Widefield, Polarized Light |
| Power Input (Standard) | 2500 mW |
| Power Input (Extended) | 5000 mW |
| Substrate Material | Chemically functionalizable glass |
| Adapter Dimensions | 75 × 25 × 11 mm |

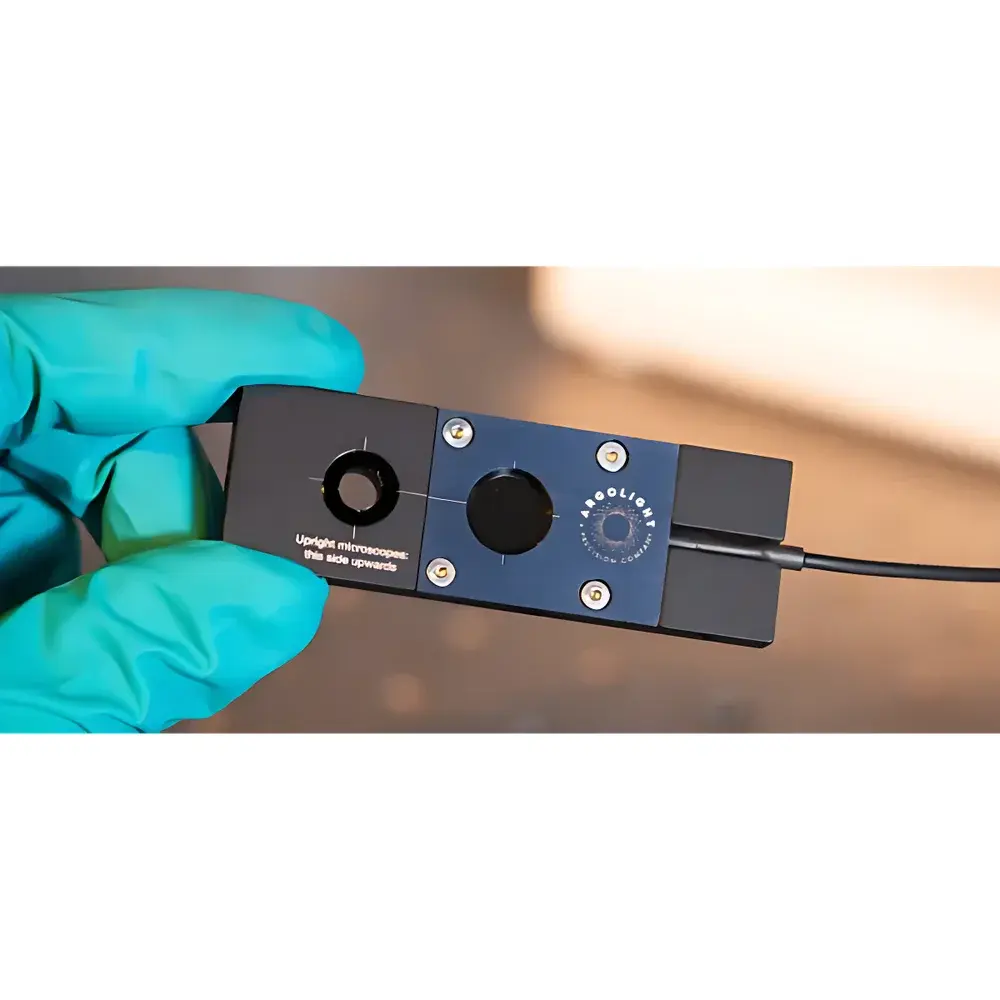

| Brand | Argolight |
|---|---|
| Origin | France |
| Substrate | Fused Silica with Embedded 3D Fluorescent Patterns |
| Dimensions (ArGo-PowerLM V2) | 75 × 25 × 6 mm |
| Excitation Range | 250–650 nm |
| Immersion Compatibility | Dry, Oil (unlimited) |
| Damage Threshold | 50 GW·cm⁻² (peak or average irradiance) |
| Power Range | 10 µW to 100 mW |
| Fluorescent Pattern Count | 5 (LM/HM/SIM variants: 5/16/27) |
| Software | Daybook v3.2 (Analysis & Data Manager modules) |
| Compliance | ISO 17025 traceable calibration protocols, compatible with GLP/GMP documentation workflows |
| Brand | Auniontech |
|---|---|
| Model | SWIR |
| Imaging Range | Short-Wave Infrared (900–1700 nm) |
| Magnification | 67× to 1000× |
| Illumination Options | Coaxial LED, Laser, Broadband Sources |
| Configuration Types | Upright & Horizontal |
| Dual-Channel Capability | Yes |
| Application Focus | Semiconductor Inspection, In Vivo SWIR Fluorescence Imaging, Forensic Analysis, Cultural Heritage Examination |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments, supports GLP/GMP documentation workflows |
