| Brand | Auniontech (Distributor) |
|---|---|
| Origin | Shanghai, China |
| Model | Argo-WP Calibration Microplate |
| Application | QC/QA of fluorescence imaging systems (HCS/HTS/HCI) |
| Excitation Range | 350–650 nm |
| Emission Range | ~365–800 nm |
| Substrate | Patented photostable glass with embedded 3D fluorescent patterns |
| Format | 4-well aluminum plate, each well containing one 75 mm × 25 mm × 1.5 mm Argolight glass slide |
| Pattern Stability | Non-bleaching, reusable, traceable to NMIs (e.g., BAM) |
| Compliance Support | IQ/OQ/PQ protocols, ASTM E3085, ISO 17025-aligned validation workflows |
| Software | Argolight Daybook v3.x (FDA 21 CFR Part 11-ready audit trail, open-format export, documented algorithms) |
| Brand | ARGOLIGHT (distributed by Auniontech) |
|---|---|
| Origin | Shanghai, China |
| Product Type | Calibration Slide & Resolution Target |
| Dimensions | 75 × 25 × 6 mm |
| Excitation Wavelength Range | 250–650 nm (CW) |
| Emission Wavelength Range | λₑₓ + 15 nm to 800 nm (broadband) |
| Immersion Compatibility | Dry, Oil, and Water Objectives |
| Recommended Imaging Duration per Session | <20 min |
| Storage Conditions | 10–40 °C, 20–70% RH |
| Damage Threshold | 50 GW/cm² (peak or average irradiance) |
| Optical Power Measurement Range | 10 µW – 100 mW |
| Spectral Coverage for Power Detection | 350–1100 nm |

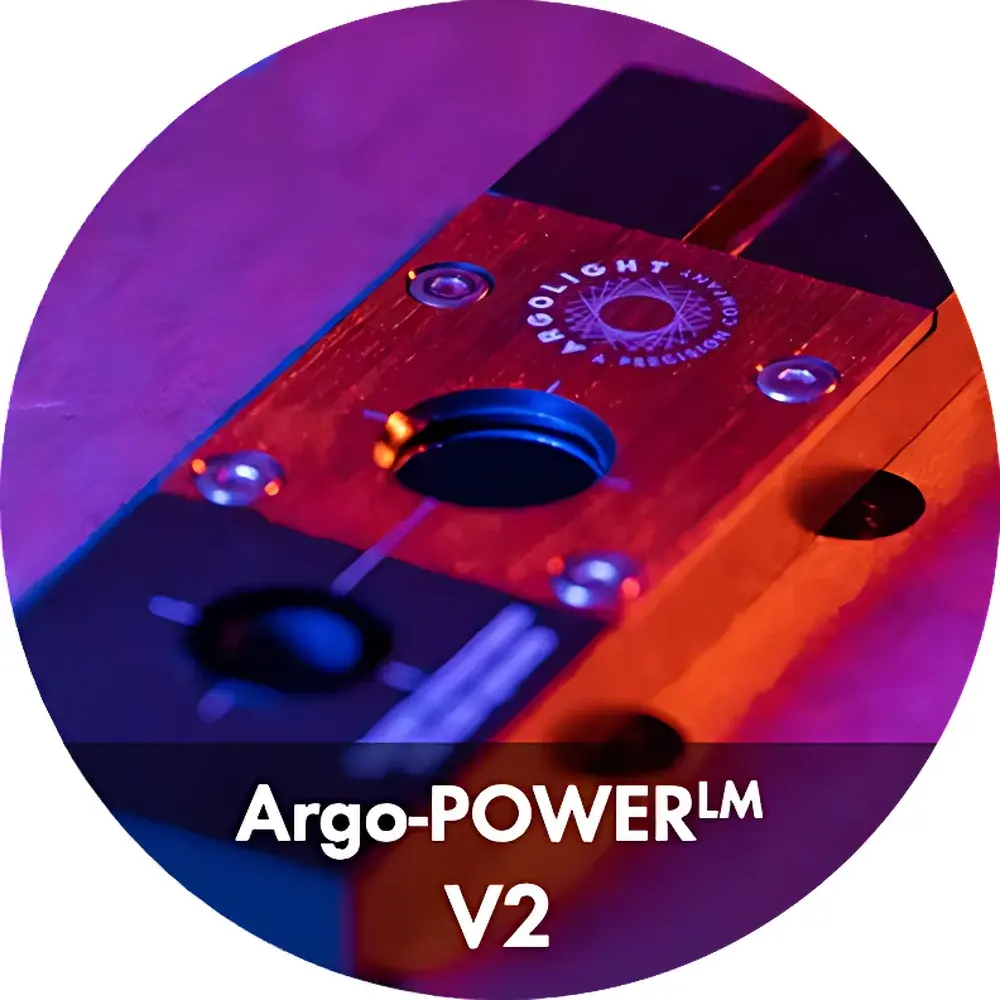

| Brand | ARGOLIGHT (distributed by Auniontech) |
|---|---|
| Origin | Shanghai, China |
| Product Type | Fluorescence Microscope Calibration Slide & Integrated Power Sensor |
| Dimensions | 75 × 25 × 6 mm |
| Excitation Wavelength Range | 250–650 nm (CW) |
| Emission Wavelength Range | λₑₓ + 15 nm to 800 nm (broadband) |
| Power Measurement Range | 10 µW – 100 mW |
| Measurable Wavelength Range | 350–1100 nm |
| Immersion Compatibility | Dry, oil, and water immersion objectives |
| Recommended Imaging Duration per Session | < 20 min |
| Storage Conditions | 10–40 °C, 20–70 % RH |
| Damage Threshold | 50 GW/cm² (peak or average irradiance) |
| Pattern Stability | Photostable, non-bleaching embedded 2D/3D fluorescent nanostructures |
| Brand | Argolight |
|---|---|
| Model | Argo-SIM Slide V2 |
| Substrate | AG03 Glass Core in Anodized Aluminum Housing |
| Dimensions | 75 × 25 × 1.5 mm |
| Fluorescence Stability | Lifetime (Non-photobleaching) |
| Excitation Range | 250–650 nm (Continuous) |
| Emission Range | λₑₓ + 15 nm to 800 nm (Continuous) |
| Immersion Compatibility | Dry, Oil (Unrestricted), Water |
| Objective Exposure Limit | <20 min per objective |
| Storage Conditions | 10–40 °C, 20–70 % RH |
| Laser Damage Threshold | 50 GW/cm² (Peak or Average Irradiance) |
| Pattern Count per Slide | 27 Distinct Fluorescent Microstructures |
| Imaging Compatibility | All Fluorescence-Based Modalities Except STED and Multiphoton |
| Software | Argolight Daybook (Proprietary Image Analysis & QC Database Platform) |
| Brand | Argolight |
|---|---|
| Origin | France |
| Model | Argo-LM Slide V2 |
| Substrate | AG03 borosilicate glass core in anodized aluminum carrier |
| Dimensions | 75 × 25 × 1.5 mm |
| Excitation Range | 250–650 nm (continuous) |
| Emission Range | λₑₓ + 15 nm to 800 nm (continuous) |
| Immersion Compatibility | Dry, oil (unrestricted), water |
| Objective Compatibility | ≤20× magnification |
| Photostability | Non-bleaching, lifetime-stable fluorescence patterns |
| Laser Damage Threshold | 50 GW/cm² (peak or average irradiance) |
| Pattern Precision | <10 µm in all three dimensions |
| Compliance | Aligns with ISO 21073:2019 (“Fluorescence confocal microscopes for biological imaging — Optical data”) and supports GLP/GMP-aligned quality documentation workflows |
| Brand | Argolight |
|---|---|
| Origin | France |
| Manufacturer | Argolight SAS |
| Model | Argo-HM Slide V2 |
| Substrate | AG03 ultra-pure fused silica core |
| Dimensions | 75 × 25 × 1.5 mm |
| Pattern Count | 16 embedded 3D fluorescent structures per slide |
| Excitation Range | 250–650 nm (continuous) |
| Emission Range | λₑₓ + 15 nm to 800 nm (continuous) |
| Photostability | Non-bleaching, lifetime-stable fluorescence |
| Damage Threshold | 50 GW/cm² (peak or average irradiance) |
| Immersion Compatibility | Dry, oil, water (no restrictions) |
| Objective Compatibility | All objectives ≤ 100× |
| Storage Conditions | 10–40 °C, 20–70 % RH |
| Imaging Modality Compatibility | Widefield, confocal, spinning disk, light-sheet, TIRF — excluding STED, RESOLFT, and multiphoton modalities |
| Traceability | Certified reference standard aligned with ISO/IEC 17025-accredited metrology labs (e.g., BAM) and ISO 21073:2019 |
