| Brand | auniontech (distributor) |
|---|---|
| Origin | Switzerland |
| Product Type | Motorized Liquid Lens Integration Module |
| Mount | S-Mount & C-Mount |
| Sensor Compatibility | 4/3" Format |
| Focal Length Range | 5–300 mm |
| Aperture | Low f-number, vignetting-free design |
| Form Factor | Compact integrated optical module |
| Compliance | Designed for industrial vision integration per ISO 10110 optical manufacturing standards |
| Brand | Auniontech |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Optical Instrument Component / Fiber Optic Coupler |
| Model | GalvoStation (Microscopy & Imaging Accessory) |
| Pricing | Available Upon Request |
| Component Type | Tapered Fiber Probe with Galvanometric Scanning Assembly |

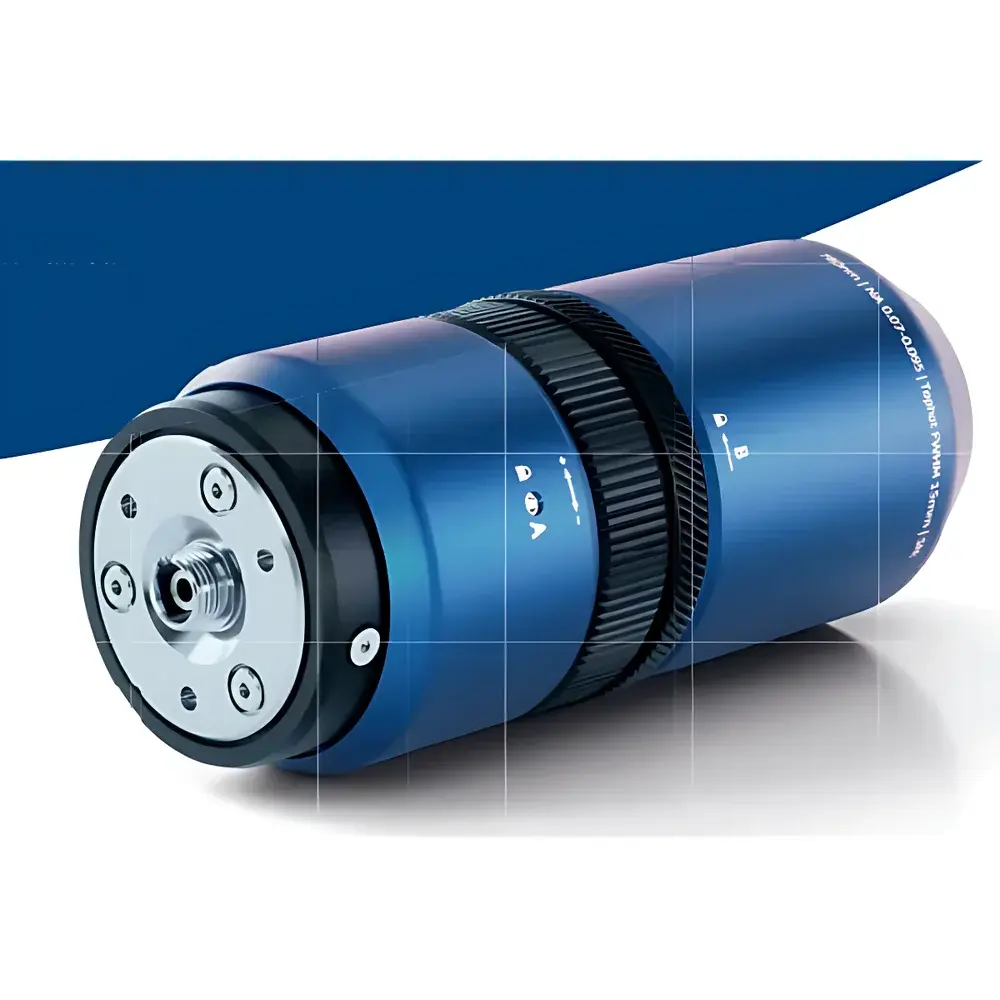

| Brand | asphericon |
|---|---|
| Model | a |
| Component Type | Optical Element |
| Design Wavelength | 780 nm |
| Output Beam Diameter (FWHM) | 15 mm |
| Input Fiber NA Range | 0.07–0.095 |
| Beam Uniformity | >90% |
| Working Distance | up to 2000 mm |
| RMS Wavefront Error | <0.05λ (measured: 0.02λ) |
| Strehl Ratio | >0.9 |
| Compatible Connectors | FC/PC, FC/APC |
| Diffraction-Limited Performance | Yes |

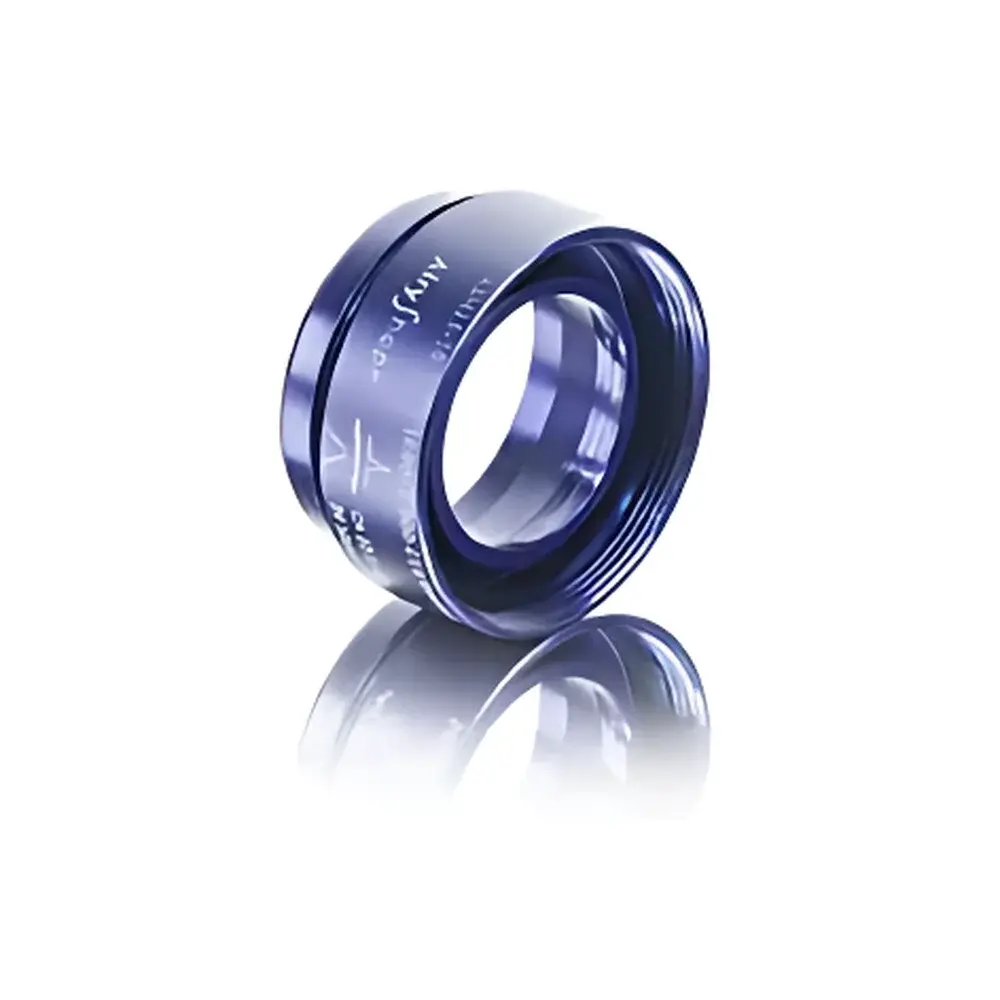

| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | a |
| Wavelength Range | 300–1600 nm |
| Input Beam Diameter (1/e²) | 10 mm |
| Output Beam Diameter (dAiry) | 10 mm |
| Laser-Induced Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |

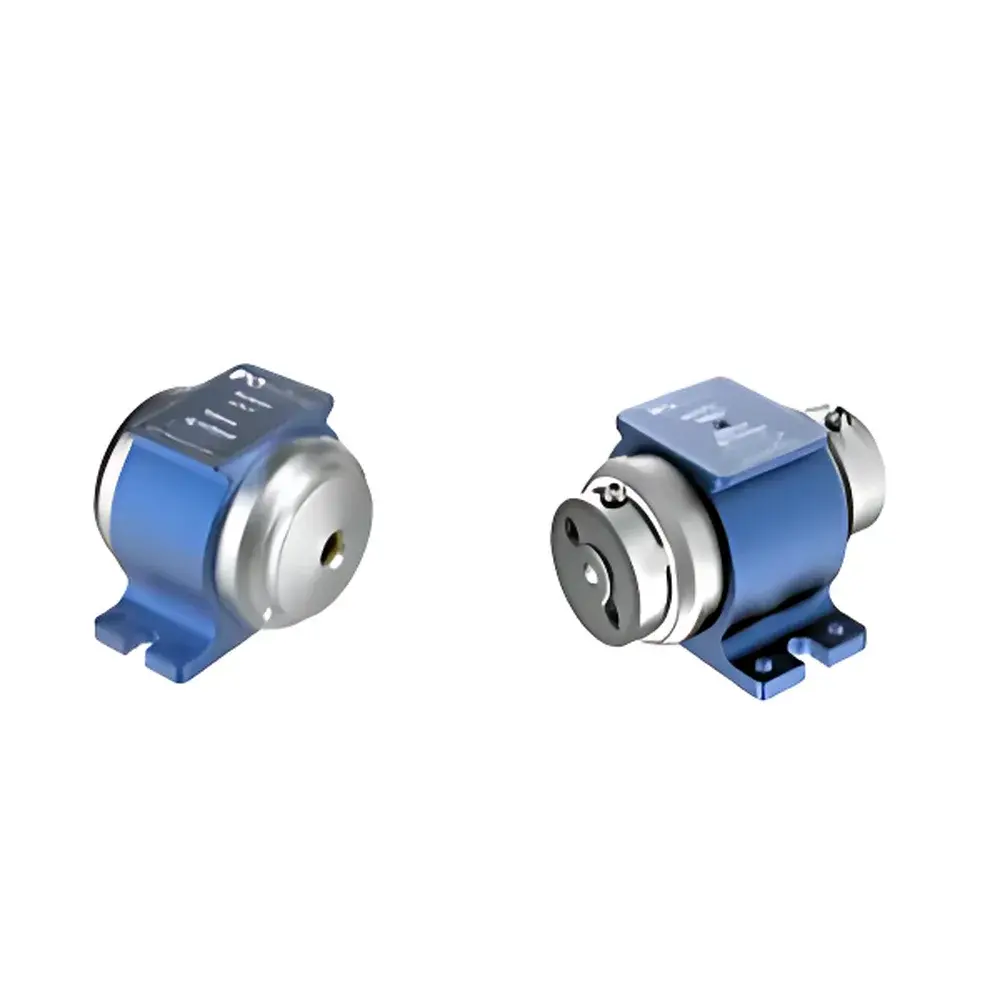

| Brand | Auniontech (IPOptica) |
|---|---|
| Clear Aperture | Up to 70 mm |
| Operating Wavelength | 405–1100 nm (model-dependent) |
| Peak Rotation | 45° ± 0.5° |
| Damage Threshold | >7 J/cm² @ 10 ns (HPKT), >10 J/cm² @ 10 ns (HPTG), 3 J/cm² @ 10 ns (VITG) |
| Transmission | >98% (rotator), >96% (isolator) |
| Isolation | >35 dB (HPTG/HPKT), >30 dB (VITG) |
| Storage Temperature | −40°C to +70°C |
| Beam Pointing Stability | <5 mrad |
| Brand | Auniontech (Distributor) |
|---|---|
| Origin | Switzerland |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Instrument Component |
| Model Designation | ELM-T Series Telecentric Lens Module |
| Pricing | Available Upon Request |
| Brand | Asphericon |
|---|---|
| Material | UV-grade Fused Silica |
| Surface Form Error (RMSi) | ≤0.02 µm |
| Surface Roughness (Rq) | ≤0.5 nm |
| Laser Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Coating Options | 7 standard AR coatings (X, A, K, B, L, C, M) |
| EFL Tolerance | ≤0.1% |
| Diameter Tolerance | +0/−0.05 mm |
| Center Thickness Tolerance | ±0.05 mm |
| Clear Aperture | ≥90% |
| Compliance | RoHS-compliant |
| Design Wavelengths | 240–1600 nm (model-dependent) |
| Stock Availability | Yes |
| Brand | Asphericon |
|---|---|
| Model | StockOptics Axicon |
| Type | Precision Fused Silica Axicon (Conical Lens) |
| Material | Fused Silica |
| Surface Figure (RMSi) | ≤ 0.07 µm |
| Surface Quality | 40–20 scratch-dig |
| Diameter Tolerance | +0/−0.1 mm |
| Center Thickness Tolerance | ±0.1 mm |
| Clear Aperture | ≥90% |
| Standard AR Coatings | A (400–600 nm), B (600–1050 nm), C (1000–1600 nm), X (240–380 nm) |
| Laser Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |

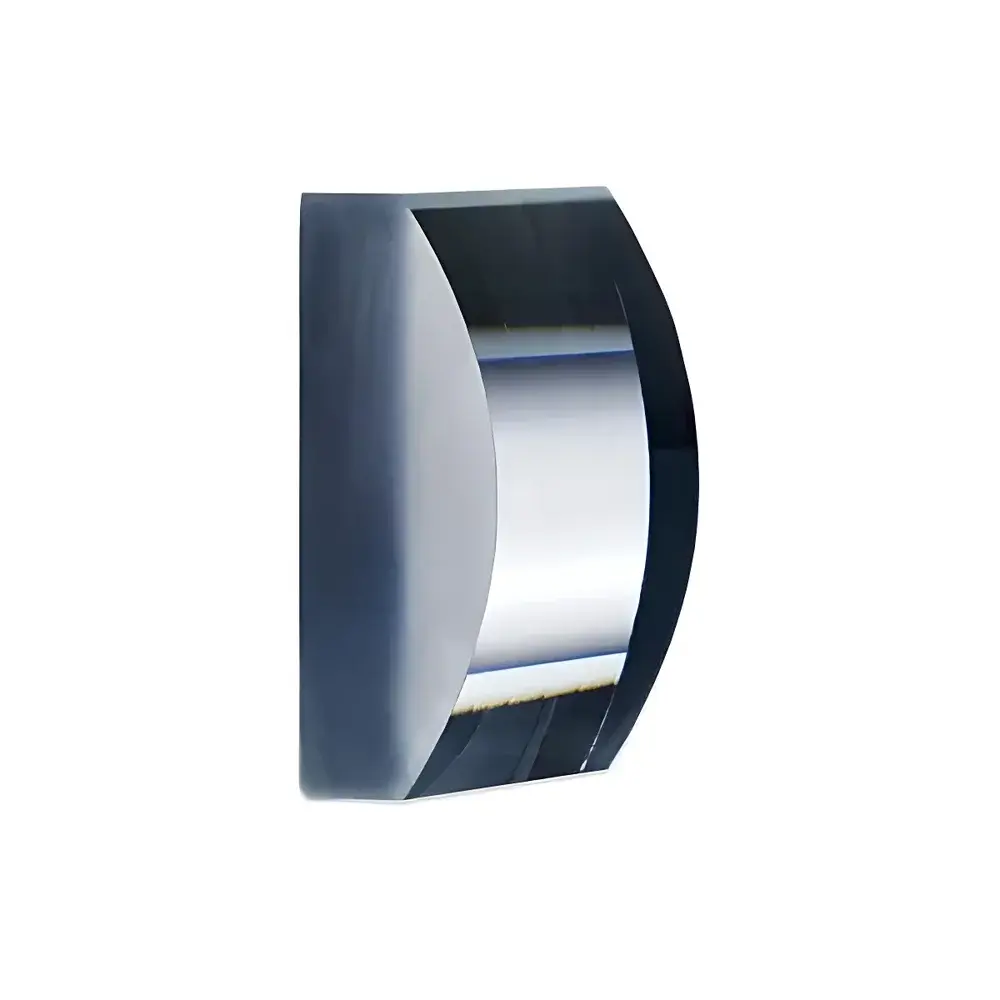

| Brand | Asphericon |
|---|---|
| Model | CHL Series |
| Material | S-LAH64 High-Refractive-Index Optical Glass |
| Surface Irregularity (RMSi) | ≤ 0.5 µm |
| EFL Tolerance | ≤ ±0.1% |
| Clear Aperture | ≥ 90% |
| Standard Coatings | A (400–600 nm), B (600–1050 nm), C (1000–1600 nm) |
| Laser Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Conformance | ISO 10110-5 (Surface Form Tolerance) |

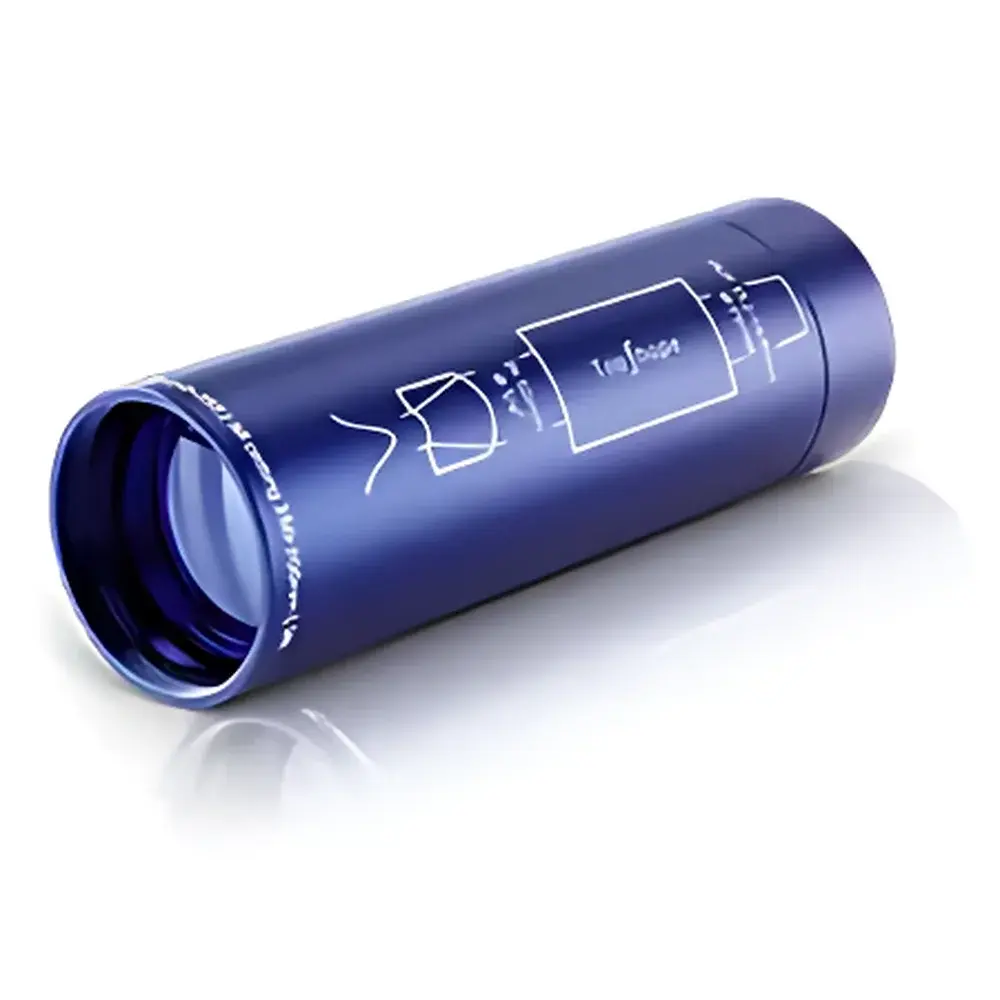

| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | a |
| Spectral Range | 350–2500 nm |
| Input Beam Diameter (1/e²) | 10 mm ±10% |
| Output Beam Diameter (FWHM) | 15.2–15.7 mm |
| Uniformity | >90% (RMS non-uniformity <10%) |
| Working Distance | ≥300 mm (a |
| Total Length | 89.6–93.6 mm |
| Wavefront Error (RMS) | 0.05λ @ design wavelength |
| Strehl Ratio | 0.9 |
| ISO Edge Steepness | 0.4 |
| Laser-Induced Damage Threshold (LIDT) | 12 J/cm², 100 Hz, 6 ns, 532 nm |
| Coating | Custom high-LIDT AR coatings available on request |

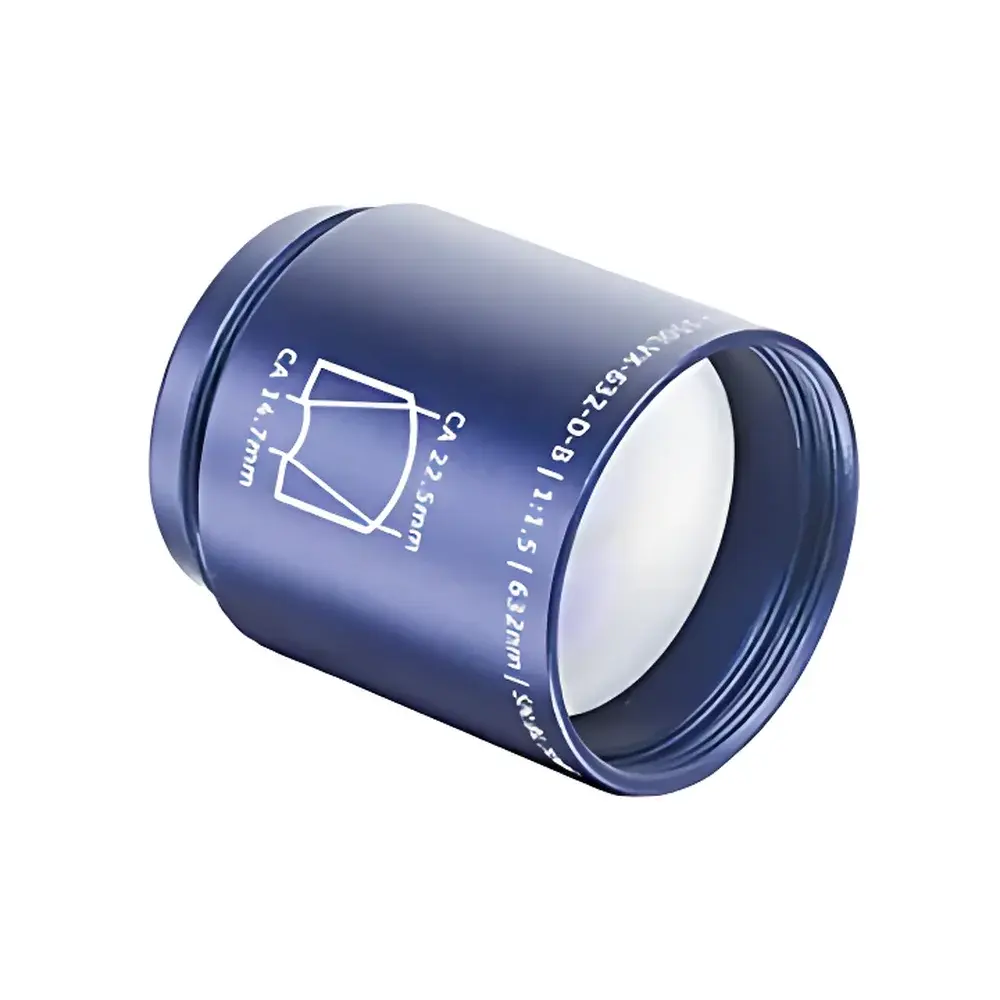

| Key | Brand: Asphericon |
|---|---|
| Design Wavelengths | 355 nm / 532 nm / 632 nm / 780 nm / 1064 nm |
| Max Input Aperture | 10.6–14.7 mm |
| Max Output Aperture | 22.5 mm |
| Magnification Options | 1.5× / 1.75× / 2.0× |
| Cascadable Units | up to 5 |
| Diffraction-Limited Performance | individually measured & certified |
| Laser Damage Threshold (coated) | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Material | Fused Silica or BK7 (as specified) |
| Surface Figure Error (RMS) | ≤0.018λ @ 532 nm (single unit), ≤0.040λ @ 532 nm (5-unit cascade) |
| Brand | Asphericon |
|---|---|
| Model | S-LAH64 |
| Material | S-LAH64 optical glass |
| Surface Irregularity (RMSi) | ≤ 0.5 µm |
| EFL Tolerance | ≤ 0.1% |
| Diameter Tolerance | +0/−0.05 mm |
| Center Thickness Tolerance | ±0.05 mm |
| Clear Aperture | ≥90% |
| Standard AR Coatings | A (400–600 nm), B (600–1050 nm), C (1000–1600 nm) |
| Laser Damage Threshold | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Brand | ALPAO |
|---|---|
| Aperture | 240 mm |
| Actuation Principle | Electromagnetic |
| Surface Type | Continuous Membrane (Silicon) |
| Wavefront Stroke | > 40 µm PV (typ.) |
| Response Time | < 300 µs (full stroke) |
| Linearity | > 98% |
| Operating Wavelength Range | 250–1100 nm |
| Compliance | ISO 9001 certified manufacturing |
| Mounting Interface | Customizable kinematic flange (CF-200 or CF-250 compatible) |
| Environmental Rating | Cleanroom-compatible, vacuum-compatible (optional) |
