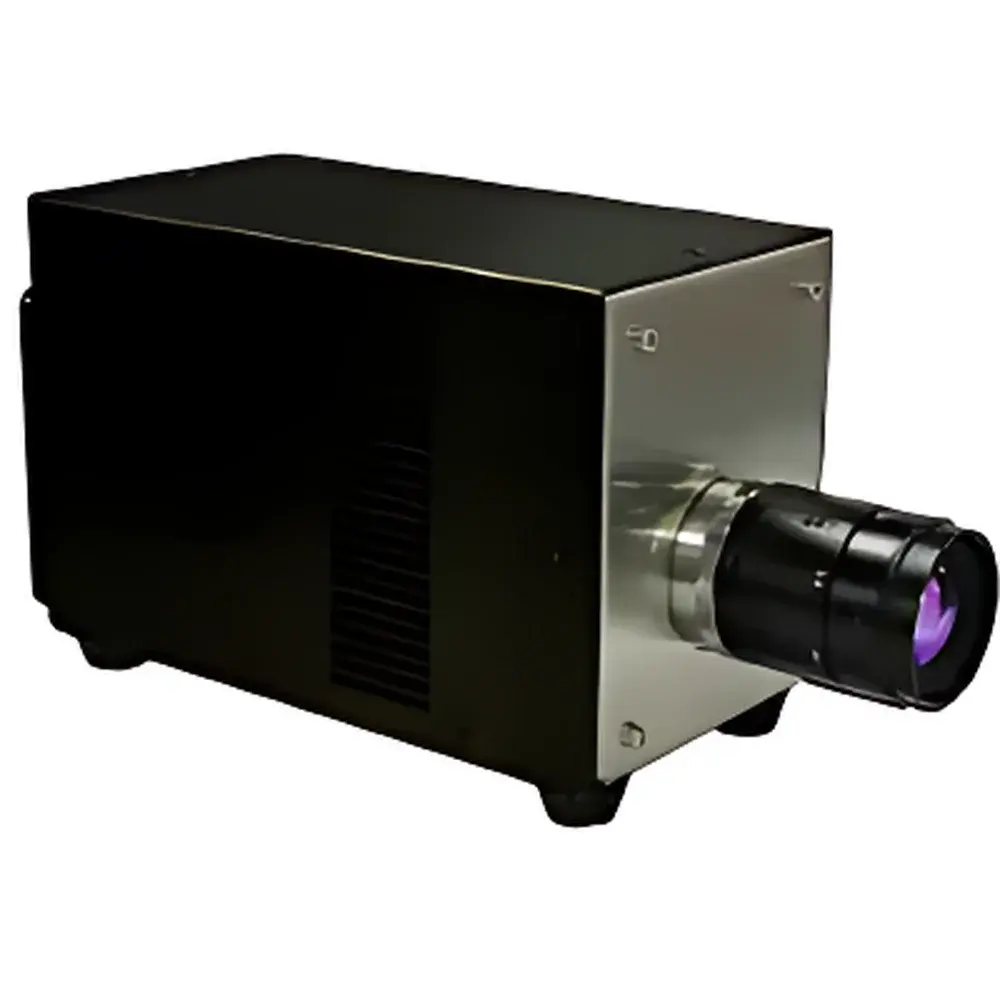

| Brand | ARTRAY |
|---|---|
| Detector Material | InGaAs or GaAsSb |
| Spectral Range | 1000–2350 nm (ARTCAM-2350SWIR) / 1000–2500 nm (ARTCAM-2500SWIR) |
| Resolution | 320 × 256 pixels |
| Cooling | Thermoelectric (TE) |
| Frame Rate | Up to 320 fps (at minimum exposure of 1 ms) |
| Exposure Modes | Configurable from 1 ms to 9 ms across multiple frame rates |
| Bit Depth | 16-bit |
| Operating Temperature | 0–35 °C |
| Pixel Defect Rate | <1% |
| Lens Mount | C-mount |
| Compliance | RoHS-compliant design, compatible with industrial imaging standards (e.g., GenICam protocol support) |

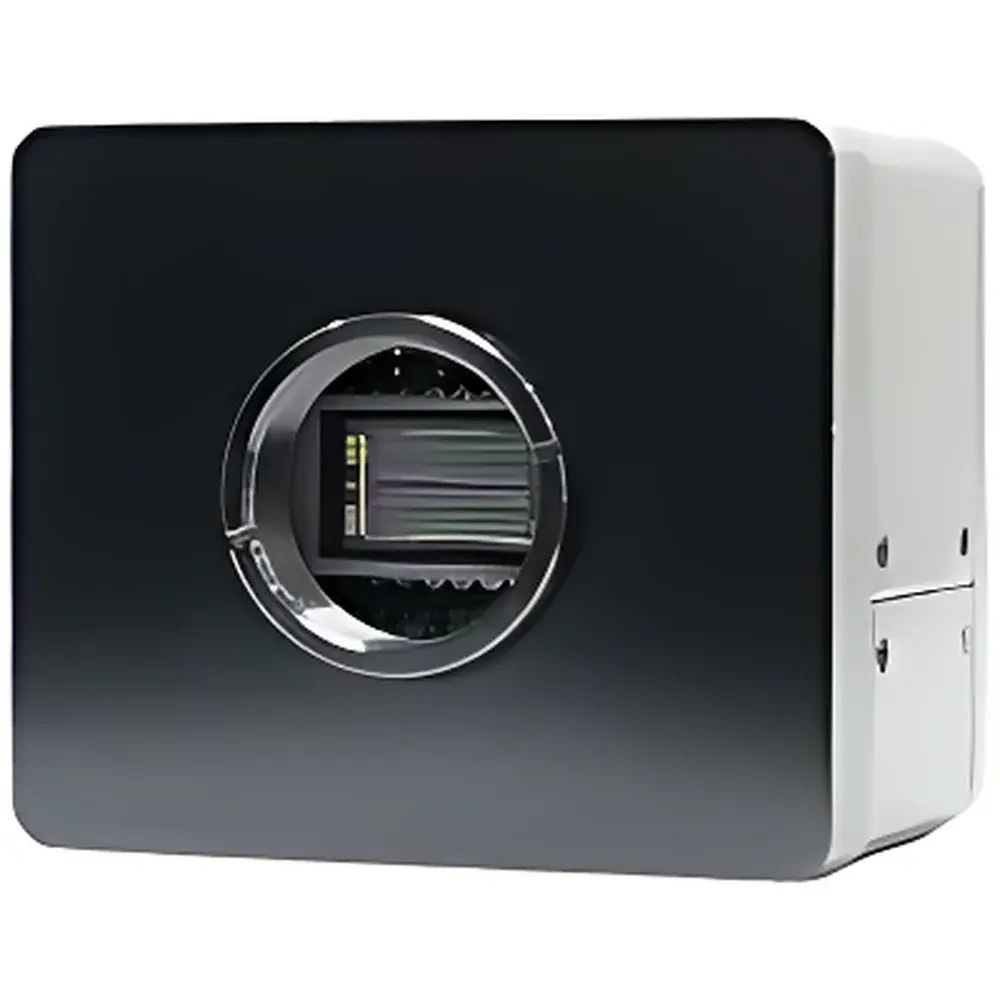

| Brand | ARTRAY |
|---|---|
| Sensor Type | InGaAs linear array |
| Spectral Range | 900–1700 nm |
| Resolution Options | 1024, 512, or 258 pixels |
| Pixel Pitch | 25 × 100 µm (L1024DTNIR), 25 × 25 µm (L512DTNIR/L258DTNIR), 50 × 50 µm (L258DTNIR) |
| Active Area | up to 25.6 × 0.1 mm |
| Interface | USB 3.0 |
| A/D Resolution | 14-bit |
| Quantum Efficiency | High across SWIR band (peak >70% at 1300–1550 nm) |
| Cooling | Thermoelectric (TE) stabilized |
| Compliance | CE, RoHS, ISO 9001-manufactured |

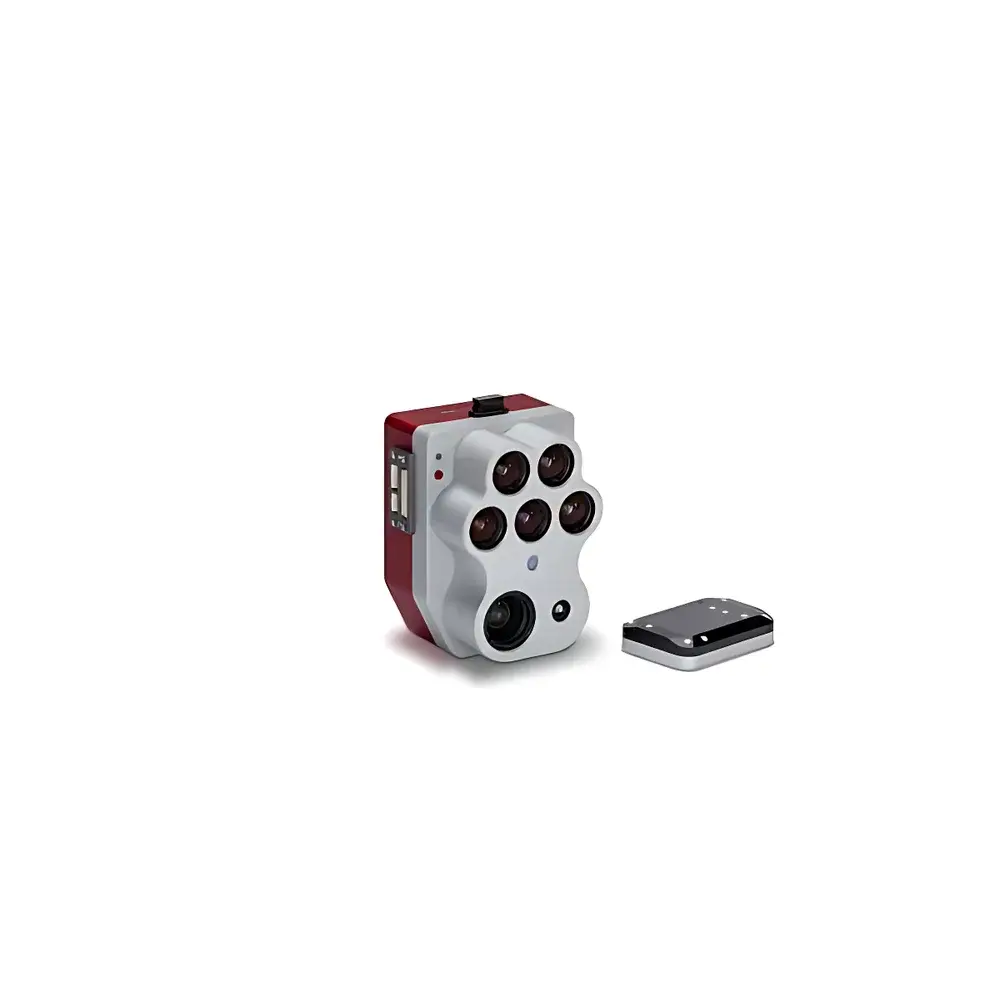

| Brand | MicaSense |
|---|---|
| Model | Altum-PT |
| Weight | 460 g |
| Dimensions | 11.0 × 8.0 × 6.9 cm |
| Spectral Sensor Resolution | 2064 × 1544 (3.2 MP per band) |
| Panchromatic Sensor Resolution | 4112 × 3008 (12 MP) |
| Thermal Sensor | 320 × 256 FLIR Boson® |
| GSD @ 120 m | 5.28 cm (multispectral), 2.49 cm (panchromatic), 33.5 cm (thermal) |
| FOV | 50° H × 38° V (multispectral), 46° H × 35° V (panchromatic), 48° × 39° (thermal) |
| Capture Rate | ≥2 fps (raw DNG) |
| Storage | CFexpress Type B card |
| Spectral Bands | Blue (475 nm, 32 nm BW), Green (560 nm, 27 nm), Red (668 nm, 14 nm), Red Edge (717 nm, 12 nm), NIR (842 nm, 57 nm), Thermal LWIR (7.5–13.5 µm) |
| Pixel Alignment | Hardware-synchronized, co-registered output |
