| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | CFR-A5 |
| Measurement | Diesel Cetane Number (CN) |
| Form Factor | Benchtop |
| Standards Compliance | ASTM D613, ISO 5165, IP 41, GB/T 386 |
| Test Range | 0–100 CN (Typical: 30–85 CN) |
| Compression Ratio Adjustment | 8:1 to 36:1 |
| Engine Speed | 900 ± 9 rpm |
| Injection Timing | 13.0° BTDC ± 0.2° |
| Injector Opening Pressure | 10.30 ± 0.34 MPa |
| Fuel Flow Rate | 13.0 ± 0.2 mL/min |
| Cooling Water Capacity | ≥60 L |
| Power Supply | AC 380 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 1520 × 900 × 1760 mm |
| Net Weight | 1200 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY2102-VII |
| Measurement Range | 40–120 O.N. |
| Test Methods | ASTM D2699 (RON), ASTM D2700 (MON), GB/T 5487, GB/T 503, IP 236, IP 237, EN ISO 5163, EN ISO 5164 |
| Engine Type | Single-cylinder, variable compression ratio (4:1–18:1) |
| Rated Speed | 600 rpm (RON), 900 rpm (MON) |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Displacement | 0.61 L |
| Cooling System | Stainless-steel jacketed water tower with dual-circuit air conditioner (ice tower) |
| Ignition | Hall-effect magnetic sensor ignition (repeatability < ±0.2 O.N.) |
| Detonation Detection | Magnetostrictive knock sensor |
| Data Interface | USB, LIMS-compatible output, optional Wi-Fi/printer |
| Power Supply | AC 380 V ±10%, 50 Hz / AC 220 V ±10%, 50 Hz |
| Dimensions | 1650 × 820 × 1480 mm (W×D×H) |
| Net Weight | 900 kg |
| Operating Environment | 5–35 °C, 20–90% RH |
| Compliance | Fully aligned with ASTM, ISO, IP, and GB test standards for octane rating |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY2102ZP-II |
| Measurement Parameters | Gasoline Octane Number (ON), Diesel Cetane Number (CN) |
| Form Factor | Benchtop |
| Compliance Standards | ASTM D2699, ASTM D2700, ASTM D613, GB/T 5487, GB/T 503, GB/T 386, ISO 5164, ISO 5163, ISO 5165, EN ISO 5164, EN ISO 5163, IP 237, IP 236, IP 41 |
| Blending Accuracy | ±0.01 ON/CN or ≤ 0.1 g |
| Blending Volume Range | 100–1000 mL |
| Blending Time per 1 L | 3–4 min |
| Number of Integrated Fuel Reservoirs | 6 × 10 L |
| Balance Capacity | 2200 g |
| Balance Readability | 0.5 g |
| Control Interface | 15″ color capacitive touchscreen |
| Data Storage Capacity | ≥5000 records |
| Communication Interfaces | USB 2.0, RJ-45 Ethernet |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Dimensions (W×D×H) | 500 × 750 × 1720 mm |
| Net Weight | 197 kg |
| Environmental Operating Range | 5–35 °C, ≤80% RH |
| Safety Features | Overload circuit protection, low-reservoir level alarm with auto-refill logic, remote tank empty detection with pump shutdown, container presence verification, post-blend activated carbon-filtered exhaust ventilation |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY2102ZP |
| Measurement Parameters | Gasoline Research Octane Number (RON), Motor Octane Number (MON), Diesel Cetane Number (CN) |
| Form Factor | Benchtop |
| Compliance Standards | ASTM D2699, ASTM D2700, ASTM D613, GB/T 5487, GB/T 503, GB/T 386, EN ISO 5164, EN ISO 5163, EN ISO 5165, IP 237, IP 236, IP 41 |
| Weighing Accuracy | ±0.01 ON/CN or ≤0.1 g |
| Blending Speed | ~3–4 min per sample |
| Sample Volume Range | 100–1000 mL |
| Touchscreen Interface | 10″ color capacitive touchscreen |
| Number of Fuel Reservoirs | up to 6 × 10 L |
| Internal Data Storage Capacity | High-capacity non-volatile memory |
| LIMS Integration | Yes |
| Power Supply | 200–240 VAC, 50/60 Hz |
| Dimensions (L×W×H) | 750 × 500 × 1720 mm |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | CFR-A1 AUTO |
| Application | Motor gasoline and aviation gasoline octane number determination (RON & MON) |
| Test Range | 40–120 O.N. |
| Configuration | Benchtop |
| Standards Compliance | GB/T 5487, GB/T 503, ASTM D2699, ASTM D2700, IP 236, IP 237, EN ISO 5163, EN ISO 5164 |
| Engine Type | CFR-standard single-cylinder, cast-iron monobloc construction |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Displacement | 0.61 L |
| Compression Ratio Range | 4:1 to 18:1 |
| Engine Speed | 600 rpm ± 6 rpm (RON), 900 rpm ± 9 rpm (MON) |
| Intake Air Temperature Control | RON: 52 °C ± 1 °C |
| MON | 38 °C ± 2.8 °C (pressure-compensated) |
| Cylinder Jacket Coolant Temp | 100 °C ± 1.5 °C |
| Lubricating Oil Pressure | 172–207 kPa |
| Power Supply | AC 380 V ±10%, 50 Hz |
| Dimensions | 1700 × 760 × 1420 mm (W×D×H) |
| Net Weight | 1200 kg |
| Data Interface | USB, Wi-Fi, LIMS-compatible output |
| Safety Features | Soft-start motor, dual-stage oil filtration, coolant level protection, laser-based cylinder height positioning with mechanical limit safeguard, real-time vacuum monitoring, automatic fault alarm and status logging |

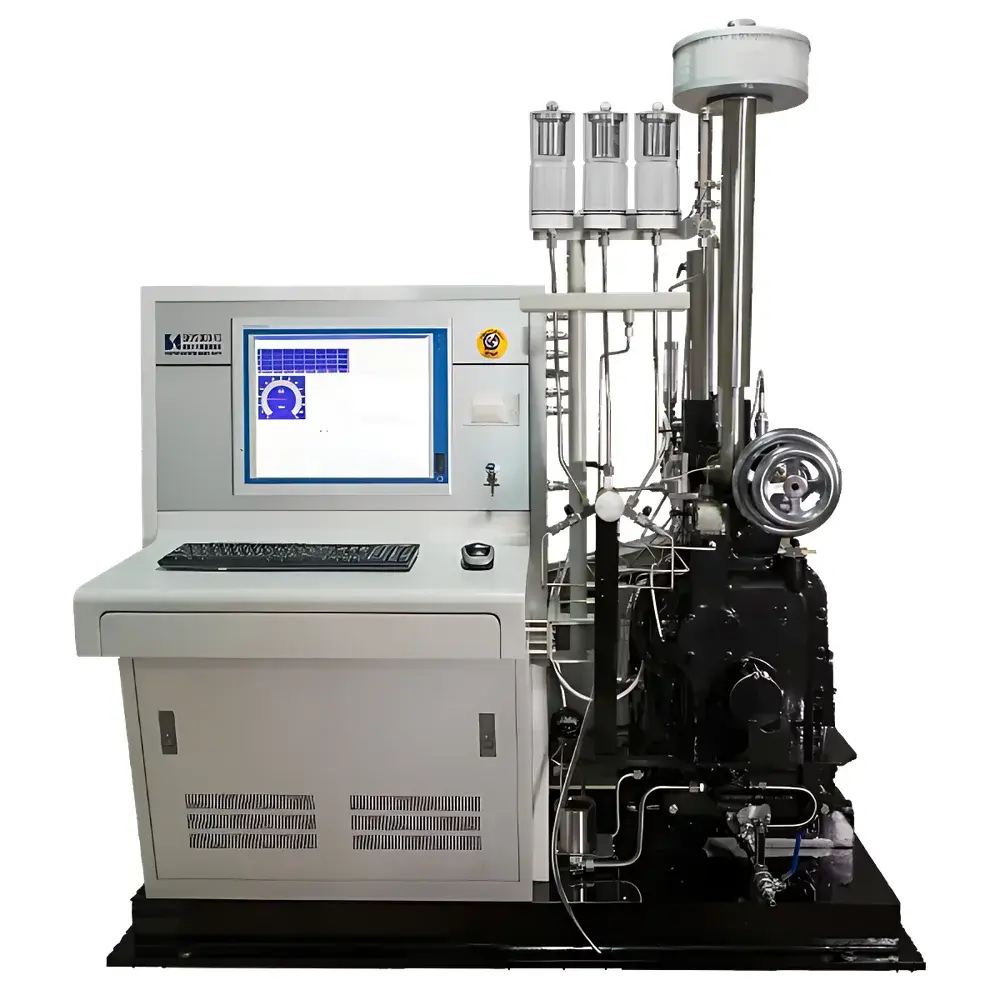

| Brand | ShenKai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY2303-VII |
| Measurement | Diesel Cetane Number (CN) |
| Form Factor | Benchtop |
| Standards Compliance | GB/T 386, ASTM D613, IP 41, EN ISO 5165 |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Compression Ratio Range | 8:1 to 36:1 (motorized adjustment) |
| Engine Speed | 900 ± 9 rpm |
| Injection Timing | 13.0° BTDC ± 0.2° |
| Injector Opening Pressure | 10.30 ± 0.34 MPa |
| Fuel Flow Rate | 13.0 ± 0.2 mL/min |
| Cooling Water Temp Range | 15–25 °C |
| Power Supply | AC 380 V ±10 %, 50 Hz |
| Dimensions (W×D×H) | 1550 × 900 × 1720 mm |
| Net Weight | 1200 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | CFR-A1 |
| Application | Gasoline Octane Number (ON) Determination |
| Configuration | Benchtop |
| Test Range | 40–120 ON |
| Standards Compliance | ASTM D2699, ASTM D2700, IP 236, IP 237, EN ISO 5163, EN ISO 5164, GB/T 5487, GB/T 503 |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Displacement | 0.61 L |
| Compression Ratio Range | 4:1 to 18:1 |
| Engine Speed | 900 ± 9 rpm (Motor Method), 600 ± 6 rpm (Research Method) |
| Cooling Water Temperature | 100 ± 1.5 °C |
| Lubricating Oil Pressure | 172–207 kPa |
| Power Supply | AC 380 V ±10%, 50 Hz / AC 220 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 1650 × 900 × 1420 mm |
| Net Weight | 1200 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | CFR-A5 AUTO |
| Application | Diesel Cetane Number (CN) Determination |
| Configuration | Benchtop |
| Standards Compliance | ASTM D613, ISO 5165, IP 41, GB/T 386 |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Compression Ratio Range | 8:1 to 36:1 |
| Rated Engine Speed | 900 ± 9 rpm |
| CN Measurement Range | 0–100 (Typical: 30–85) |
| Fuel Injection Pressure | 10.30 ± 0.34 MPa |
| Injection Timing | 13.0° ± 0.2° BTDC |
| Cooling Jacket Temp | 100 ± 2 °C |
| Lubricating Oil Temp | 57 ± 8 °C |
| Power Supply | AC 380 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 1520 × 850 × 2000 mm |
| Net Weight | 1200 kg |
