| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SKY1003-IVA |
| Price | Upon Request |
| Test Method Compliance | ASTM D445, ASTM D446, GB/T 265, GB/T 30515, ISO 3104, ISO 3105, IP 71 |
| Temperature Control Range | 20–100 °C (optional cooling unit for sub-ambient control |
| Temperature Stability | ±0.01 °C |
| Timing Resolution | 0.01 s |
| Kinematic Viscosity Range | 0.5–10,000 mm²/s (cSt) |
| Sample Volume | 13–15 mL |
| Auto-sampler Capacity | 24 positions |
| Bath Volume | 2 L |
| Bath Fluid | Dimethyl silicone oil |
| Preheating Capability | Central & lateral heating (RT–95 °C) |
| Cleaning System | Dual-solvent programmable wash |
| Drying Method | Filtered dry air purge |
| Safety Features | Low solvent detection, overtemperature cutoff, bath level monitoring |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Power Consumption | ≤1000 W (heater: 600 W) |
| Dimensions (W×D×H) | 580 × 560 × 710 mm |
| Net Weight | 70 kg (including bath fluid) |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SYP1003-IXB |
| Temperature Control Range | 20–100 °C (20 °C requires optional immersion chiller) |
| Temperature Stability | ±0.01 °C |
| Bath Capacity | ~18 L |
| Bath Dimensions | Ø300 × 300 mm (hardened borosilicate glass, double-wall construction) |
| Test Stations | 4 independent capillary viscometer ports |
| Timing Resolution | 0.1 s per channel, auto-calculation of kinematic viscosity (ν, mm²/s) |
| Heating Power | 1600 W |
| Stirring Motor | 40 W, 1250 rpm, impeller Ø50 mm |
| Power Supply | 220 V ±10%, 50 Hz ±1 Hz |
| Dimensions (W×D×H) | 580 × 400 × 482 mm |
| Weight | 15 kg |
| Compliance | GB/T 265, ISO 3104, ASTM D445, SH/T 0173 |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |

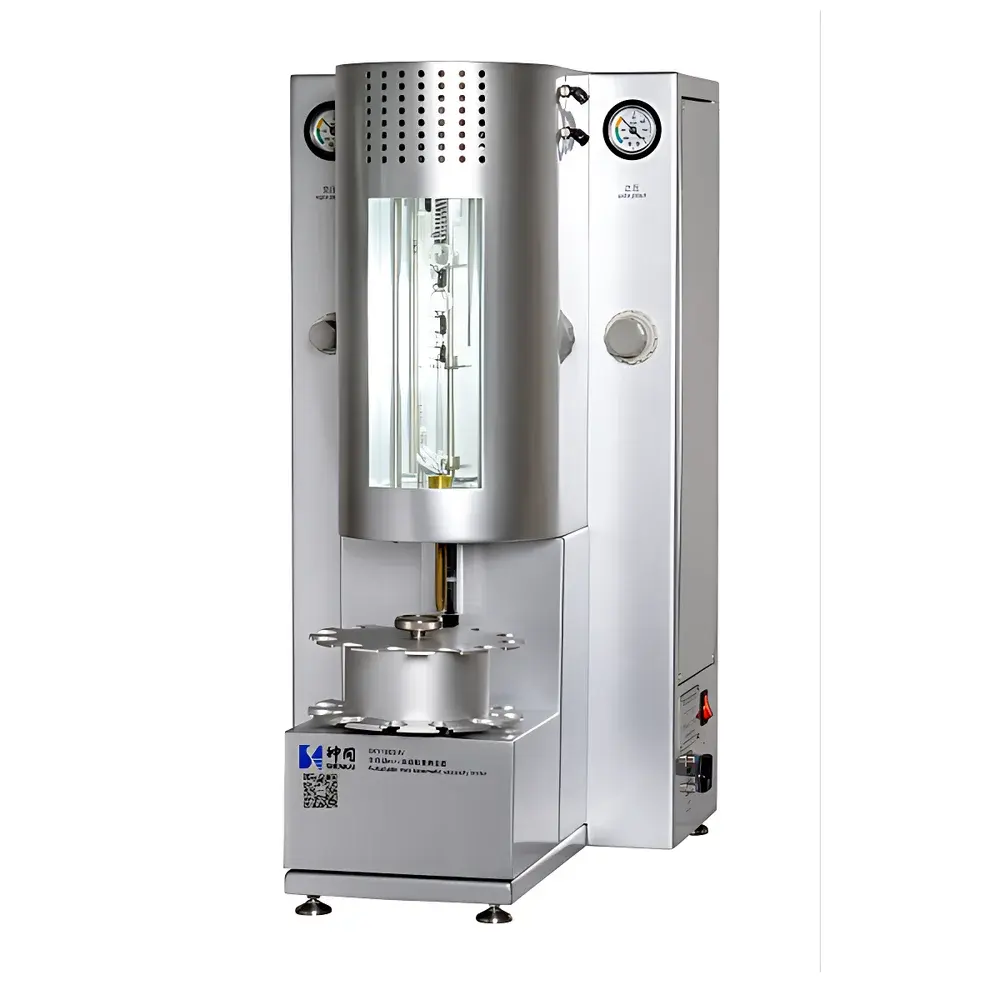

| Model | SKY1003-IV |
| Kinematic Viscosity Range | 0.5–10,000 mm²/s |
| Temperature Control Range | 20–100 °C |
| Temperature Stability | ±0.01 °C |
| Timing Resolution | 0.01 s |
| Sample Volume | ~10 mL |
| Cleaning Solvent Consumption | 10–15 mL per cycle |
| Auto-sampler Capacity | 12 positions |
| Bath Volume | 2.5 L |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Dimensions (W×D×H) | 400 × 510 × 710 mm |
| Net Weight | 60 kg (incl. bath medium) |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |

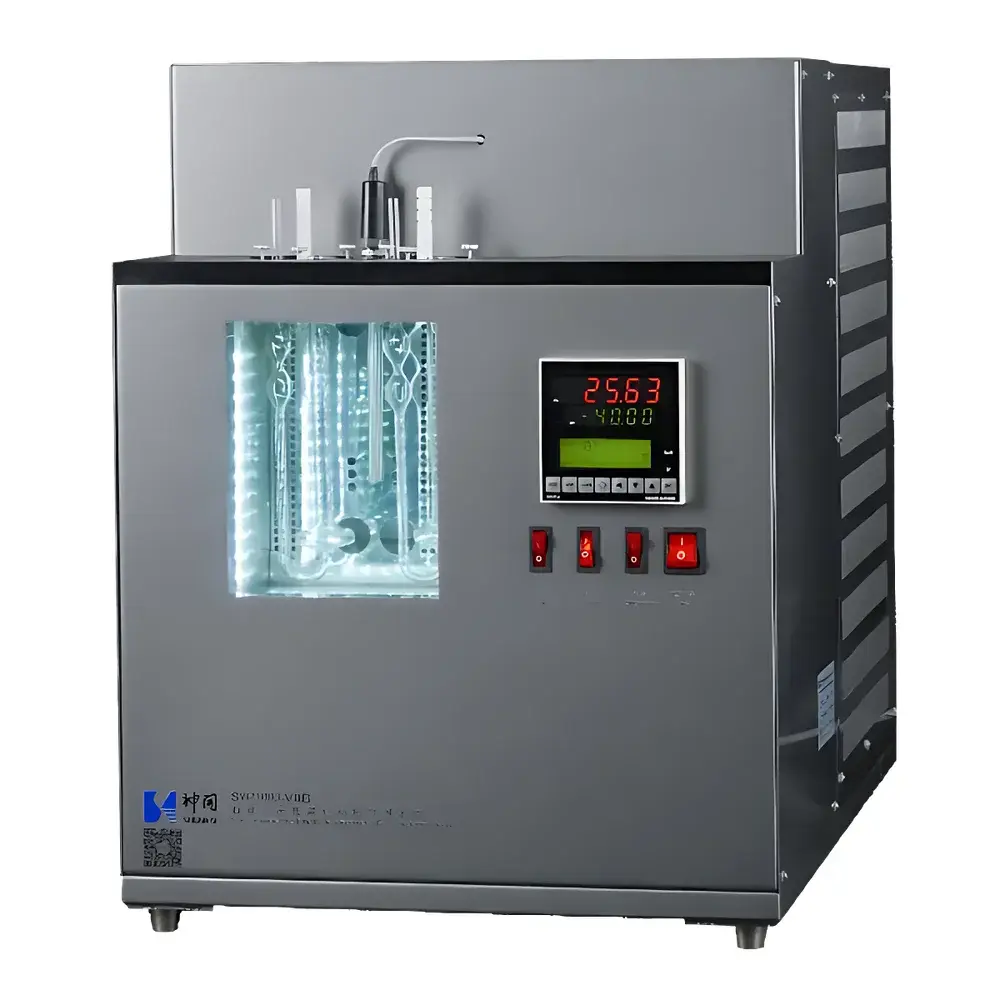

| Model | SYP1003-VIIIB |
| Test Hole Count | 2 |
| Bath Capacity | 4 L |
| Temperature Control Range | −60 °C to 20 °C |
| Temperature Stability | ±0.05 °C |
| Cooling Method | Cascade Refrigeration System |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Total Power Consumption | ≤1500 W |
| Dimensions (W×D×H) | 450 mm × 600 mm × 590 mm |
| Net Weight | 60 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SKY1003-VIII |
| Temperature Control Range | −40 °C to +20 °C |
| Temperature Stability | ±0.02 °C |
| Kinematic Viscosity Range | 1–3000 mm²/s (cSt) |
| Sample Volume | 13–15 mL |
| Bath Capacity | ~2 L |
| Cooling Method | Compressor-based |
| Bath Medium | Low-temperature silicone oil |
| Timing Resolution | 0.01 s |
| Auto-sampler | 6-position |
| Capillary Type | Proprietary modified Ubbelohde viscometer |
| Compliance | ASTM D445, ASTM D446, ASTM D1655, ISO 3104, ISO 3105, IP 71, DEF STAN 91-91, GB/T 265, GB/T 30515 |
| Cleaning System | Dual-solvent, programmable, with automatic warm-back rinse and dry-air purge |
| Safety Features | Low solvent detection, over-temperature protection, high/low bath level monitoring |
| Interface | USB, RJ45 |
| Power | ≤1000 W |
| Dimensions (W×D×H) | 660 × 620 × 790 mm |
| Net Weight | 82 kg (including bath medium) |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SYP1003-IXA |
| Temperature Control Range | Ambient to 100 °C (continuously adjustable) |
| Temperature Stability | ±0.01 °C |
| Bath Capacity | ~18 L |
| Bath Dimensions | Ø300 mm × 300 mm (hard-glass double-walled cylinder) |
| Number of Test Positions | 4 |
| Heating Power | 1600 W |
| Stirring Motor | 40 W, 1250 rpm, impeller Ø50 mm |
| Standard Capillary Set | 8 pieces conforming to SH/T 0173 |
| Operating Environment | 5–35 °C, 35–95% RH |
| Power Supply | 220 V ±10%, 50 Hz ±1 Hz |
| Dimensions (W×D×H) | 580 × 400 × 482 mm |
| Weight | 15 kg |
