| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | CFR-A1 |
| Application | Gasoline Octane Number (ON) Determination |
| Configuration | Benchtop |
| Test Range | 40–120 ON |
| Standards Compliance | ASTM D2699, ASTM D2700, IP 236, IP 237, EN ISO 5163, EN ISO 5164, GB/T 5487, GB/T 503 |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Displacement | 0.61 L |
| Compression Ratio Range | 4:1 to 18:1 |
| Engine Speed | 900 ± 9 rpm (Motor Method), 600 ± 6 rpm (Research Method) |
| Cooling Water Temperature | 100 ± 1.5 °C |
| Lubricating Oil Pressure | 172–207 kPa |
| Power Supply | AC 380 V ±10%, 50 Hz / AC 220 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 1650 × 900 × 1420 mm |
| Net Weight | 1200 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |

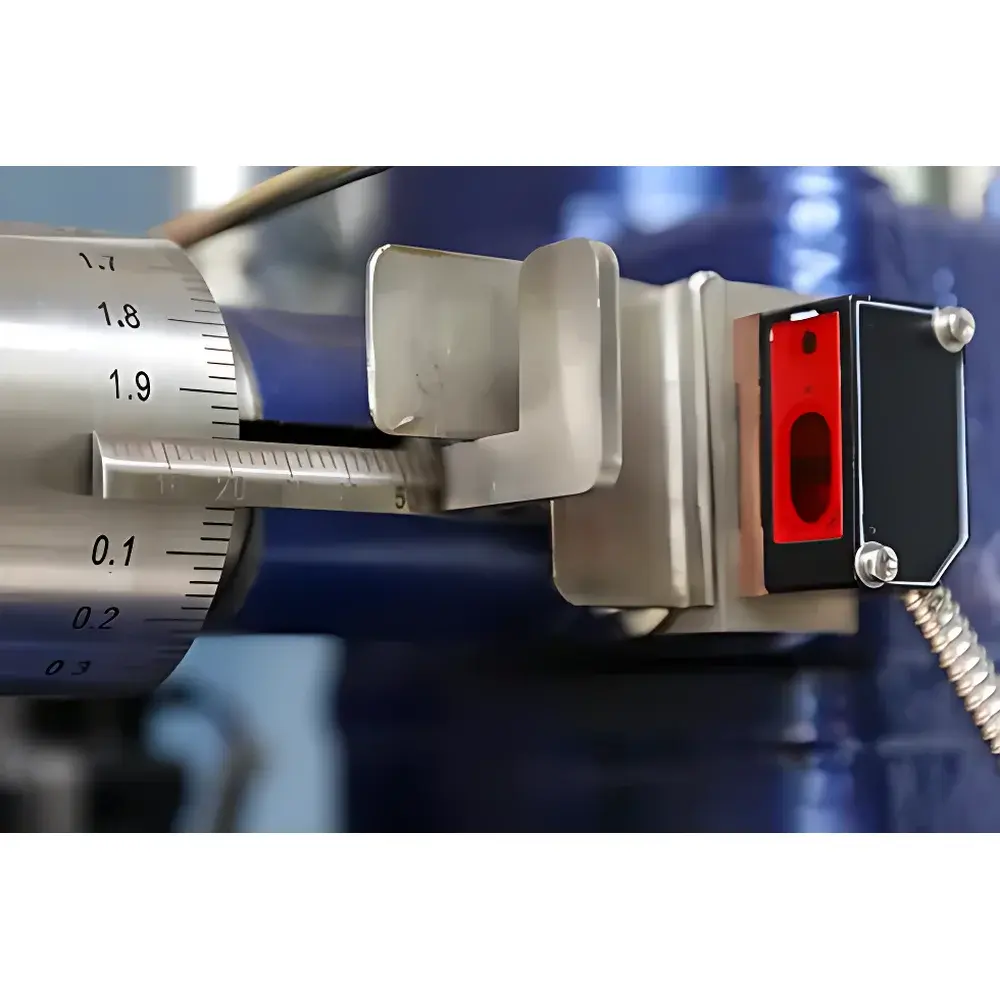

| Model | CFR-A5 AUTO |
| Application | Diesel Cetane Number (CN) Determination |
| Configuration | Benchtop |
| Standards Compliance | ASTM D613, ISO 5165, IP 41, GB/T 386 |
| Cylinder Bore | 82.55 mm |
| Stroke | 114.30 mm |
| Compression Ratio Range | 8:1 to 36:1 |
| Rated Engine Speed | 900 ± 9 rpm |
| CN Measurement Range | 0–100 (Typical: 30–85) |
| Fuel Injection Pressure | 10.30 ± 0.34 MPa |
| Injection Timing | 13.0° ± 0.2° BTDC |
| Cooling Jacket Temp | 100 ± 2 °C |
| Lubricating Oil Temp | 57 ± 8 °C |
| Power Supply | AC 380 V ±10%, 50 Hz |
| Dimensions (W×D×H) | 1520 × 850 × 2000 mm |
| Net Weight | 1200 kg |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |

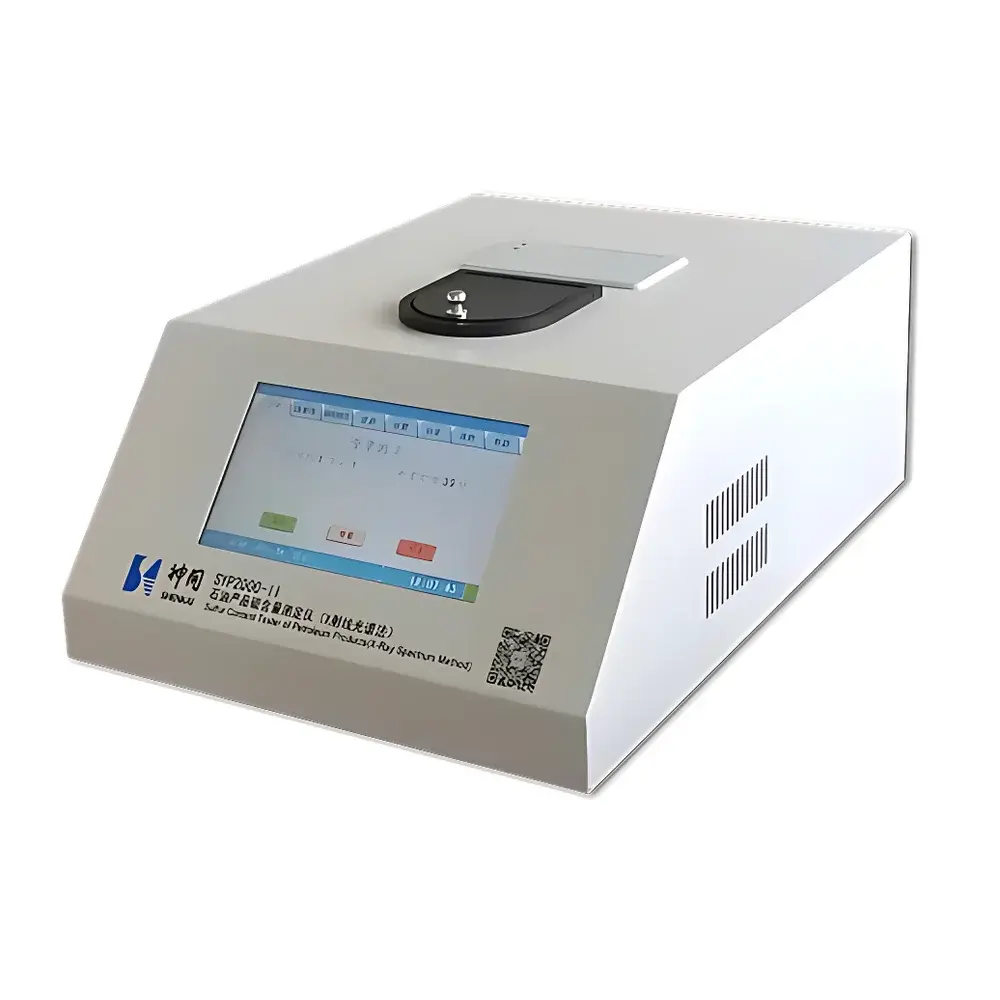

| Model | SYP2000-II |
| Detection Principle | Energy-Dispersive X-ray Fluorescence (EDXRF) |
| Measurement Range | 0.005–5 wt% S |
| Detection Limit | 5 ppm (S) |
| Minimum Quantification Limit | 50 ppm (S) |
| Analysis Time | 30–300 s (default 100 s) |
| X-ray Tube | ≤20 kV, ≤1 mA, ≤10 W |
| Detector | Ultra-thin Beryllium-window Proportional Counter |
| Sample Form | Solid or Liquid (non-destructive, no digestion required) |
| Operating Temperature | 5–40 °C |
| Relative Humidity | ≤85% at 30 °C |
| Power Supply | 220 V ±20 V, 50 Hz, ≤100 W |
| Dimensions | 285 × 405 × 165 mm (W×D×H) |
| Weight | 10 kg |
| Compliance | GB/T 17040, ASTM D4294 |
| Data Storage | Internal non-volatile memory with power-loss protection |
| Interface | Touchscreen GUI, USB data export |
| Brand | Shenkai |
|---|---|
| Origin | Shanghai, China |
| Model | SYP1003-IXA |
| Temperature Control Range | Ambient to 100 °C (continuously adjustable) |
| Temperature Stability | ±0.01 °C |
| Bath Capacity | ~18 L |
| Bath Dimensions | Ø300 mm × 300 mm (hard-glass double-walled cylinder) |
| Number of Test Positions | 4 |
| Heating Power | 1600 W |
| Stirring Motor | 40 W, 1250 rpm, impeller Ø50 mm |
| Standard Capillary Set | 8 pieces conforming to SH/T 0173 |
| Operating Environment | 5–35 °C, 35–95% RH |
| Power Supply | 220 V ±10%, 50 Hz ±1 Hz |
| Dimensions (W×D×H) | 580 × 400 × 482 mm |
| Weight | 15 kg |
