| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-340C |
| Sand Composition | 97–99% SiO₂ (silicon dioxide) |
| Sand Blowing Concentration | 1 g/m³ ± 0.25 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ |
| Dust Blowing Velocity | 8.9 m/s |
| Internal Dimensions (W×D×H) | 1000 × 1000 × 1000 mm |
| Mesh Filter | Stainless steel, wire diameter 50 µm, pitch 75 µm |
| Test Dust | ASTM D1898-compliant talcum powder or quartz sand (2–4 kg/m³ loading) |
| Vacuum Pump Flow Rate | 2 L/s |
| Vibration Timer Range | 0–99 h 59 min 59 s |
| Fan Timer Range | 0–99 h 59 min 59 s |
| Dust Collection System | Conical stainless-steel interior with centralized suction port |
| Control System | Weinview HMI touchscreen controller (industrial-grade, menu-free parameter access) |
| Heating/Cooling Ambient | +5 °C to +35 °C (for cooling operation: +5 °C to +28 °C) |
| Safety Protections | Overtemperature cutoff, short-circuit protection, fan overload detection, earth-leakage protection, phase-loss/sequence monitoring, reverse-fan rotation prevention, specimen safety interlock |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | TF-320B-150L |
| Instrument Type | Upright Chamber |
| Temperature Range | −40 °C to +150 °C |
| Humidity Range | 20–98% RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±1 °C (high/low temp) |
| Humidity Uniformity | ±0.1% RH |
| Humidity Fluctuation | ±3% RH |
| Heating Rate | 1.0–3.0 °C/min |
| Internal Dimensions (W×H×D) | 600 × 500 × 500 mm |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TF-320B-800L |
| Instrument Type | Upright Chamber |
| Temperature Range | −70 °C to +100 °C (optional up to +150 °C) |
| Humidity Range | 20–98% RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±1 °C (high/low temp) |
| Humidity Uniformity | ±0.1% RH |
| Humidity Fluctuation | ±0.1% RH |
| Heating Rate | 1.0–3.0 °C/min |
| Internal Chamber Dimensions | 1000 mm × 1000 mm × 1000 mm (W×H×D) |
| Brand | TuoFeng |
|---|---|
| Model | TF-310A |
| Chamber Capacity | 180 L |
| Internal Dimensions (W×D×H) | 60 × 45 × 40 cm |
| External Dimensions (W×D×H) | 108 × 63 × 119 cm |
| Temperature Range | 30–70 °C |
| Salt Solution Spray Rate | 1–2 mL/80 cm²/h |
| Nozzle Pressure | 0.5–2 kg/cm² |
| Fog Removal Method | Compressed Air Exhaust |
| Compliance | GB/T 2423.17, GB/T 2423.18, GB/T 10125, ASTM B117, JIS H8502, IEC 60068-2-11, IEC 60068-2-52, GB/T 12967.3 (CASS) |
| [Brand | Topfeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-340A |
| Sand Composition | 97–99% SiO₂ (silicon dioxide) |
| Sand Blowing Concentration | 1 g/m³ ± 0.25 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ |
| Dust Blowing Velocity | 8.9 m/s |
| Internal Dimensions (W×D×H) | 800 × 800 × 800 mm |
| Mesh Filter | 50 µm wire diameter, 75 µm nominal spacing |
| Test Dust | Standard talcum powder per IEC 60529 & GB/T 4208 |
| Air Extraction Rate | 2 L/s |
| Vibration Duration Range | 0–99 h 59 min 59 s |
| Fan Operation Duration Range | 0–99 h 59 min 59 s |
| Dust Collection Funnel | 304 mirror-finish stainless steel interior with conical geometry |
| Enclosure Material | Powder-coated cold-rolled steel exterior |
| Control System | Weinview HMI touchscreen controller |
| Safety Protections | Overtemperature, short-circuit, fan overload, phase loss, leakage current, reverse rotation prevention, specimen protection] |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-310B |
| Spray Mode | Continuous Atomization |
| Fog Output | 1–2 mL per 80 cm² per 24 h |
| Nozzle Pressure | 0.5–2 kg/cm² |
| De-misting Method | Compressed-air-assisted雾 expulsion |
| Salt Fog Deposition Rate | 1–2 mL/h (per 80 cm²) |
| Temperature Range | 30–70 °C |
| Internal Chamber Dimensions (W×D×H) | 60 × 45 × 40 cm |
| External Dimensions (W×D×H) | 108 × 63 × 119 cm |
| Salt Solution Tank Capacity | 15 L |
| Rated Voltage | 220 V AC |
| Power Consumption | 2 kW |
| Compliance | GB/T 2423.17–1993, GB/T 2423.18–2000, GB/T 10125–1997, ASTM B117–97, JIS H8502, IEC 60068-2-11, IEC 60068-2-52, GB/T 10587–2006, GB/T 12967.3–1991 (CASS) |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-320A |
| Temperature Range | −70 °C to +150 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Heating Rate | ≤60 min (−70 °C to +150 °C) |
| Cooling Rate | ≤45–80 min (depending on configuration) |
| Internal Chamber Dimensions (W×H×D) | 800 mm × 1000 mm × 1000 mm |
| Humidity Range | 20–98 % RH |
| Humidity Uniformity | ±3.0 % RH |
| Humidity Control Accuracy | ±2.0 % RH |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Construction Material | SUS304 Stainless Steel |
| Insulation | High-Density Polyurethane Foam |
| Cooling System | Air/Water-Cooled Single/Dual-Stage Refrigeration |
| Power Supply | 1φ220VAC±10% 50/60 Hz or 3φ380VAC±10% 50/60 Hz (configurable) |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-320B-225L |
| Chamber Volume | 225 L |
| Temperature Range | −70 °C to +100 °C (optional up to +150 °C) |
| Humidity Range | 20–98% RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±1 °C (high/low temp) |
| Humidity Uniformity | ±0.1% RH |
| Humidity Fluctuation | ±0.1% RH |
| Heating Rate | 1.0–3.0 °C/min (average ~4 °C/min) |
| Internal Dimensions (W×H×D) | 600×850×800 mm |
| Construction | SUS304 Stainless Steel Interior |
| Insulation | High-density polyurethane foam with chlorinated ethyl ester formulation |
| Cooling System | Air/water-cooled single/dual-stage hermetic compressor |
| Controller | TEMI Korean Programmable Touchscreen PID Controller |
| Compressor | Tecumseh (France) |
| Compliance | GB/T 10586, GB/T 2423.1–4, GB/T 2423.22, IEC 60068-2-1 & -2-2, GJB 150.3/4/9 |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TF-320A-1000L |
| Temperature Range | −70 °C to +100 °C (optional up to +150 °C) |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Deviation | ±2 °C |
| Heating Time (−70 °C to +100 °C) | ≤60 min |
| Cooling Time (+25 °C to −70 °C) | ≤45 min / ≤60 min / ≤80 min (configurable) |
| Internal Chamber Dimensions (W×H×D) | 800 × 1000 × 1000 mm |
| Humidity Range | 20–98% RH |
| Humidity Uniformity | ±3.0% RH |
| Humidity Control Accuracy | ±2.0% RH |
| Heating Rate | 4 °C/min (average) |
| Cooling Rate | 1 °C/min (average) |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Construction Material | SUS304 stainless steel |
| Insulation | High-density polyurethane foam with chlorinated ethyl carbamate formulation |
| Cooling System | Air/water-cooled single/dual-stage reciprocating compressor |
| Safety Protections | Fuseless circuit breaker, compressor overload protection, refrigerant high/low pressure switches, overtemperature/overhumidity cut-off, fault alarm system |
| Power Supply | 1φ220VAC±10% 50/60Hz or 3φ380VAC±10% 50/60Hz (selectable) |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |

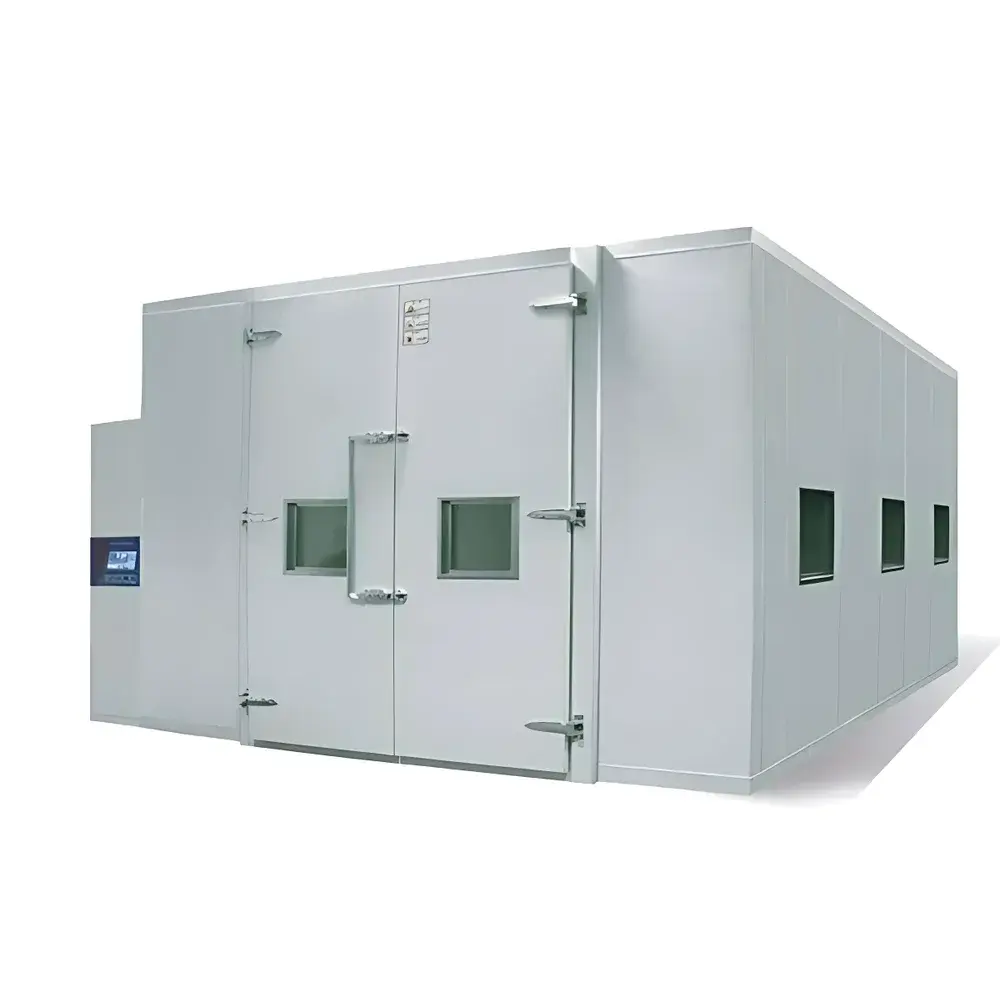

| Model | TF-360C |
| Internal Dimensions (D×W×H) | 3 m × 5 m × 2 m |
| Temperature Range | −70 °C to +100 °C |
| Humidity Range | 20–98 %RH |
| Temperature Uniformity | ±2.0 °C |
| Humidity Uniformity | ±5 %RH |
| Temperature Control Accuracy | ±0.3 °C |
| Humidity Control Accuracy | ±2 %RH |
| Heating Rate | 1.0–3.0 °C/min |
| Construction | Exterior – Powder-coated steel |
| Cooling System | Tecumseh (France) hermetic compressors |
| Humidification Method | Surface evaporation |
| Dehumidification Method | ADP (Adiabatic Dew Point) chilled-water cooling |
| Air Circulation | Multi-blade centrifugal fans with optimized ductwork |
| Viewing Window | Multi-layer low-emissivity heated glass |
| Safety Protections | Over-temperature cutoff, phase sequence monitor, compressor high-pressure/overload/over-current protection, fan overload protection, leak current detection, water shortage alarm, humidifier dry-run protection, emergency indoor call button |
| Power Supply | 380 V, 50 Hz |
| Brand | TopFeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-310C |
| Spray Mode | Continuous Atomization |
| Fog Output | 1–2 mL per 80 cm² per 24 h |
| Nozzle Pressure | 0.5–2 kgf/cm² |
| De-misting Method | Compressed Air Ejection |
| Salt Fog Deposition Rate | Adjustable 1–2 mL/h (per 80 cm²) |
| Temperature Range | 30–70 °C |
| Internal Dimensions (W×D×H) | 60 × 45 × 40 cm |
| External Dimensions (W×D×H) | 108 × 63 × 119 cm |
| Salt Solution Tank Capacity | 15 L |
| Rated Voltage | 220 V AC |
| Power Consumption | 2.0 kW |
| Compliance | GB/T 2423.17–1993, GB/T 2423.18–2000, GB/T 10125–1997, ASTM B117–97, JIS H 8502, IEC 60068-2-11, IEC 60068-2-52, GB/T 10587–2006, GB/T 12967.3–1991 (CASS) |
| Brand | Tuofeng |
|---|---|
| Model | TF-350 |
| Temperature Range | RT+10°C to 55°C |
| Rainfall Intensity | 10–20 cm/h |
| Droplet Diameter | 0.5–4.5 mm |
| Wind Speed | 5–18 m/s |
| Test Duration | 0–9999 min |
| IP Rating Compliance | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 |
| Oscillating Pipe Angle | ±60° or ±180° |
| Oscillation Amplitude | ±45°, ±60°, ±135°, ±150° |
| Turntable Speed | 1–5 rpm |
| Nozzle Orifice | φ0.4–φ0.8 mm |
| Nozzle Spacing | 50 mm or 75 mm |
| Water Pipe Diameter | φ16–φ20 mm |
| IPX5 Nozzles | φ6.3 mm and φ12.5 mm |
| Power Supply | AC 220 V / 380 V, 50/60 Hz |
| Standards | GB/T 2423.38–2005, IEC 60529:2001, GB 4208–2008 |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | TF-320A-408L |
| Temperature Range | −70 °C to +150 °C |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Heating Rate | ≤60 min (−70 °C to +150 °C) |
| Cooling Rate | ≤45–80 min (depending on setpoint transition) |
| Internal Chamber Dimensions (W×H×D) | 600 mm × 850 mm × 800 mm |
| Humidity Range | 20–98 % RH |
| Humidity Uniformity | ±3.0 % RH |
| Humidity Control Accuracy | ±2.0 % RH |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Cooling System | Air/Water-Cooled Dual-Stage Refrigeration |
| Construction Material | SUS304 Stainless Steel |
| Insulation | High-Density Polyurethane Foam with Chlorinated Ethyl Acetate Base |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | TF-320A-150L |
| Temperature Range | −70 °C to +100 °C (optional +150 °C) |
| Humidity Range | 20–98 % RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Stability | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Heating Rate | ≤60 min (−70 °C to +100 °C) |
| Cooling Rate | ≤45–80 min (depending on setpoint transition) |
| Internal Chamber Dimensions (W×H×D) | 600 × 500 × 500 mm |
| Refrigeration System | Dual-stage or single-stage hermetic compressor (French Tecumseh) |
| Explosion-Proof Configuration | Available (ATEX-compliant structural reinforcement and intrinsically safe control interface) |
| Controller | South Korean TEMI programmable touchscreen PID controller |
| Insulation Material | High-density polyurethane foam with chlorinated ethyl ester formulation |
| Interior Material | SUS304 stainless steel |
| Power Supply | 1φ220VAC±10% 50/60Hz or 3φ380VAC±10% 50/60Hz (configurable) |
| Brand | Tuofeng |
|---|---|
| Model | TF-312 |
| Chamber Internal Dimensions (W×D×H, mm) | 450×450×500 / 500×600×750 / 700×800×900 / 800×1000×1000 |
| External Dimensions (W×D×H, mm) | 1200×1000×1800 / 1300×1150×2050 / 1450×1400×2250 / 1520×1540×2300 |
| Temperature Range | 0°C to 70°C |
| Temperature Uniformity | ±0.5°C |
| Relative Humidity Range | 30–65% RH |
| Ozone Concentration Range | 50–500 pphm |
| Sample Rack Rotation | 360° continuous, 1 rpm |
| Gas Flow Velocity | 12–16 mm/s |
| Control System | Imported LED digital P.I.D. + S.S.R. microcomputer controller |
| Timer Resolution | 0.1 s (hour/minute/second) |
| Ozone Monitoring | Imported ozone concentration analyzer with 4–20 mA analog output and RS232 interface |
| Ozone Generator Type | Silent discharge tube or UV absorption (optional) |
| Safety Protections | Leakage protection, short-circuit protection, overtemperature cutoff, motor overheat protection, overcurrent protection |
| Power Consumption | 4.0 kW / 4.5 kW / 7.0 kW / 11.5 kW (model-dependent) |
| Compliance | GB/T 7762–2003, GB/T 2951.21–2008 |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TF-360D |
| Price Range | USD 70,000 – 140,000 (FOB Shanghai) |
| Internal Dimensions (L×W×H) | 5 m × 6 m × 2 m |
| Temperature Range | −70 °C to +100 °C |
| Temperature Uniformity | ±2.0 °C |
| Humidity Range | 20–98 %RH |
| Humidity Uniformity | ±5 %RH |
| Temperature Control Accuracy | ±0.3 °C |
| Humidity Control Accuracy | ±2 %RH |
| Heating Rate | 1.0–3.0 °C/min |
| Cooling System | Twin-stage cascade refrigeration with Tecumseh (France) compressors |
| Humidification Method | Surface evaporation |
| Dehumidification Method | ADP (Adiabatic Dew Point) chilled-water coil cooling |
| Air Circulation | Multi-wing centrifugal blower + optimized ducted airflow |
| Insulation | High-density polyurethane foam (150 mm thick) |
| Interior Material | SUS#304 stainless steel |
| Exterior Material | Powder-coated cold-rolled steel |
| Observation Window | Multi-layer low-E heated laminated glass |
| Safety Protections | Over-temperature, dry-run, compressor high-pressure/overload/over-current, fan overload, phase sequence, and emergency indoor alarm |
| Power Supply | 380 VAC, 3-phase, 50 Hz |
| [Brand | Topfeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TF-340B |
| Sand Composition | 97–99% SiO₂ (silicon dioxide) |
| Sand Blowing Concentration | 1 g/m³ ± 0.25 g/m³ |
| Sand Blowing Velocity | 0–29 m/s |
| Dust Blowing Concentration | 0.1–10.6 g/m³ |
| Dust Blowing Velocity | 8.9 m/s |
| Internal Dimensions (W×D×H) | 800 × 800 × 800 mm |
| Filter Mesh | Stainless Steel, Wire Diameter 50 µm, Pitch 75 µm |
| Dust Medium | Standardized talcum powder or limestone powder (2–4 kg/m³) |
| Vacuum Extraction Rate | 2 L/s |
| Vibration Timer Range | 0–99 h 59 min 59 s |
| Fan Timer Range | 0–99 h 59 min 59 s |
| Dust Motor Power | 300 W |
| Control System | Weinview HMI touchscreen interface |
| Cabinet Material | Interior – 304 mirror-finish stainless steel (funnel-shaped floor) |
| Power Supply | 220 V AC / 16 A |
| Safety Protections | Overtemperature, short-circuit, motor overload, earth leakage, phase sequence/missing-phase detection, reverse fan rotation prevention, operator and specimen safety interlocks |
| Operating Ambient Temperature | +5 °C to +35 °C (for cooling operation: +5 °C to +28 °C) |
| Compliance | GB/T 4208–2008 (IP Code), GB 10485, GB 4942.1–1985, GB 7000.1–2015, IEC 60529 equivalent] |
| Brand | TOFENG |
|---|---|
| Model | TF-320B-80L |
| Chamber Type | Vertical Upright |
| Internal Dimensions (W×H×D) | 500 × 750 × 600 mm |
| Temperature Range | −70 °C to +100 °C (optional +150 °C) |
| Humidity Range | 20–98 % RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±0.5 °C (high temp), ±1.0 °C (low temp) |
| Humidity Uniformity & Fluctuation | ±0.1 % RH |
| Heating Rate | 1.0–3.0 °C/min |
| Cooling System | Air/Water-Cooled Dual-Stage Compressor |
| Controller | TEMI Programmable Touchscreen Interface |
| Construction | SUS304 Stainless Steel Interior & Exterior |
| Insulation | High-Density Polyurethane Foam with Closed-Cell Structure |
| Compliance | GB/T 2423.1–2423.4, GB/T 10586, IEC 60068-2-1 & -2-2, GJB 150.3/4/9 |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Temperature Range | -70 °C to +150 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Heating Rate | ≤60 min (from -70 °C to +150 °C) |
| Cooling Rate | ≤45–80 min (depending on setpoint and load) |
| Internal Dimensions (W×H×D) | 800×1000×1000 mm |
| Controller | TEMI (South Korea) |
| Refrigeration System | Air/Water-Cooled Dual-Stage Compressor (Tecumseh/Tecumseh or equivalent) |
| Humidity Range | 20–98 %RH |
| Humidity Uniformity | ±3.0 %RH |
| Humidity Control Accuracy | ±2.0 %RH |
| Construction | SUS304 Stainless Steel Interior & Exterior |
| Insulation | High-Density Polyurethane Foam with Chlorinated Ethyl Acetate Base |
| Compliance | GB/T 2423.1–2423.4, GB/T 10586, IEC 60068-2-1/2, GJB 150.3/4/9 |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Model | TF-320A-80L |
| Temperature Range | -70 °C to +150 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Ramp Rate (Heating) | ≤60 min (from -70 °C to +150 °C) |
| Ramp Rate (Cooling) | ≤45–80 min (model-dependent) |
| Internal Dimensions (W×H×D) | 500 × 750 × 600 mm |
| Working Volume | 80 L |
| Humidity Range | 20–98% RH |
| Humidity Uniformity | ±3.0% RH |
| Control Accuracy | ±0.1 °C / ±2.0% RH |
| Controller | TEMI 990 (South Korea) |
| Compressor | Tecumseh (France) |
| Insulation | High-density polyurethane foam with chlorinated ethyl carbamate formulation |
| Construction Material | SUS304 stainless steel (interior & exterior) |
| Cooling Method | Air/water-cooled dual-stage refrigeration system |
| Safety Protections | Over-temperature/over-humidity cut-off, high/low refrigerant pressure switch, compressor overload protection, non-fuse circuit breaker, fault alarm relay output |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | TF-320B-408L |
| Instrument Type | Upright Chamber |
| Temperature Range | −70 °C to +100 °C (optional up to +150 °C) |
| Humidity Range | 20–98 % RH |
| Temperature Uniformity | ±0.1 °C (at steady state) |
| Temperature Fluctuation | ±1 °C (high/low temp zones) |
| Humidity Uniformity | ±0.1 % RH |
| Humidity Fluctuation | ±0.1 % RH |
| Heating Rate | 1.0–3.0 °C/min (average ~4 °C/min) |
| Internal Dimensions (W×H×D) | 600 × 850 × 800 mm |
| External Dimensions (W×H×D) | 1100 × 1710 × 1370 mm |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Cooling System | Air/Water-Cooled Single or Dual-Stage Compression |
| Insulation | High-Density Polyurethane Foam with Chlorinated Ethyl Carbamate Base |
| Interior Material | SUS304 Stainless Steel |
| Power Supply | 1φ220 VAC ±10%, 50/60 Hz or 3φ380 VAC ±10%, 50/60 Hz (configurable) |
| Operating Ambient | 5–30 °C, ≤85 % RH |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Region of Origin | Domestic (China) |
| Model | TF-312C |
| Price Range | USD 7,000 – 14,000 |
| Internal Dimensions (W×D×H, mm) | 450×450×500 / 500×600×750 / 700×800×900 / 800×1000×1000 |
| External Dimensions (W×D×H, mm) | 1200×1000×1800 / 1300×1150×2050 / 1450×1400×2250 / 1520×1540×2300 |
| Power Consumption | 4.0 kW / 4.5 kW / 7.0 kW / 11.5 kW |
| Temperature Range | 0°C to 70°C |
| Humidity Range | 30–65% RH |
| Ozone Concentration Range | 50–500 pphm (parts per hundred million) |
| Temperature Uniformity | ±0.5°C |
| Sample Rack | 360° continuous rotation at 1 rpm (static mode optional) |
| Gas Flow Velocity | 12–16 mm/s |
| Temperature Controller | Imported LED digital P.I.D. + S.S.R. microcomputer-integrated controller |
| Timer | High-precision programmable timer (hour/minute/second) |
| Ozone Monitoring | Imported ozone concentration analyzer with 4–20 mA analog output and RS232 communication interface |
| Ozone Generator Type | Silent corona discharge tube or UV absorption type (optional) |
| Safety Protections | Leakage current protection, short-circuit protection, overtemperature cutoff, motor overheat protection, overcurrent protection |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | TF-320B-1000L |
| Instrument Type | Upright Chamber |
| Temperature Range | −70 °C to +100 °C (optional up to +150 °C) |
| Humidity Range | 20–98 % RH |
| Temperature Uniformity | ±0.1 °C |
| Temperature Fluctuation | ±1 °C (high/low temp) |
| Humidity Uniformity | ±0.1 % RH |
| Humidity Fluctuation | ±0.1 % RH |
| Heating Rate | 1.0–3.0 °C/min |
| Internal Dimensions (W×H×D) | 500×750×600 mm |
| External Dimensions (W×H×D) | 1000×1600×1170 mm |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Cooling System | Air/Water-Cooled Single/Dual-Stage Compression |
| Insulation Material | High-Density Polyurethane Foam with Chlorinated Ethyl Carbamate Resistance |
| Interior Material | SUS304 Stainless Steel |
| Power Supply | 1φ220VAC±10% 50/60 Hz or 3φ380VAC±10% 50/60 Hz (configurable) |
| Operating Ambient | 5–30 °C, ≤85 % RH |
| Brand | Tuofeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TF-320A-225L |
| Temperature Range | −70 °C to +150 °C |
| Temperature Fluctuation | ±0.5 °C |
| Temperature Uniformity | ±0.1 °C |
| Temperature Deviation | ±0.1 °C |
| Heating Rate | ≤60 min (−70 °C to +150 °C) |
| Cooling Rate | ≤45–80 min (depending on setpoint transition) |
| Internal Chamber Dimensions (W×H×D) | 500 mm × 750 mm × 600 mm |
| Chamber Volume | 225 L |
| Humidity Range | 20–98 % RH |
| Humidity Uniformity | ±3.0 % RH |
| Humidity Control Accuracy | ±2.0 % RH |
| Controller | TEMI (South Korea) |
| Compressor | Tecumseh (France) |
| Construction Material | SUS304 Stainless Steel |
| Insulation | High-density polyurethane foam with chlorinated ethyl ester formulation |
| Cooling System | Air- or water-cooled dual-stage refrigeration |
| Safety Protections | Fuseless circuit breaker, compressor overload protection, high/low refrigerant pressure switch, over-temperature/over-humidity cutoff, fault alarm system |
| Power Supply | 1φ 220 VAC ±10 %, 50/60 Hz or 3φ 380 VAC ±10 %, 50/60 Hz (configurable) |
Show next
