| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AXQ-5S |
| Instrument Type | Hot Mounting Press |
| Mounting Method | Hydraulic Auto-Pressure |
| Control System | Touchscreen Interface |
| Temperature Range | Ambient to 210 °C |
| Heating Power | 1300 W |
| Heating Time Adjustment | 0–99 min |
| Specimen Diameter Options | 25 mm / 30 mm / 40 mm / 50 mm (selectable) |
| Dimensions (W×D×H) | 360 mm × 400 mm × 550 mm |
| Power Supply | 220 V AC |
| Automation Features | Auto-pressure application & release, auto-specimen elevation, temperature-regulated heating, end-of-cycle automatic shutdown |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

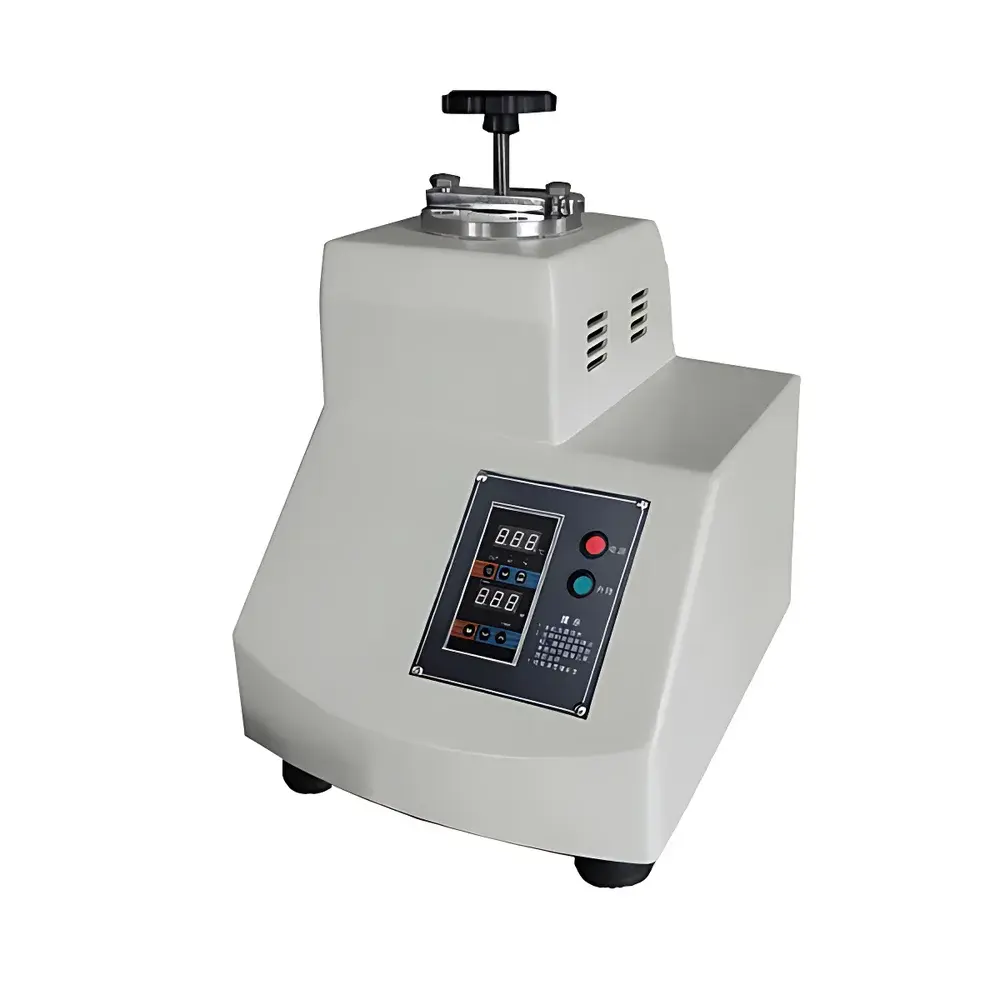

| Model | AXQ-2Q |
| Instrument Type | Hot Mounting Press |
| Mounting Method | Automated Hot Compression |
| Control System | Intelligent Digital Temperature & Time Controller |
| Pressure Actuation | Pneumatic |
| Sample Elevation | Motorized Auto-Lift |
| Heating Power | 800 W |
| Temperature Range | Ambient to 210 °C |
| Heating Timer | 0–99 min (adjustable) |
| Available Mold Diameters | Ø25 mm / Ø30 mm / Ø40 mm (user-selectable) |
| Dimensions (W×D×H) | 350 × 300 × 400 mm |
| Voltage | AC 220 V |
| Standard Accessories | Main Unit, One Set of Mounting Molds (integrated), 500 mL Thermosetting Resin (phenolic or epoxy-based), Technical Documentation (User Manual, Warranty Card, Certificate of Conformance) |
| Optional Accessory | External Air Compressor |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

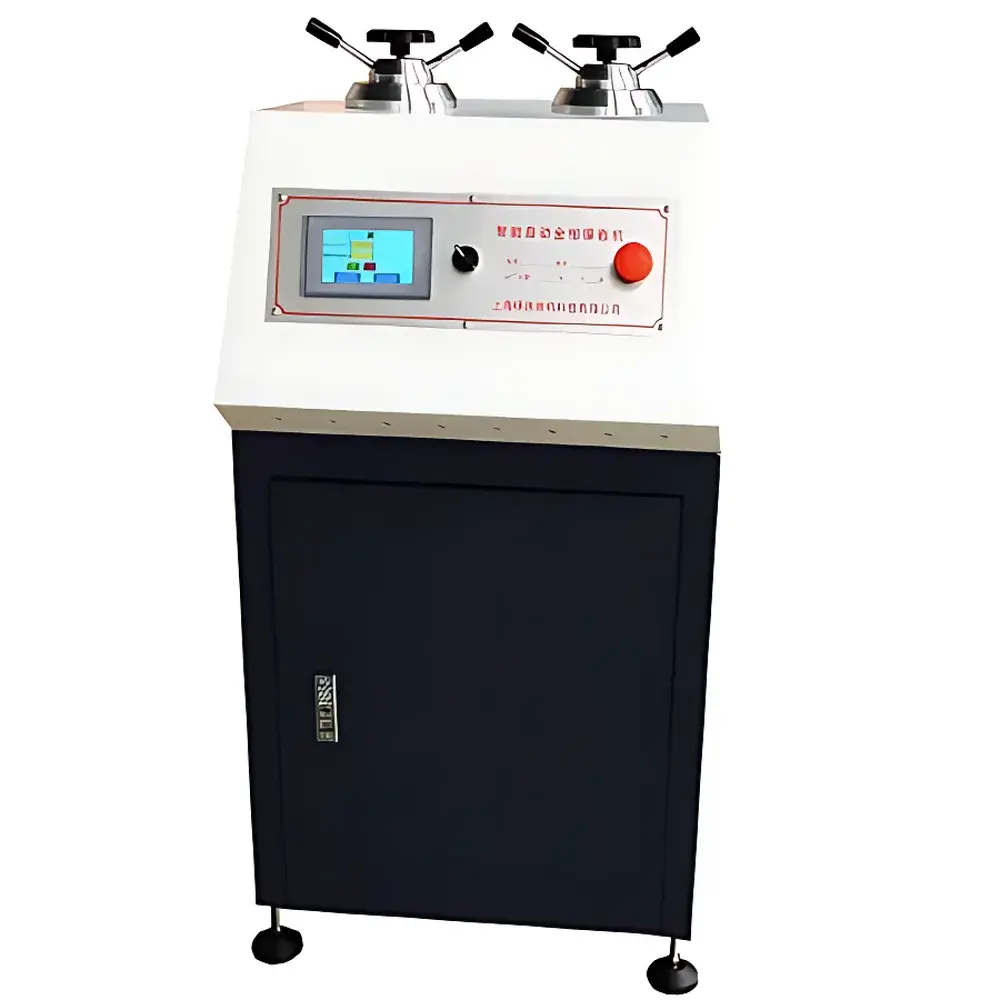

| Model | AXQ-100 |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Φ25 mm, Φ30 mm, Φ40 mm, Φ45 mm |
| Heating Power | 2 × 1000 W |
| Temperature Range | 0–300 °C |
| Pressure Range | 0–2 MPa (applied pressure) |
| Curing Time | 0–99 min (adjustable) |
| Cooling Time | 0–99 min (adjustable) |
| Air Supply Requirement | 0.5–0.8 MPa |
| Cooling Method | Automated Recirculating Water Cooling |
| Control System | PLC with Color Touchscreen Interface |
| Machine Configuration | Floor-standing, Dual-Station, Fully Automatic Cycle |
| Dimensions (W×D×H) | 700 × 560 × 1250 mm |
| Weight | 100 kg |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YXQ-50 |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Φ30 mm (standard), optional Φ40 mm and Φ45 mm |
| Heating Power | 1000 W |
| Temperature Range | 0–300 °C |
| Maximum Pressure | 200 MPa |
| Heating Time Range | 0–99 min (adjustable) |
| Cooling Method | Automated recirculating water cooling |
| Cooling Time Range | 0–99 min (adjustable) |
| Overall Dimensions | 700 × 560 × 1250 mm |
| Net Weight | ~75 kg |
| Control System | PLC-based with color touchscreen interface |
| Mounting Mode | Fully automatic hydraulic press with auto-lift/lower sample stage |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | ZXQ-2 |
| Instrument Type | Hot Mounting Press |
| Heating Power | 800 W |
| Temperature Range | 0–200 °C |
| Specimen Diameter Options | Φ25 mm, Φ30 mm, Φ40 mm |
| Curing Time Setting Range | 0–99 min |
| Power Supply | AC 220 V |
| Pneumatic Pressure Requirement | 0.5–0.8 MPa |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

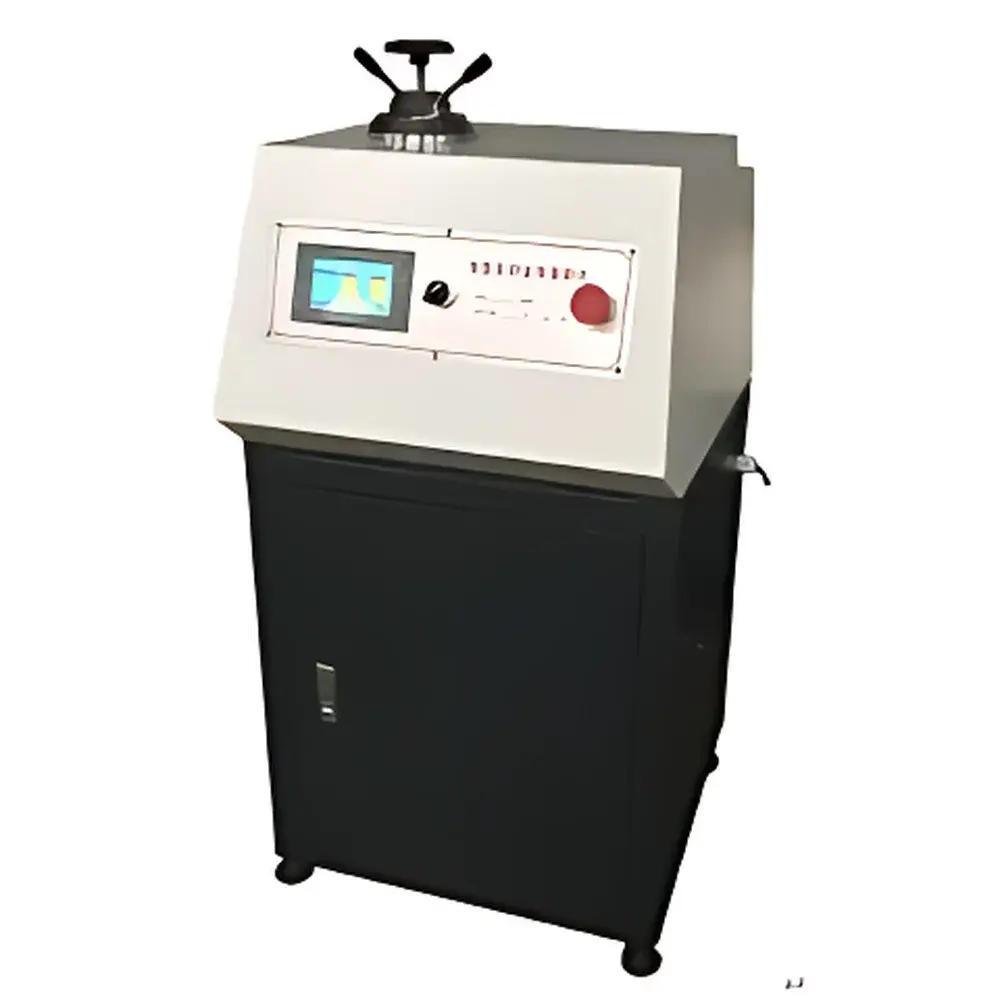

| Model | AXQ-50 |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Φ25 mm / Φ30 mm / Φ40 mm / Φ45 mm |
| Control System | PLC with Color Touchscreen Interface |
| Mounting Method | Fully Automatic Thermal Compression |
| Pressure Range | 0–2 MPa (corresponding to sample compressive stress up to 72 MPa) |
| Temperature Range | 0–300 °C |
| Heating Power | 1000 W |
| Heating Time | 0–99 min (adjustable) |
| Cooling Method | Forced Circulating Water Cooling |
| Cooling Time | 0–99 min (adjustable) |
| Air Supply Pressure | 0.5–0.8 MPa |
| Overall Dimensions | 700 × 560 × 1250 mm |
| Net Weight | 75 kg |
| Machine Configuration | Freestanding Integrated Unit |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Hot Mounting Press |
| Model | XQ-2B |
| Heating Power | 800 W |
| Temperature Range | 0–200 °C |
| Specimen Diameter Capacity | Φ25 mm, Φ30 mm, Φ40 mm |
| Curing Time Setting Range | 0–99 minutes |
| Control System | Digital PID Temperature Controller with Dual Display (Setpoint & Actual) |
| Alarm | Audible Beeper Alert on Cycle Completion or Over-Temperature Event |
| Standard Accessories | Main Unit, Steel Mold Set (Integrated), Thermosetting Resin Bottle (1 pc), Power Cord (1 pc) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YXQ-100 |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Φ25 mm, Φ30 mm, Φ40 mm, Φ45 mm |
| Temperature Range | 0–300 °C |
| Heating Power | 2 × 1000 W |
| Heating Time Range | 0–99 min (adjustable) |
| Cooling Time Range | 0–99 min (adjustable) |
| Cooling Method | Automated Recirculating Water Cooling |
| Mounting Mode | Fully Automatic (PLC-Controlled) |
| Pressurization | Hydraulic |
| System Architecture | Floor-Standing Dual-Station Integrated Unit |
| Dimensions (W×D×H) | 700 × 560 × 1250 mm |
| Weight | 100 kg |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AXQ-5Y |
| Instrument Type | Hot Mounting Press |
| Mounting Chamber | Single |
| Control System | Color Touchscreen + PLC |
| Pressure Application/Release | Fully Automatic Hydraulic |
| Temperature Control | PID-Based Automatic |
| Specimen Elevation | Motorized & Programmable |
| Cooling Method | External Circulating Chiller Interface |
| Specimen Diameter Options | 25 mm / 30 mm / 40 mm / 45 mm (Custom Sizes Available) |
| Heating Power | 1600 W |
| Temperature Range | Ambient to 210 °C |
| Heating Time Setting | 0–99 min (Adjustable in 1-min increments) |
| Power Supply | 220 V AC, 50/60 Hz |
| Dimensions (W×D×H) | 700 × 550 × 500 mm |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Type | Hot Mounting Press |
| Model | XQ-1 |
| Mounting Method | Manual Mechanical Compression with Spring-Compensated Pressure |
| Heating Power | 650 W |
| Temperature Range | 0–160 °C |
| Specimen Capacity | Ø30 × 15 mm (optional: Ø22 × 15 mm or Ø45 × 15 mm) |
| Voltage | 220 V AC, ±15% tolerance, 50 Hz |
| Dimensions (W×D×H) | 340 × 280 × 400 mm |
| Net Weight | 32 kg |
| Temperature Control | Digital PID Controller with Thermocouple Sensor |
| Compliance | Designed for ASTM E3, ISO 15510, and GB/T 9445-compliant metallographic sample preparation workflows |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Equipment Type | Hot Mounting Press |
| Model | XQZ-2 |
| Heating Power | 800 W |
| Temperature Range | 0–200 °C |
| Specimen Diameter Options | Φ25 mm, Φ30 mm, Φ40 mm |
| Cycle Time Setting | 0–99 min (adjustable) |
| Supply Voltage | 220 V AC |
| Pneumatic Pressure Requirement | 0.5–0.8 MPa |
| Housing Material | Full Injection-Molded Non-Conductive Polymer |
| Control System | Digital PID Temperature Controller with Dual Display (Setpoint & Actual) |
| Actuation Method | Pneumatically Driven Platen Lift |
| Safety Alert | Integrated Audible Alarm |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | YXQ-5 |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Φ30 mm (standard), optional Φ40 mm / Φ45 mm interchangeable steel mold sleeves |
| Control System | PLC with color touchscreen interface |
| Heating Power | 1000 W |
| Temperature Range | 0–300 °C |
| Heating Time | 0–99 min (adjustable) |
| Cooling Time | 0–99 min (intelligent timed water cooling) |
| Pressure Actuation | Hydraulic |
| Sample Elevation | Automatic hydraulic lift |
| Power Supply | AC 220 V |
| Dimensions (approx.) | 700 × 550 × 550 mm |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AXQ-50Y |
| Instrument Type | Cold Mounting Press |
| Mounting Chamber | Single, Vertical Floor-Standing |
| Control System | Color Touchscreen + PLC |
| Mounting Method | Fully Automatic Hydraulic Pressure Application & Release |
| Temperature Control | Automatic (Heating Only, 20–210 °C) |
| Specimen Lift | Motorized Auto-Positioning |
| Cooling Method | Integrated Circulating Water Chiller (40 L Reservoir, Timer-Controlled) |
| Standard Mold Diameters | 25 mm, 30 mm, 40 mm, 45 mm (Custom Sizes Available) |
| Heating Power | 1600 W |
| Heating Time Range | 0–99 min (Adjustable) |
| Dimensions (W×D×H) | 550 mm × 560 mm × 1150 mm |
| Electrical Supply | 220 V AC |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | XQ-2B |
| Instrument Type | Hot Mounting Press |
| Heating Power | 800 W |
| Temperature Range | 0–300 °C |
| Timer Range | 0–99 min |
| Specimen Diameter Options | Φ25 mm / Φ30 mm / Φ40 mm |
| Voltage | 220 V AC |
| Net Weight | 32 kg |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AXQ-100C |
| Instrument Type | Hot Mounting Press |
| Sample Diameter Options | Ø25 mm / Ø30 mm / Ø40 mm |
| Mounting Chamber | Isolated Dual-Sample Chamber |
| Pressure Range | 0–2 MPa (Effective Sample Pressure up to 72 MPa) |
| Temperature Range | 0–300 °C |
| Heating Power | 2 × 8000 W |
| Heating Time Setting | 0–99 min (adjustable) |
| Control Voltage | 220 V AC |
| Pneumatic Supply Pressure | 0.5–0.8 MPa |
| Cooling Method | Natural Cooling + Optional External Water-Cooled Reservoir |
| Dimensions (W×D×H) | 460 × 410 × 500 mm |
| Standard Accessories | Main Unit, Two Sets of Steel Mold Kits, One Water-Cooling Tank, Operation Manual |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Hot Mounting Press |

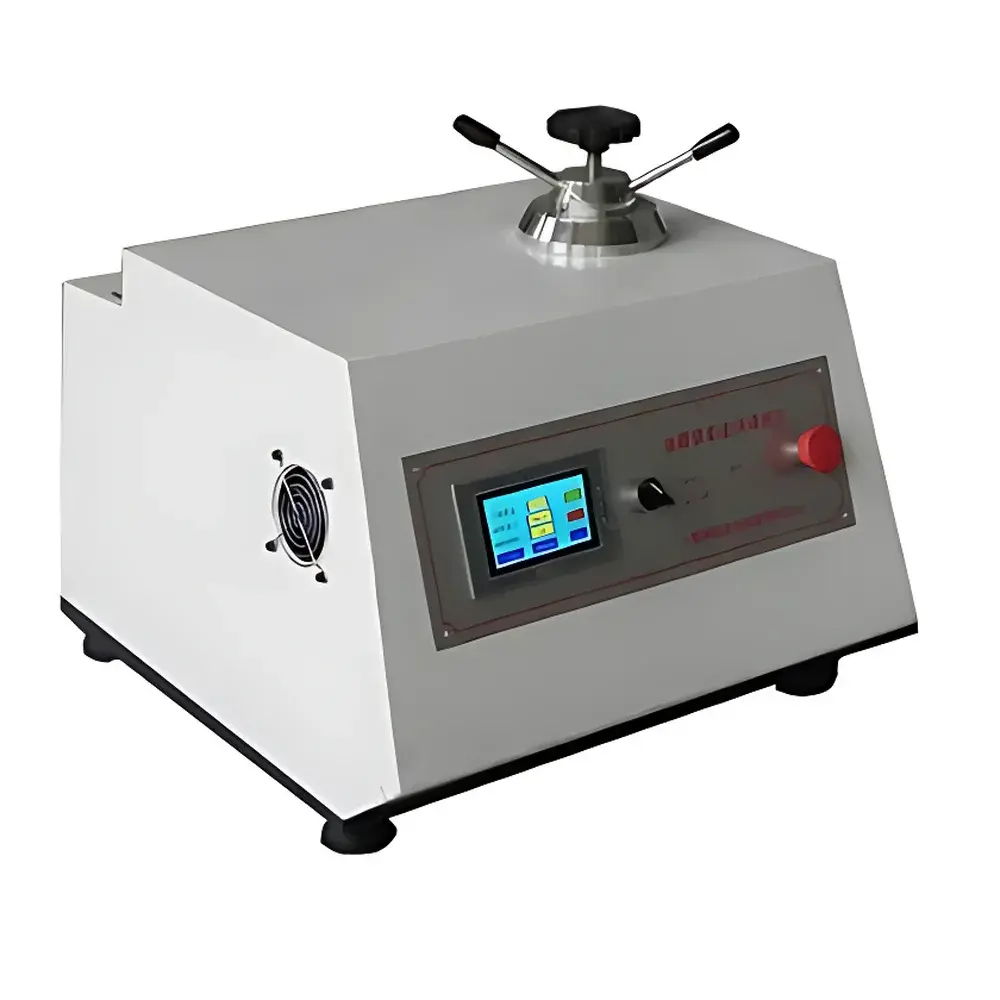

| Model | AXQ-5 |
| Mounting Diameter Options | Φ25 mm, Φ30 mm, Φ40 mm, Φ45 mm (interchangeable steel mold sleeves) |
| Control System | Mitsubishi PLC + Color Touchscreen HMI |
| Heating Power | 1000 W |
| Temperature Range | 0–300 °C |
| Pressure Range | 0–2 MPa (sample pressure up to 72 MPa) |
| Pneumatic Source | 0.5–0.8 MPa |
| Cooling | Intelligent timed water-cooling |
| Sample Elevation | Pneumatically actuated automatic lift |
| Dimensions (L×W×H) | Approx. 700 × 550 × 550 mm |
| Voltage | AC 220 V |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

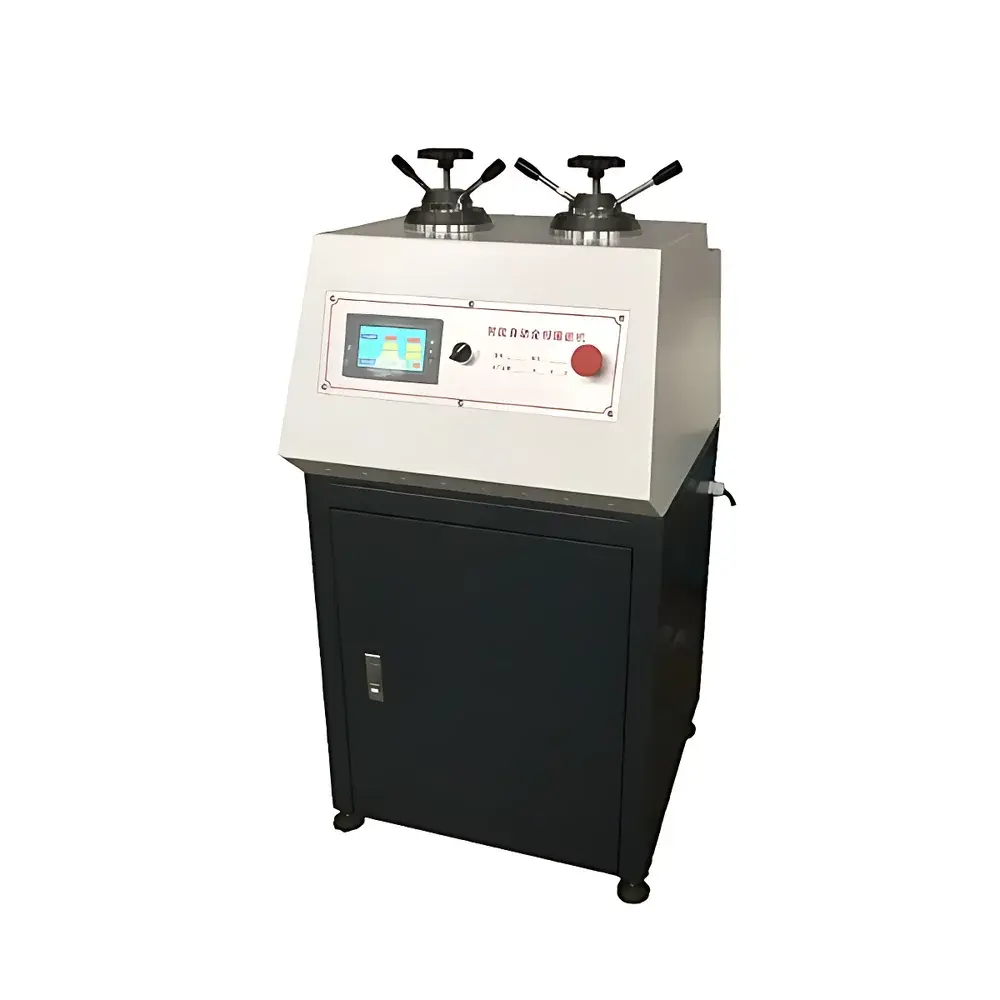

| Model | AXQ-100Y |
| Instrument Type | Cold Mounting Press |
| Mounting Chamber Configuration | Dual Isolated Sample Chambers |
| Control System | Color Touchscreen + PLC |
| Pressure Application/Release | Fully Automatic Hydraulic |
| Temperature Control | Automatic (Heating: RT–210 °C |
| Cooling | Recirculating Water Chiller) |
| Sample Elevation | Motorized & Programmable |
| Heating Power | 2 × 1600 W |
| Heating Timer | 0–99 min (Adjustable) |
| Cooling Reservoir Capacity | 40 L |
| Mounting Diameter Options | Ø25 / 30 / 40 / 45 mm (Custom Sizes Available) |
| Overall Dimensions | 550 × 560 × 1150 mm |
| Electrical Supply | 220 V AC |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region | Domestic (China) |
| Model | UV-Curing Mounting Press |
| Price | USD 1 (FOB Shanghai) |
| Max Sample Capacity | 24 × Ø30 mm or 15 × Ø40 mm molds |
| Max Sample Height | 40 mm |
| UV Wavelength | 365 nm |
| Curing Time | 60 s (with M789001 photoinitiator resin) |
| Curing Temp Range | 70–90 °C |
| Post-Cure Surface Temp | <50 °C |
| Control Power | 100–240 V, 50/60 Hz |
| Dimensions | 420 × 410 × 200 mm |
| Weight | 16 kg |
| Shore D Hardness (cured resin) | 83 |
Show next
