| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

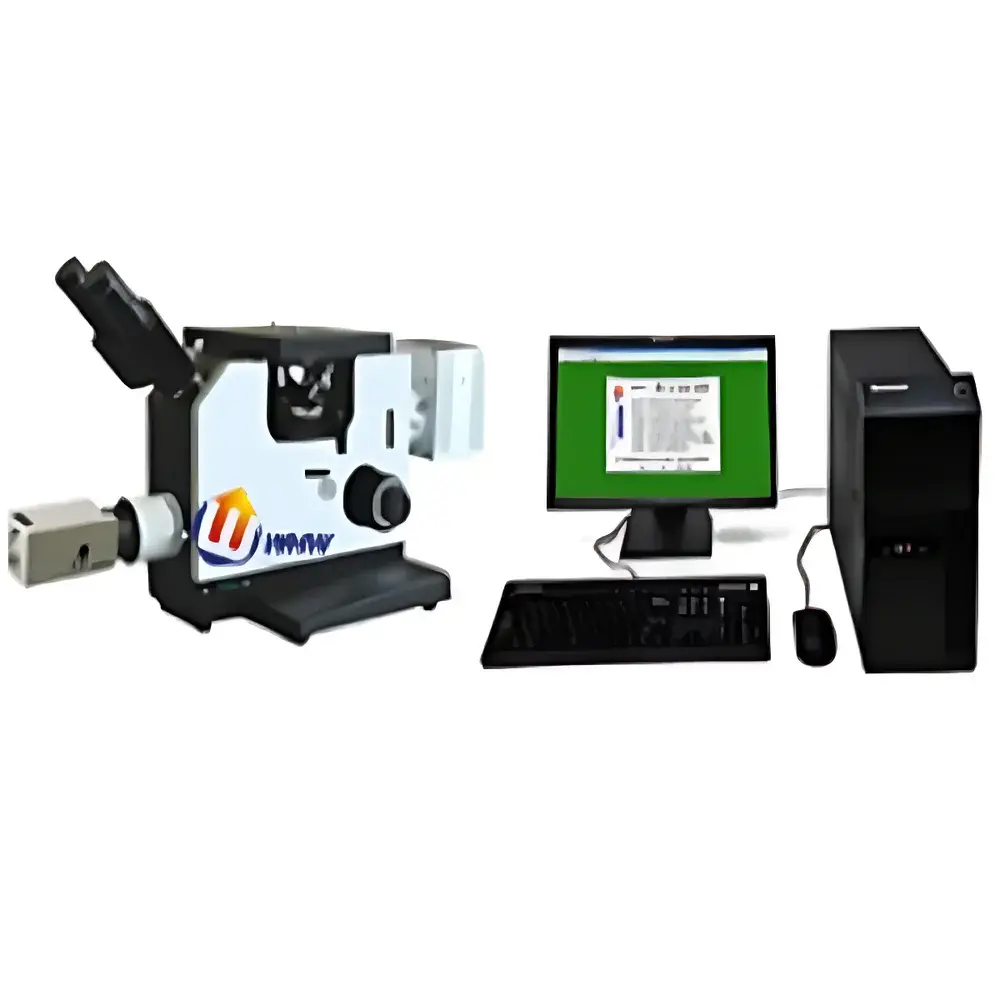

| Model | AMM-8P Large-Scale R&D Inverted Horizontal Metallurgical Microscope |
| Mounting Configuration | Inverted |
| Image Analysis System | Not Standard (Optional Add-on) |
| Optical Total Magnification | 40×–400× |
| Optional Extended Magnification | 25×–1000× |
| Eyepieces | Wide-Field WF10X (Φ18 mm) |
| Objective Lenses | 4×, 10×, 20×, 40× |
| Coaxial Coarse/Fine Focus Travel | 15 mm / 0.002 mm (2 µm) per Division |
| Mechanical Stage | Dual-Layer, 180 × 155 mm Platform with 75 × 50 mm Travel Range |
| Illumination | Reflected Halogen Lamp, 6 V / 30 W, Continuously Adjustable Brightness |
| Power Supply | 220 V / 50 Hz |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Upright Metallurgical Microscope |
| Model | HMM-240 |
| Optical Magnification Options | 20×, 50×, 100×, or 400× (user-selectable configuration) |
| Eyepiece | 10× wide-field (18 mm field number) |
| Objective Lenses | Single fixed objective from 2×, 5×, 10×, or 40× (pre-configured per unit) |
| Mechanical Tube Length | 160 mm |
| Focusing Range | 25 mm with coaxial coarse/fine focus mechanism |
| Illumination | Adjustable-intensity LED (DC 4.2 V) |
| Optional Accessories | Plan metallurgical objectives (4×, 20×, 50×), 5.6-inch external display module, digital eyepiece adapter, polarizing kit, magnetic XY translation stage |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | AMM-8D Large-Scale R&D Digital Inverted Horizontal Metallurgical Microscope |
| Mounting Configuration | Inverted |
| Image Analysis System | Not Included (Optional Add-on) |
| Optical Total Magnification | 40×–400× |
| Optional Total Magnification (with Auxiliary Lenses/Cameras) | 25×–1000× |
| Eyepieces | Wide-Field WF10X (Φ18 mm) |
| Objective Lenses | 4×, 10×, 20×, 40× (Standard) |
| Optional | Plan Achromatic 2.5× (NA 0.07), 100× (Oil Immersion) |
| Coaxial Coarse/Fine Focus Travel | 15 mm / 0.002 mm (2 µm) per Division |
| Mechanical Stage | Dual-Layer, 180 × 155 mm Platform, 75 × 50 mm Travel Range |
| Illumination | Reflected Halogen Lamp, 6 V / 30 W, Continuously Adjustable Brightness |
| Power Supply | 220 V AC, 50 Hz |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | 6XB-PC Upright Metallurgical Microscope |
| Configuration | Upright (not inverted) |
| Image Analysis System | Not included (standalone imaging interface only) |
| Total Optical Magnification Range | 100×–1000× (standard) |
| Eyepieces | Wide-field 10× (18 mm field number) |
| Objective Lenses | Plan Achromatic, long-working-distance, coverslip-free: 5× (NA 0.12, WD 18.3 mm), 10× (NA 0.25, WD 8.9 mm), 40× (NA 0.60, WD 3.7 mm), 60× (NA 0.75, WD 0.96 mm) |
| Focusing Mechanism | Coaxial coarse/fine focus |
| fine focus graduation | 2 µm |
| Stage | Dual-layer mechanical stage (186 mm × 142 mm) |
| X–Y travel range | 75 mm × 50 mm |
| Illumination | 6 V / 20 W halogen transmitted & reflected Köhler illumination system |
| Eyepiece Tube | Inclined 30° binocular tube with internal analyzer for polarized light observation |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Region Classification | Domestic (China) |
| Model | BPAS-240 Stereo Jewelry Microscope |
| Price | USD 1 (Reference Only) |
| Zoom Range | 7×–45× Continuous (Expandable to 50×) |
| Working Distance | 95 mm (Extendable to 115 mm) |
| Eyepiece | Wide-Field WF10×/23 mm |
| Interpupillary Adjustment Range | 55–75 mm |
| Focus Travel | 125 mm |
| Optional Accessories | Auxiliary Objectives (0.75× WD=105 mm |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | 102XB-PC |
| Microscope Type | Upright |
| Image Analysis System | Not Included |
| Eyepieces | Widefield 10×/25 mm and 10×/20 mm with 0.1 mm reticle scale |
| Objectives | 5×/0.15 (WD 35 mm), 10×/0.28 (WD 35 mm), 20×/0.40 (WD 20 mm), 50×/0.55 (WD 13 mm) |
| Eyepiece Tube | 30° inclined trinocular head (interpupillary adjustment 50–75 mm) |
| Nosepiece | Four-position revolving nosepiece with centering adjustment |
| Stage | 190 × 140 mm mechanical stage, 50 × 40 mm travel range |
| Focus Mechanism | Coaxial coarse/fine focusing with rack-and-pinion drive |
| fine focus graduation | 2 µm |
| Filters | Slide-in green, blue, and neutral density filters |
| Illumination | 12 V / 50 W halogen lamp (AC 85–230 V), adjustable brightness, equipped with aperture and field diaphragms |
| Polarization System | Rotatable analyzer (0–360°), polarizer and analyzer both removable from optical path |
| Calibration Tool | 0.01 mm stage micrometer |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Inverted |
| Optical Total Magnification | 100×–1000× (Optional Extended to 1600×) |
| Eyepieces | 10×, Field Number 18 mm |
| Objectives | 10×/0.25, 20×/0.40, 40×/0.60, 100×/1.25 (Oil Immersion), Working Distances: 8.8 mm, 8.6 mm, 3.7 mm, 0.44 mm |
| Focusing | Coaxial coarse/fine adjustment, Fine Focus Graduation: 2 µm |
| Stage | Dual-layer mechanical stage, 180 × 150 mm base, 15 × 15 mm travel range |
| Illumination | Köhler illumination, 6 V / 20 W halogen lamp, adjustable brightness |
| Power Supply | 220 V / 50 Hz (optional 110 V / 60 Hz) |
| Tube | Inverted trinocular head, 30° inclination, interpupillary adjustment 53–75 mm, diopter adjustment available |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification | 7X–45X |
| Eyepiece | Widefield 10X (Φ20 mm) |
| Objective Zoom Range | 0.7X–4.5X |
| Field of View | Φ28.5 mm–Φ4.5 mm |
| Working Distance | 88 mm |
| Vertical Travel | 25 mm ≤ H < 265 mm |
| Base Dimensions | 215 × 160 × 60 mm |
| Illumination | Adjustable 12 V / 10 W Halogen Lamp with Reflector Cup (Top-Lighting) |
| Overall Dimensions | 394 × 230 × 160 mm |
| Optional Accessories | Widefield Eyepieces (10X/15X/20X/25X, various FOV diameters), Graticule Eyepieces (10X, 0.1 mm/div), Auxiliary Objectives (0.5X–2X), LED Ring Light (8 W, 90–265 V, WD 35–200 mm), Fluorescent Ring Light (5 W, 110/220 V) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | HMM-240S Portable Video-Measurement Metallurgical Microscope |
| Configuration | Upright |
| Total Magnification Options | 20×, 50×, 100×, or 400× (user-selectable single configuration) |
| Objective Lenses Included | One of 2×, 5×, 10×, or 40× |
| Mechanical Tube Length | 160 mm |
| Display | 5.6-inch integrated LCD screen |
| Focusing Range | 25 mm with coaxial coarse/fine focusing mechanism |
| Eyepiece Field Diameter | 18 mm |
| Illumination | Adjustable-intensity LED, DC 4.2 V |
| Optional Accessories | Plan metallurgical objectives (4×, 20×, 50×), digital eyepiece camera, polarizing kit, magnetic translation stage |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | MMAS-4 |
| Configuration | Inverted |
| Image Analysis System Included | Yes |
| Total Optical Magnification Range | 100×–1600× |
| Eyepieces | 10×, Ø18 mm |
| Objective Lenses | 10×, 20×, 40×, 100× (NA: 0.25, 0.40, 0.60, 1.25 |
| WD | 8.8 mm, 8.6 mm, 3.7 mm, 0.44 mm) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China) |
| Model | 11XB-PC |
| Configuration | Inverted |
| Eyepieces | Widefield 10× (23 mm FOV), Graticule Eyepiece 10× (20 mm FOV) with 0.1 mm Divisions |
| Objectives | Infinity-Corrected Plan Apochromatic Long Working Distance: 5×/0.15 (WD 44 mm), 10×/0.30 (WD 44 mm), 20×/0.35 (WD 44 mm), 50×/0.50 (WD 44 mm) |
| Nosepiece | Four-Position Revolving Turret with DIC Slot and Centering Adjustment |
| Stage | 290 × 290 mm Mechanical Stage with 100 × 100 mm Travel Range and X/Y Rapid-Drive Mechanism |
| Focus System | Coaxial Coarse/Fine Focus |
| Fine Focus Graduation | 2 µm per Division |
| Z-Axis Vertical Travel | 150 mm |
| Illumination | Köhler Surface Illumination (12 V/50 W Halogen, AC 85–230 V, Continuous Brightness Control) + Telecentric Outline Illumination (12 V/50 W Halogen, AC 85–230 V) |
| Polarization System | Rotatable Analyzer (0–360°), Removable Polarizer and Analyzer |
| Display Interface | 0.5 µm Resolution Measurement Capability, Zero-Set Function, Axis Orientation Flip, Data Export (TTL-compatible Output) |
| Calibration Standard | 0.01 mm Stage Micrometer |
| Included Accessories | Main Unit, Trinocular Head (Upright Image, 30° Inclined, Interpupillary Adjustment 50–75 mm), Pair of 10× Eyepieces, Full Objective Set (5×, 10×, 20×, 50×), Two 12 V/50 W Halogen Lamps, Full Polarizing Kit, CCD Camera (Standard), 0.5× C-Mount Adapter, Documentation Set (Certificate of Conformance, Warranty Card, Manual) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification | 7X–45X |
| Eyepiece | Widefield 10X (Φ20 mm) |
| Objective Zoom Range | 0.7X–4.5X |
| Field of View | Φ28.5–Φ4.5 mm |
| Working Distance | 88 mm |
| Vertical Travel | 25–265 mm |
| Base Dimensions | 215 × 160 × 60 mm |
| Illumination | Dual LED-compatible Halogen — Top: 12 V / 10 W with reflector cup, dimmable |
| Bottom | 12 V / 10 W, dimmable |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |

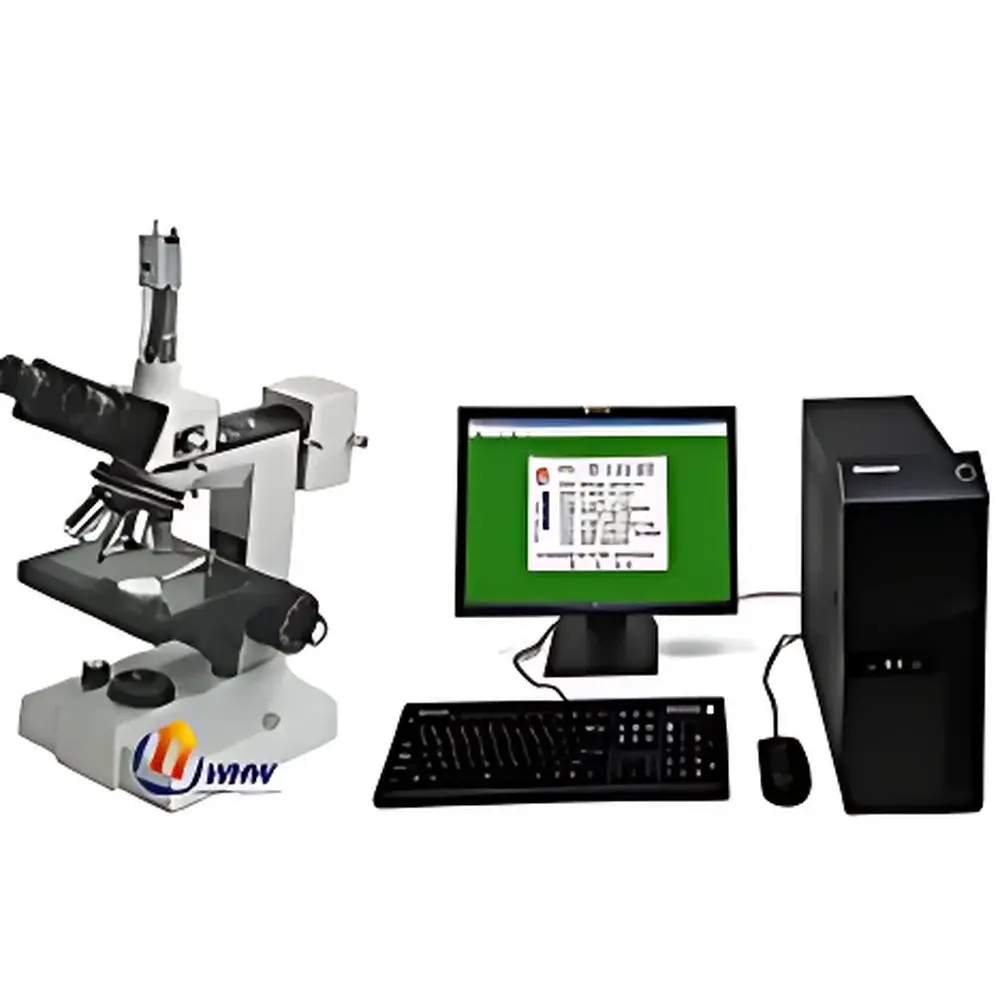

| Model | AMM200 Trinocular Upright Metallurgical Microscope |
| Price | Contact for Quote |
| Product Type | Upright (not inverted) |
| Image Analysis System Included | No |
| Eyepieces | Wide-Field 10× (18 mm field number), Wide-Field 16× (11 mm field number) |
| Objectives | Plan Achromatic, Cover-Slip-Free: 4×/NA 0.10, 10×/NA 0.25, 40×/NA 0.65 (Spring-Loaded), 63×/NA 0.85 (Spring-Loaded) |
| Optional Objectives | 100×/NA 1.25 (Oil Immersion, Spring-Loaded) |
| Mechanical Stage | 160 mm × 130 mm, Travel Range 76 mm × 50 mm, Vernier Scale Resolution 0.1 mm |
| Nosepiece | Ball-Bearing Mounted Quadruple Revolving Nosepiece |
| Focus Mechanism | Coaxial Coarse/Fine Focus, Total Travel 40 mm, Fine Focus Graduation 2 µm per division |
| Illumination | Vertical (Epi-) Illuminator with 6 V / 20 W Halogen Lamp, Dual Voltage Input (110 V / 220 V AC), Adjustable Brightness, Optional Filter Set (Light Blue, Light Green) |
| Configurations Available | Base Unit Only |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | PM-10 Upright Polarizing Microscope |
| Price | USD 1 (Base Unit, Ex-Works) |
| Optical Magnification | 40×–1000× |
| Eyepieces | Wide-Field WF10× (Φ18 mm) |
| Objectives | Achromatic 4×/0.10, 10×/0.25, 40×/0.65 (spring-loaded), 100×/1.25 (spring-loaded, oil-immersion) |
| Binocular Head | Inclined 30°, interpupillary adjustment |
| Analyzer | Sliding-type, removable |
| Focusing Mechanism | Coaxial coarse/fine focus |
| fine focus graduation | 2 µm |
| Nosepiece | Four-position, inward-rolling ball bearing centering |
| Stage | PM-10 — rotating stage (Φ120 mm) |
| PM-10A — dual-layer mechanical stage (135 mm × 125 mm) with integrated Φ100 mm rotating insert (X–Y travel | 75 mm × 35 mm) |
| Condenser | Abbe type, NA 1.25, vertically adjustable |
| Filters | Blue filter, ground glass diffuser |
| Polarizer | 360° rotatable, graduated scale |
| Illuminator | 6 V / 20 W halogen lamp, continuously variable intensity control |
| Optional Accessories | WF16× (Φ11 mm) or reticle eyepiece (10×, 0.1 mm/div) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | 11XB Research-Grade Upright Metallurgical Microscope with Transmitted/Reflected Light, Polarization, and Darkfield Capabilities |
| Configuration | Upright |
| Image Analysis System | Not Included |
| Eyepieces | Widefield 10× (23 mm field number), Widefield 10× (20 mm field number) with 0.1 mm reticle scale |
| Objectives | 5×, 10×, 20×, 50× (Infinity-Corrected Plan Apochromatic Long Working Distance) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | BPAS-120 Stereo Gemological Microscope |
| Price | USD 1 (Reference Only) |
| Working Distance | 95 mm (extendable to 115 mm) |
| Zoom Range | 7×–45× continuous (expandable to 50×) |
| Eyepiece | Wide-field WF10×/23 mm |
| Interpupillary Adjustment | 55–75 mm |
| Focus Travel | 125 mm |
| Optional Accessories | Auxiliary Objectives (0.75× WD 105 mm |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification Range | 7X–63X |
| Eyepieces | Widefield 10X (Φ22 mm) |
| Objective Zoom Ratio | 0.7X–6.3X |
| Field of View | Φ33.8 mm–Φ3.49 mm |
| Working Distance | 110 mm |
| Vertical Travel | 220 mm |
| Base Dimensions | 310 mm × 280 mm |
| Illumination | Top-mounted 3 W high-brightness LED + Bottom-mounted 5 W high-brightness LED |
| Optional Accessories | WF15X (Φ15 mm), WF20X (Φ12 mm), WF25X (Φ9 mm), 10X reticle eyepiece (0.1 mm/div), Auxiliary objectives (0.5X, 1.5X, 2X), LED epi-fluorescence illuminator, Ring fluorescence illuminator |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-Made) |
| Model | 5XB-PC Inverted Polarizing Metallurgical Microscope |
| Configuration | Inverted |
| Optical Total Magnification | 100×–1000× |
| Optional Total Magnification | 1600× |
| Eyepieces | 10×, Field Number 18 mm |
| Objectives | 10×, 20×, 40×, 100× (oil immersion optional) |
| Head | 45° inclined trinocular head (interpupillary distance 50–75 mm) |
| Nosepiece | Quadruple revolving nosepiece |
| Objective Specifications | Plan metallurgical objectives — 4×/0.10 (W.D. 25 mm), 10×/0.25 (W.D. 11 mm), 20×/0.40 (W.D. 9 mm), 40×/0.60 (W.D. 3.8 mm) |
| Stage | Dual-layer mechanical stage (242 × 172 mm), travel range 75 × 50 mm, central circular stage Φ110 mm |
| Focus Mechanism | Coaxial coarse/fine focusing with gear-driven fine adjustment (graduation: 2 µm per division) |
| Illumination | Reflected Köhler illumination with adjustable aperture and field diaphragms |
| Polarization System | Rotatable analyzer (0–360°), polarizer and analyzer both removable from optical path |
| Filter Set | Yellow, green, blue interference filters |
| Calibration Tool | 0.01 mm micrometer scale |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | FM-200 Inverted Infinity-Corrected Phase Contrast & Epi-Fluorescence Microscope |
| Optical Magnification | 100×–400× |
| Eyepieces | Widefield WF10X (Φ22 mm), Centering Telescope |
| Objective Lenses | Infinity-Corrected Achromatic PLL (Cover Glass Thickness 1.2 mm): 10×/0.25 (WD 4.3 mm), 20×/0.4 (WD 8.0 mm), 40×/0.6 (WD 3.5 mm) |
| Phase Contrast PLL/PHP2 Objectives | Same Specifications |
| Trinocular Head | 45° Inclination, 100% Light Path Diversion for Projection, Interpupillary Distance 53–75 mm |
| Transmitted Illumination | 6 V / 30 W Halogen Lamp with Dimming Control |
| Phase Contrast Condenser | Rotating Carousel-Type, WD 55 mm |
| Filter Set | Blue, Green, Ground Glass |
| Epi-Fluorescence Illumination | 100 W Mercury Arc Lamp, Dual-Voltage Power Supply (110 V / 230 V) |
| Excitation Filter Sets | Blue-Green Set (Ex: 450–490 nm / Em: ≥515 nm |
| Ex | 495–555 nm / Em: ≥595 nm) |
| UV-Violet Set (Ex | 320–380 nm / Em: ≥435 nm |
| Ex | 380–415 nm / Em: ≥475 nm) |
| Stage Dimensions | 208 × 227 mm, Travel Range 77 × 114 mm |
| Circular Glass Stage | Φ118 mm |
| Nosepiece | Quintuple Revolving |
| Specimen Holders | Three Standard Culture Dish Adapters (for Ø87.5 mm, Ø68.5 mm, and Rectangular 57 × 82 mm Dishes) |
| Focus Mechanism | Coaxial Coarse/Fine Adjustment with Locking & Upper/Lower Limits, Fine Focus Graduation: 2 µm per Division |
| Optional Accessories | Graticule Eyepieces (0.1 mm/div), 5×/0.12 Objective, Hexaposition Nosepiece, Custom Dish Adapters (T25, 35 mm, 50 mm, 66 × 66 mm, Slide Holder), CCD Adapters (0.4×, 0.5×, 1×, 0.5× with Graticule), USB/VIDEO & Digital Camera Interfaces |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | BPAS-360 Trinocular Stereo Gemological Microscope |
| Zoom Range | 7×–45× continuous (expandable to 50×) |
| Working Distance | 95 mm (expandable to 115 mm) |
| Eyepiece | Wide-field WF10×/23 mm |
| Interpupillary Adjustment Range | 55–75 mm |
| Focus Travel | 125 mm |
| Optional Auxiliary Objectives | 0.75× (WD 105 mm), 1.5× (WD 47 mm), 2× (WD 33 mm) |
| Polarizer | Integrated, rotatable |
| Illumination | Adjustable dual-arm LED or halogen coaxial & oblique lighting system |
| Sample Holders | Spring-loaded steel-wire gem clamp and parallel-jaw flat clamp |
| Stage Mounting | Dual threaded holes for clamp height/angle adjustment |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Upright Stereo Microscope |
| Total Magnification Range | 7× to 45× |
| Eyepiece | Widefield 10× (Φ20 mm) |
| Objective Zoom Ratio | 0.7× to 4.5× |
| Field of View | Φ28.5 mm to Φ4.5 mm |
| Working Distance | 88 mm |
| Vertical Travel | 35 mm ≤ H < 265 mm |
| Base Dimensions | 300 × 240 × 25 mm |
| Illumination | Top-mounted 12 V / 10 W halogen lamp with reflector cup and continuous brightness control |
| Image Analysis System | Not Integrated |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification Range | 40×–400× |
| Eyepieces | 10× (Field Number 18) |
| Objective Lenses | 4× (NA 0.10, WD 17.91 mm), 10× (NA 0.25, WD 6.54 mm), 20× (NA 0.40, WD 1.05 mm), 40× (NA 0.65, WD 0.736 mm) |
| Nosepiece | Quadruple Revolving |
| Stage Dimensions | 350 mm × 255 mm, Travel Range: 200 mm × 200 mm |
| Focusing Mechanism | Coarse/Fine Combined, 25 mm Vertical Travel, Fine Focus Graduation: 2 µm per division, 0.2 mm per revolution |
| Illumination | 6 V / 20 W Halogen Lamp with Built-in Continuous Intensity Control |
| Mounting Medium | Dry |
| Optional Accessories | Long Working Distance Objectives (50×, 80×, 100×), Digital Camera Adapters, 12.5× or Reticle Eyepieces |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | SM-7L Continuous Zoom Stereo Microscope |
| Mounting Type | Upright |
| Image Analysis System | Not Integrated |
| Total Magnification Range | 7× to 45× |
| Eyepieces | Widefield 10× (20 mm field number) |
| Objective Zoom Ratio | 0.7× to 4.5× |
| Field of View | Φ28.5 mm to Φ4.5 mm |
| Working Distance | 88 mm (at 1× objective setting) |
| Vertical Travel | 35 mm ≤ H < 215 mm |
| Base Dimensions | 260 × 290 × 55 mm |
| Illumination | Dual-source — Top-mounted 12 V / 10 W halogen lamp with reflector cup (adjustable brightness) and Bottom-mounted 12 V / 10 W halogen lamp (adjustable brightness) |
| Brand | YANRUN |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | 102XB Upright Metallurgical Microscope |
| Configuration | Upright |
| Image Analysis System | Not Included |
| Eyepieces | Widefield 10× (25 mm FOV), Widefield 10× (20 mm FOV) with 0.1 mm reticle scale |
| Objectives | 5×, 10×, 20×, 50× (Infinity-Corrected Plan Achromatic Long Working Distance) |
Show next
