| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | ZEISS Spectrum |
| Configuration | Bridge-type CMM |
| Operation Mode | Fully Automatic |
| Application Class | Shop-floor CMM |
| Measurement Method | Contact-based (Tactile) |
| Measurement Volume Range | 500 × 500 × 600 mm to 1000 × 1600 × 600 mm |
| Maximum Permissible Error (MPE<sub>E</sub>) | 1.9 + L/250 µm |
| Standard Operating Temperature | +17 °C to +35 °C |
| Probe Compatibility | ZEISS XDT direct, ZEISS VAST XXT direct, ZEISS VAST XT gold (Spectrum plus), ZEISS RDS-C5 with CAA, ZEISS RDS-C with CAA |

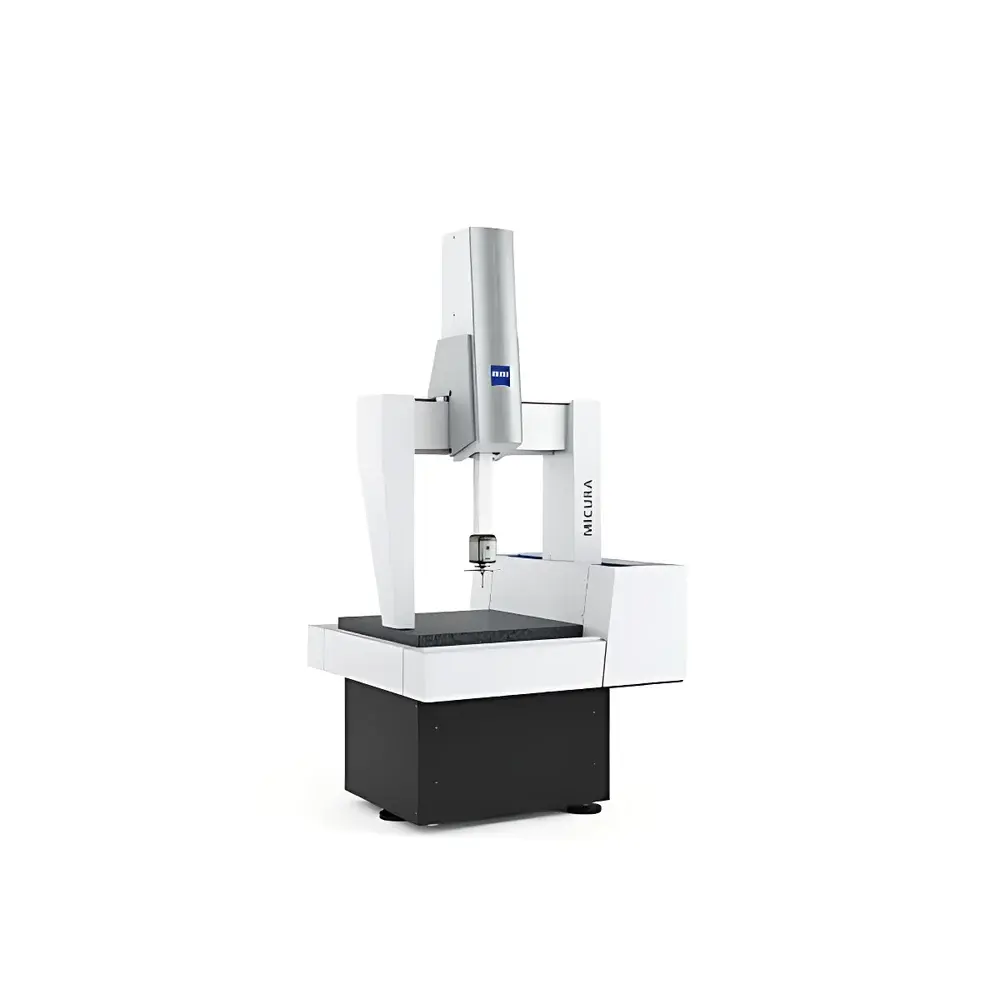

| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | MICURA |
| Configuration | Bridge-type |
| Operation Mode | Manual |
| Orientation | Vertical |
| Measurement Principle | Contact and Non-Contact Hybrid |
| Standard Ambient Temperature Range | 16–26 °C |
| Application Domain | Industrial Metrology |
| Structural Material | Granite Base with Ceramic Air Bearings |
| Probe System | VAST XT gold Scanning Sensor |
| Navigation Technology | VAST navigator |
| Measuring Volume | 500 × 500 × 500 mm |
| Minimum Probe Tip Diameter | 0.3 mm |
| Environmental Compensation | Dynamic Inertial Error Correction, Dual Workpiece Temperature Sensing, Active Force Control |
| Brand | GOM (a ZEISS Company) |
|---|---|
| Country of Origin | Germany |
| Model | ATOS 5 |
| Instrument Type | Blue-Light Structured Light 3D Scanner |
| Measurement Speed | Up to 50% faster than previous generation |
| Single-Capture Time | 0.2 s |
| Maximum Measuring Volume | Up to 1000 mm |
| Data Processing | GPU-accelerated via GOM Inspect Pro software |
| Compliance | Designed for ISO/IEC 17025-compliant metrology labs, supports GLP/GMP traceability workflows, and integrates with FDA 21 CFR Part 11–enabled validation environments |

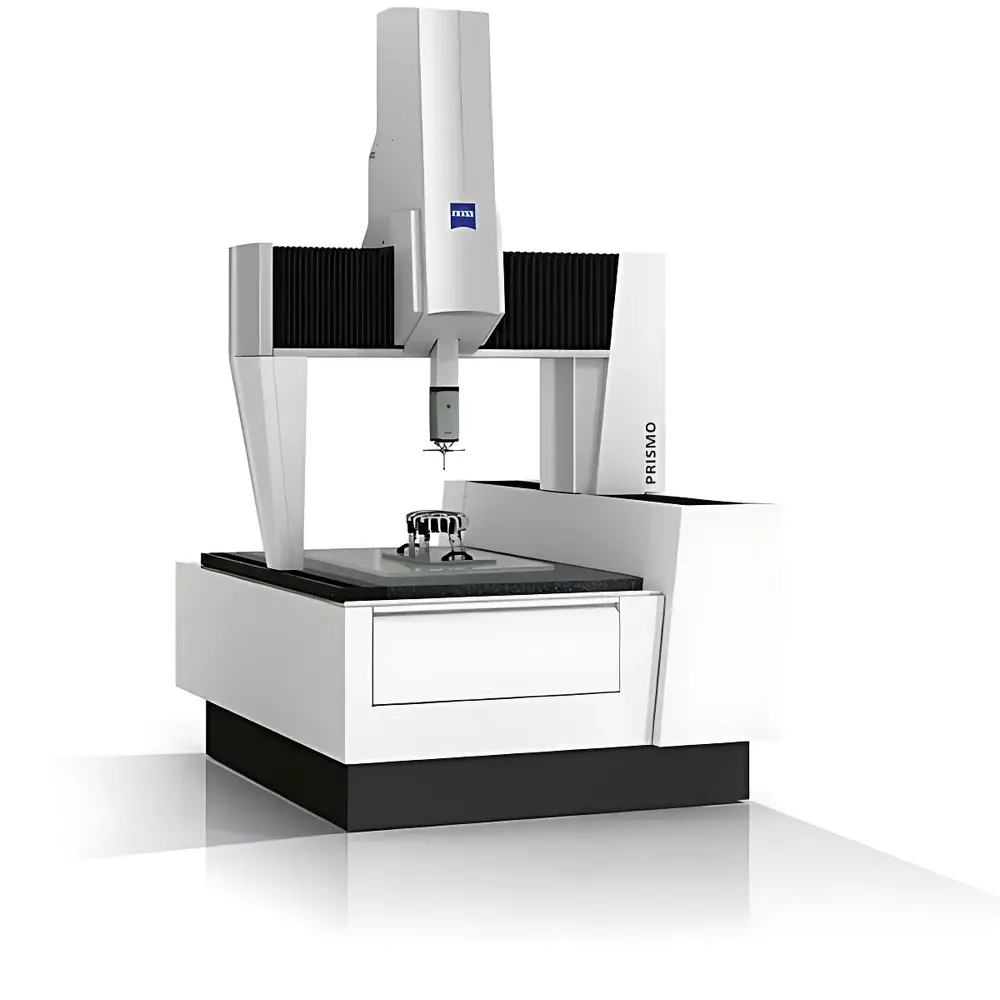

| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | PRISMO Series |
| Configuration | Bridge-type |
| Operation Mode | Automatic |
| Application Class | Shop-floor & Laboratory |
| Measurement Range | 700 × 1000 × 500 mm to 1600 × 4200 × 1000 mm |
| Volumetric Accuracy | (0.5 + L/500) µm |
| Maximum Scanning Speed | 1 m/s |
| Standard Operating Temperature | 18–20 °C |
| Thermal Stability | Glass-ceramic scale encoders |
| Structural Material | Industrial ceramic bridge and Z-axis |
| Bearing System | ZEISS Quadrapod air-bearing guidance on all axes |
| Dynamic Compensation | Computer-Aided Accuracy (CAA) real-time error correction |
| Compliance | ISO 10360, VDI/VDE 2627 Class 3 (for PRISMO verity), GLP/GMP-ready software architecture |
