| Brand | HPG |
|---|---|
| Origin | Guangdong, China |
| Model | IPC-650S |
| Voltage Ranges | 1.0–1000 V DC (configurable in 0.01–1.0 V steps) |
| Resistance Range | 1 × 10⁶ – 1 × 10¹³ Ω |
| Resistance Accuracy | ±5.0% (1×10⁶–1×10¹⁰ Ω, at 5 V), ±10% (1×10¹⁰–1×10¹¹ Ω), ±15% (1×10¹¹–1×10¹² Ω), ±20–30% (1×10¹²–1×10¹³ Ω) |
| Current Monitoring | 0.1 µA – 500 µA, up to 10 readings/sec per channel |
| Test Speed | 3.5 s/channel (256-channel full test ≤ 10 min) |
| Bias Voltage Range | –100 V to +1000 V DC with polarity reversal |
| Environmental Groups | 2–4 independent test chambers (64 channels/group) |
| Compliance | IPC-TM-650 2.5.10, 2.6.11, 2.6.3.7, 2.6.14 |
| Software | GLP-compliant, audit-trail enabled, remote monitoring via web interface and mobile app |
| Dimensions | 1800 × 600 × 1000 mm (H × W × D) |
| Weight | ~280–350 kg |
| Input Power | AC 220 V ±10% |

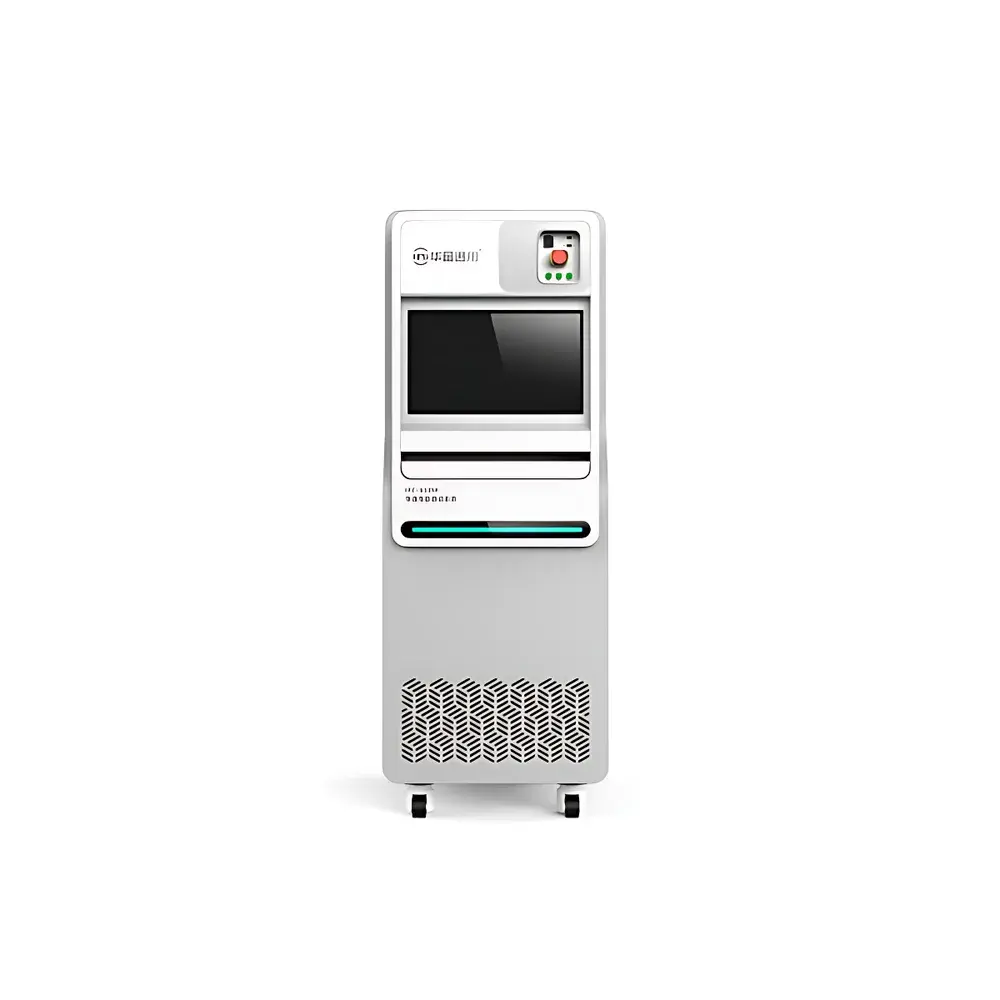

| Brand | HPG |
|---|---|
| Origin | Guangdong, China |
| Model | IPC-650M |
| Channel Capacity | 168 measurement channels |
| Temperature Channels | 10 independent thermocouple inputs |
| Module Support | Up to 8 modular units (resistance + temperature modules) |
| Test Current Range | 1 mA – 5 A (selectable per channel) |
| Measurement Method | Four-wire Kelvin sensing with bidirectional current reversal |
| Compliance | CE certified |
| Data Management | SQL-based database with timestamped audit trail |
| Power Backup | Integrated UPS support |
| Traceability | Calibration traceable to NIST-equivalent national standards |
| Regulatory Context | Designed for GLP/GMP-aligned production validation and reliability testing |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Detector Type | Scintillator-based Detector |
| Scan Mode | Translation-Rotation (TR) |
| Spatial Resolution | 0.5 µm |
| Minimum Voxel Size | 40 nm |
| Sample Dimensions (X/Y/Z) | 50 mm × 50 mm × 100 mm |
| Maximum Sample Weight | 25 kg |
| Dual Magnification Architecture | Optical + Geometric |
| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model Series | BOSELLO |
| Detector Type | High-Resolution CMOS Semiconductor Sensor |
| Scan Mode | Translation-Rotation (TR) |
| Accuracy | Nanometer-Level |
| Key | Brand: Rigaku |
|---|---|
| Origin | Japan |
| Model | DSC8231 |
| Temperature Range (Standard) | RT to 1100 °C |
| Temperature Range (High-Temp Option) | RT to 1500 °C |
| Sample Observation Range | Ambient to 1000 °C |
| Furnace Configuration | Horizontal dual-compartment |
| Balance Type | Horizontal differential triple-coil balance |
| Control Modes | Stepwise Isothermal Analysis (SIA), Constant Rate Control (CRC), Sample-Controlled TG (SCTG) |
| Dimensions (Core Unit) | 350 × 310 × 669 mm (W × H × D) |
| Weight (Core Unit) | 28 kg |
| Power Supply | 1Ø, AC 100–120 V / 200–240 V, 50/60 Hz, 15 A |

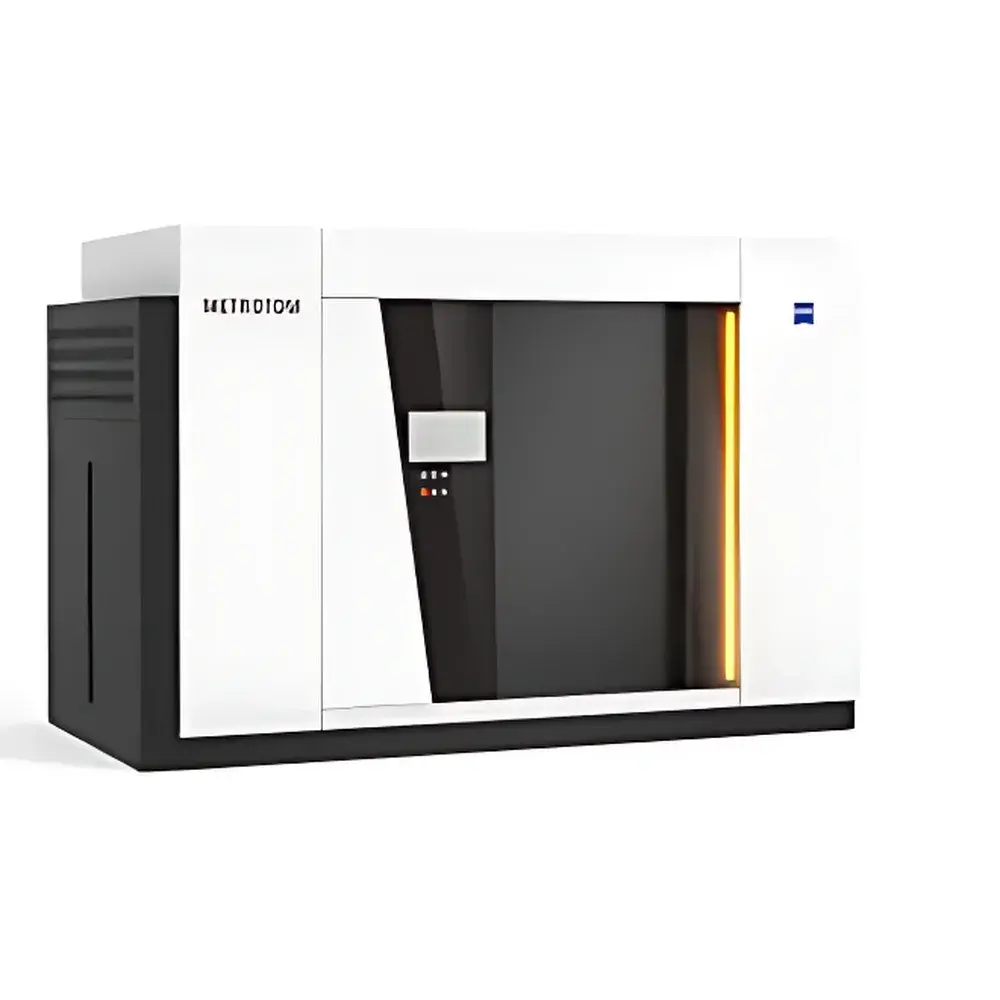

| Brand | ZEISS |
|---|---|
| Origin | Germany |
| Model | METROTOM 1500 |
| Detector Type | Flat-Panel Detector |
| Scanning Mode | Translation-Rotation (TR) |
| Accuracy | Micron-Level |
| Maximum Penetration | Up to 50 mm Steel Equivalent |
| Spatial Resolution | 4 µm |
| Measurement Volume | Ø770 mm × H1350 mm |
| Dimensional Measurement Uncertainty | (4.5 + L/50) µm |
| Sample Weight Capacity | 50 kg |
| System Dimensions (W×L×H) | 1810 × 3700 × 2440 mm |
