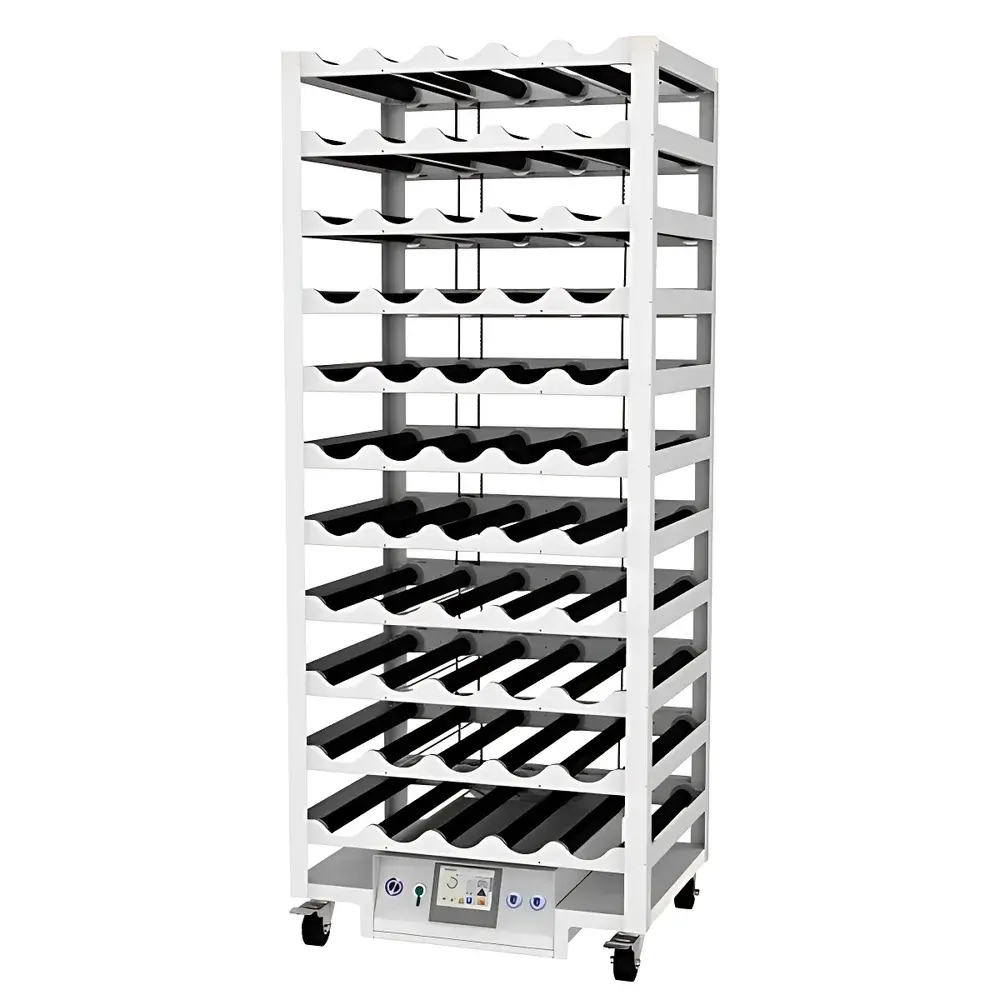

| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Celrol Pro / Celrol Elite |
| Drive Type | Brushless DC Motor |
| Control System | Siemens PLC with Touchscreen HMI |
| Capacity | 5–55 or 8–88 roller bottles (550 mm length) |
| Bottle Dimensions | Ø108–121 mm × 550 mm |
| Speed Range | 0.08–2.5 rpm |
| Speed Resolution | 0.01 rpm |
| Rotation Direction | Reversible (CW/CCW) |
| Drive Mechanism | Reinforced Polyurethane Belt |
| Construction | Full Stainless Steel (AISI 304) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 10–40 °C |
| Humidity Limit | ≤80% RH at 31 °C |
| Communication Interfaces | RS-232 (Pro), RS-422/RS-485 Modbus RTU, Modbus TCP, TCP/IP (Elite) |
| Optional Accessories | Backup Battery, Temperature Monitoring Module, Thermal Printer, Alarm Signal Output |
| Compliance | Designed to support GMP-aligned cell culture workflows, compatible with ISO 13485–certified environments and GLP documentation requirements |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Celrol Elite (GMP Version) |
| Rotation Speed Range | 0.08–2.5 rpm (for 110 mm diameter bottles) |
| Speed Accuracy | ±0.01 rpm |
| Bottle Capacity | 8–88 positions (configurable in 5- or 8-bottle layers) |
| Bottle Dimensions | Ø108–121 mm × up to 550 mm length |
| Drive System | Brushless DC motor with synchronous polyurethane timing belt |
| Control Interface | Siemens PLC-based touchscreen HMI |
| Communication Protocols | RS-422 Modbus RTU, RS-485 Modbus RTU, Modbus TCP/IP, TCP/IP |
| Compliance | Fully stainless steel construction compliant with GMP design principles for pharmaceutical bioprocessing |
| Operating Temperature Range | 10–40 °C |
| Humidity Tolerance | Up to 80% RH at 31 °C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Certifications | Designed to support GLP/GMP audit readiness, compatible with 21 CFR Part 11-compliant data management workflows when integrated with validated SCADA systems |

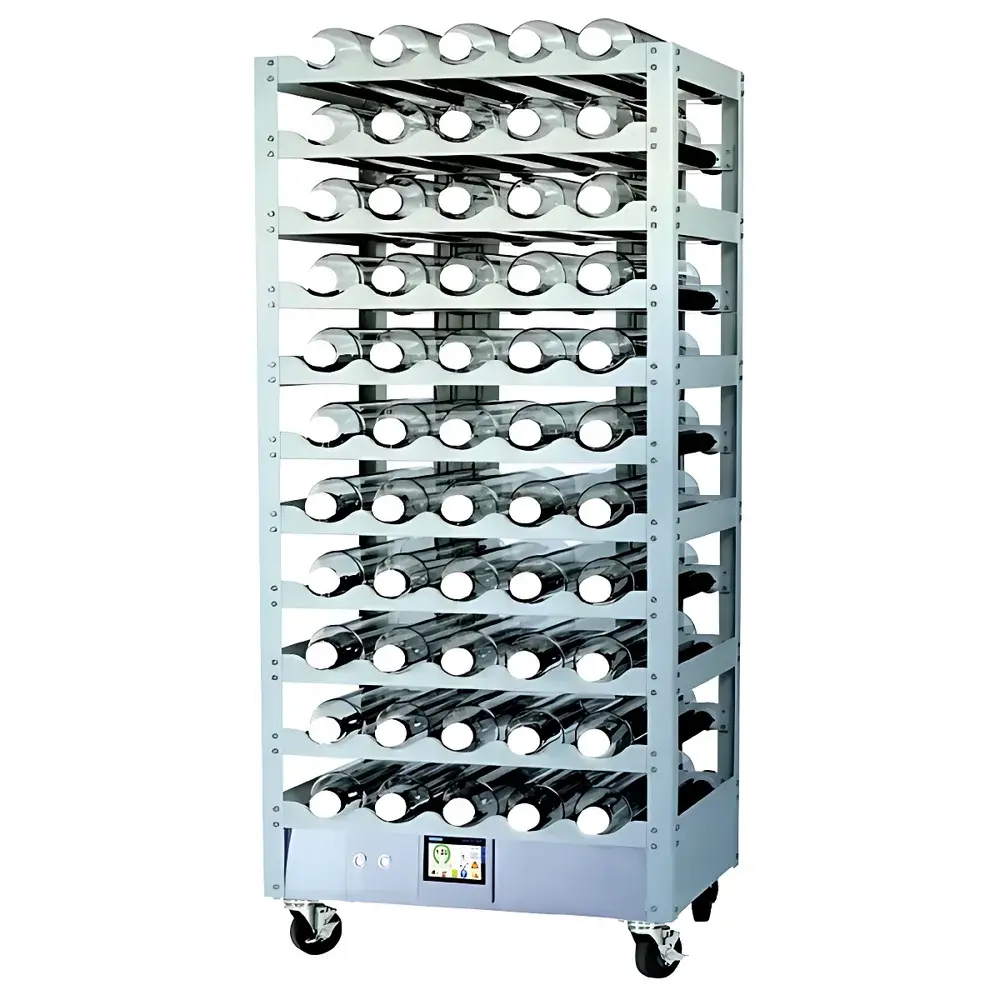

| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Celrol Elite |
| Capacity | 8–88 roller bottle positions |
| Roller Bottle Dimensions | Ø108–121 mm × ≤550 mm |
| Speed Range | 0.08–2.5 rpm (for Ø110 mm bottles) |
| Speed Resolution & Accuracy | 0.01 rpm |
| Drive Type | Belt-driven, brushless DC motor |
| Rotation Direction | Reversible (CW/CCW) |
| Control System | Siemens PLC with touchscreen HMI |
| Communication Interfaces | RS-422 Modbus RTU, RS-485 Modbus RTU, Modbus TCP, TCP/IP |
| Environmental Operating Range | 10–40 °C, ≤80% RH at 31 °C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Construction | Fully stainless steel (AISI 316L-grade contact surfaces), GMP-compliant design |
| Compliance | Designed to support ISO 13485, FDA 21 CFR Part 11 (with optional audit trail software), and EU GMP Annex 11 requirements for automated cell culture equipment |
| Optional Accessories | UPS-backed real-time clock module, integrated temperature monitoring sensor, thermal printer interface, SCADA integration kit |

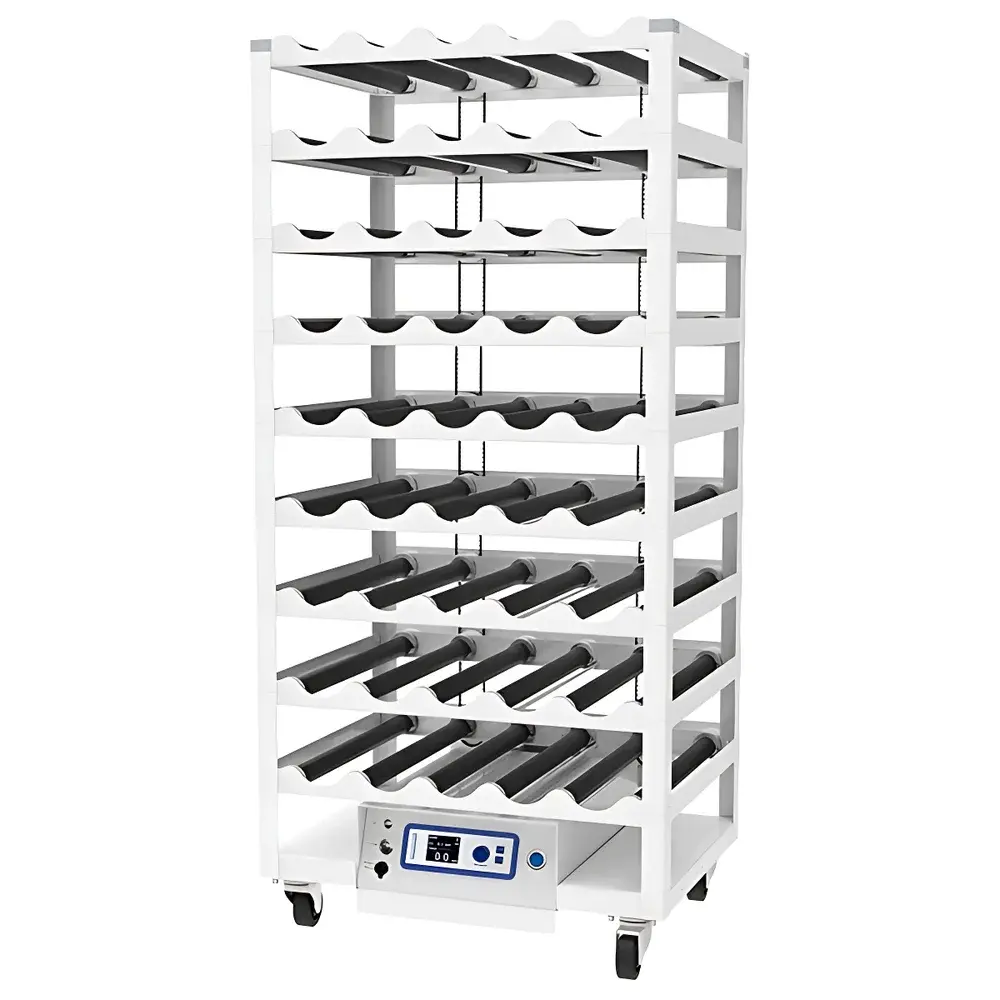

| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Celrol Pro |
| Capacity | 5–55 roller bottle positions per unit |
| Roller Speed Range (for 110 mm diameter bottles) | 0.08–2.5 rpm |
| Speed Accuracy | ±0.01 rpm |
| Bottle Diameter Compatibility | 108–121 mm |
| Max. Bottle Length | ≤550 mm |
| Drive System | Belt-driven, brushless DC motor |
| Rotation Direction | Selectable clockwise or counterclockwise |
| Display | High-contrast LCD |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature Range | 10–40 °C |
| Humidity Limit | ≤80% RH at 31 °C |
| Communication Interface | RS232 |
| Optional Accessories | Backup battery module, thermal printer |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Thomson |
| Max Fill Volume | Up to 60% of Total Bottle Capacity |
| Compliance | ISO 13485–Certified Manufacturing Environment, Suitable for GLP/GMP-Traceable Processes |

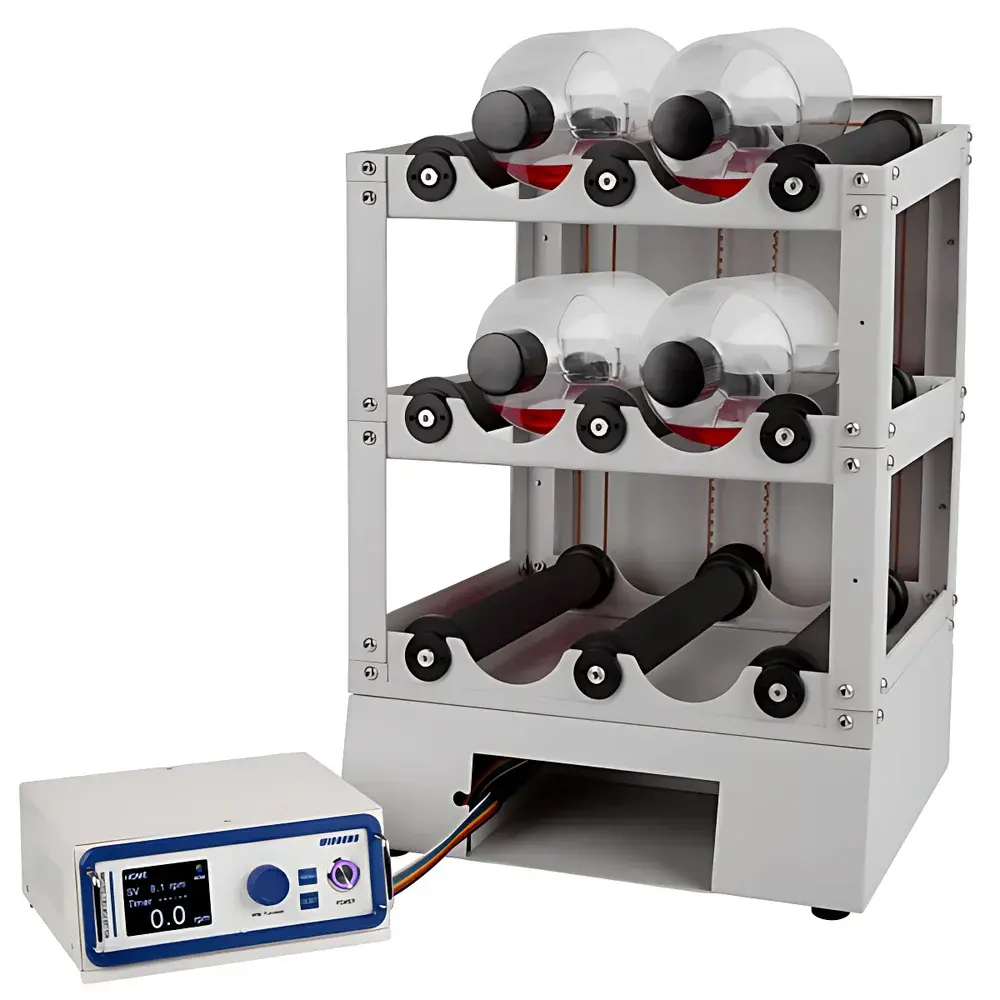

| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Celrol Mid |
| Rotation Speed Range | 0.2–8.1 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | ±1 rpm |
| Timing Mode | Continuous or up to 99 h 59 min (±1% accuracy) |
| Control System | Digital microprocessor-based PID control |
| Display | LED screen |
| Drive Motor | Maintenance-free brushless DC motor |
| Transmission | Reinforced polyurethane timing belt |
| Sample Capacity | 6 × 2000 mL roller bottles (Ø110–120 mm) |
| Dimensions (unit only) | 362 W × 299 D × 412 H mm |
| Overall Dimensions (with rollers installed) | 375 W × 370 D × 545 H mm |
| Power Supply | AC 100–240 V, 50/60 Hz, 10 W |
| Weight | 13.5 kg |
| Enclosure | Powder-coated aluminum housing |
| Footing | Anti-slip rubber base |
| Compliance | Designed for ISO 13485-aligned lab environments |
