| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | LIMITROL |
| Control Principle | Independent Overtemperature Safety Cut-off |
| Power Input | 5 A @ 240 V AC (max. 2,400 W load) |
| Temperature Range | 0–750 °C |
| Sensor Input | J-type thermocouple (6" immersion probe included) |
| Setpoint Accuracy | ±3% of full scale |
| Power Consumption | 4 W (controller only) |
| Dimensions | 203 mm (W) × 152 mm (D) × 86 mm (H) |
| Weight | 1.4 kg |
| Reset | Manual (fail-safe latching) |
| Compliance | CE-marked, RoHS-compliant, designed for integration into Class I electrical installations |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | SLK1-T |
| Heating Power | 1.8 kW (220 V) / 1.5 kW (110 V) |
| Max. Heating Plate Temperature | 550 °C |
| Temperature Uniformity | ±1 °C |
| Plate Dimensions | 280 × 280 mm |
| Heating Zone Diameter | 90 mm |
| Display | LCD |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |

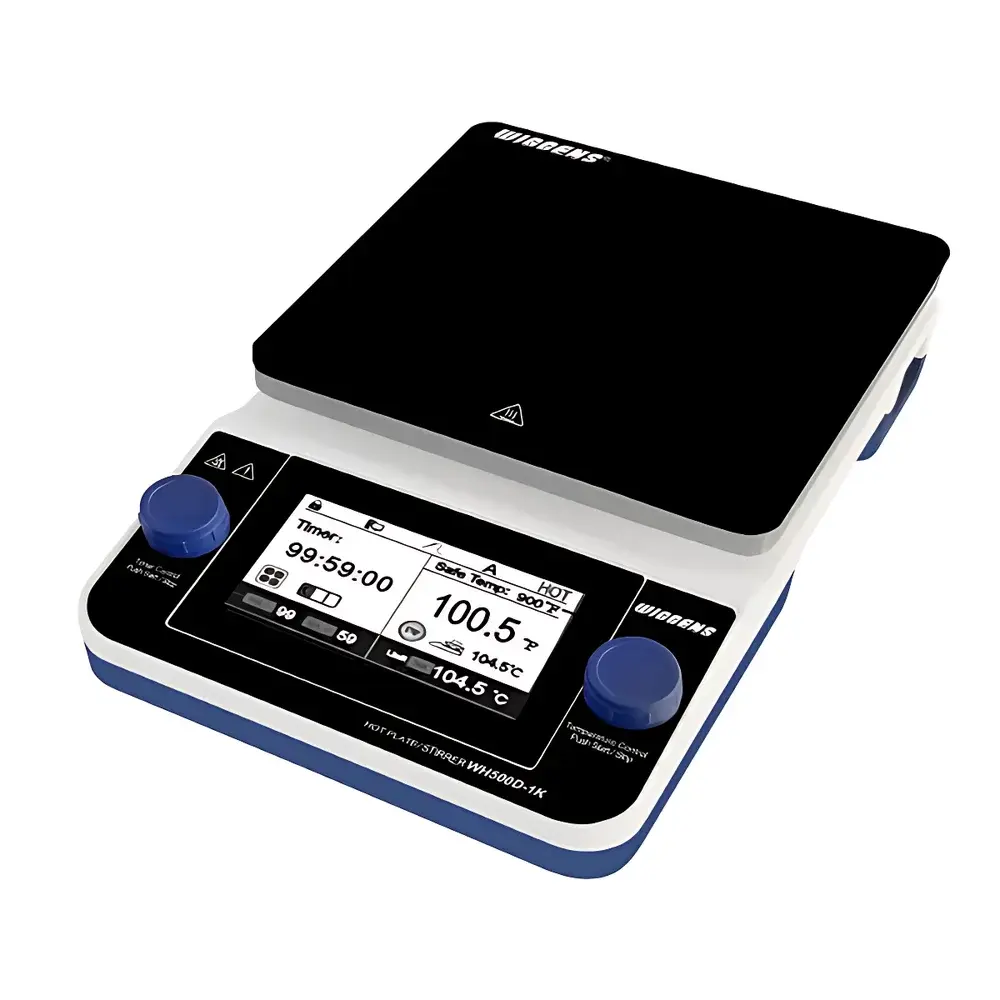

| Model | WH500D-1K |
| Heating Power | 1000 W |
| Max. Surface Temperature | 450 °C |
| Temperature Uniformity | ±1 °C |
| Heating Area | 180 × 180 mm |
| Plate Dimensions (W × D × H) | 187 × 315 × 95 mm |
| Weight | 2.5 kg |
| External Temperature Sensor Support | Pt100 |
| Temperature Control Stability (with Pt100) | ±1 °C |
| Safety Cut-off Temperature | 500 °C |
| Over-Temperature Protection Offset (ΔT) | 2–50 °C |
| Timer Range | 00:01:00 to 99:59:00 or Continuous |
| Communication Interface | RS232/RS485 |
| Heating Technology | Nanocoated Glass-Ceramic Surface |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | SLK2-T |
| Heating Power | 1800 W |
| Max. Surface Temperature | 550 °C |
| Temperature Uniformity | ±1 °C |
| Plate Dimensions | 285 × 285 mm |
| Heating Zone Diameter | Ø190 mm |
| Display | TFT LCD |
| External Temperature Sensor Support | Pt100 probe compatible |
| Safety Overtemperature Range | Adjustable 50–600 °C |
| Liquid Overheat Protection Threshold | Adjustable 10–50 °C |
| Timer Range | 0–1999 min or continuous |
| Interface | RS232/RS485 |
| Weight | 4.1 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH500D-2K |
| Heating Power | 2000 W |
| Max. Surface Temperature | 0–450 °C |
| Temperature Uniformity | ±1 °C |
| Plate Dimensions | 280 × 287 mm (U-shaped) |
| Control Stability (with Pt100) | ±1 °C |
| External Temperature Sensor | Pt100 compatible |
| Safety Cut-off Temp. | 500 °C |
| Over-Temp Offset ΔT | 2–50 °C |
| Timer Range | 00:01:00 to 99:59:00 or continuous |
| Interface | RS232/RS485 |
| Plate Material | Glass-Ceramic with Nanometal Coating |
| Weight | 7.5 kg |
| Dimensions (W×D×H) | 286 × 430 × 70 mm |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH200D-3K |
| Heating Power | 1000 W |
| Max. Heating Temperature | 300 °C |
| Temperature Uniformity | ±2 °C |
| Plate Dimensions | 320 × 320 mm |
| Heating Zone Dimensions | 320 × 320 mm |
| Display | White LED |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH500D-3K |
| Heating Power | 2500 W |
| Max. Surface Temperature | 0–450 °C |
| Temperature Uniformity | ±1 °C |
| Plate Dimensions | 400 × 300 mm |
| Plate Material | Glass-Ceramic |
| External Temperature Sensor Support | Pt100 |
| Control Stability (with Pt100) | ±1 °C |
| Safety Cut-off Temperature | 500 °C |
| Over-Temperature Protection Offset (ΔT) | 2–50 °C |
| Timer Range | 00:01:00 to 99:59:00 or Continuous |
| Communication Interface | RS232/RS485 |
| Housing | Sealed Corrosion-Resistant Enclosure |
| Weight | 11 kg |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | RX350 |
| Heating Power | 300 W per position |
| Max. Temperature | 650 °C |
| Display | LED digital display (0.1 °C resolution) |
| Configuration | 3-position, flat-bottom flask compatible |
| Heating Element | Interchangeable mantle modules (RX50024E / RJ50024E) |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments, supports GLP documentation workflows |
