| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WB3000-C / WB1800-C |
| Maximum Stirring Volume | 100 L |
| Speed Range | 20–3000 rpm |
| Torque | ≤1320 N·cm (WB1800-C), ≤330 N·cm (WB3000-C) |
| Continuous Rated Torque | 188 N·cm (WB1800-C), 47 N·cm (WB3000-C) |
| Viscosity Range | ≤150,000 cP (WB1800-C), ≤100,000 cP (WB3000-C) |
| Control Accuracy | ±1 rpm |
| Motor Type | Brushless DC |
| Input/Output Power | 150 W |
| Motor Dimensions (W×D×H) | 65×65×216 mm (WB1800-C), 65×65×157 mm (WB3000-C) |
| Motor Weight | 2.3 kg (WB1800-C), 1.8 kg (WB3000-C) |
| Interface | USB 2.0, 0–10 V analog input/output, 0–20 mA analog input, footswitch port |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WOHS-15 Pro |
| Stirrer Type | Electric Overhead Stirrer |
| Max. Mixing Volume | 50 L (H₂O) |
| Speed Range | 40–2000 rpm |
| Speed Resolution | ≥1 rpm |
| Speed Accuracy | ≤±3% (at n > 300 rpm) |
| Torque Limit | ≤29 N·cm |
| Viscosity Range | ≤20,000 mPa·s |
| Temperature Measurement Range | −10 to 350 °C |
| Temp. Resolution | 0.1 °C |
| Motor Type | Brushless DC Motor |
| Chuck Type | Self-locking, tool-free collet |
| Shaft Clamp Diameter | 0.5–10 mm |
| Hollow Shaft Inner Diameter | 10.2 mm |
| Power Input/Output | 100–240 VAC, 50/60 Hz / 100 W / 60 W |
| IP Rating | IP42 |
| Dimensions (W×D×H, w/o support rod) | 65 × 175 × 215 mm |
| Support Rod | 13 × 150 mm |
| Display | High-brightness TFT LCD |
| Operating Indicators | Standby (blue), Running (green), Alarm (red) |
| Timer Range | 0–99 h 59 min 59 sec |
| Direction Control | Clockwise & Counterclockwise |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH280-R |
| Maximum Stirring Volume | 20 L |
| Speed Range | 100–1500 rpm |
| Heating Temperature Range | 0–450 °C |
| Plate Material | Enamel-Coated Glass |
| Plate Diameter | Ø135 mm |
| Heating Power | 800 W |
| Temperature Stability (with Pt100) | ±1 °C |
| Over-Temperature Protection Range | 50–500 °C (adjustable) |
| Solution Over-Temp Offset | 10–50 °C (adjustable) |
| External Temperature Sensors | Pt100 probe + optional thermocouple |
| Interface | RS-232 & RS-485 |
| Timer Range | 00:01:00 to 99:59:00 or continuous |
| Dimensions (W×D×H) | 187 × 315 × 79 mm |
| Weight | 2.4 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH395 |
| Maximum Stirring Volume | 30 L |
| Speed Range | 100–1500 rpm |
| Heating Plate Temperature | ≤450 °C |
| Sample Setpoint Temperature (with Pt100) | ≤300 °C |
| Adjustable Over-Temperature Protection | 50–600 °C |
| Solution Over-Temp Cut-off | 10–50 °C |
| Temperature Stability (with Pt100) | ±1 °C |
| Heating Power | 1800 W |
| Display | TFT touchscreen |
| Interface | RS232 / RS485 |
| Plate Material | Enamelled Glass |
| Plate Dimensions | 280 × 280 mm |
| Heating Zone Diameter | Ø190 mm |
| Dimensions (W×D×H) | 290 × 450 × 120 mm |
| Weight | 4.1 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | MIXdrive 1 XS / cuvetteMIXdrive 1 |
| Stirring Capacity | 1 L per unit (standard) / 1–25 mL (cuvette version) |
| Operating Temperature Range | −10 to +50 °C (100% humidity) |
| Power | 10 W |
| Voltage | 48 V DC |
| Dimensions | 48 × 48 × 18 mm (MIXdrive 1 XS) / 12.5 × 12.5 × 6 mm (cuvetteMIXdrive 1) |
| Enclosure Rating | IP68 |
| Weight | 0.25 kg (MIXdrive 1 XS) / 0.1 kg (cuvette version) |
| Housing Material | Stainless steel + polyurethane (PUR) |
| Ordering Code | 4030040 (standard), 40303 (HT high-temp variant) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |

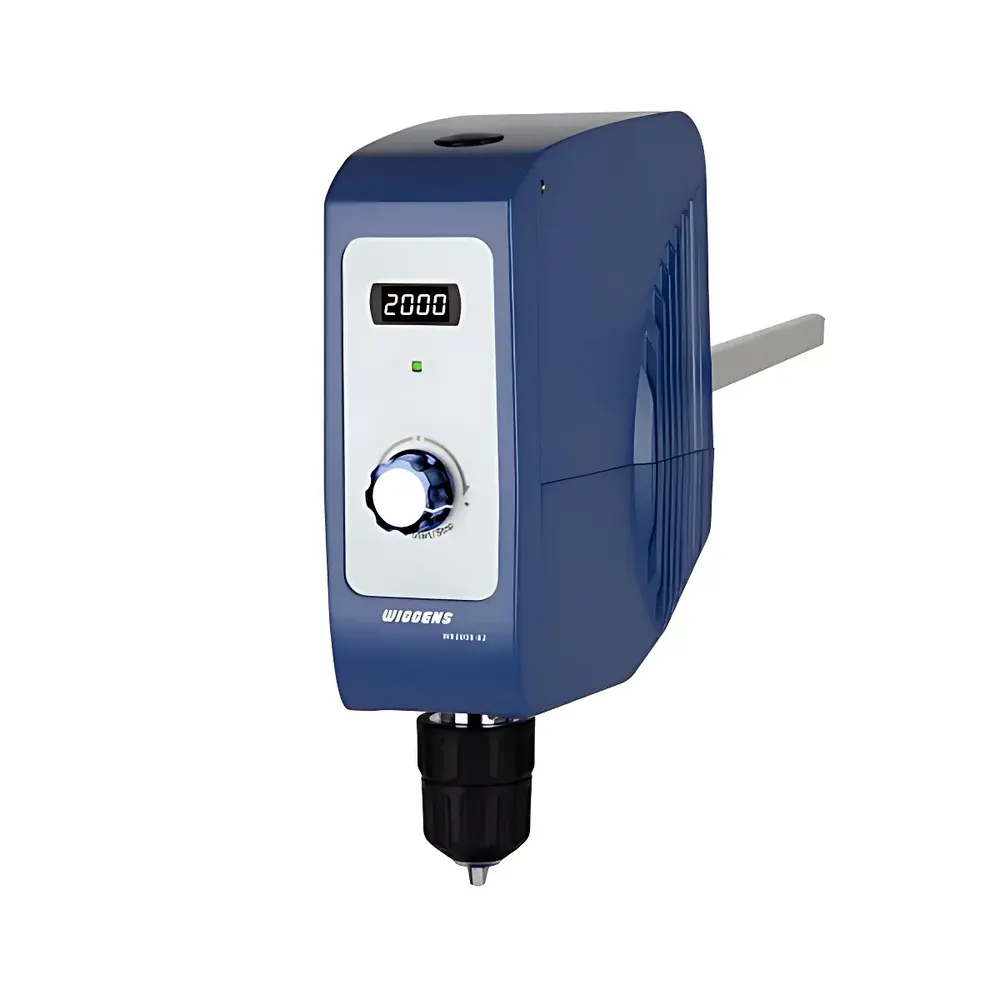

| Model | WB2000-B2 |
| Stirrer Type | Overhead Stirrer |
| Max. Mixing Volume | 100 L |
| Speed Range | 40–2000 rpm |
| Torque | ≤140 N·cm |
| Viscosity Range | ≤100,000 mPa·s |
| Motor Type | Brushless DC Motor |
| Display | LED, Resolution 1 rpm |
| Speed Accuracy | ≤±3% (n > 300 rpm) |
| Power Input/Output | 200 W / 160 W |
| Dimensions (W×D×H, excl. support rod) | 100 × 241 × 295 mm |
| Weight (main unit + power supply) | 6.3 kg |
| Protection Class | IP42 |
| Communication Interface | RS485 |
| Shaft Clamp Range | 0.5–10 mm |
| Hollow Shaft Inner Diameter | 10.2 mm |
| Operating Temperature Resolution | 0.1 °C |
| Status Indicators | Standby (blue), Running (green), Alarm (red) |
| Optional Features | Screen Lock Function |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH620R-L |
| Heating Plate Set Temperature | ≤450 °C |
| Sample Temperature Control Range (with Pt100) | ≤300 °C |
| Safety Overtemperature Limit | Adjustable 50–500 °C |
| ΔT Overtemperature Protection Offset | Adjustable 10–50 °C |
| Temperature Stability (with Pt100) | ±1 °C |
| Heating Power per Position | 500 W |
| Total Heating Power | 3000 W |
| Stirring Speed Range | 100–1500 rpm |
| Max. Stirring Volume (H₂O) | ≤20 L |
| Timer Range | 1–999 min or Continuous |
| Display & Control | Individual LCD per position + Rotary Knob |
| External Temperature Sensor | Pt100 compatible |
| Panel Material | Enamel-coated glass |
| Plate Diameter | Ø135 mm |
| Center-to-Center Spacing Between Positions | 187 mm |
| Dimensions (W×D×H, w/o sensor holder) | 1180×309×113 mm |
| Weight | 23.5 kg |
| Power Supply | 220 V / 50 Hz |
| Communication Interface | USB-A |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH1200-C |
| Stirrer Type | Magnetic Stirrer |
| Max. Stirring Volume | 3 L |
| Speed Range | 150–1200 rpm |
| Operating Temperature | 14–40 °C |
| Relative Humidity Limit | ≤95% at 37 °C |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Rated Power | 15 W |
| Dimensions (W×D×H, without controller) | 20.3 × 24.9 × 9.2 cm (1-position) / 44.5 × 39.4 × 10.2 cm (4-position) |
| Weight | 1.9 kg (1-position) / 4.5 kg (4-position) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH260-NH |
| Maximum Stirring Volume | 20 L |
| Speed Range | 100–1500 rpm |
| Temperature Control Range | 0–450 °C |
| Heating Plate Max Temp | ≤450 °C |
| Sample Temp Control (with Pt100) | ≤300 °C |
| Safety Cut-off Temp Range | 50–500 °C (adjustable) |
| Over-Temp ΔT Protection | 10–50 °C (adjustable) |
| Temperature Stability (with Pt100) | ±1 °C |
| Heating Power | 1000 W |
| Display | LCD |
| Control Interface | Rotary Knob + Keypad |
| Timer | 1–1999 min or Continuous |
| Plate Material | Enamel-Coated Glass |
| Plate Dimensions | 180 × 180 mm |
| USB-A Port | Yes |
| Dimensions (W×D×H) | 187 × 315 × 84 mm |
| Weight | 3.0 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | SD15-250 |
| Instrument Type | Magnetic Stirrer |
| Max. Stirring Positions | 15 |
| Volume per Position | 1–400 mL |
| Speed Range | 100–2000 rpm |
| Heating Max. Temp. | +200 °C |
| Power Setting | 4-level (25/50/75/100%) |
| Stirring Power | 40 W |
| Heating Power | 1000 W |
| Protection Class | IP20 |
| Ambient Operating Range | −10 to +40 °C (≤80% RH) |
| Dimensions (W×D×H) | 345 × 525 × 140 mm |
| Weight | ~31 kg |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | atexMIXcontrol / atexMIXcontrol cleanroom |
| Stirrer Type | Electromagnetic Induction Magnetic Stirrer |
| Max. Stirring Volume | 4 L |
| Speed Range | 100–2000 rpm |
| Temperature Control Range | 0–40 °C |
| Power Output Steps | 25/50/75/100% (4-step) |
| Input Power | 100–240 V, 50–60 Hz, 1.5 A |
| Enclosure Material | Anodized Aluminum / Plastic (atexMIXcontrol), Aluminum (atexMIXcontrol cleanroom) |
| Dimensions (W×D×H) | 360 × 460 × 200 mm / 210 × 55 × 30 mm |
| Weight | ~15 kg / 3.6 kg |
| IP Rating | IP65 |
| ATEX Certification | II 2G EEx de IIC T6 (99200) / II 3G Ex nAC IIC T6 (99300) |
| Cert. No. | KEMA 03 ATEX 2045 / EPS 10 ATEX 1246 X |
| Operating Environment | 0–40 °C, ≤80% RH |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WOHS-200 Pro |
| Maximum Stirring Volume | 100 L |
| Speed Range | 20–6000 rpm |
| Temperature Measurement Range | −10 to 350 °C |
| Motor Type | Brushless DC Motor |
| Power Input | 100–240 VAC, 50/60 Hz |
| Torque Output | up to 339 N·cm (low-speed range), 68 N·cm (high-speed range) |
| Speed Control Accuracy | ±3% at n > 300 rpm |
| Step Resolution | ≤1 rpm |
| Display | TFT touchscreen |
| Interface | Touch keys + rotary encoder |
| Timer Range | 0–99 h 59 min 59 sec |
| Shaft Clamp | Self-locking quick-fit chuck (0.5–10 mm), hollow shaft ID 10.2 mm |
| Safety Certification | CE-compliant, double-insulated power supply architecture |
| Compliance | Designed for GLP/GMP-aligned laboratory workflows |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH-410D |
| Stirring Positions | 4 |
| Max. Stirring Volume per Position | 2000 mL |
| Speed Range | 100–1500 rpm |
| Display | LED |
| Control | Microprocessor-based viscosity-compensated speed regulation |
| Drive | Brushless DC motor |
| Work Surface | Powder-coated stainless steel |
| PTFE Mat Compatibility | Yes (optional, part no. 400215-PTFE) |
| Compliance | CE, RoHS, IEC 61010-1 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH395 |
| Stirring Volume (H₂O) | 30 L |
| Speed Range | 100–1500 rpm |
| Max. Heating Plate Temp. | 550 °C |
| Sample Temp. Control (with Pt100) | up to 300 °C |
| Safety Over-Temp Range | 50–600 °C adjustable |
| ΔT Over-Temp Offset | 10–50 °C adjustable |
| Temp. Stability (with Pt100) | ±1 °C |
| Heating Power | 1800 W |
| Plate Material | Enamel-Glass Coated Ceramic |
| Plate Dimensions | 280 × 280 mm |
| Heating Zone Diameter | 190 mm |
| Interface | RS232/RS485 |
| Display | TFT Screen |
| Timer Range | 00:01:00 to 99:59:00 or continuous |
| Weight | 4.1 kg |
| Power Supply | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | LUMIX |
| Stirrer Type | Magnetic Stirrer |
| Max. Stirring Volume | 3000 mL |
| Speed Range | 100–2000 rpm |
| Temperature Operating Range | −10 to +50 °C |
| Power Output (max.) | 20 W |
| Illumination | White LED, 4-step intensity control, zero thermal emission |
| Display | LED digital display for speed, illumination level, and power setting |
| Drive System | Contactless inductive magnetic drive (MAG technology) |
| Housing Material | 316L stainless steel |
| Dimensions (W × D × H) | 188 × 238 × 44 mm |
| Weight | 3.6 kg |
| IP Rating | IP64 |
| Humidity Limit | ≤80% RH |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WHMAX / WHMAXFAB |
| Stirring Capacity | 0.25–1.0 L |
| Speed Range | 100–1200 rpm (WHMAX), 80–990 rpm (WHMAXFAB) |
| Drive Power | 40 W (WHMAX), 100 W (WHMAXFAB) |
| Soft-Start Duration | 10–60 s (adjustable) |
| MAXdrive Coupling Distance | 60 mm |
| FABdrive Coupling Distance | 150 mm |
| Enclosure Rating | IP68 (drive unit), IP20 (controller) |
| Operating Temperature | −10 to +50 °C (100% RH) / 0 to +40 °C (80% RH) |
| Power Supply | 48 V DC (drive), 240 V AC, 50 Hz, 1.5 A (controller) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |

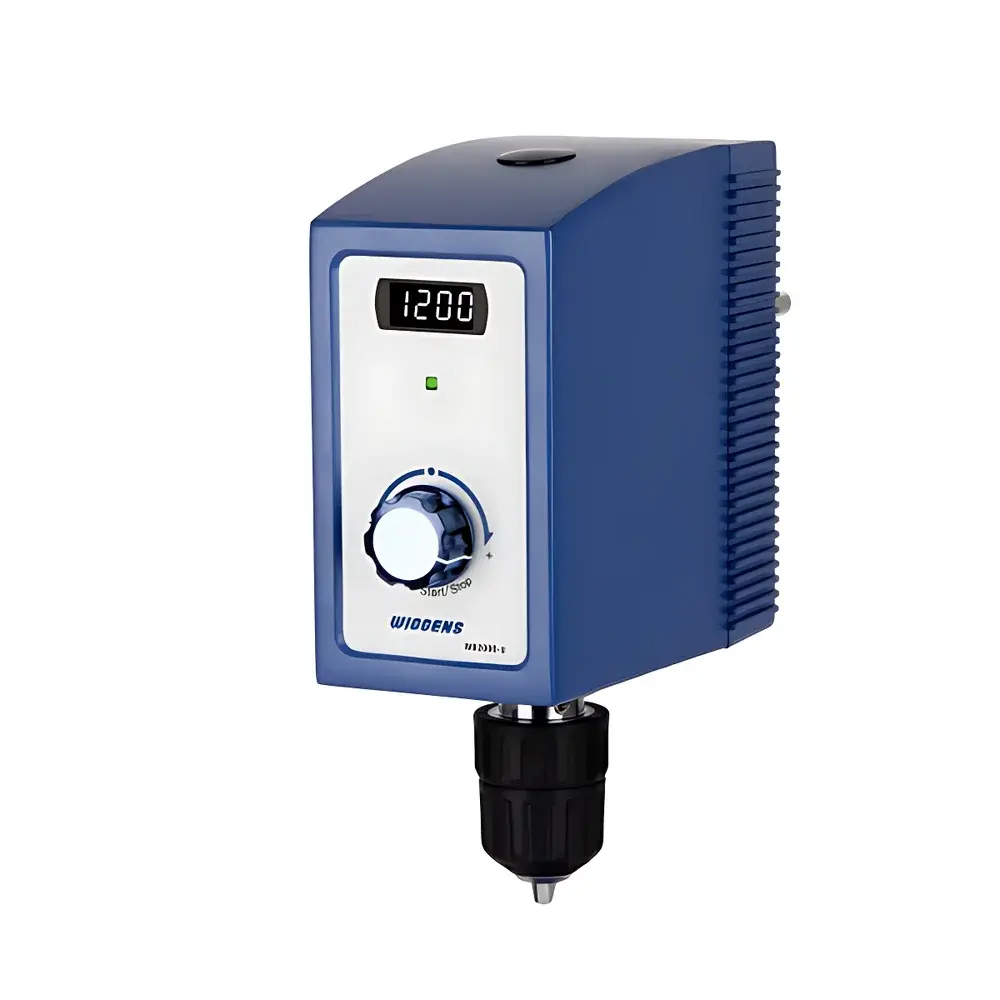

| Model | WB2000-U |
| Stirrer Type | Overhead Stirrer |
| Max. Mixing Volume | ≤50 L |
| Speed Range | 40–2000 rpm |
| Display Resolution | 1 rpm |
| Speed Accuracy (n > 300 rpm) | ≤±3% |
| Max. Viscosity | ≤50,000 mPa·s |
| Torque | ≤70 N·cm |
| Motor Type | Brushless DC Motor |
| Shaft Clamping Range | 0.5–10 mm |
| Hollow Shaft Inner Diameter | 10.2 mm |
| Communication Interface | RS485 |
| Power Input/Output | 100–240 VAC, 50/60 Hz / 100 W / 70 W |
| Dimensions (W×D×H, excl. support rod) | 101×191×251 mm |
| Weight (main unit + power supply) | 3.5 kg |
| IP Rating | IP42 |
| Operating Temperature Resolution | 0.1 °C |
| Status Indicators | Standby (blue), Running (green), Alarm (red) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WOHS-60 Pro |
| Stirrer Type | Overhead Stirrer |
| Max. Mixing Volume (H₂O) | ≤100 L |
| Speed Range | 30–2000 rpm |
| Speed Resolution | ≥1 rpm |
| Speed Accuracy (n > 300 rpm) | ≤±3% |
| Temperature Measurement Range | −10 to 350 °C |
| Temp. Resolution | 0.1 °C |
| Max. Viscosity Handling | ≤85,000 mPa·s |
| Max. Torque | ≤130 N·cm |
| Motor Type | Brushless DC |
| Input Power | 220 W / Output Power: 145 W |
| Clamp Shaft Diameter | 0.5–10 mm |
| Hollow Shaft Inner Diameter | 10.2 mm |
| Dimensions (W×D×H, excl. support rod) | 100×241×295 mm |
| Support Rod | 16×220 mm |
| Protection Rating | IP42 |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH-210R |
| Maximum Stirring Volume | 20 L |
| Speed Range | 100–1200 rpm |
| Display | 4-digit LED |
| Stirring Power | 10 W |
| Stirring Plate Dimensions (W×L) | 145 × 180 mm |
| Overall Dimensions (W×L×H) | 225 × 215 × 115 mm |
| Ordering Code | 400200A |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |

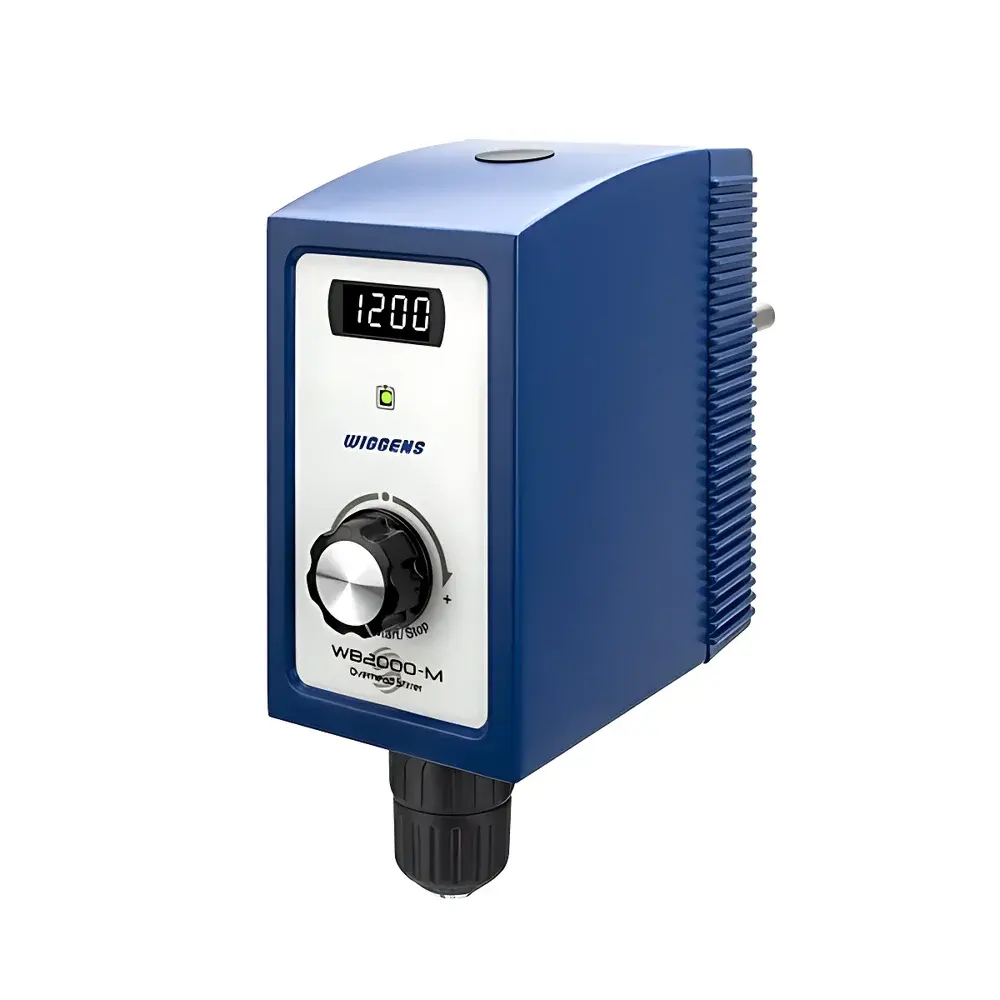

| Model | WB2000-M |
| Max. Stirring Volume | 50 L |
| Speed Range | 40–2000 rpm |
| Speed Accuracy | ±1 rpm |
| Torque | ≤70 N·cm |
| Viscosity Range | ≤20,000 cP |
| Clamp Capacity | 0.5–10 mm |
| Motor Type | Brushless DC |
| Power Input/Output | 70 / 50 W |
| Dimensions (W×D×H) | 105 × 160 × 185 mm |
| Display | LED Digital |
| Control | Rotary Knob with Digital Feedback |
| Reversibility | Yes |
| Starting Speed | 20 rpm |
| Housing | Corrosion-Resistant Surface Finish |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH260-RL |
| Maximum Stirring Volume | 20 L |
| Speed Range | 100–1500 rpm |
| Heating Plate Temperature | ≤450 °C |
| Sample Temperature Control Range (with Pt100) | ≤300 °C |
| Safety Cut-off Temperature Range | 50–500 °C (adjustable) |
| Over-Temperature Protection ΔT | 10–50 °C (adjustable) |
| Temperature Stability (with Pt100) | ±1 °C |
| Heating Power | 800 W |
| Display | LCD |
| Control Interface | Rotary Knob + USB-A Port |
| Timer Function | 1–1999 min or Continuous |
| Plate Material | Enamel-Coated Glass |
| Plate Dimensions | Ø145 mm |
| External Temperature Sensor | Pt100 |
| PID Control | Triple Preset Algorithms (PID1–PID3) |
| Enclosure | Sealed, Corrosion-Resistant Housing |
| Compliance | Designed for GLP-compliant laboratory environments |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WH390 / WH390-NH / WH395 |
| Max. Stirring Volume | 30 L |
| Speed Range | 100–1500 rpm |
| Heating Temperature Range (Plate) | ≤550 °C |
| Sample Temp Control Range (with Pt100) | ≤300 °C |
| Heating Power | 1800–2000 W |
| Temp Stability (with Pt100) | ±1 °C |
| Safety Overtemperature Cut-off | Adjustable 50–600 °C |
| ΔT Overheat Protection | Adjustable 10–50 °C |
| Display | LCD (WH390, WH390-NH) / TFT (WH395) |
| Interface | RS232/RS485 |
| Plate Material | Vitreous Enamel with Nano-Metal Coating (WH390), Vitreous Enamel (WH390-NH, WH395) |
| Plate Dimensions | 280 × 280 mm |
| Heating Zone Diameter | 190 mm |
| Housing | Sealed, Corrosion-Resistant Enclosure |
| External Sensor Input | Pt100 (all models) |
| Timer Range | 1–1999 min or continuous (WH390/WH390-NH) |
| Power Supply | 220 V / 50 Hz |
| Weight | 4.1 kg |
| Dimensions (W×D×H) | 450 × 290 × 120 mm (WH390/WH395), 450 × 290 × 80 mm (WH390-NH) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WB3000-DF |
| Stirrer Type | Electric Overhead Stirrer |
| Max. Mixing Volume | 100 L |
| Speed Range | Gear I: 30–600 rpm |
| Gear II | 601–3000 rpm |
| Speed Accuracy | ±1 rpm or ±1% of reading |
| Max. Torque | 339 N·cm (Gear I), 68 N·cm (Gear II) |
| Viscosity Range | ≤100,000 cP |
| Shaft Clamp Diameter | ≤10 mm |
| Output Power | 150 W |
| Dimensions (mm) | 200 × 95 × 230 |
| Weight | 5 kg |
| Order No. | 100400F |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | WHMIX drive1 |
| Instrument Type | Electromagnetic Induction Magnetic Stirrer |
| Protection Rating | IP68 |
| Operating Environment | Submersible (Water/Oil Baths, CO₂ Incubators, Ovens up to +200 °C) |
| Drive Power | 20 W |
| Max. Volume | 10 L |
| Speed Control Range | Adjustable via External Controller |
| Soft-Start Duration | 10–60 s (Programmable) |
| Optional Interfaces | 0–10 V, 4–20 mA, RS232, USB, Ethernet |
| Optional Software Integration | MIX Watch Monitoring Suite |
| Housing Material | Electropolished Stainless Steel (AISI 316L Equivalent) |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4 |
Show next
