| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | V410 |
| Pump Type | Oil-Free Piston Vacuum Pump |
| Ultimate Vacuum | 30 mbar |
| Pumping Speed | 19 L/min |
| Motor Power | 80 W |
| Dimensions (W×D×H) | 310 × 152 × 165 mm |
| Weight | 5.4 kg |
| Noise Level | 50 dB(A) |
| Input Voltage | 220–240 V / 50 Hz |
| Rated Current | 0.4 A |
| Motor Speed | 1450 rpm |
| Inlet Port Diameter | 9 mm |
| Ordering Code | 167400-22 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | CSC 410 |
| Pump Type | Oil-Free Diaphragm Vacuum Pump |
| Max Vacuum Level | 13 mbar |
| Flow Rate Range | 10–95 L/min |
| Adjustable Vacuum Range | 2–30 mbar |
| Motor Power | 95 W |
| Weight | 16 kg |
| Inlet/Outlet Port OD | 10 mm |
| Compliance | CE, RoHS |
| Standard Configuration | ChemVak-CSC modular system with DVR380 digital vacuum controller, separator flask, condenser assembly, base plate with support rods, and corrosion-resistant tubing & fittings |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C920Z |
| Pump Type | Diaphragm Pump |
| Oil-Free Design | Yes |
| Ultimate Vacuum | ≤ 8 mbar |
| Pumping Speed | 75 L/min |
| Motor Power | 370 W |
| Dimensions (W×D×H) | 440 × 270 × 240 mm |
| Weight | 21.5 kg |
| Protection Rating | IP55 |
| Noise Level | 50 dB(A) |
| Motor Speed | 1425 rpm |
| Voltage | 220–240 V / 50 Hz |
| Inlet Port Size | 10 mm |
| Construction Materials | PTFE- and PVDF-wetted parts |
| Diaphragm Structure | Multi-layer PTFE “sandwich” design |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Oil-Free Diaphragm Vacuum Pump |
| Air Displacement Rate | 95 L/min |
| Ultimate Vacuum | < 30 mbar |
| Dimensions (W×D×H) | 220 × 400 × 495 mm |
| Weight | 25 kg |
| Motor Power | 400 W |
| Vacuum Control Resolution | 0.1 mbar |
| Vacuum Range | 0.1–1000 mbar |
| Inlet/Outlet Port Diameter | 10 mm |
| Noise Level | 50 dB(A) |
| Compliance | CE, RoHS |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | V610 |
| Pump Type | Oil-Free Piston Vacuum/Pressure Pump |
| Ultimate Vacuum | 30 mbar |
| Pumping Speed | 40 L/min |
| Motor Power | 210 W |
| Dimensions (W×D×H) | 340 × 155 × 195 mm |
| Weight | 8.6 kg |
| Noise Level | 52 dB(A) |
| Motor Speed | 1450 rpm |
| Input Voltage/Frequency | 220–240 V / 50 Hz |
| Inlet Port Diameter | 9 mm |
| Thermal Overload Protection | Integrated |
| Inlet Filter | Standard Sintered Metal Cartridge |
| Compliance | CE, RoHS |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C900EEF |
| Instrument Type | Diaphragm Pump |
| Product Type | Oil-Free Vacuum Pump |
| Pumping Speed | 95 L/min |
| Ultimate Vacuum | ≤30 mbar |
| External Dimensions (W×D×H) | 220 × 400 × 495 mm |
| Weight | 25 kg |
| Motor Power | 400 W |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | R-17D |
| Pump Type | Two-Stage Rotary Vane |
| Lubrication | Oil-Sealed |
| Ultimate Vacuum | 4 × 10⁻⁴ mbar |
| Pumping Speed | 283 L/min |
| Motor Power | 750 W |
| Motor Speed | 1400 rpm |
| Noise Level (Gas Ballast Off) | < 54 dB(A) |
| Oil Capacity | 1.4 L |
| Protection Rating | IP44 |
| Weight | 31 kg |
| Inlet Port | DN25 KF |
| Order No. | 900112-22 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C900EF |
| Pump Type | Diaphragm Vacuum Pump |
| Oil-Free Design | Yes |
| Ultimate Vacuum | < 50 mbar |
| Pumping Speed | ≤ 95 L/min |
| Motor Power | 370 W |
| Dimensions (W×D×H) | 440 × 270 × 240 mm |
| Weight | 21.5 kg |
| Noise Level | 50 dB(A) |
| Motor Speed | 1425 rpm |
| IP Rating | IP54 |
| Electrical Supply | 200–240 V, 50 Hz |
| Interface Port | 10 mm |
| Diaphragm Material | PTFE/PVDF “Sandwich” Composite |
| Control Mode | External or Integrated Variable-Frequency Drive (VFD) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Diaphragm Vacuum Pump |
| Ultimate Vacuum | 2–4 mbar |
| Pumping Speed | 37 L/min |
| Dimensions (W×D×H) | 320 × 425 × 500 mm |
| Weight | 20.1 kg |
| Motor Power | 245 W |
| Noise Level | 60 dB(A) |
| Power Supply | 220–240 V / 50 Hz |
| Interface Port Diameter | 10 mm |
| Controller | Integrated DVR580 Variable-Speed Drive |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Oil-Free Diaphragm Compressor |
| Maximum Flow Rate | 40 L/min |
| Maximum Pressure | 9.5 bar |
| Adjustable Output Pressure Range | 0–9.5 bar |
| Motor Power | 1200 W |
| Motor Speed | 1450 rpm |
| Dimensions (W×D×H) | 700 × 470 × 770 mm |
| Weight | 72 kg |
| Tank Capacity | 2 × 8 L |
| Interface | 6 mm push-to-connect fitting |
| Thermal Protection | Integrated temperature-sensitive auto-shutdown switch |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | A410 |
| Pump Type | Diaphragm Vacuum Pump |
| Oil-Free Operation | Yes |
| Ultimate Vacuum | 13 mbar |
| Flow Rate | 25 L/min |
| Dimensions (W×D×H) | 230 × 155 × 173 mm |
| Weight | 10 kg |
| Motor Power | 95 W |
| Motor Speed | 1450 rpm |
| Noise Level | 50 dB(A) |
| Inlet/Outlet Port Size | 10 mm |
| Electrical Supply | 220–240 V, 50 Hz |
| Rated Current | 0.6 A |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Diaphragm Vacuum Pump |
| Ultimate Vacuum | 13 mbar |
| Pumping Speed | 25 L/min |
| Dimensions (W×D×H) | 320 × 425 × 500 mm |
| Weight | 16 kg |
| Motor Power | 95 W |
| Noise Level | 50 dB(A) |
| Power Supply | 220–240 V, 50 Hz |
| Inlet/Outlet Port Diameter | 10 mm |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Oil-Free Piston Vacuum Pump |
| Model | BioVac330B |
| Air Flow Rate | 34 mL/min |
| Ultimate Vacuum | ≤150 mbar |
| External Dimensions | 572 × 142 × 165 mm |
| Weight | 8 kg |
| Motor Power | 60 W |
| Filtration Positions | 3 |
| Filter Holder Material | SS316 Stainless Steel |
| Compatible Filter Diameters | 47 mm / 50 mm |
| Collection Flask Capacity | 3000 mL (Polycarbonate) |
| Filter Cup Options | 100 mL stainless steel |
| Effective Filtration Area | 9.6 cm² |
| Tubing ID | 8 mm |
| Catalog Number | 167403 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | Vdose PRO |
| Pump Type | Peristaltic Pump |
| Flow Rate Range | 20.4–1746 mL/min |
| Speed Range | 0.5–400 rpm |
| Tube Diameter Compatibility | 2, 3, 6, and 8 mm (wall thickness options: 1.6 mm or 2.3 mm) |
| Accuracy | ≤ ±1% |
| Programmable Programs | 9 |
| Display | 4-inch chemical-resistant LCD |
| Compliance | UL / CSA / CE / WEEE / RoHS |
| Control Modes | Dispense Mode & Continuous Flow Mode |
| Directionality | Bidirectional (clockwise/counter-clockwise) |
| Remote Control | Yes |
| Weight | 5.4 kg |
| Dimensions (W×D×H) | 173 × 223 × 330 mm |
| Power Supply | 100–240 V AC, 37 W |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C900E |
| Pump Type | Oil-Free Diaphragm Pump |
| Ultimate Vacuum | < 50 mbar |
| Pumping Speed | 95 L/min |
| Motor Power | 370 W |
| Dimensions (W×D×H) | 440 × 270 × 240 mm |
| Weight | 21.5 kg |
| Protection Rating | IP55 |
| Noise Level | 50 dB(A) |
| Inlet/Outlet Port | 10 mm |
| Operating Voltage | 220 V / 50 Hz |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | P420 |
| Pump Type | Oil-Free Piston Pump |
| Maximum Pressure | 5.5 bar |
| Flow Rate | 25 L/min |
| Dimensions (W×D×H) | 310 × 152 × 165 mm |
| Weight | 5.2 kg |
| Motor Power | 95 W |
| Noise Level | 52 dB(A) |
| Power Supply | 220–240 V / 50 Hz |
| Inlet/Outlet Port | G1/8 |
| Thermal Protection | Integrated Bimetallic Switch |
| Drive Type | Direct-Drive (Belt-Free) |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | CSC980V |
| Pump Type | Oil-Free Diaphragm Vacuum Pump |
| Ultimate Vacuum | < 1 mbar |
| Pumping Speed | 40 L/min |
| Dimensions (W×D×H) | 220 × 400 × 495 mm |
| Weight | 25 kg |
| Motor Power | 400 W |
| Vacuum Range | 0.1–1000 mbar |
| Pressure Resolution | 0.1 mbar |
| Noise Level | 50 dB(A) |
| Inlet Port Diameter | 10 mm |
| Ordering Code | 900535 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |

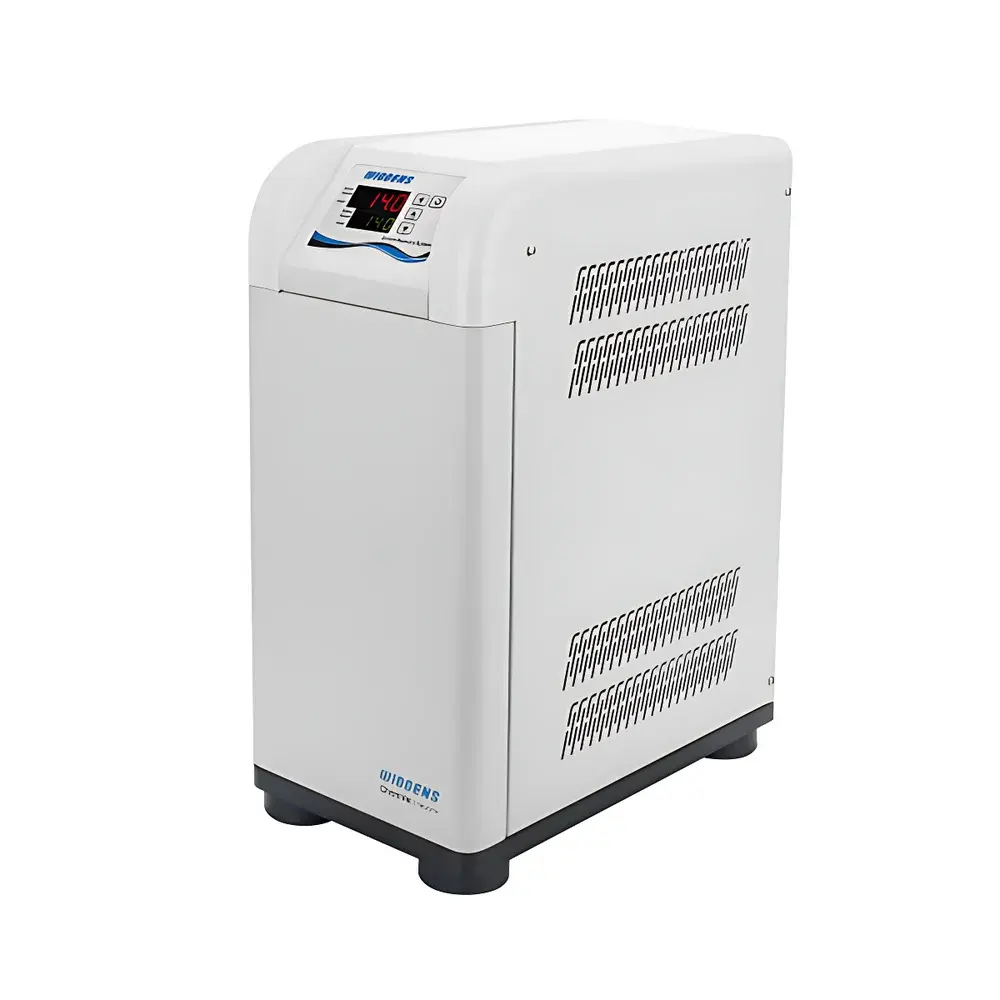

| Model | C980VEF |
| Pump Type | Diaphragm Vacuum Pump |
| Ultimate Vacuum | < 1 mbar |
| Pumping Speed | 40 L/min |
| Motor Power | 400 W |
| Dimensions (W×D×H) | 220 × 400 × 495 mm |
| Weight | 25 kg |
| Vacuum Pressure Resolution | 0.1 mbar |
| Setpoint Range | 0.1–1000 mbar |
| Motor Speed | 1380 rpm (50 Hz) / 1680 rpm (60 Hz) |
| Inlet/Outlet Port Size | 10 mm |
| Noise Level | 50 dB(A) |
| IP Rating | IP20 |
| Protection | Thermal Overload Auto-Shutdown & Auto-Restart |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Dual-Stage Rotary Vane |
| Lubrication | Oil-Sealed |
| Ultimate Vacuum | 4 × 10⁻⁴ mbar |
| Pumping Speed | 540 L/min |
| Motor Power | 1100 W |
| Motor Speed | 1400 rpm |
| Noise Level (Gas Ballast Off) | < 56 dB(A) |
| Oil Capacity | 2.1 L |
| Protection Rating | IP44 |
| Weight | 39 kg |
| Inlet Port | DN25 KF |
| Order Code | 900035-22 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Pump Type | Diaphragm Vacuum Pump |
| Ultimate Vacuum | 8 mbar |
| Pumping Speed | 50 L/min |
| Dimensions (W×D×H) | 396 × 320 × 535 mm |
| Weight | 19.8 kg |
| Motor Power | 245 W |
| Noise Level | 55 dB(A) |
| Power Supply | 220–240 V, 50 Hz |
| Inlet/Outlet Port | 10 mm |
| Vacuum Control | Digital PID Controller with Programmable Setpoints and Multi-Stage Profiles |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | V400 |
| Pump Type | Oil-Free Piston Vacuum Pump |
| Ultimate Vacuum | 100 mbar |
| Pumping Speed | 34 L/min |
| Dimensions (W×D×H) | 310 × 152 × 165 mm |
| Weight | 5.4 kg |
| Motor Power | 80 W |
| Noise Level | 50 dB(A) |
| Input Voltage/Frequency | 220–240 V / 50 Hz |
| Rated Current | 0.4 A |
| Motor Speed | 1450 rpm |
| Inlet Port Diameter | 9 mm |
| Overheat Protection | Integrated thermal cut-off |
| Inlet Filter | Replaceable particulate/moisture filter |
| Compliance | CE-marked, RoHS-compliant |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | CSC960T |
| Pump Type | Oil-Free Diaphragm Vacuum Pump |
| Ultimate Vacuum | ≤2 mbar |
| Pumping Speed | 60 L/min |
| Dimensions (W×D×H) | 220 × 400 × 495 mm |
| Weight | 25 kg |
| Motor Power | 400 W |
| Vacuum Resolution | 0.1 mbar |
| Vacuum Range | 0.1–1000 mbar |
| Noise Level | 50 dB(A) |
| Inlet Port Diameter | 10 mm |
| Ordering Code | 900534 |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C1450TEF |
| Pump Type | Diaphragm Vacuum Pump |
| Oil-Free Design | Yes |
| Pumping Speed | 145 L/min |
| Ultimate Vacuum | <8 mbar |
| External Dimensions | 635 × 280 × 200 mm |
| Weight | 36.5 kg |
| Motor Power | 600 W |
| Voltage | 220–240 V / 50 Hz |
| Vacuum Setpoint Range | 0.1–1000 mbar |
| Vacuum Resolution | 0.1 mbar |
| Motor Speed | 1400 rpm |
| Protection Rating | IP54 (inferred from industrial-grade motor design) |
| Noise Level | 65 dB(A) |
| Inlet/Outlet Port | G½" |
| Dual-Stage Configuration | Yes |
| Brand | WIGGENS |
|---|---|
| Origin | Germany |
| Model | C300 |
| Pump Type | Diaphragm Pump |
| Oil-Free Design | Yes |
| Ultimate Vacuum | 100 mbar |
| Pumping Speed | 22 L/min |
| Dimensions (W×D×H) | 233 × 110 × 210 mm |
| Weight | 6 kg |
| Motor Power | 60 W |
| Noise Level | ≤50 dB(A) |
| Protection Class | IP40 |
| Inlet/Outlet Port | 10 mm |
| Voltage | AC 200–240 V, 50/60 Hz |
Show next
