| Brand | Abner |
|---|---|
| Origin | Jiangsu, China |

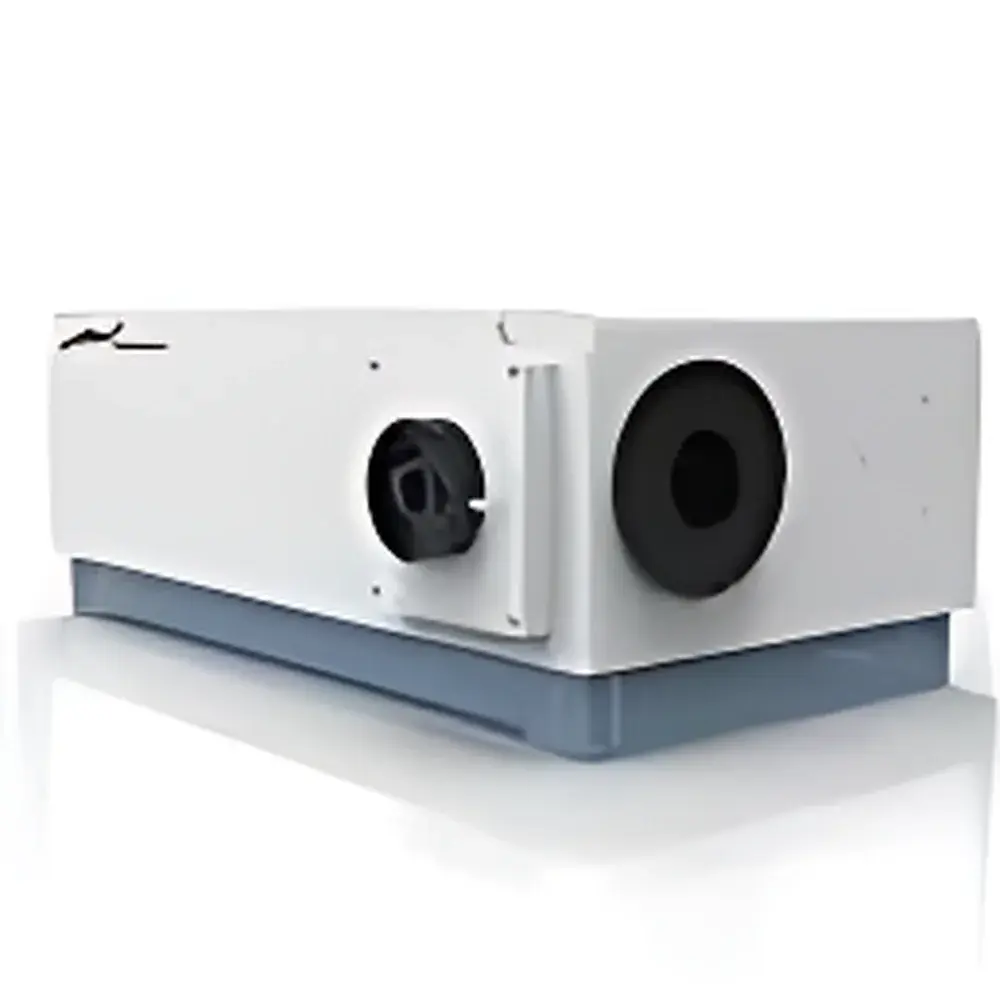

| Model | ABN-SPEC-001 |
| Focal Length | 500 mm |
| Relative Aperture | f/8 |
| Spectral Range (with 600 g/mm grating) | 300–1100 nm |
| Extended Range (with grating exchange) | 150 nm–40 µm |
| Grating Size | 68 mm × 68 mm |
| Max. Installed Gratings | 3 |
| Flat-Field Focal Plane | 30 mm × 12 mm |
| Wavelength Accuracy | ±0.30 nm |
| Wavelength Repeatability | ±0.01 nm |
| Spectral Dispersion (@500 nm) | 1.5 nm/mm |
| Magnification | 1.0 |
| Output Port | Single exit slit |
| Scanning Speed | 150 nm/sec |
| Minimum Step Size | 0.01 nm |
| Interface | High-Speed USB |
| Dimensions (L×W×H) | 530 × 327 × 218 mm |
| Stray Light Level | <1×10⁻⁵ |
