| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-1000A |
| Instrument Type | Sub-boiling Distiller |
| Heating Method | Resistive Heating (Corrosion-Resistant Heater Sleeve) |
| Cooling Method | Natural Air Cooling |
| Distillation Rate | 1000 mL/24 h |
| Warm-up Time | 30 min |
| Endpoint Control | Manual |
| Heating Element | Corrosion-Resistant PFA-Encapsulated Heater Sleeve |
| Power Input | 70 W |
| Voltage Options | 100/115/230 VAC ±10%, 50/60 Hz |
| Dimensions (L×W×H) | 20 × 20 × 43 cm (excl. funnel) |
| Weight | 4.6 kg |
| Maximum Capacity | 1 L |
| Material of Wetted Parts | Injection-Molded PFA |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST4000 |
| Instrument Type | Sub-boiling Distiller |
| Heating Method | Encircling Electric Heating Mantle |
| Cooling Method | Natural Air Cooling |
| Distillation Rate | 1000 mL / 12 h |
| Ramp Time to Operating Temperature | 60 min |
| Endpoint Control | Temperature-Based Setpoint Activation |
| Heating Element | Integrated Electric Heating Mantle |
| Power Supply | 230 VAC ±10%, 50/60 Hz |
| Power Consumption | 125 W |
| Weight | 7.25 kg |
| Capacity Range | 500 mL – 4 L |
| Wetted Materials | Molded PFA Only |
| Footprint | < 0.093 m² (< 1 ft²) |
| Brand | MAASSEN |
|---|---|
| Origin | Germany |
| Model | ECO Q |
| Instrument Type | Sub-boiling Distillation System |
| Heating Method | Infrared (IR) |
| Cooling Method | Water-cooled |
| Distillation Rate | 3 L per 8 hours |
| Purification Chamber Capacity | 1000 mL quartz |
| Heating Element | IR heating rod(s) |
| Power | 500 W (single heater) / 1000 W (dual heater) |
| Dimensions | 50 × 20 × 42 cm |
| Voltage/Frequency | 220 V / 50 Hz |
| Acid Compatibility | HCl, HNO₃, H₂SO₄, H₂O (excluding HF) |
| Material Contact Zone | All-quartz + PFA/PTFE |
| Safety Features | Overheat protection switch |
| Design | Modular — separate purification and heating units |
| Control Interface | Digital temperature & timer control unit |
| Fluid Path | PTFE tubing with inline filter |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-1000N |
| Instrument Type | Sub-boiling Distiller |
| Heating Method | Silicone Rubber Heating Mantle |
| Cooling Method | Natural Air Cooling |
| Distillation Rate | Up to 500 mL per 12 hours |
| Warm-up Time | 30 minutes |
| Endpoint Control | Temperature-based Setpoint Activation |
| Heating Element | Silicone Rubber Heating Mantle |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Microcolumns |
| Instrument Type | Sub-boiling Distillation Apparatus |
| Material | PFA (Perfluoroalkoxy Alkane) |
| Customization Available | Yes (Storage Volume & Capillary Length) |
| Compatibility | PTFE-compatible and PFA-compatible sample matrices |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-1000 |
| Power Input | 100/115/230 VAC ±10%, 50/60 Hz |
| Power Consumption | 70 W |
| Weight | 4.6 kg |
| Dimensions (L×W×H) | 20 cm × 20 cm × 43 cm (excl. funnel) |
| Capacity | 125 mL – 1 L |
| Material of Wetted Parts | Molded PFA |
| Cooling | Air-cooled (no water required) |
| Drainage | Integrated gravity-fed drain channel |
| Temperature Control | Adjustable, sub-boiling range |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-1000 |
| Instrument Type | Sub-boiling Distiller |
| Cooling Method | Passive (Air) Cooling |
| Distillation Endpoint Control | Automatic |
| Power Supply | 100/115/230 VAC ±10%, 50/60 Hz |
| Power Consumption | 70 W |
| Weight | 4.6 kg |
| Dimensions (L×W×H) | 20 cm × 20 cm × 43 cm (excluding funnel) |
| Capacity | 125 mL – 1 L |
| Wetted Materials | Molded PFA Only |
| Compliance | ASTM D511, ISO 17294-2, USP <645>, FDA 21 CFR Part 11 (software-enabled audit trail optional) |
| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-1000B |
| Power Input | 100/115/230 VAC ±10%, 50/60 Hz |
| Power Consumption | 70 W |
| Weight | 4.6 kg (10.15 lbs) |
| Dimensions (L×W×H) | 20 cm × 20 cm × 43 cm (10.15" × 10.15" × 16.92") |
| Height with Funnel | 51 cm (20.08") |
| Capacity | 125 mL – 1 L |
| Material of Wetted Parts | Molded PFA Fluoropolymer |
| Cooling | Air-cooled (no water required) |
| Temperature Control | Adjustable, sub-boiling range |

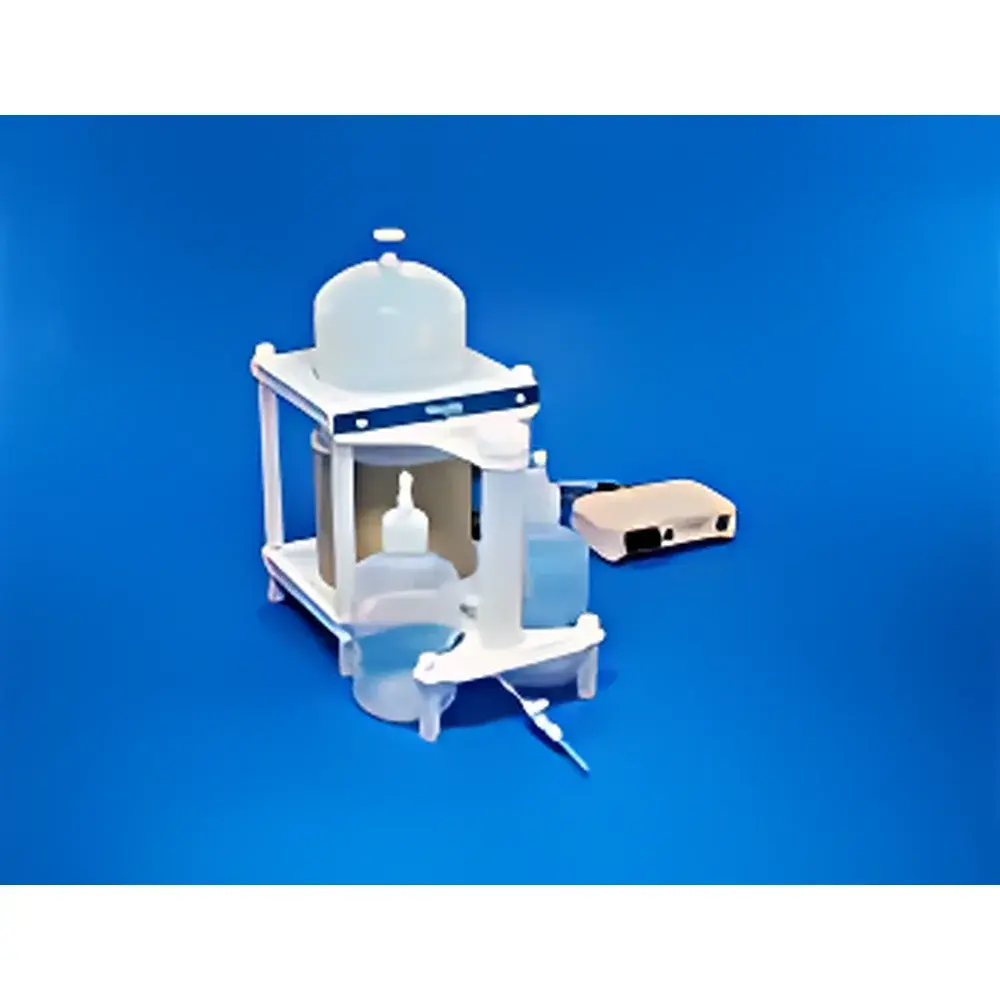

| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-4000 |
| Instrument Type | Sub-boiling Distiller |
| Heating Method | Resistive Heating (Corrosion-Resistant Heater Sleeve) |
| Cooling Method | Passive Air Cooling |
| Endpoint Control | Automatic |
| Heating Element | PFA-Encapsulated Resistive Heater in Corrosion-Resistant Protective Sleeve |
| Power Supply | 230 VAC ±10%, 50/60 Hz |
| Power Consumption | 70 W |
| Dimensions (L×W×H) | 20 cm × 20 cm × 43 cm (excluding funnel) |
| Weight | 4.6 kg |
| Capacity | 125 mL – 1 L |
| Material of Wetted Parts | Molded PFA (Perfluoroalkoxy Alkane) |

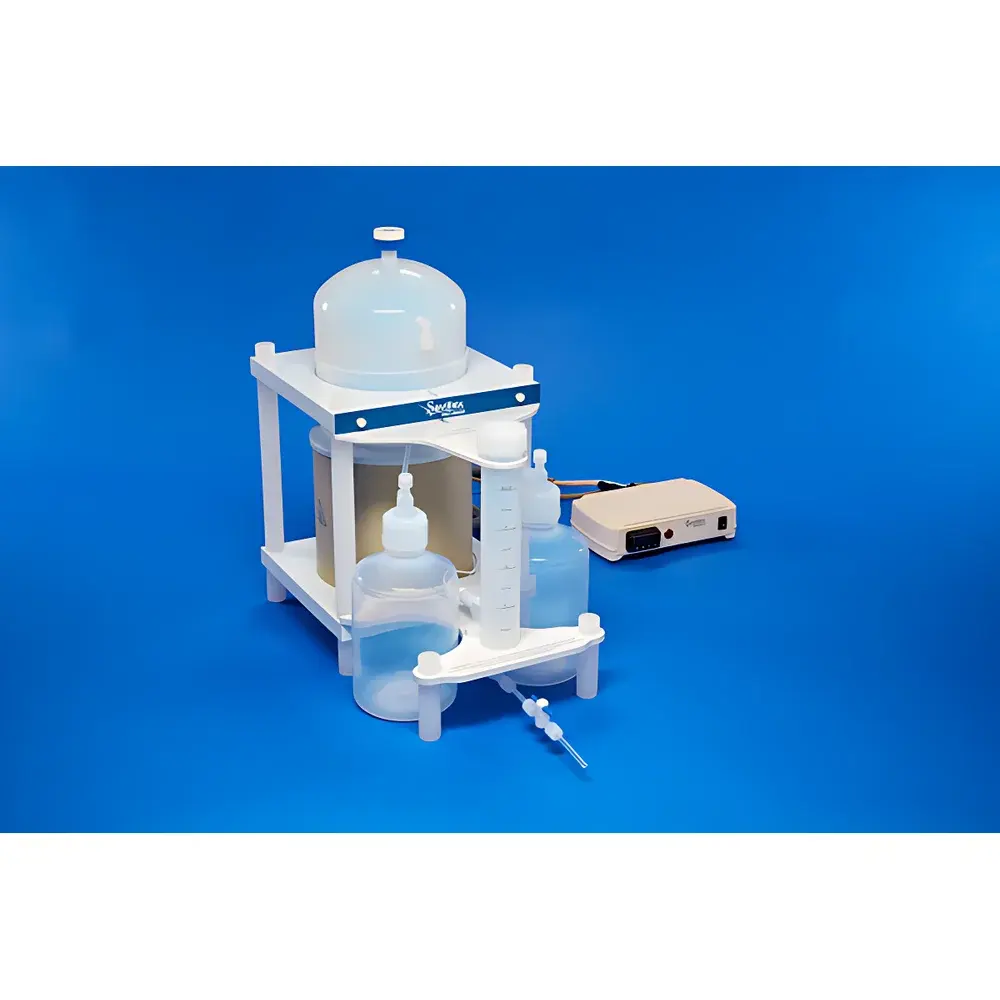

| Brand | Savillex |
|---|---|
| Origin | USA |
| Model | DST-4000S |
| Instrument Type | Sub-boiling Distiller |
| Heating Method | Encircling Electric Heating Mantle |
| Cooling Method | Natural Air Cooling |
| Distillation Rate | 500 mL/24 h |
| Warm-up Time | 60 min |
| Endpoint Control | Max. 4 L total distillate volume |
| Power Supply | 230 VAC ±10%, 50/60 Hz |
| Power Consumption | 70 W |
| Weight | 4.6 kg (10.15 lbs) |
| Dimensions (L×W×H) | 20 cm × 20 cm × 43 cm (10.15″ × 10.15″ × 16.92″) |
| Reservoir Capacity | 125 mL – 1 L |
| Material of Wetted Parts | Molded PFA |
