| Brand | Gamry |
|---|---|
| Origin | USA |
| Model | eQCM 10M |
| Frequency Range | 1–10 MHz |
| Frequency Resolution | < 0.02 Hz |
| Interface | USB |
| Operating Temperature | 0–45 °C |
| Relative Humidity | ≤90% (non-condensing) |
| Dimensions | 75 × 115 × 80 mm |
| Weight | 1 kg |
| Power Supply | 12 V DC, 25 W (via 100–264 V AC, 47–63 Hz adapter) |
| Brand | Gamry |
|---|---|
| Origin | USA |
| Model | QCM-I |
| Temperature Control Range | 4–80 °C (±0.02 °C) |
| Harmonic Measurement Capability | up to 13th overtone on 5 MHz crystals |
| Frequency Resolution | ≤0.1 Hz |
| Dissipation Factor (D) Resolution | ≤1×10⁻⁶ |
| Interface | USB-connected to external Windows® 10 Pro PC |
| Channel Capacity | up to 4 modular sensor channels |
| Optional Modules | EC measurement module, ITO-coated QCM sensors, flow cell with semi-automated injection valve |

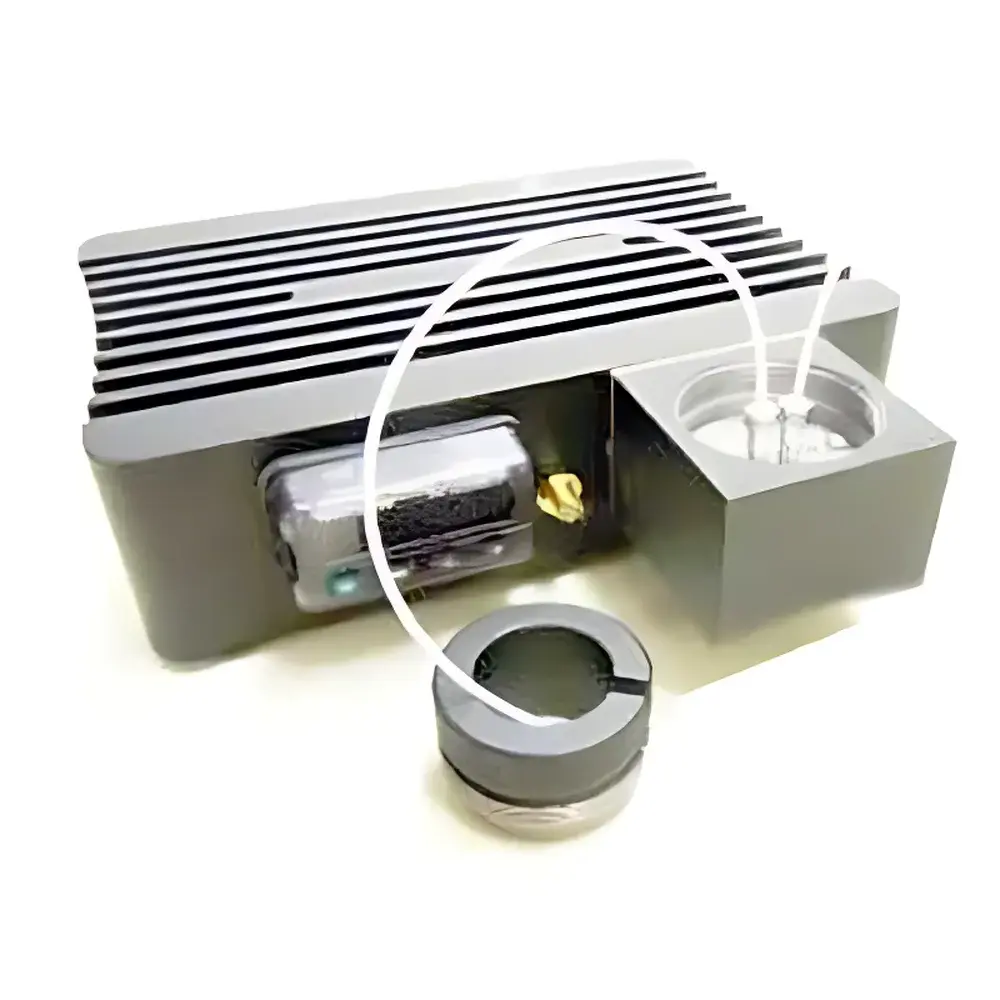

| Brand | Gamry |
|---|---|
| Origin | USA |
| Model | eQCM-I Mini |
| Temperature Control Range | 4–80 °C (±0.02 °C) |
| Harmonic Measurement Capability | Up to 13th harmonic on 5 MHz crystals |
| Frequency Sweep Bandwidth | Up to 70 MHz |
| Channels | 2 (1 temperature-controlled) |
| Interface | USB |
| Software | BioSense EC 3.xx (single-user license) |
| Compliance | Designed for electrochemical QCM (EQCM) applications per ASTM D7986, ISO 11357-4, and GLP/GMP-aligned data integrity workflows |
