| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | LFV-HH |
| Test Force Capacity | 30,000 kN |
| Frequency Range | 0.01–100 Hz |
| Machine Weight | 50 metric tons |
| Instrument Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Compliance | ISO 9001:2000, ISO/IEC 17025, Swiss TS Certification, MLA-Accredited Calibration Laboratory |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | PH |
| Instrument Type | Pendulum Impact Tester |
| Impact Energy | 750 J |
| Impact Velocity | 5.4 m/s |
| Pendulum Torque (Impact Constant) | 241.1543 N·m |
| Force Sensor Range | 800 mm |
| Maximum Lifting Height | 50 mm |
| Brand | Ducom |
|---|---|
| Origin | USA |
| Model | AJET |
| Instrument Type | High-Temperature Tribological Tester |
| Max Friction Force | 2000 N |
| Friction Force Resolution | 0.1 mN |
| Max Operating Temperature | 1000 °C |
| Erosion Velocity Range | 30–150 m/s |
| Abrasive Feed Rate | 1–5 g/min (nominal 200-mesh Al₂O₃) |
| Impact Angles | 15°, 30°, 45°, 60°, 75°, 90° (customizable with upgraded fixture) |
| Nozzle Orifice Diameter | 1.5 mm (optional 2–3 mm for ≥800 °C operation) |
| Specimen Dimensions | 25 × 25 × 5 mm (custom sizes available) |
| Abrasive Hopper Capacity | 2 L |
| Origin | Hong Kong |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Production | Yes |
| Model | HFRR |
| Price Range | USD 140,000 – 210,000 |
| Instrument Category | High-Precision Tribological Tester |
| Max Friction Force | ±40 N |
| Friction Force Resolution | 0.1 mN |
| Max Test Temperature | 75 °C |
| Oscillation Frequency Range | 10–60 Hz |
| Humidity Control Range | 5–85% RH (adjustable in software) |
| Compliance | ASTM D6079, ISO 12156-1, EN 590 Annex D |
| Brand | Ducom |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SJET |
| Instrument Type | High-Temperature Tribological Tester |
| Maximum Friction Force | 2000 N |
| Friction Force Resolution | 0.1 mN |
| Maximum Operating Temperature | 1000 °C |
| Jet Velocity | 10–50 m/s |
| Jet Diameter | 4 mm (fixed) |
| Maximum Erosion Flux | 100–2000 cc/min |
| Impact Angle | 15–90° (adjustable in 15° increments) |
| Specimen Dimensions | 25 × 25 × 4.8 mm (custom sizes available) |
| Sample Chamber Volume | 150 × 150 × 150 mm |
| Nozzle-to-Specimen Distance | 50 mm |
| Water Tank Capacity | 1200 L |
| Slurry Tank Capacity | 60 L |
| Closed-Loop Slurry Recirculation System | Yes |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | UBM Series |
| Torque Range | 0.5–500 N·m |
| Test Temperature | Ambient to 1000 °C (with optional high-temperature furnace) |
| Compliance | DIN 50113 |
| Configuration | Compact desktop design |
| Load Type | Constant bending moment (static load applied, cyclic strain induced by rotation) |
| Brand | Ducom |
|---|---|
| Origin | USA |
| Model | TR-20-HTVT |
| Maximum Friction Force | 20 N |
| Friction Force Resolution | 0.4 mN |
| Maximum Temperature | 800 °C |
| Operating Environment | High Vacuum (down to 10⁻⁷ mbar) or Controlled Atmosphere (inert gas, humidified air) |
| Sliding Modes | Unidirectional (CW/CCW), Bidirectional (angular oscillation), Spiral/Programmable Wear Tracks |
| Load Control | Programmable (constant, ramp, stepped) |
| Rotational Speed Range | 0.1–2000 rpm |
| Wear Track Diameter | 15–70 mm |
| Sample Geometry | Pin/Ball (Ø3–10 mm) vs. Rotating Disk (Ø100 mm) |
| Temperature Control Resolution | ±1 °C |
| Displacement Resolution | 0.1 µm |
| Angular Oscillation Frequency | 0.1–5 Hz |
| Stroke Angle Range | 0–10° |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Model | TT10K-LP |
| Operating Frequency | 903–925 MHz |
| Transmitter Dimensions | 17 mm × 26 mm × 51 mm |
| Transmitter Weight | 31 g |
| Battery Life (Active Mode) | 48 h (9 V Li battery, 350 Ω bridge, 25 °C) |
| Standby Current | 0.5 mA typical |
| Excitation Voltage | 3 VDC ±0.1% (bridge), 6–25 VDC (transmitter input) |
| Gain Range | 500–16,000 (6 selectable steps) |
| Bandwidth | 0–500 Hz (−3 dB at 500 Hz), programmable filtering |
| Output | ±10 VDC analog + RS-232 digital (DB9) |
| IP Rating | IP67 (transmitter with optional housing) |
| Operating Temperature | −30 to +85 °C |
| Resolution | 14-bit ADC |
| Bias Error | ±0.25% of reading (gain = 4000, 25 °C) |
| Signal Delay | 4.2 ms typical (500 Hz filter) |
| Sampling Rate | 2400 samples/sec |
| Strain Gauge Compatibility | Full-bridge, 350 Ω standard (1000 Ω supported) |
| Remote Control | IR-based, up to 3 m range, enables gain adjustment, shunt calibration, channel selection, and standby mode activation |
| Channel Capacity | 16 simultaneous systems |
| Centrifugal Acceleration Tolerance | 2000 g (steady-state) |
| Brand | JHT (Yi Cheng Heng Da) |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | TIMKEN OK |
| Price Range | USD 70,000 – 140,000 |
| Instrument Type | Boundary Lubrication Load Capacity Tester |
| Maximum Friction Force | 20 N |
| Friction Force Resolution | 0.4 mN |
| Maximum Test Temperature | 1000 °C |
| Standards Compliance | ASTM D2509, ASTM D2782, IP 240, IP 326, JIS K2220, JIS K2519 |
| Brand | JHT |
|---|---|
| Origin | USA |
| Model | ASTM D6079 |
| Maximum Friction Force | 20 N |
| Friction Force Resolution | 0.4 mN |
| Maximum Operating Temperature | 1000 °C |
| Compliance | ASTM D6079 |
| Control System | WinDucom 2010 Software |
| Data Output Format | ASCII-compliant |
| Sample Configuration | Ball-on-Disc (Oscillating Ball vs. Immersed Stationary Disc) |
| Optional Modules | High-Temperature Extension, Humidity Control, Electrical Contact Resistance (ECR) Measurement, Integrated Optical Microscopy Interface |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | UBM |
| Torque Range | 0.1–500 N·m |
| Drive | 2-phase AC motor |
| Max Speed | 6000 rpm (optional) |
| Bearing System | Adjustable spherical bearings for axial & radial guidance |
| Clamping Systems | ER25 (1–16 mm), ER32 (1–20 mm), F48 (1–42 mm / 2–30 mm / 2–36 mm) |
| High-Temperature Furnace Compatibility | STE5 series, 100–1000 °C, with X/Y-adjustable furnace support and triple-zone digital LRA controller |
| Power Supply | 380/400 V, 3-phase + N + E, 0.75 kW (2 kW with furnace) |
| Safety Compliance | Low-voltage heating elements (<25 V), VDE-certified control cabinet, EN/IEC 61000-6-2/-4 EMC compliance |
| Brand | JHT |
|---|---|
| Origin | USA |
| Model | TR 22 |
| Maximum Friction Force | 20 N |
| Friction Force Resolution | 0.4 mN |
| Maximum Test Temperature | 200 °C |
| Speed Range | 100–500 rpm |
| Load Range | 0–4500 lbf |
| Torque Range | 0–100 in-lb |
| Test Duration | 0–999.9 min |
| Power Supply | 230 V / 1 Ph / 50–60 Hz / 2 kVA |
| Compliance | ASTM D 5620, D 2625, D 2670, D 3233, IP 241, FTM 791-3807.1, FTM 791-3812.1 |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | BRG-3000 |
| Input Voltage | 115 VAC (220 VAC / 50 Hz optional) |
| Operating Temperature | 60–90 °F |
| Relative Humidity | ≤95% non-condensing |
| Test Stand | Model 9405A |
| Torque Sensor Type | Mini-series static torque sensor |
| Encoder Resolution | 9000 counts/rev, ±0.02° accuracy |
| Drive Motor | Adjustable 0.5–10 RPM synchronous motor with stepless speed control |
| Torque Ranges | 0.05–10.0 oz-in (3.59–718.82 g-cm), selectable via interchangeable sensors |
| Torque Accuracy | ±0.5% of full scale |
| Compliance | MIL-STD-206B |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | LFM |
| Type | Electromechanical Universal Testing Machine |
| Force Range | 1–600 kN (configurable by sub-series: LFM-L: 1–20 kN |
| LFM | 10–125 kN |
| LFM-H | 150–600 kN) |
| Construction | Desktop (LFM-L) / Floor-standing (LFM & LFM-H) |
| Drive System | High-response AC brushless servo motor with high starting torque |
| Guidance | Precision-ground preloaded ball screws, zero-backlash transmission, heavy-duty column guidance with beam alignment calibration |
| Test Modes | Tension, Compression, Bending, Peel, Shear, and Zero-Crossing (Load Reversal) Testing |
| Noise Level | Low (<65 dB(A)) |
| Compliance | Designed for ASTM E4, E8, E9, E21, ISO 6892-1, ISO 7500-1, ISO 178, ISO 527, EN 10002-1, and GB/T 228.1 |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |

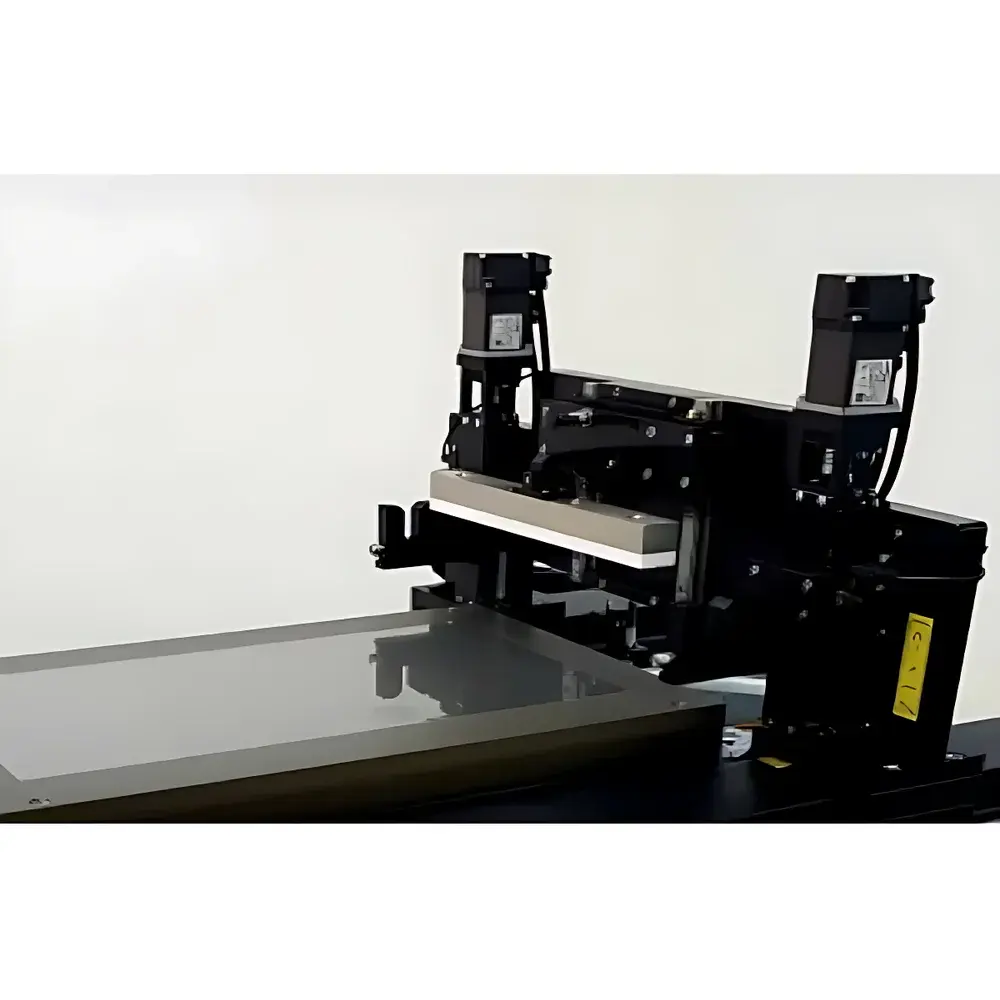

| Model | BSDX |
| Pricing | Available Upon Request |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TPM2 |
| Pricing | Upon Request |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | Test-All II |
| Torque Range | 10 oz·in to 50 lb·in (0.07–5.65 N·m) |
| Accuracy | ±0.5% FS |
| Display | Touchscreen Interface |
| Control Software | Windows-based |
| Output Interfaces | RS-232, USB |
| Operating Temperature Range | Wide Ambient |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | LFV-L |
| Maximum Test Force | 6000 kN |
| Frequency Range | up to 5000 Hz |
| Machine Weight | 268 kg |
| Type | Electromechanical-Hydraulic Hybrid Fatigue Testing System |
| Import Status | Imported |
| Category | High-Force Dynamic Fatigue Testing Machine |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | LFV-E |
| Maximum Test Force | 600 kN |
| Frequency Range | up to 5000 Hz |
| Host Weight | 380 kg |
| Type | Electromechanical Resonant Fatigue Tester |
| Drive System | Servo-Electric, Upper Crosshead-Mounted |
| Brand | W+B |
|---|---|
| Origin | Switzerland |
| Model | TTM/LF/LFSV |
| Load Capacity Range | 50 kN to 3000 kN |
| Type | Electro-Hydraulic Servo-Controlled Universal Testing Machine |
| Structural Configurations | 2-Column (TTM <600 kN), 4-Column (TTM ≥600 kN), Floor-Mounted Actuator (LF & LFSV) |
| Control Architecture | Closed-Loop Servo Hydraulic with Digital Controller or PC-Based Software Package |
| Compliance | Designed for ASTM E4, E8, E9, E21, ISO 6892-1, ISO 7500-1, EN 10002-1, and ISO 15630-1 testing protocols |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Model | TT10K |
| Transmitter Dimensions | 25 mm × 41 mm × 64 mm |
| Transmitter Weight | 85 g |
| Operating Temperature | −30 °C to +85 °C |
| Battery Life | 24 h (9 V Li battery, 350 Ω bridge, 25 °C) |
| Excitation Voltage | 2.5 VDC ±0.1% |
| Supply Voltage (Transmitter) | 7.5–18 VDC |
| Transmit Current (Active) | 40 mA typical, 50 mA max |
| Transmit Current (Standby) | 4 mA typical, 5 mA max |
| Gain Range | 500–16,000 (6 selectable steps) |
| Frequency Response | 0–500 Hz (−3 dB at 500 Hz), adjustable low-pass filtering |
| Output Delay | 4.2 ms typical (500 Hz filter setting) |
| Sampling Rate | 2400 samples/sec |
| ADC Resolution | 14-bit |
| Output Options | ±10 VDC analog (field-adjustable gain 0.25× to 4.0×), RS-232 serial (DB9) |
| Transmission Band | 902–925 MHz |
| Line-of-Sight Range | ≥6 m (20 ft) |
| Centrifugal Tolerance | 3000 g (e.g., 5700 RPM on 102 mm shaft) |
| Strain Gauge Compatibility | Full-bridge, 350 Ω standard (1000 Ω optional) |
| Bridge Excitation | 2.5 VDC |
| Bias Error | ±0.25% of reading or ±0.16% FS (at gain = 4000, 25 °C) |
| Remote Control | IR-based, up to 3 m line-of-sight, enables channel selection, gain/FS adjustment, shunt calibration, and standby activation without disassembly |
| Brand | Ducom |
|---|---|
| Origin | USA |
| Model | TR-101 |
| Instrument Type | (Micro/Nano) Scratch Tester |
| Maximum Indentation Depth | 5 mm |
| Effective Normal Load Range | 10 mN – 200 N |
| Load Resolution | 1 µN |
| Displacement Range | 0.1 mm – 50 mm |
| Displacement Resolution | 1 µm |
| Maximum Friction Force | 200 N |
| Indenter Tip | Rockwell C Diamond Tip |
| Brand | RUMUL |
|---|---|
| Model | TESTRONIC |
| Origin | Switzerland |
| Type | Electromagnetic Resonant Fatigue Tester |
| Max Dynamic Load | ±250 kN |
| Static Load Capacity | 250 kN |
| Frequency Range | 40–300 Hz (8 discrete steps) |
| Frequency Control Accuracy | ±0.01 Hz |
| Dynamic Load Accuracy | ±0.5% |
| Static Load Accuracy | ±0.5% |
| Displacement Measurement Accuracy | ≤0.5% of reading |
| Vertical Test Space | >500 mm |
| Crosshead Travel | ≥300 mm |
| Test Table Dimensions | 690 × 840 mm with M16 T-slots |
| Resonance Damping | Optimized lateral elastic suspension |
| Compliance | ISO 7500-1 Class 1, ASTM E4, ASTM E647, DIN 969, ISO 3800 |
| Brand | JHT (Yi Cheng Heng Da) |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TR 22 |
| Price | Upon Request |
Show next
