| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Model | TT10K-LP |
| Operating Frequency | 903–925 MHz |
| Transmitter Dimensions | 17 mm × 26 mm × 51 mm |
| Transmitter Weight | 31 g |
| Battery Life (Active Mode) | 48 h (9 V Li battery, 350 Ω bridge, 25 °C) |
| Standby Current | 0.5 mA typical |
| Excitation Voltage | 3 VDC ±0.1% (bridge), 6–25 VDC (transmitter input) |
| Gain Range | 500–16,000 (6 selectable steps) |
| Bandwidth | 0–500 Hz (−3 dB at 500 Hz), programmable filtering |
| Output | ±10 VDC analog + RS-232 digital (DB9) |
| IP Rating | IP67 (transmitter with optional housing) |
| Operating Temperature | −30 to +85 °C |
| Resolution | 14-bit ADC |
| Bias Error | ±0.25% of reading (gain = 4000, 25 °C) |
| Signal Delay | 4.2 ms typical (500 Hz filter) |
| Sampling Rate | 2400 samples/sec |
| Strain Gauge Compatibility | Full-bridge, 350 Ω standard (1000 Ω supported) |
| Remote Control | IR-based, up to 3 m range, enables gain adjustment, shunt calibration, channel selection, and standby mode activation |
| Channel Capacity | 16 simultaneous systems |
| Centrifugal Acceleration Tolerance | 2000 g (steady-state) |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | BRG-3000 |
| Input Voltage | 115 VAC (220 VAC / 50 Hz optional) |
| Operating Temperature | 60–90 °F |
| Relative Humidity | ≤95% non-condensing |
| Test Stand | Model 9405A |
| Torque Sensor Type | Mini-series static torque sensor |
| Encoder Resolution | 9000 counts/rev, ±0.02° accuracy |
| Drive Motor | Adjustable 0.5–10 RPM synchronous motor with stepless speed control |
| Torque Ranges | 0.05–10.0 oz-in (3.59–718.82 g-cm), selectable via interchangeable sensors |
| Torque Accuracy | ±0.5% of full scale |
| Compliance | MIL-STD-206B |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | BSDX |
| Pricing | Available Upon Request |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TPM2 |
| Pricing | Upon Request |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | Test-All II |
| Torque Range | 10 oz·in to 50 lb·in (0.07–5.65 N·m) |
| Accuracy | ±0.5% FS |
| Display | Touchscreen Interface |
| Control Software | Windows-based |
| Output Interfaces | RS-232, USB |
| Operating Temperature Range | Wide Ambient |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Model | TT10K |
| Transmitter Dimensions | 25 mm × 41 mm × 64 mm |
| Transmitter Weight | 85 g |
| Operating Temperature | −30 °C to +85 °C |
| Battery Life | 24 h (9 V Li battery, 350 Ω bridge, 25 °C) |
| Excitation Voltage | 2.5 VDC ±0.1% |
| Supply Voltage (Transmitter) | 7.5–18 VDC |
| Transmit Current (Active) | 40 mA typical, 50 mA max |
| Transmit Current (Standby) | 4 mA typical, 5 mA max |
| Gain Range | 500–16,000 (6 selectable steps) |
| Frequency Response | 0–500 Hz (−3 dB at 500 Hz), adjustable low-pass filtering |
| Output Delay | 4.2 ms typical (500 Hz filter setting) |
| Sampling Rate | 2400 samples/sec |
| ADC Resolution | 14-bit |
| Output Options | ±10 VDC analog (field-adjustable gain 0.25× to 4.0×), RS-232 serial (DB9) |
| Transmission Band | 902–925 MHz |
| Line-of-Sight Range | ≥6 m (20 ft) |
| Centrifugal Tolerance | 3000 g (e.g., 5700 RPM on 102 mm shaft) |
| Strain Gauge Compatibility | Full-bridge, 350 Ω standard (1000 Ω optional) |
| Bridge Excitation | 2.5 VDC |
| Bias Error | ±0.25% of reading or ±0.16% FS (at gain = 4000, 25 °C) |
| Remote Control | IR-based, up to 3 m line-of-sight, enables channel selection, gain/FS adjustment, shunt calibration, and standby activation without disassembly |
| Brand | Binsfeld |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TT |
| Pricing | Upon Request |
| Origin | Imported |
|---|---|
| Manufacturer Type | Distributor |
| Model | Cylindrical-on-Cylindrical Tribometer |
| Pricing | Upon Request |
| Origin | Hong Kong |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Origin | PRC-Made |

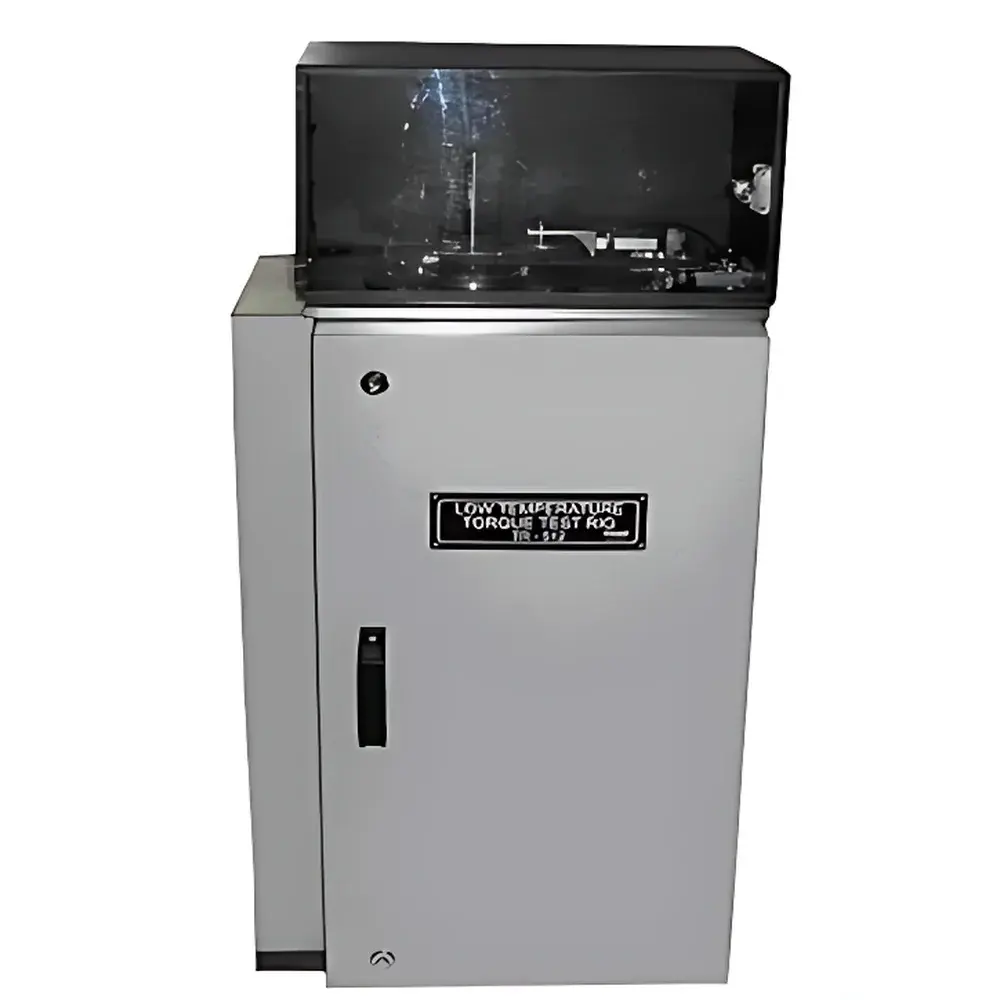

| Model | TR-512 |
| Pricing | Available Upon Request |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | TQ |
| Torque Range | 0.05 oz·in to 400 in·lb (0.00035 N·m to 36 N·m) |
| Output Type | Analog current proportional to torque |
| Operating Principle | Non-contact optical encoder-based angular displacement transduction |
| Rotational Inertia | Low, optimized for dynamic measurement |
| Compliance | Suitable for ASTM E29, ISO/IEC 17025 environments with proper calibration traceability |
| Interface | Compatible with Vibrac 1312 Data Acquisition Board |
| Brand | Vibrac |
|---|---|
| Origin | USA |
| Model | 2610 DS Series |
| Torque Range | 1 oz·in to 32 lb·in (0.007 N·m to 3.616 N·m) |
| Sensor Type | Patented optical non-contact torque transducer |
| Encoder Resolution | High-resolution digital optical encoder |
| Inertia | Ultra-low rotational inertia |
| Compatibility | Designed for integration with Vibrac 1054 Digital Readout and Control Unit |
| Mounting | Direct-mount interface with Vibrac XY fixture baseplate |
| Compliance | Engineered for ASTM E29, ISO/IEC 17025 traceable calibration practices |
