| Brand | EYELA (Tokyo Rikakikai Co., Ltd.) |
|---|---|
| Origin | Japan |
| Model | N-1100S-W |
| Rotation Speed | 20–180 rpm |
| Max. Evaporation Rate | 18 mL/min |
| Ultimate Vacuum | <399.9 Pa (≤3 mmHg) |
| Temperature Range (Water Bath) | RT+5°C to 90°C |
| Temperature Range (Oil Bath, optional) | RT+5°C to 180°C |
| Temp. Control Accuracy | ±1.5°C (water), ±3.0°C (oil) |
| Heating Power | 1 kW |
| Condenser Type | Inclined double-layer coiled coil |
| Cooling Surface Area | 0.146 m² |
| Flask Capacity | Standard 1 L (max 3 L), Standard Taper: 29/38 |
| Collection Flask | 1 L spherical, Joint: S35/20 |
| Vertical Travel | 100 mm (manual lift) + 150 mm (auxiliary extension) |
| Bath Dimensions | Ø230×100 mm (≈3 L) or Ø240×120 mm (≈5.5 L) |
| Unit Dimensions & Weight | 710×355×510 mm, 11 kg (base config) |
| Sealing | Dual-material PTFE/fluoroelastomer vacuum seal |
| Safety Features | Thermal cut-off fuse, dry-run prevention sensor |
| Optional Integration | Compatible with DPE-1300/DPE-1400 solvent recovery units and NVC-series vacuum controllers |

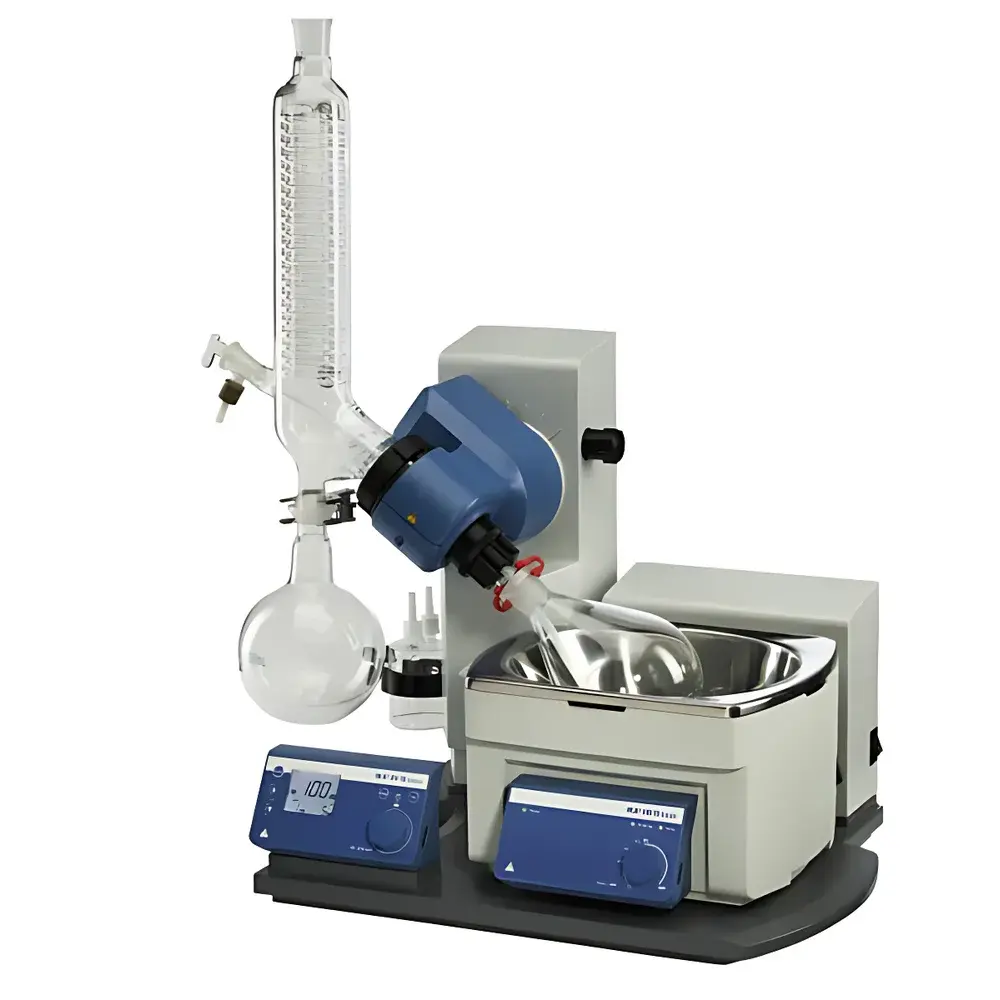

| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | RV10 Basic |
| Capacity | 2 L |
| Ultimate Vacuum | 6.5 hPa |
| Rotational Speed Range | 20–280 rpm |
| Heating Bath Temperature Range | RT to 180 °C |
| Heating Control Accuracy | ±5 K |
| Condenser Surface Area | 1,200 cm² |
| Motor Type | Brushless DC Motor |
| Motor Power Input | 50 W |
| Lift Stroke | 140 mm |
| Dimensions (W × D × H, without glassware) | 530 × 410 × 570 mm |
| Weight (with heating bath, no glassware) | 20 kg |
| IP Rating | IP20 |
| Ambient Operating Temperature | 5–40 °C |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | RE5220 |
| Capacity | 20 L |
| Rotation Speed | 20–110 rpm (digital display, frequency-controlled) |
| Bath Temperature Range | Ambient to 98 °C (water bath) |
| Cooling Surface Area | 0.11 m² |
| Heating Control Accuracy | ±1 °C (typical for analog-adjusted water bath systems) |
| Lift Mechanism | Manual (RE5220) / Motorized (RE5220A) |
| Condenser Type | Vertical dual-coil high-density serpentine glass condenser |
| Collection Flask Capacity | 10 L |
| Power Consumption | 5180 W |
| Dimensions (W×D×H) | 1100 × 650 × 1900 mm |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | RE5000 |
| Capacity | 5 L |
| Ultimate Vacuum | 3 mmHg |
| Rotation Speed | 0–110 rpm |
| Heating Temperature Range | 0–100 °C |
| Cooling System | Vertical high-density dual coiled condenser |
| Collection Flask Capacity | 3 L |
| Power Consumption | 2120 W |
| Dimensions (W×D×H) | 600 × 400 × 850 mm |
| Lift Mechanism | Motorized tilting-type with push-button control |
| Temperature Control Accuracy | ±1 °C (typical for analog-controlled bath systems) |
| Condenser Surface Area | Not specified (standard vertical dual-coil design) |

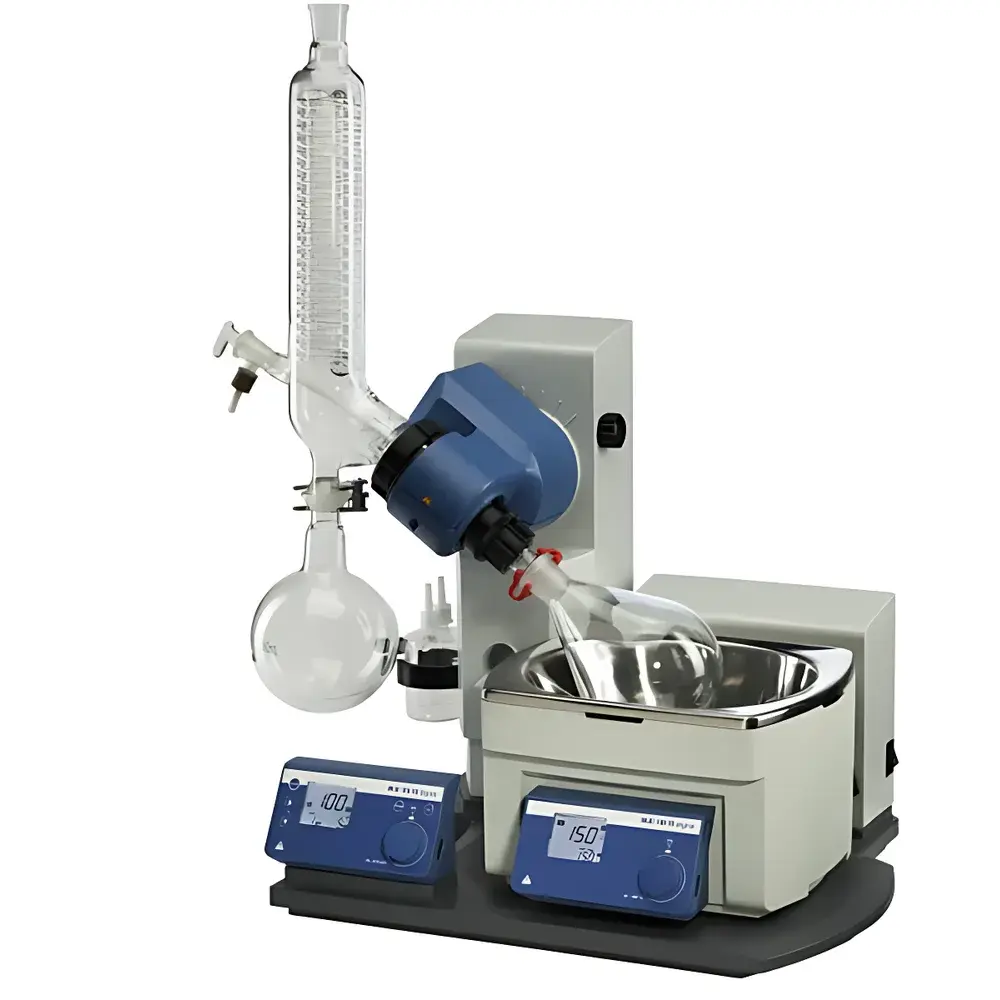

| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | RV10 Digital |
| Capacity | 2 L |
| Ultimate Vacuum | 6.5 hPa |
| Rotational Speed Range | 20–270 rpm |
| Heating Bath Temperature Range | RT to 180 °C |
| Temperature Control Accuracy | ±1 K |
| Condenser Surface Area | 1,200 cm² |
| Motor Type | Brushless DC Motor |
| Motor Power Input | 50 W |
| Lift Stroke | 140 mm |
| Heating Bath Power | 1,300 W |
| Dimensions (w/o glass, W×D×H) | 530 × 410 × 570 mm |
| Weight (w/o glass, incl. bath) | 20 kg |
| Protection Class | IP20 |
| Interface | RS232 + IR data link |
| Software Compatibility | labworldsoft® |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | RE52AA |
| Capacity | 2 L |
| Ultimate Vacuum | 3 mmHg |
| Rotation Speed | 0–150 rpm |
| Temperature Control Range | 0–100 °C |
| Heating Bath Accuracy | ±1 °C (typical for digital PID-controlled stainless steel bath) |
| Condenser Surface Area | ≥0.12 m² (vertical dual-layer coil with high-efficiency coolant path) |
| Power Input | 1000 W |
| Voltage/Frequency | 220 V / 50 Hz |
| Construction | Electropolished 304 stainless steel frame, PTFE-coated heating bath, borosilicate glassware (24/29 standard taper) |
| Brand | EYELA (Tokyo Rikakikai Co., Ltd.) |
|---|---|
| Origin | Japan |
| Model | N-1100V-W |
| Rotational Speed | 20–180 rpm |
| Max. Evaporation Rate | 18 mL/min |
| Ultimate Vacuum | <399.9 Pa (≤3 mmHg) |
| Bath Temperature Range (N-1100V-W) | +5°C to 90°C above ambient |
| Temperature Control Accuracy | ±1.5°C (water bath), ±3.0°C (oil bath) |
| Heating Power | 1 kW |
| Condenser Type | Vertical double-layer coiled condenser |
| Cooling Surface Area | 0.146 m² |
| Flask Capacity | Standard 1 L (max. 3 L), 29/38 standard taper joint |
| Collection Flask | 1 L spherical flask, S35/20 ground joint |
| Lift Mechanism | Manual dual-stage lift (100 mm primary + 150 mm auxiliary extension) |
| Bath Dimensions & Capacity | Ø230 mm × 100 mm depth (~3 L) or Ø240 mm × 120 mm depth (~5.5 L) |
| Overall Dimensions & Weight | 535 W × 355 D × 790 H mm / 11.5 kg (standard configuration) |
| Safety Features | Thermal fuse, dry-run prevention sensor |
| Sealing | Dual-material vacuum seal (PTFE + fluororubber) |
| Glassware | VF-type explosion-resistant coated glass (all condenser, collection, and four-way flasks) |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | RE2000A |
| Rotational Speed Range | 20–200 rpm (digital display) |
| Vertical Lift Range | 0–150 mm (motorized, automatic) |
| Heating Bath | PTFE-coated stainless steel, fully enclosed heater, 1.4 kW |
| Temperature Control | PID-regulated, digital water bath temperature display, ambient to 90 °C |
| Condenser | Vertical, dual-reflux, high-temperature borosilicate glass with standard spherical ground joints (24/29 or 29/32, configurable) |
| Total Power Consumption | 1.5 kW |
| Voltage/Frequency | 220 V AC, 50 Hz |
| Cooling Method | External coolant circulation (recommended) or tap water (with flow control) |
| Brand | YUHUA |
|---|---|
| Origin | Henan, China |
| Model | YRE-2010A |
| Power Supply | AC 220 V, 50 Hz |
| Input Power | 1.55 kVA |
| Rotational Speed Range | 0–130 rpm |
| Evaporation Flask Capacity | 50–2000 mL |
| Condenser Type | Vertical dual-coil, standard-taper ground glass joint (ball-and-socket), compatible with ice/water cooling |
| Ultimate Vacuum | < 0.1 MPa |
| Vertical Lifting Stroke | 120 mm |
| Heating Bath Power | 1.5 kW |
| Heating Bath Temperature Range (water) | RT to 98 °C |
| Instrument Footprint | 400 mm × 490 mm |
| Net Weight | 21 kg |
| Lifting Mechanism | Manual hand-crank |
| Brand | EYELA |
|---|---|
| Origin | Japan |
| Model | N-1100D-W |
| Rotation Speed | 20–180 rpm |
| Max. Evaporation Rate | 18 mL/min |
| Ultimate Vacuum | ≤399.9 Pa (≤3 mmHg) |
| Temperature Control Range (N-1100D-W) | RT +5 to 90°C (water bath) |
| Temp. Accuracy | ±1.5°C (water), ±3.0°C (oil) |
| Heating Power | 1 kW |
| Condenser Type | Vertical double-layer coiled condenser |
| Cooling Surface Area | 0.146 m² |
| Flask Capacity (standard) | 1 L (max. 3 L) |
| Bath Dimensions | Ø230 × 100 mm (≈3 L) or Ø240 × 120 mm (≈5.5 L) |
| Lift Stroke | 100 mm (manual lift) + 150 mm (auxiliary slide extension) |
| Overall Dimensions | 535 × 355 × 790 mm (11 kg) or 550 × 380 × 790 mm (13 kg) |
| Safety Features | Thermal fuse, dry-run prevention sensor |
| Sealing | Dual-material seal (PTFE + fluororubber) |
| Standard Joint Sizes | 29/38 (evaporating flask), S35/20 (receiving flask) |
| Control | Microprocessor-based ON-OFF temperature control with membrane keypad and digital display |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | RE3000A |
| Rotational Speed Range | 20–200 rpm |
| Heating Bath Temperature Control Range | Ambient to 90 °C (digital display) |
| Heating Bath Power | 1.4 kW |
| Total Power Consumption | 1.5 kW |
| Voltage | 220 V AC, 50/60 Hz |
| Lift Range | 0–150 mm (motorized, rapid auto-lift) |
| Bath Material | PTFE-coated stainless steel with fully enclosed heater |
| Evaporation Tube Diameter | Large-bore vapor pathway for enhanced solvent throughput |
