| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDLM |
| Measurement Principle | Energy-Dispersive X-ray Fluorescence (EDXRF) |
| Sample Positioning | Motorized Z-axis (standard) |
| Collimators | 4 interchangeable (diameters: 0.1, 0.2, 0.3, 0.5 mm) |
| Primary Filters | 3 interchangeable Al, Cu, Ti |
| Detector | Proportional counter with high-count-rate capability |
| Measurement Distance | 0–80 mm (adjustable via motorized Z-axis) |
| Optical Alignment | Integrated high-resolution color CCD camera with 10× digital zoom |
| Operating Temperature | 10–40 °C |
| Relative Humidity | ≤95% RH (non-condensing) |
| Instrument Weight | 100–120 kg |
| PC Interface | PCI/PCIe expansion slot required for spectrometer control and data acquisition |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDLM Series |
| Measurement Principle | Energy-Dispersive X-Ray Fluorescence (ED-XRF) |
| Standards Compliance | DIN 50987, ISO 3497, ASTM B568 |
| X-Ray Tube | Microfocus, adjustable high voltage (30/40/50 kV) |
| Collimator Set | Circular (0.1 / 0.2 / 0.3 mm) and rectangular (0.05 × 0.3 mm) |
| Sample Chamber Dimensions (W×D×H) | 570 × 740 × 650 mm |
| Internal Chamber Volume (W×D×H) | 460 × 500 × 300 mm |
| Z-Axis Travel Range | 144 mm (motorized) |
| Camera System | Integrated color CCD camera with live imaging and on-screen crosshair overlay |
| Beam Spot Visualization | Real-time X-ray beam size indicator synchronized with focal distance |
| Distance Correction Method | DCM (Distance Control Measurement), effective up to 80 mm |
| Software Platform | WinFTM® v6 (Windows-based, 32-bit), multilingual UI (EN/DE/FR/IT/ES/ZH) |
| Data Interface | RS-232, Ethernet-compatible remote command protocol |
| Reporting & SPC | Embedded statistical engine with control charts (X̄/R, X̄/S), probability plots, histogram analysis, and customizable PDF/Excel report generation |
| Regulatory Support | Audit trail, user access levels, electronic signature readiness per FDA 21 CFR Part 11 and GLP/GMP requirements |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XULM Series |
| Measurement Principle | Energy-Dispersive X-Ray Fluorescence (ED-XRF) |
| Standards Compliance | DIN 50987, ISO 3497, ASTM B568 |
| X-Ray Tube | Microfocus, adjustable high voltage (30/40/50 kV) |
| Collimator Options | Ø0.1 mm / Ø0.2 mm circular |
| Sample Chamber Dimensions (W×D×H) | 375 × 580 × 480 mm |
| Internal Chamber Dimensions (W×D×H) | 360 × 460 × 240 mm |
| Manual X-Y Stage Travel | 50 mm (X) × 50 mm (Y) |
| Stage Platform Size | 360 × 240 mm |
| Viewing System | Integrated color CCD camera with real-time zoom and auto-focus |
| Beam Alignment | On-screen calibrated crosshair + dynamic X-ray beam size indicator |
| Software Platform | WinFTM® v6 (Win32 native, multilingual UI) |
| Reporting | Embedded sample image capture, SPC charts (X̄/R, X̄/S), probability plots, histogram analysis |
| Regulatory Support | Audit trail, user access levels, electronic signature readiness per FDA 21 CFR Part 11 & GLP/GMP requirements |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XUL220 |
| Measurement Principle | Energy-Dispersive X-Ray Fluorescence (ED-XRF) |
| Detector Type | Proportional Counter |
| Count Rate Capability | High |
| Imaging System | High-Resolution Color CCD Camera with Manual Focus and Adjustable LED Illumination |
| Sample Chamber Dimensions | Extra-Large (Enabling Large-Part Measurement) |
| Stage | Manual XY Translation Stage |
| Operating Temperature | 10–40 °C |
| Relative Humidity | ≤95% RH (Non-Condensing) |
| Compliance | Designed for ISO 3497, ASTM B568, DIN 50982, and RoHS/WEEE Screening Applications |

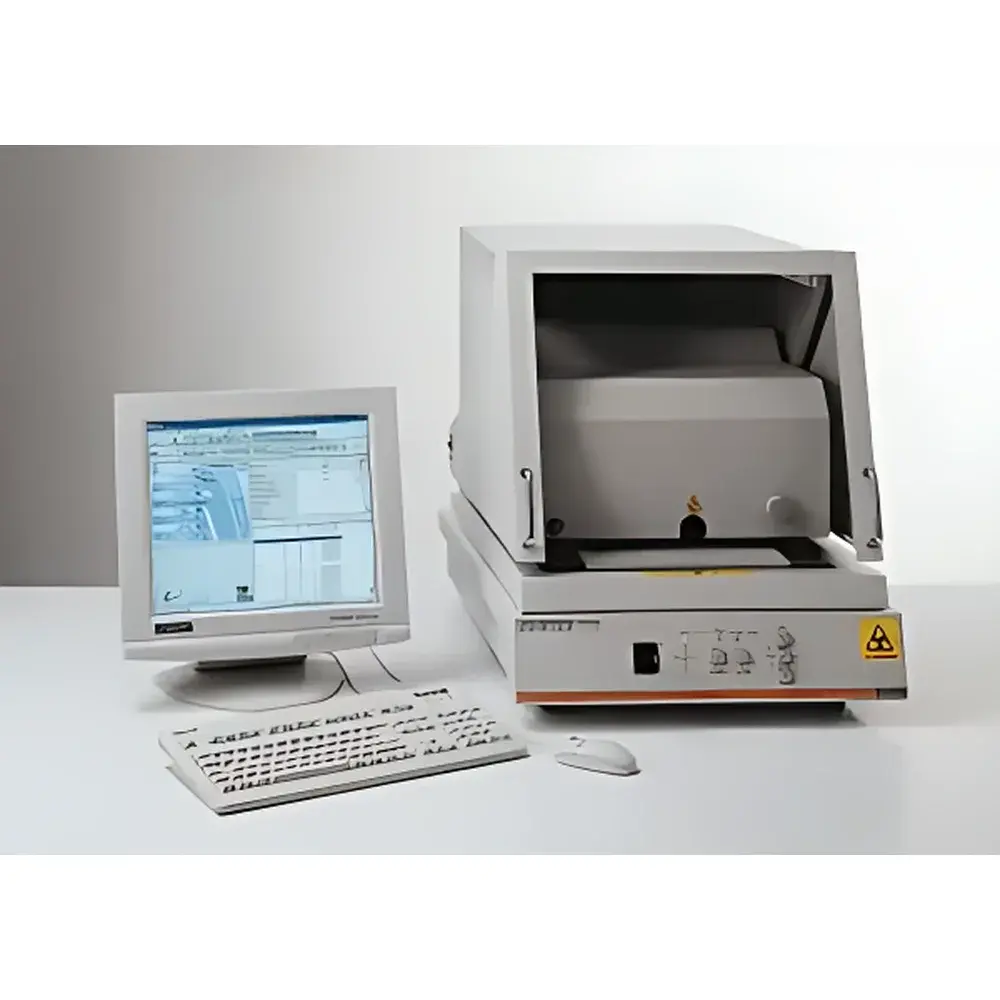

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDL-B Series |
| Measurement Principle | Energy-Dispersive X-Ray Fluorescence (ED-XRF) |
| Standards Compliance | DIN 50987, ISO 3497, ASTM B568 |
| X-ray Tube Voltage | Adjustable up to 50 kV |
| Collimator Options | 0.3 mm Ø standard |
| Measurement Chamber Dimensions (H×W×D) | 650 × 570 × 740 mm |
| Chamber Internal Dimensions (H×W×D) | 300 × 460 × 500 mm |
| Mass | ~105 kg |
| Viewing System | Integrated color CCD camera with real-time zoom and focus control |
| Distance Control Method | DCM (Distance Correction Method) for automated spectral intensity compensation across 3 fixed source-to-sample distances (standard: mid-position) |
| Sample Height Adjustment | Fixed-height X-ray head with removable support plate for oversized parts |
| Interface | RS-232, Ethernet-ready for remote command control |
| Software Platform | Native Win32 application for Windows 2000/XP |
| Language Support | English, German, French, Italian, Spanish, Chinese |
| Reporting & SPC | Embedded statistical engine with SPC charts, probability plots, histogram analysis, and customizable report generation including annotated sample images |

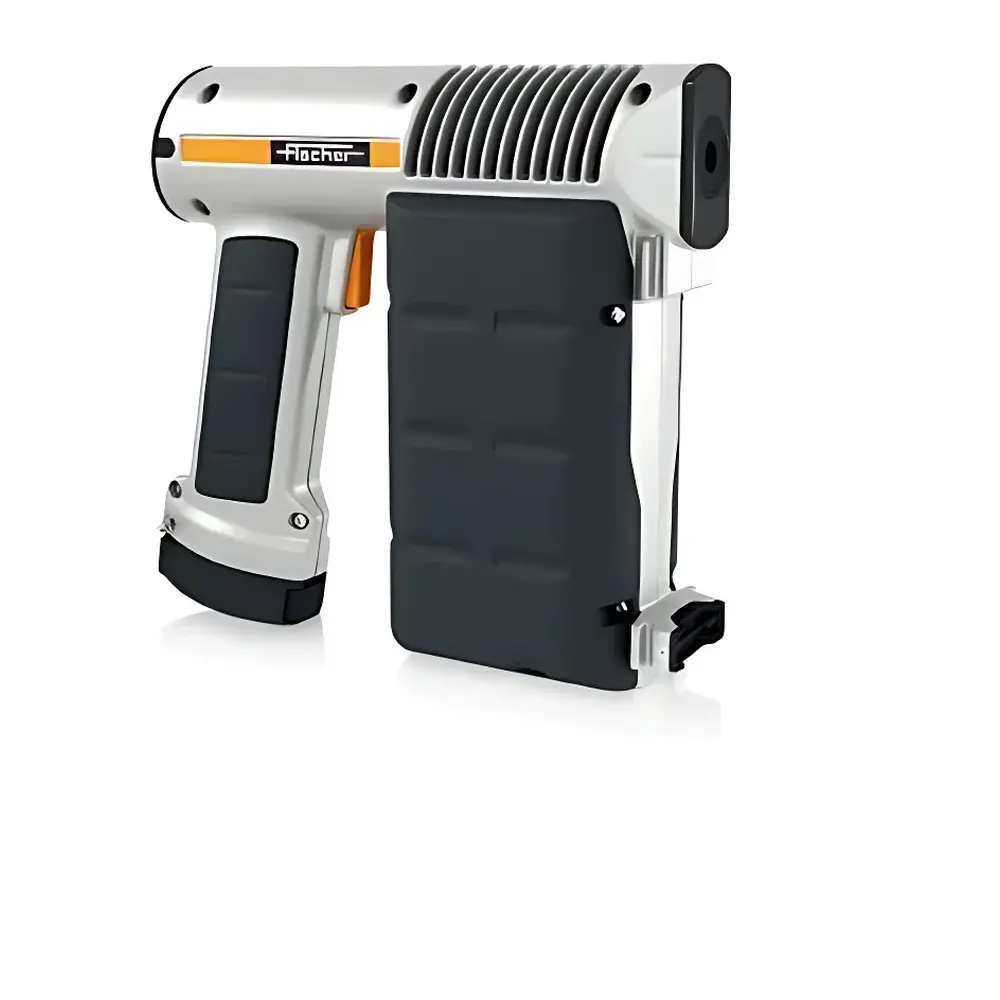

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XAN500 |
| Detector Type | Silicon Drift Detector (SDD) |
| Measurement Principle | Energy-Dispersive X-ray Fluorescence (ED-XRF) |
| Portability | Handheld & Benchtop-Convertible Configuration |
| Compliance | CE, RoHS, ISO 3497, ASTM B568, DIN EN ISO 3497, ISO 2178 (for magnetic substrates), ISO 2360 (for non-magnetic substrates) |
| Software | WinFTM® v8.x with GLP/GMP-compliant audit trail, FDA 21 CFR Part 11 optional module |
| Price Range | USD 25,000 – 65,000 (FOB Hamburg) |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDVM-W |
| Measurement Principle | X-ray fluorescence (XRF) |
| Standards Compliance | DIN 50987, ISO 3497, ASTM B568 |
| Cabinet Dimensions (H×W×D) | 720 × 660 × 950 mm |
| Weight | ~135 kg |
| Internal Chamber (H×W×D) | 160 × 560 × 530 mm |
| X-ray Tube | Adjustable high voltage (30/40/50 kV), current up to 0.8 mA |
| Detector | Xenon-filled proportional counter with 4096-channel ADC (displayed as 256-channel spectrum) |
| Collimator Options | Standard Set I (0.1 mm, 0.2 mm, 0.05×0.05 mm², 0.03×0.2 mm² slot), optional Sets II & III |
| XY Stage Travel | 250 × 250 mm (XDVM-W standard configuration) |
| Z-axis Travel | 145 mm |
| Camera | High-resolution color CCD with dual magnification (×40 / ×80), crosshair + metric grid + spot size indicator |
| Software Platform | Native Win32 application for Windows 2000 and later |
| Language Support | English, German, French, Italian, Spanish, Chinese, Japanese |
| Data Interface | RS-232 serial port, remote command control via script files or network environment |
| Calibration | Automated beam centering, “Application Toolbox” with calibration standards and parameter disk |
| Reporting | User-defined report editor with embedded images (BMP), company logos, charts, font selection |
| Statistical Tools | SPC charts, probability plots, histogram analysis |
| Security | Customizable “short menu” lockout for critical system functions |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDVM-u |
| Measurement Principle | X-ray Fluorescence (XRF) |
| Compliance | DIN 50987, ISO 3497, ASTM B568 |
| Max. Measurable Layers | 23 |
| Elements Analyzed | Cl (Z=17) to U (Z=92) |
| Element Quantification Range | x ppm to 100% |
| Spectral Channels | 1024 (raw: 4096) |
| Minimum Spot Size | 50 × 100 µm |
| Focal Depth Range | 2.5 mm |
| X-ray Tube | Adjustable HV (30/40/50 kV), Current up to 0.8 mA |
| Detector | Peltier-cooled semiconductor with high energy resolution |
| XY Stage Travel | X=250 mm, Y=220 mm, Positioning Accuracy: ±0.005 mm |
| Z-Axis Travel | 95 mm |
| Camera Magnification | 30×–1108× with crosshair & scale grid |
| Software | WinFTM® V6 with PDM (Product Data Management) |
| Interface | RS232, Ethernet, removable storage |
| Languages | English, German, French, Italian, Spanish, Chinese |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XUL Series |
| Measurement Principle | Energy-Dispersive X-Ray Fluorescence (ED-XRF) |
| Standards Compliance | DIN 50987, ISO 3497, ASTM B568 |
| X-ray Tube Voltage | Adjustable to 30 kV / 40 kV / 50 kV |
| Collimator Options | Ø0.3 mm circular or 0.05 × 0.3 mm rectangular (optional) |
| Sample Chamber Dimensions (W×D×H) | 455 × 580 × 510 mm |
| Internal Chamber Dimensions (W×D×H) | 360 × 380 × 240 mm |
| Manual X-Y Stage Travel | 50 mm (X) × 50 mm (Y) |
| Imaging System | Integrated color CCD camera with real-time magnified view and auto-focus |
| Beam Indicator | On-screen X-ray beam size overlay synchronized with focal distance |
| Software Platform | WinFTM® v6 (base) or Super WinFTM® (optional, order no. 602-950) |
| Language Support | English, German, French, Italian, Spanish, Chinese |
| Reporting | Graphical reports with embedded sample images, SPC charts, probability plots, histogram analysis |
| Regulatory Readiness | Supports GLP/GMP documentation workflows |

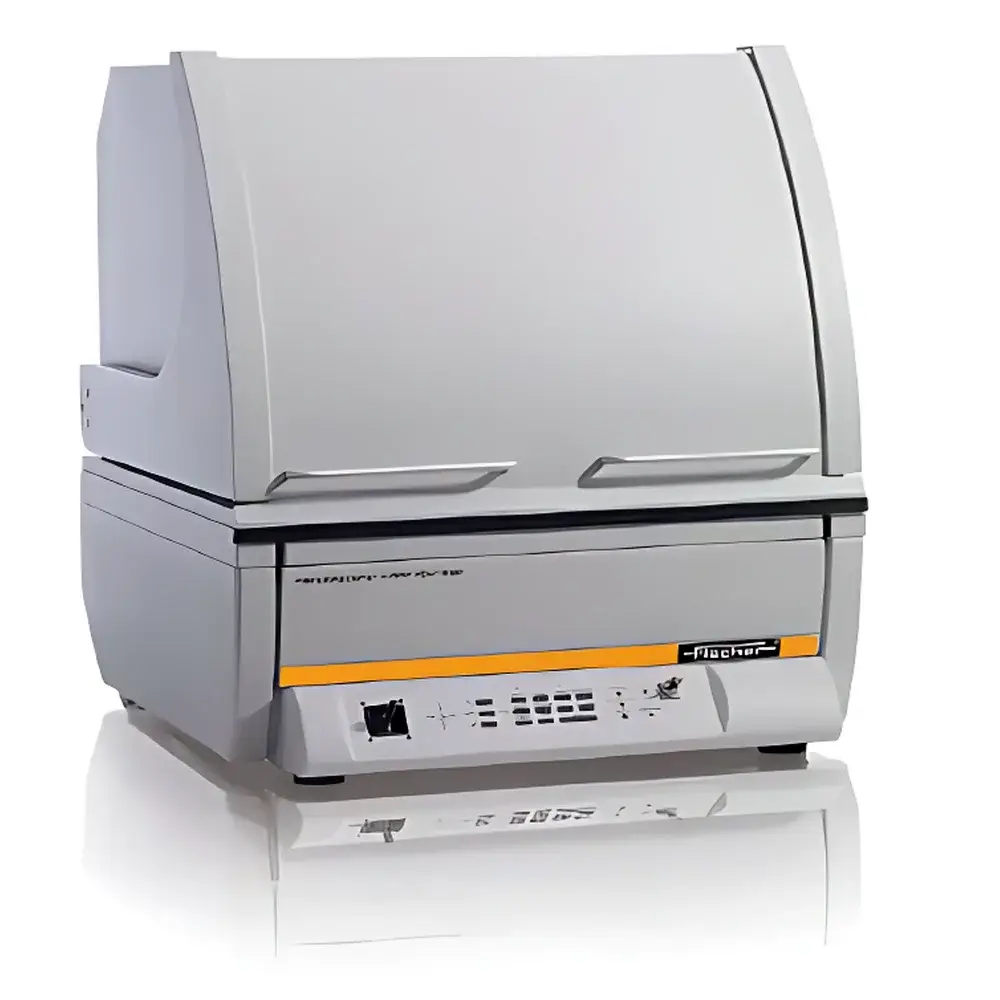

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDV-SDD |
| Detector Type | Silicon Drift Detector (SDD) |
| Excitation Source | Micro-focus Tungsten X-ray Tube with Beryllium Window |
| Adjustable Tube Voltage | 3 kV / 15 kV / 50 kV |
| Filter Options | 6 interchangeable primary filters |
| Collimators | Motorized, switchable |
| Elemental Range | Al (13) to U (92), up to 24 elements simultaneously quantifiable |
| Sample Stage | Motorized, programmable X/Y translation stage + motorized Z-axis lift |
| Safety | Interlocked top-hinged measurement door with automatic sample-stage egress |
| Imaging System | Integrated high-resolution video camera with 10× digital zoom, crosshair overlay, and real-time positioning feedback |
| Software Platform | WinFTM® v8.x (compliant with ISO 3497, ASTM B568, DIN 50981, and EN ISO 3497 for coating thickness measurement) |
| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XULM |
| Detector Type | Proportional Counter |
| Optical System | High-Resolution CCD Color Camera with Manual Focus |
| Collimators | 4 Switchable (e.g., 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm) |
| Primary Filters | 3 Switchable |
| Operating Temperature | 10–40 °C |
| Relative Humidity | ≤95% RH (non-condensing) |
| Form Factor | Benchtop with Manual XY Stage |

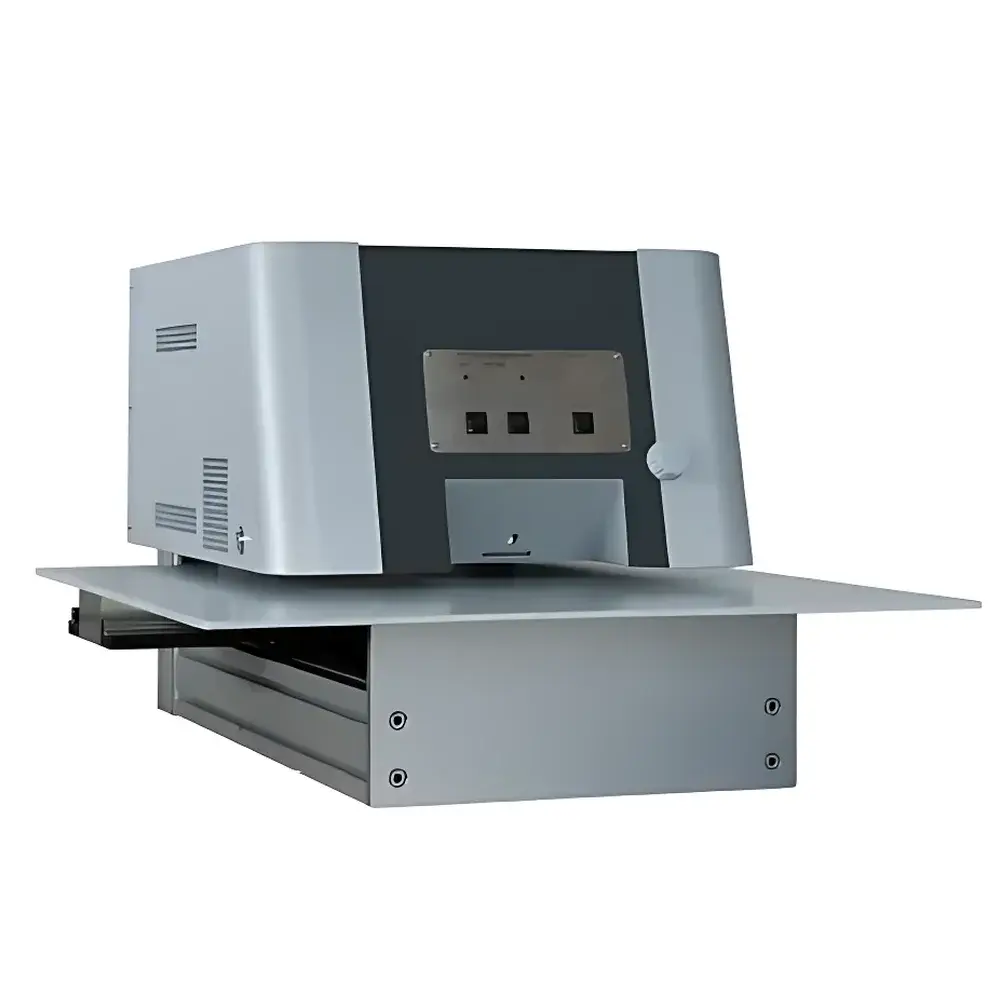

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDLM-PCB 220 |
| X-ray Tube | Tungsten anode microfocus tube with beryllium window |
| Tube Voltage | 3 adjustable high-voltage settings (up to 50 kV) |
| Detector | Proportional counter detector |
| Collimators | Motorized, multiple interchangeable apertures |
| Primary Filters | 3 motorized basic filters |
| Sample Stage | Motorized XYZ stage with programmable XY positioning and pop-up function |
| Optical Alignment | High-resolution color camera + laser pointer for precise targeting |
| Measurement Geometry | Horizontal sample chamber with bottom-access gap for large PCBs |
| Analysis Method | Fundamental Parameters (FP) quantification without calibration standards |
| Compliance | Designed for ISO 3497, ASTM B568, IPC-4552A, and RoHS/WEEE screening workflows |

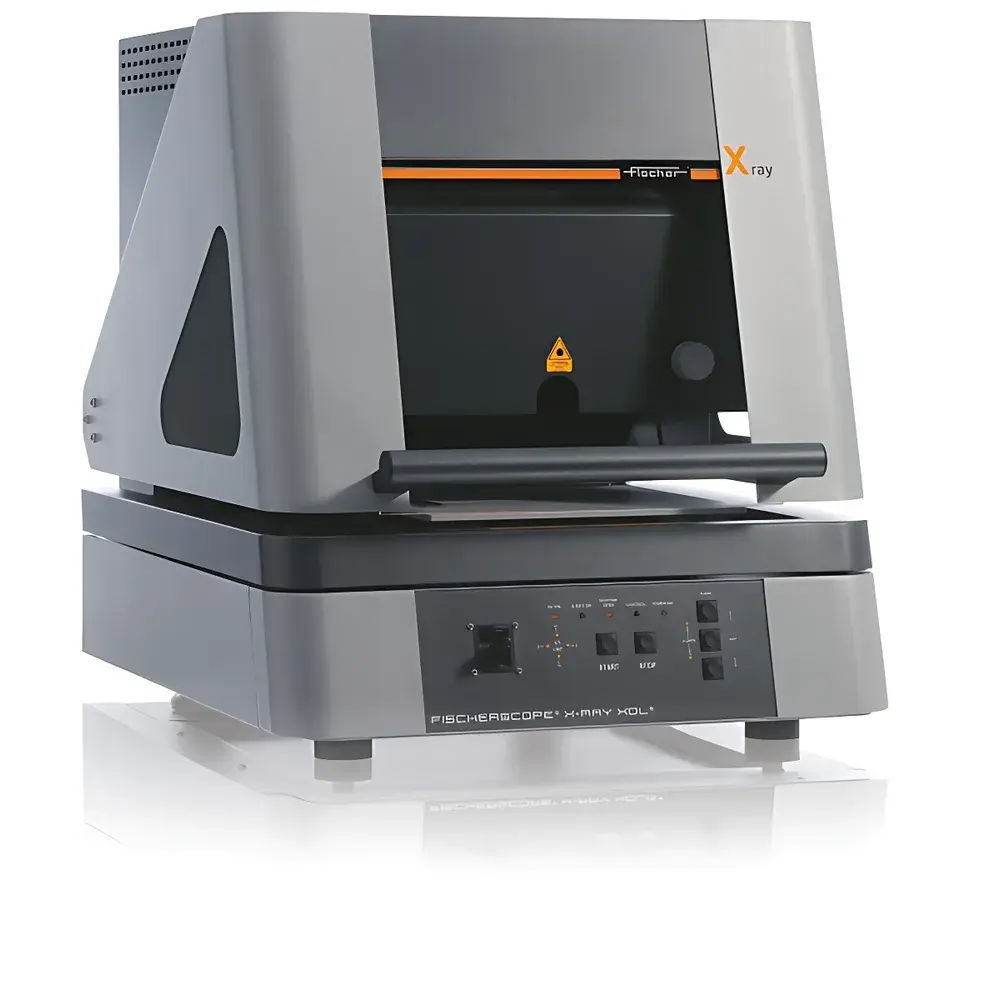

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDL |
| Measurement Principle | Energy-Dispersive X-ray Fluorescence (ED-XRF) |
| Elemental Range | Cl (Z=17) to U (Z=92) |
| Sample Positioning Options | Fixed or Motorized X/Y/Z Stages (XDL 210–240 variants) |
| Collimator Options | Circular or Rectangular |
| Detector Type | Proportional Counter |
| Measurement Distance | 0–80 mm |
| DCM Technology | Patented Distance Compensation Method |
| Camera System | High-Resolution CCD Color Imaging |
| Operating Temperature | 10–40 °C |
| Relative Humidity | ≤95% RH (non-condensing) |
| Weight | 100–120 kg |
| Compliance | Designed for ISO 3497, ASTM B568, DIN 50987, and EN ISO 3497-compliant measurement workflows |
| Software | FISCHER WinFTM® v8+ with GLP/GMP audit trail, 21 CFR Part 11 optional modules |

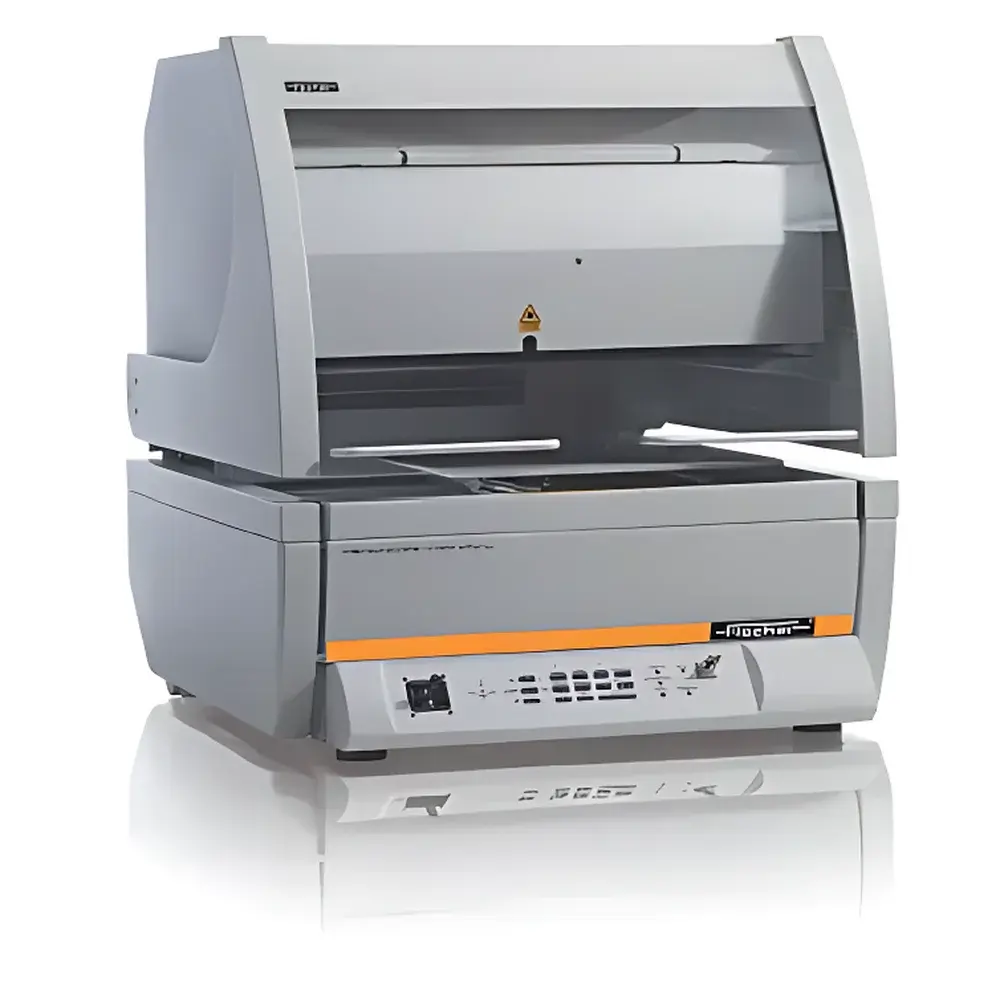

| Brand | Fischer |
|---|---|
| Origin | Germany |
| Model | XDV-μ |
| Excitation Optics | Polycapillary X-ray Lens System |
| Detector | Silicon Drift Detector (SDD) |
| Elemental Range | Al (13) to U (92) |
| Max. Simultaneous Elements | 24 |
| Sample Stage | Motorized X/Y Table + Motorized Z-axis Lift |
| Filtration | 4 Switchable Primary Filters |
| High Voltage | 3 Adjustable kV Settings |
| Software | WinFTM® |
| Compliance | ISO 3497, ASTM B568, DIN EN ISO 3497, RoHS/WEEE Directive Support |
| Optional Accessories | Large-area PCB Stage, Custom Collimators |
