Showing 31–60 of 105 results
| Brand | Diffusion |
|---|---|
| Origin | United Kingdom |
| Model | EEL 57D |
| Type | Automatic |
| Transmittance Range | 0–100% |
| Haze Repeatability | ±0.1% |
| Transmittance Repeatability | ±0.1% |
| Optical Geometry | 0°/diffuse |
| Compliance | ASTM D1003, BS 2782 |
| Traceability | NPL (National Physical Laboratory, UK) |
| Spectral Response | CIE Illuminant A and C |
| Preheat Time | 1 min |
| Zero Drift | None |
| Full-Scale Drift | <0.1 units within 5 min after warm-up |
| Operating Temperature | 5–50 °C |
| Storage Temperature | −10–65 °C |
| Power Supply | 110–230 VAC, 50–60 Hz |
| Dimensions (H×W×D) | 200 × 530 × 240 mm |
| Weight | 12 kg |
| Shipping Weight | 14 kg |
| Sample Port Diameter (Transmission) | 22 mm |
| Illumination Port Diameter (Transmission) | 15 mm |
| Source–Detector Spacing | 90 mm |
| Brand | Diffusion |
|---|---|
| Origin | United Kingdom |
| Model | EEL-57D |
| Type | Automatic |
| Transmittance Range | 0–100% |
| Haze Repeatability | ±0.1 units |
| Transmittance Repeatability | ±0.1 units |
| Optical Geometry | 0°/diffuse |
| Compliance | ASTM D1003, BS 2782 |
| Calibration Traceability | NPL (National Physical Laboratory, UK) |
| Spectral Response | CIE Illuminant A and C |
| Sample Port Diameter (Transmittance) | 22 mm |
| Illumination Port Diameter | 15 mm |
| Source–Detector Spacing | 90 mm |
| Warm-up Time | 1 min |
| Zero Drift | None |
| Full-Scale Drift | <0.1 units within 5 min after warm-up |
| Operating Temperature | 5–50 °C |
| Storage Temperature | −10–65 °C |
| Power Supply | 110–230 VAC, 50–60 Hz |
| Dimensions (H×W×D) | 200 × 530 × 240 mm |
| Weight | 12 kg |
| Shipping Weight | 14 kg |
| Optional Accessories | Cuvette holder for liquid haze/transmittance measurement |
| Brand | Diffusion |
|---|---|
| Origin | UK |
| Model | EEL57D |
| Type | Automatic |
| Transmittance Range | 0–100% |
| Haze Repeatability | ±0.1% |
| Transmittance Repeatability | ±0.1% |
| Optical Geometry | 0°/diffuse |
| Compliance | ASTM D1003, BS 2782 |
| Spectral Response | CIE Illuminant A & C |
| Traceability | NPL (National Physical Laboratory, UK) |
| Sample Port Diameter (Transmission) | 22 mm |
| Illumination Port Diameter (Transmission) | 15 mm |
| Source–Detector Spacing | 90 mm |
| Warm-up Time | 1 min |
| Zero Drift | None |
| Full-Scale Drift | <0.1 unit within 5 min after warm-up |
| Operating Temperature | 5–50 °C |
| Storage Temperature | −10–65 °C |
| Power Supply | 110–230 VAC, 50–60 Hz |
| Dimensions (H×W×D) | 200 × 530 × 240 mm |
| Weight | 12 kg |
| Shipping Weight | 14 kg |
| Brand | Diffusion |
|---|---|
| Origin | United Kingdom |
| Model | M57D |
| Type | Manual Benchtop Instrument |
| Haze Range | 0–30% |
| Total Transmittance Range | 0–100% |
| Haze Repeatability | ±0.1% |
| Transmittance Repeatability | ±0.1% |
| Optical Geometry | 0° Illumination / Diffuse Viewing (Compliant with ASTM D1003 and BS 2782) |
| Spectral Response | CIE Illuminant A & C |
| Sample Port Diameter | 22 mm |
| Transmission Aperture | 15 mm |
| Source–Detector Gap | 90 mm |
| Warm-up Time | 1 min |
| Zero Drift | <0.1 unit within 5 min after warm-up |
| Operating Temperature | 5–50 °C |
| Storage Temperature | −10–65 °C |
| Dimensions (H×W×D) | 200 × 530 × 240 mm |
| Weight | 12 kg |
| Shipping Weight | 14 kg |
| Optional Accessories | RS-232 Interface, Liquid Cell Holder, Taber Abrasion Adapter |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | 4510F |
| Automation Level | Fully Automated |
| Lamp Holder | Rotating 4-Lamp Turret |
| Wavelength Range | 190–900 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength Repeatability | ≤0.15 nm |
| Absorbance Range | –0.1 to 2.5 A |
| Spectral Bandwidth | 0.1 / 0.2 / 0.4 / 1.0 nm (selectable) |
| Baseline Stability | ≤0.005 A/30 min (Cu) |
| D₂ Background Correction | ≥50× at 1 A background signal |
| Self-Reversal Background Correction | Supported |
| Flame System | Acetylene-Air, 100 mm Burner Head |
| Nebulizer Chamber | Polypropylene-Coated |
| Characteristic Concentration (Cu) | ≤0.02 µg/mL per 1% absorption |
| RSD of Measurement | ≤0.5% |
| Detection Limit (Cu) | ≤0.006 µg/mL |
| Safety Interlocks | Gas pressure monitoring, flame-out detection, power interruption cutoff, burner head recognition |
| Optional Accessories | 4510GF Graphite Furnace Module, AS4020 Graphite Furnace Autosampler, AS800 Chiller Unit, Hydride Generation System |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Product Type | Automatic |
| Model | L6S / L6 |
| Haze Range | ≤ 0.15% T |
| Transmittance Range | 0.0–200.0% T |
| Absorbance Range | −0.301–4.000 A |
| Concentration Range | 0.000–9999 C |
| Haze Repeatability | 0.1 nm |
| Transmittance Repeatability | ≤ 0.15% T |
| Wavelength Range | 190–1100 nm |
| Spectral Bandwidth | 1.8 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength Repeatability | ≤ 0.1 nm |
| Stray Light | ≤ 0.03% T (at 220 nm, NaI |
| Photometric Accuracy | ±0.3% T |
| Photometric Repeatability | ≤ 0.15% T |
| Baseline Flatness | ≤ ±0.0015 A (200–1090 nm, L6S only) |
| Baseline Drift | 0.0009 A/0.5 h (after 2 h warm-up, at 250 nm & 500 nm, L6S only) |
| Detector | Imported photodetector |
| Monochromator | Czerny-Turner, 160 mm focal length, 1200 lines/mm holographic blazed grating |
| Light Source | Imported long-life deuterium lamp (D₂) and OSRAM tungsten-halogen lamp |
| Light Path | Ratio-monitoring double-beam |
| Wavelength Switching Point | 340 nm |
| Interface | USB |
| Power Supply | AC 220 V ± 22 V, 50 Hz ± 1 Hz |
| Rated Power | 200 W |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | SGW-810 |
| Price Range | USD 4,200 – 7,000 |
| Type | Fully Automated |
| Haze Range | 0–30.00% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ±0.05% (for haze ≤0.5%), ±0.1% (for haze >0.5%) |
| Transmittance Repeatability | ±0.5% |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | SGW-810A |
| Product Type | Fully Automatic |
| Haze Range | 0–30.00% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ±0.05% (for haze ≤0.5%), ±0.1% (for haze >0.5%) |
| Transmittance Repeatability | ±0.5% |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | SGW-810B |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤±0.1% (at haze ≤0.5%), ≤±0.3% (at haze >0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheat Time | 30 min |
| Transmittance Accuracy | ≤±1.0% |
| Haze Accuracy | ≤±0.1% (≤0.5%), ≤±0.3% (>0.5%) |
| Minimum Display Resolution | 0.01% (both haze and transmittance) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon Photocell |
| Optical System | Collimated Illumination + Diffuse Viewing + Integrating Sphere Detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Model | SGW-810C |
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Fully Automatic |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤±0.1% (for haze ≤0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheat Time | 30 min |
| Transmittance Accuracy | ≤±1.0% |
| Haze Accuracy | ≤±0.1% (≤0.5%), ≤±0.3% (>0.5%) |
| Minimum Resolution | 0.01% (both haze and transmittance) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon Photocell |
| Optical Configuration | Collimated Illumination, Diffuse Viewing, Integrating Sphere Detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Display | Large-Touch LCD Screen |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Model | SGW-810D |
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Fully Automatic Optical Analyzer |
| Haze Range | 0–30.0% |
| Luminous Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤±0.1% (for haze ≤0.5%), ≤±0.3% (for haze >0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheat Time | 30 min |
| Transmittance Accuracy | ≤±1.0% |
| Haze Accuracy | ≤±0.1% (≤0.5%), ≤±0.3% (>0.5%) |
| Minimum Resolution | 0.01% (both haze and transmittance) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon Photocell |
| Optical Configuration | Collimated Illumination + Diffuse Viewing + Integrating Sphere Detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | SGW810-A |
| Product Type | Fully Automatic |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤0.05% (at haze ≤0.5%), ≤0.1% (at haze >0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheating Time | 30 min |
| Transmittance Accuracy | ±1.0% |
| Haze Accuracy | ±0.1% (≤0.5%), ±0.3% (>0.5%) |
| Minimum Resolution | 0.01% (both haze and transmittance) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon Photocell |
| Optical System | Collimated Illumination + Diffuse Viewing + Integrating Sphere Detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | SGW810-B |
| Product Type | Fully Automatic |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤0.05% (at haze ≤0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheating Time | 30 min |
| Transmittance Accuracy | ±1.0% |
| Haze Accuracy | ±0.1% (≤0.5% haze) |
| Minimum Resolution | 0.01% for both transmittance and haze |
| Light Source | C-illumination (6774 K) |
| Detector | Silicon photodiode |
| Optical Configuration | Collimated illumination, diffuse viewing, integrating sphere detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Display | Large LCD touchscreen interface |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | SGW810-G |
| Pricing Range | USD 4,200 – 7,000 (FOB) |
| Type | Fully Automated |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤0.05% (for haze ≤0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheat Time | 30 min |
| Transmittance Accuracy | ±1.0% |
| Haze Accuracy | ±0.1% (≤0.5%), ±0.3% (>0.5%) |
| Minimum Resolution | 0.01% (both haze and transmittance) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon photodiode |
| Optical Configuration | Collimated illumination, diffuse viewing geometry, integrating sphere detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Power Supply | 220 V AC, 50 Hz |
| Net Weight | 21 kg |
| Compliance | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Brand | GBPI |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Fully Automatic |
| Haze Range | 0–30.0% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ≤0.05% (for haze ≤0.5%) |
| Transmittance Repeatability | ±0.5% |
| Preheat Time | 30 min |
| Transmittance Accuracy | ±1.0% |
| Haze Accuracy | ±0.1% (haze ≤0.5%) |
| Minimum Resolution | 0.01% (both transmittance and haze) |
| Light Source | C-illuminant (6774 K) |
| Detector | Silicon Photocell |
| Optical Configuration | Collimated Illumination, Diffuse Viewing, Integrating Sphere Detection |
| Sample Port Aperture | Input Ø25 mm, Output Ø21 mm |
| Solid Sample Size | 50 mm × 50 mm |
| Liquid Cell Dimensions | 50 mm × 50 mm × 10 mm |
| Film Sample Size | 50 mm × 50 mm |
| Power Supply | 220 V, 50 Hz |
| Net Weight | 21 kg |
| Compliance Standards | GB/T 2410–2008, ASTM D1003–2007, JIS K7105–1981 |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IG-331 |
| Pricing | Available Upon Request |
| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Model | IG-340 |
| Type | Automatic Portable Gloss Meter |
| Gloss Range | 0.0–100.0 GU (60° geometry) |
| Display Range | 0.0–199.9 GU (OVER indication above 100.0) |
| Repeatability | ±0.6 GU (±0.5% of full scale ±1 digit) |
| Measurement Area | 6 × 12 mm elliptical spot |
| Measurement Angle | 60° |
| Light Source | LED (880 nm) |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 35–85% RH (non-condensing) |
| Ingress Protection | IP42 |
| Power Supply | 2 × AA batteries |
| Dimensions | 61 × 62 × 176 mm |
| Weight | ≤320 g (including batteries and protective cap) |
| Memory Capacity | 100 single readings + 200 averaged datasets (with timestamp) |
| Data Interface | USB (Windows 10 compatible, bulk export supported) |
| Accessories | Calibration standard plate integrated in protective cap, soft carrying case, lens cleaning cloth |
| Origin | Shanghai |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | JFB-IB |
| Pricing | Upon Request |
| Brand | Jinhuatester |
|---|---|
| Model | TH-02 |
| Measurement Principle | 0/D geometry (diffuse transmission) |
| Standards Compliance | ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, GB/T 2410, JIS K 7105, JIS K 7361, JIS K 7136 |
| Illuminants | CIE-A, CIE-C, CIE-D65 |
| Aperture Sizes | 21 mm, 7 mm |
| Display | 7-inch capacitive touchscreen, Android OS |
| Measurement Time | ≤1.5 s |
| Repeatability | ±0.05% |
| Resolution | 0.01% |
| Transmittance Range | 0–100% |
| Sample Thickness Limit | ≤145 mm |
| Power Supply | DC 12 V / 3 A |
| Operating Temperature | 5–40 °C, RH ≤80% (non-condensing at 35 °C) |
| Storage Temperature | −20–45 °C, RH ≤80% (non-condensing at 35 °C) |
| Dimensions (L×W×H) | 310 × 215 × 540 mm |
| Weight | 6 kg |
| Interface | USB |
| Brand | Jinhuatester |
|---|---|
| Model | TH-02 |
| Measurement Principle | 0°/Diffuse (CIE 15:2018 compliant) |
| Standards Compliance | ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, GB/T 2410, JIS K 7105, JIS K 7361, JIS K 7136 |
| Illuminants | CIE A, C, D65 |
| Measured Parameters | Haze (%), Total Luminous Transmittance (%) |
| Aperture Sizes | 21 mm, 7 mm |
| Response Time | ≤1.5 s |
| Repeatability | ±0.05% |
| Resolution | 0.01% |
| Sample Thickness Limit | ≤145 mm |
| Display | 7-inch capacitive touchscreen (Android OS) |
| Optical Geometry | 0/D (Illumination Normal / Diffuse Collection) |
| Light Source | Long-life LED (rated >50,000 h) |
| Data Storage | Internal flash memory (≥100,000 records) |
| Interface | USB Type-A |
| Power Supply | DC 12 V / 3 A |
| Operating Temperature | 5–40 °C, RH ≤80% (non-condensing at ≤35 °C) |
| Storage Temperature | −20–45 °C, RH ≤80% (non-condensing at ≤35 °C) |
| Dimensions (L×W×H) | 310 × 215 × 540 mm |
| Weight | 6 kg |
| Brand | Kegel |
|---|---|
| Origin | Germany |
| Model | micro-gloss 45 |
| Measurement Geometry | 45° |
| Compliant Standards | ASTM C346, ASTM D2457, ASTM D3679, JIS Z 8741, TAPPI T480 |
| Calibration | Automatic single-button calibration with integrated reference standard |
| Data Storage | 999 measurement records |
| Interface | RS-232 serial port |
| Software | easy-link PC software for data logging and Excel-compatible export |
| Power | Rechargeable battery (>3000 measurements per charge) |
| Dimensions | Compact handheld form factor (approx. 120 × 65 × 35 mm) |
| Weight | <200 g |
| Display | Backlit LCD with intuitive menu navigation via rotary encoder |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | CA-210 |
| Photometric Aperture | Φ27 mm |
| Viewing Angle | ±2.5° |
| Luminance Range | 0.01–1000 cd/m² |
| Luminance Accuracy (White) | ±2% + 1 digit |
| Chromaticity Accuracy (White) | ±0.008 (0.10–4.99 cd/m²) to ±0.002 (160 cd/m²) |
| Repeatability (2σ) | 0.001–0.2% + 1 digit |
| Measurement Speed | 5–20 Hz (xyLv) |
| Interface | USB 1.1 / RS-232C (up to 38.4 kbps) |
| Operating Temp. | 10–28°C, RH ≤70% (non-condensing) |
| Dimensions (Main Unit) | 340 × 127 × 216 mm |
| Weight (Main Unit) | 3.58 kg |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | MG-268 |
| Measurement Angles | 20°, 60°, 85° |
| Gloss Range | 0.0–2,000 GU (20°), 0.0–1,000 GU (60°), 0.0–160 GU (85°) |
| Repeatability | ±0.2 GU (0–99.9 GU), ±0.2% of reading (100–2,000 GU) |
| Inter-instrument Agreement | ±0.5 GU (0–99.9 GU), ±0.5% of reading (100–2,000 GU) |
| Measurement Area | 10×10 mm (20°), 9×15 mm (60°), 5×38 mm (85°) |
| Compliance | ISO 2813, ISO 7668, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, BS 3900, BS 6161-12 |
| Data Storage | 999 measurements with timestamp |
| Battery Life | ~10,000 readings (1.5 V AA alkaline) |
| Interface | USB 2.0, Bluetooth 2.0 |
| Operating Temperature | 15–40 °C, ≤85% RH (non-condensing) |
| Dimensions | 155 × 73 × 48 mm |
| Weight | 400 g |
| Brand | Konica Minolta |
|---|---|
| Origin | Japan |
| Model | UG60 |
| Measurement Angle | 60° |
| Aperture Size | 9 × 15 mm |
| Gloss Range | 0.0–1,000 GU |
| Resolution | 0.1 GU (0–99.9 GU), 1 GU (100–2,000 GU) |
| Repeatability | ±0.2 GU (0–99.9 GU), ±0.2% of reading (100–2,000 GU) |
| Inter-instrument Agreement | ±0.5 GU (0–99.9 GU), ±0.5% of reading (100–2,000 GU) |
| Standards Compliance | ISO 2813, ISO 7668, ASTM D 523, ASTM D 2457, DIN 67530, JIS Z 8741, BS 3900, BS 6161-12 |
| Data Storage | 999 measurements with timestamp |
| Interface | USB 2.0, Bluetooth 2.0 |
| Power | Two 1.5 V AA alkaline batteries (≈10,000 measurements) or USB bus power |
| Operating Temperature | 15–40°C, ≤85% RH (non-condensing at 35°C) |
| Dimensions | 155 × 73 × 48 mm |
| Weight | 400 g |
| Brand | KRÜSS |
|---|---|
| Origin | Germany |
| Model | FP8800 |
| Type | Automated Flame Photometer |
| Measurement Principle | Flame Atomic Emission Spectrometry (F-AES) |
| Simultaneous Channels | 5 independent, configurable for Na, K, Li, Ca, Ba, Mg |
| Display | 8.4" TFT touchscreen interface |
| Data Storage | Up to 999 measurement records |
| Throughput | Up to 300 measurements per hour |
| Compliance | cGMP/GLP, FDA 21 CFR Part 11 (audit trail, electronic signature support), DHCP & LIMS integration capable |
| Calibration Output | Tabular and graphical calibration curves |
| Safety | Integrated intelligent flame safety interlock system |
| Category | Optical Measurement Instrument — Flame Photometer |
| Brand | Labthink |
|---|---|
| Model | IG-200 |
| Measurement Geometry | 20° / 60° / 85° (Standard Single-Angle Configuration) |
| Measurement Range | 0–199.9 GU |
| Resolution | 0.1 GU |
| Repeatability | ±1 GU |
| Zero Drift | ≤0.5 GU / 30 min |
| Accuracy | ±1 GU |
| Light Source | Tungsten-Halogen Lamp (10,000 h lifetime) |
| Calibration Standard | Fused Quartz Reference Tile (Annual Drift < 0.3%) |
| Power Supply | 4×AA Ni-MH Rechargeable Batteries (9 V DC, 100 mAh) |
| AC Adapter Input | 220 V, 50 Hz |
| Operating Temperature | −25 °C to +40 °C |
| Battery Life | Up to 10 h continuous operation |
| Auto-Zero Compensation | Yes |
| Data Hold & USB Export | Yes |
| Compliance | JJG 696–2015 (China National Verification Regulation for Gloss Meters), ISO 2813, ASTM D523, GB/T 9754 |
| Brand | Labthink |
|---|---|
| Model | NG260 |
| Measurement Angles | 20°, 60°, 85° |
| Measurement Range | 0–199.9 GU |
| Resolution | 0.1 GU |
| Repeatability | ±1 GU |
| Zero Drift | ≤0.5 GU / 30 min |
| Accuracy | ±1 GU |
| Light Source | Tungsten Halogen Lamp (Lifespan ≥10,000 h) |
| Calibration Standard | Fused Quartz Reference Tile (Annual Stability <0.3%) |
| Power Supply | 4×AA Ni-MH Rechargeable Batteries (9 V DC, 100 mAh) |
| AC Adapter Input | 220 V, 50 Hz |
| Operating Temperature | –25 °C to +40 °C |
| Battery Life | Up to 10 h continuous operation |
| Auto-Zero Function | Yes |
| Data Hold & Low-Battery Indication | Yes |
| Compliance | GB/T 9754, ISO 2813, ASTM D523, ASTM D2457, JIS Z8741 |
| Brand | Labthink |
|---|---|
| Model | WGT-S |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Automatic |
| Haze Range | 0–30.00% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ±0.05% (when H ≤ 0.5%) |
| Transmittance Repeatability | ±0.5% |

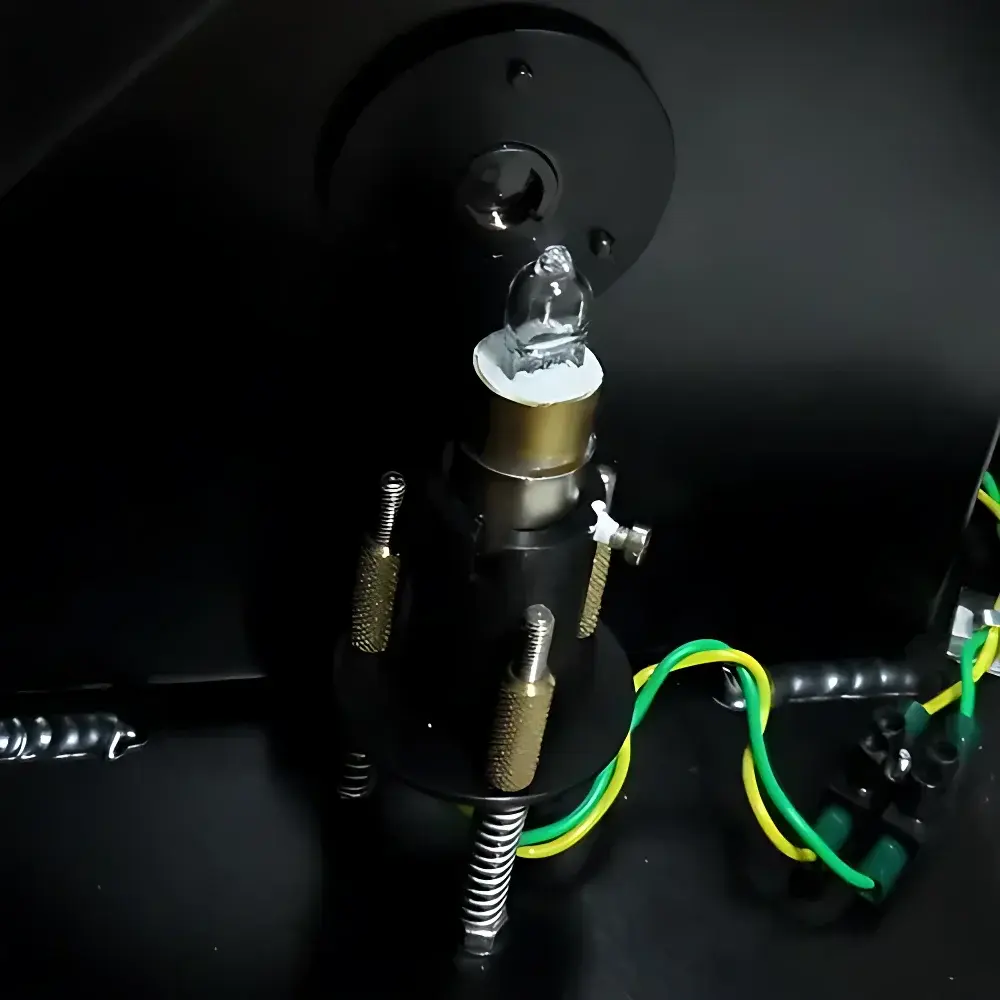

| Light Source | C-illuminant (12 V DC, 50 W tungsten-halogen lamp + color temperature correction filter) |
| Sample Size | 50 mm × 50 mm (for films) |
| Aperture Dimensions | Input port Ø25 mm, Output port Ø21 mm |
| Detection Method | Collimated illumination, diffuse viewing, integrating sphere detection |
| Detector | Silicon photodiode with photopic luminosity function (V(λ)) correction |
| Compliance Standards | GB/T 2410, ASTM D1003–07 (Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics), JIS K7105–1981 |
| Dimensions | 740 mm (L) × 270 mm (W) × 300 mm (H) |
| Net Weight | 21 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Labthink |
|---|---|
| Model | WGT-S |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Automatic |
| Haze Range | 0–30.00% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ±0.05% (for H ≤ 0.5%) |
| Transmittance Repeatability | ±0.5% |
| Light Source | C-illuminant (12 V DC, 50 W tungsten-halogen lamp + color temperature correction filter) |
| Sample Size | 50 mm × 50 mm (film) |
| Aperture Dimensions | Entrance Ø25 mm, Exit Ø21 mm |
| Detection System | Silicon photodiode with photopic luminosity function (V(λ)) correction |
| Integrating Sphere Geometry | Collimated Illumination / Diffuse Viewing |
| Compliance Standards | GB/T 2410, ASTM D1003–07 (reapproved 2013), JIS K7105–1981 |
| Dimensions | 740 mm (L) × 270 mm (W) × 300 mm (H) |
| Net Weight | 21 kg |
| Power Supply | 220 V, 50 Hz |
| Brand | Labthink |
|---|---|
| Model | WGT-S |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Type | Manual Operation |
| Haze Range | 0–30.00% |
| Transmittance Range | 0–100.0% |
| Haze Repeatability | ±0.05% (when H ≤ 0.5%) |
| Transmittance Repeatability | ±0.5% |
| Light Source | C-illuminant (12 V DC, 50 W tungsten-halogen lamp + color temperature correction filter) |
| Sample Port Diameter | Input Ø25 mm, Output Ø21 mm |
| Sample Holder | 50 mm × 50 mm film fixture |
| Detector | Silicon photodiode with photopic luminosity correction (V(λ) compliant) |
| Instrument Dimensions | 740 mm (L) × 270 mm (W) × 300 mm (H) |
| Net Weight | 21 kg |
| Power Supply | 220 V, 50 Hz |
| Standards Compliance | GB/T 2410, ASTM D1003–07 (reapproved 2013), JIS K7105–1981 |
