| Origin | South Korea |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TSA101, TSA102, TSA103 |
| Max Temperature | 450 °C |
| Operating Range | 50–400 °C |
| Ramp Rate | ≤60 min to reach +300 °C from ambient (spring/summer conditions) |
| Temperature Indication Accuracy | ±1.0 °C |
| Temperature Uniformity (Chamber) | ±1.0 °C |
| Max Sample Dimensions | 250 mm × 330 mm |
| Loading Port | 1 front-access door |
| Power Supply | 3-phase, 380 V AC |
| Total Electrical Capacity | 11 kW |
| External Dimensions (W×H×D) | ≈1340 mm × 1860 mm × 990 mm |
| Internal Chamber Material | SUS 316 stainless steel, 1.5 mm thickness |
| Sample Tray | 1 adjustable tray, SUS 304 |
| Tray Actuation | Motorized vertical lift mechanism |
| Circulation Fan | Dual-stage hot-air fan, Ø232 mm, SUS 316 construction |
| Temperature Controller | Digital PID controller, 0–450 °C range, LED display |
| Timer | Digital preset timer, 0–999.9 s resolution |
| Heating System | Nine external modular heating plates (1.0 kW each), total 9.0 kW |
| Heater Relay | Solid-state (contactless) relay |
| Air Velocity Control | Adjustable 1–5 m/s (default setpoint: 3 m/s) |
| Volumetric Airflow | 25 m³/min |
| Mobility | Four swivel casters with locking brakes |
| Thermal Insulation | Full-ceramic fiber blanket |
| Safety Features | Ambient air intake damper, digital over-temperature cut-off (0–450 °C), audible alarm for fault conditions, explosion-relief top safety door (instantly disconnects all power upon actuation), explosion-proof inverter-driven blower motor (1.5 kW), motor thermal protection relay, tray position lock, surface temperature monitoring probe |
| Thermal Mapping Validation | HEAT-LABBEL 9-point uniformity test compliant (±1 grid deviation on 200 mm × 300 mm reference plate |
| Net Weight | ≈800 kg |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | SNOL LXC04 1250 Series |
| Instrument Type | Horizontal Tube Furnace |
| Max Operating Temperature | 1250 °C |
| Chamber Volume | 0.2–0.5 L |
| Tube Inner Diameter | 35–58 mm |
| Tube Length (Heated Zone) | 190 mm |
| External Dimensions (W×D×H) | 500×550×525 mm |
| Power Rating | 3.7 kW |
| Net Weight | 38 kg |
| Control Interface | RS232 / RS-485 / USB |
| Temperature Uniformity | ±5 °C (within heated zone) |
| Heating/Cooling Rate | Programmable, up to 20 °C/min (heating), natural convection cooling |
| Thermal Insulation | High-purity alumina fiber ceramic insulation |
| Temperature Sensor | Type S thermocouple (calibration traceable to NIST standards) |
| Compliance | CE-marked, conforms to IEC 61000-6-3 (EMC), IEC 61000-6-2 (immunity), EN 60519-1 (safety for industrial electroheating equipment) |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Tenney |
| Pricing | Available Upon Request |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | SNOL 1100/1300 Series |
| Instrument Type | Box-Type Muffle Furnace |
| Heating Element Configuration | Vacuum-Embedded Fibre Insulation (≤1100 °C) / Ceramic Tube-Mounted Elements (≤1300 °C) |
| Control System | Microprocessor-Based PID Temperature Controller |
| Chamber Lining | High-Purity Refractory Ceramic Fibre with Low Thermal Mass |
| Floor Plate | Solid Alumina Ceramic Hearth Plate |
| Surface Finish | RAL 7035 Textured Powder Coating |
| Safety Features | Dual Independent Over-Temperature Protection, Automatic Cut-Off |
| Optional Interfaces | RS232 / RS-485 / USB for Data Logging and Remote Monitoring |
| Compliance | Designed to support GLP/GMP-aligned thermal process validation workflows |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BLUE M 7780 |
| Pricing | Available Upon Request |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

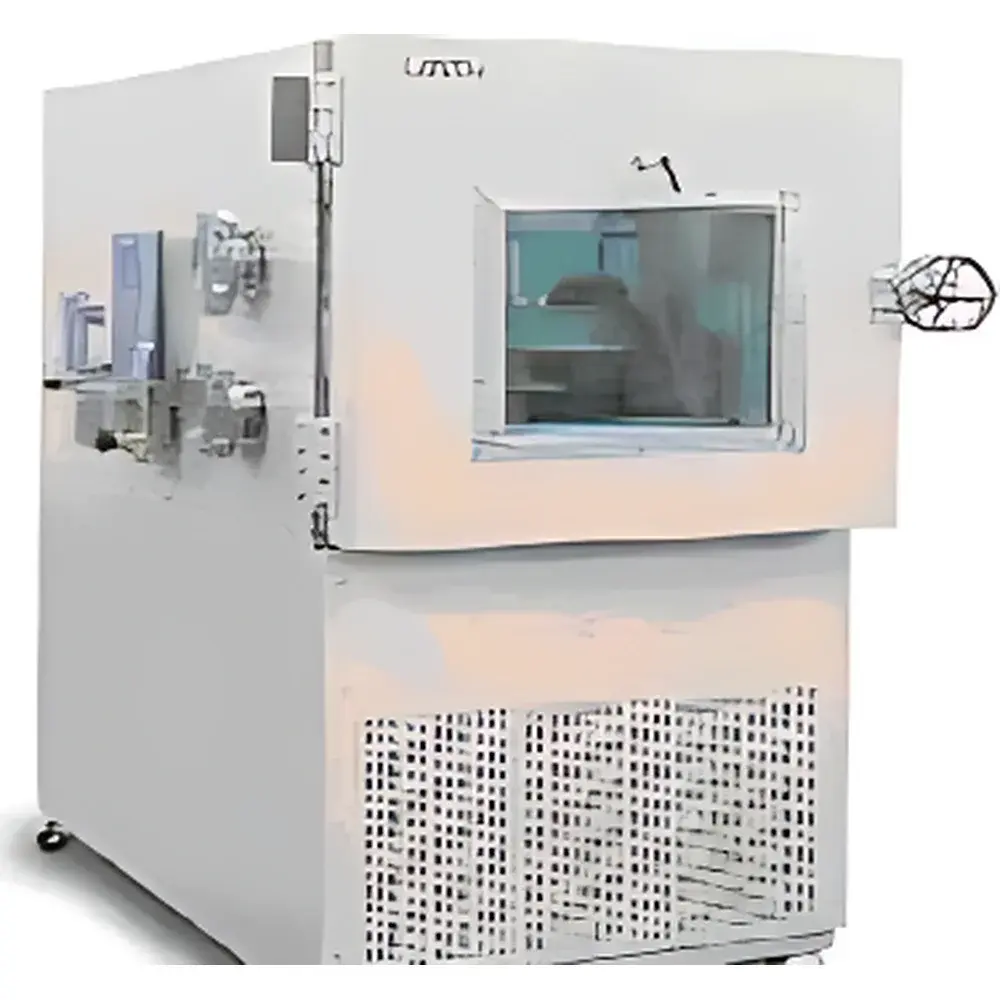

| Model | Tenneystrat |
| Pricing | Upon Request |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Tenney Vibration Test System |
| Pricing | Upon Request |
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |

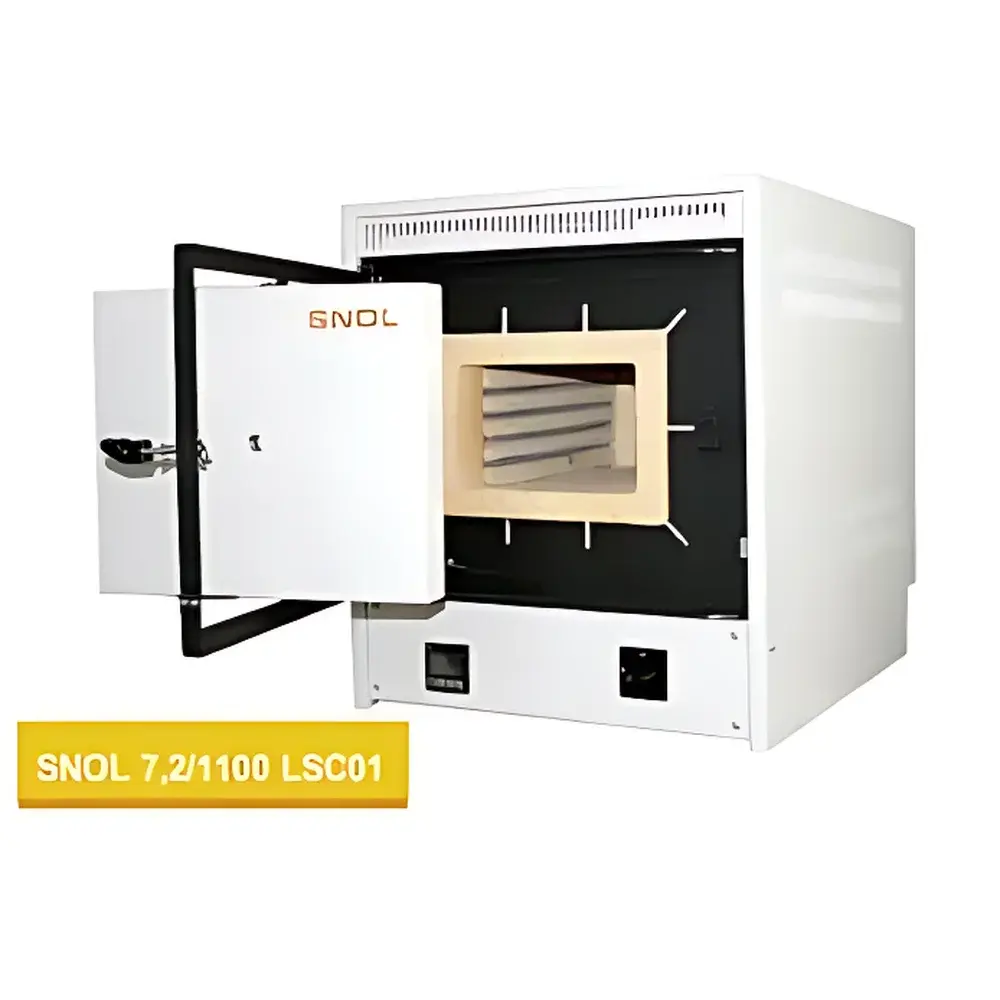

| Model Range | SNOL 4/900, 7.2/900, 12/900, 15/900 |
| Heating Configuration | Exposed heating elements (for 1100 °C and 1300 °C models) |
| Chamber Volume | 4–15 L |
| Max Operating Temperature | 900, 1100, 1200, or 1300 °C |
| External Finish | RAL 7035 textured powder coating |
| Construction | Stainless steel outer casing with solid ceramic chamber lining |
| Thermal Insulation | High-purity refractory ceramic fiber board and firebrick |
| Control System | Microprocessor-based PID temperature controller with digital timer, over-temperature protection, and process monitoring viewport (Ø35 mm, rated to 1100 °C) |
| Connectivity | RS232 / RS485 / USB interface for data logging and remote monitoring |
| Compliance | Designed to support GLP/GMP-aligned thermal processing workflows |
