| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | MG-II 7000 |
| Illumination Angle | 25° |
| Receiving Method | Integrating Sphere |
| Reflectance Range | 0.0–100.0% |
| Light Source | Halogen Lamp (5 V, 9 W) or Optional White LED |
| Measurement Time | Approx. 1 s |
| Aperture Diameter | Φ40 mm |
| Reflectance Repeatability | Standard Deviation ≤ 0.1% (10 measurements within 10 s) |
| Displayed Parameters | Reflectance (%), ΔReflectance |
| Compliance | ISO 5740 |
| Power Supply | 100 V AC, 50/60 Hz |
| Power Consumption | 40 VA (Optical Unit), 26 VA (Measurement Unit) |
| Dimensions & Weight | Optical Unit — 463 × 325 × 500 mm, 12 kg |
| Optional | Data Transfer Software |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | R800 |
| Pricing | Available Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TS-7400TH |
| Price Range | USD 42,000 – 70,000 |
| Power Supply | Single-phase AC 200 V |
| Dimensions (W×D×H) | 600 mm × 1120 mm × 1560 mm |
| Weight | 270 kg |
| Throughput | Up to 1000 kg/hr |
| Detection Capability | Sub-100 µm black specks in transparent pellets |
| Illumination | Spherical LED lighting system |
| Camera Type | Linear CCD monochrome camera |
| Pixel Count | 7400 pixels |
| Minimum Resolvable Feature Size | 40 µm |
| Feed System | Vibratory feeder |
| Transport System | Drum-type conveyor |
| Separation Mechanism | Velocity-differential ejection via feed drum coordination |
| Ejection | 16-channel solenoid valves |
| Human-Machine Interface | 8.4-inch color touch panel |
| Optional | PC-based monitoring and data logging system |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DOT-41 |
| Price Range | USD 70,000 – 112,000 (FOB Japan) |
| Optical Configuration | Dual-beam, integrating sphere |
| Wavelength Range | 380–780 nm (standard) |
| Wavelength Interval Options | 1, 5, 10, 20, or 50 nm |
| Sensitivity Enhancement | Optional 100× gain module for low-transmittance and polarization degree measurement |
| Sample Chamber Depth | 15 cm from optical axis to sample stage |
| Maximum Sample Width | 30 cm (centered on stage) |
| Illumination Geometry | Diffuse illumination via integrating sphere |
| Polarization Measurement Capability | Yes, with crossed-Nicol configuration |
| Calibration Method | Manual SPAN knob adjustment |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | VG Series |
| Light Source | White LED |
| Measurement Angles | 20°, 45°, 60°, 75°, 85° |
| Compliance | ISO 8254-1, ISO 8254-3, ISO 2813, ISO 7668, JIS Z 8741, JIS P 8142, ASTM D523, ASTM D1223, TAPPI T480, TAPPI T653, DIN 67530 |
| Measurement Aperture | 14 mm × 45 mm |
| Measurement Range (GU) | 20°: 0.1–2038 |
| 45° | 0.1–1675 |
| 60° | 0.1–1000 |
| 75° | 0.1–378 |
| 85° | 0.1–162 |
| Repeatability | ±0.1% after 30-min warm-up (23 °C, standard white tile, 20 measurements at 10-s intervals) |
| Measurement Time | ~1 s (single angle), ~2 s (dual angle), ~4 s (full 5-angle scan) |
| Operating Environment | 10–40 °C, 30–80% RH (non-condensing) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | 20 W |
| Optical Unit Dimensions | 483 × 157 × 240 mm (W×D×H) |
| Control Unit Dimensions | 220 × 255 × 100 mm (W×D×H) |
| Weight | ~13 kg |
| Detector | High-sensitivity silicon photodiode |
| Interface | RS-232C |
| Origin | Taiwan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Production | Yes |
| Model | YT-669 |
| Price Range | USD 28,000 – 42,500 |
| Light Source | 100 W halogen lamp |
| Illuminated Area | 140 mm × 110 mm |
| Detector | Photopic-response-calibrated CCD sensor |
| Operating System | Windows 10 embedded industrial PC |
| Software | Integrated transmittance analysis suite with report generation and data logging |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TS-7500C |
| Price Range | USD 42,000 – 70,000 |
| Power Supply | Single-phase AC 200 V |
| Dimensions (W×D×H) | 600 mm × 1120 mm × 1560 mm |
| Weight | 270 kg |
| Throughput | Up to 1000 kg/hr |
| Illumination | Spherical LED lighting |
| Camera Type | Linear CCD full-color RGB camera |
| Effective Resolution | ≤40 µm |
| Feed Mechanism | Vibratory feeder + roller conveyor |
| Particle Separation Principle | Velocity-differential separation between feeder and roller |
| Ejection | 20-channel solenoid valves |
| Human-Machine Interface | 8.4-inch color touch panel |
| Optional | PC-based remote monitoring system |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | TZ-6000 |
| Light Source | 12 V / 4 A Halogen Lamp (20 W) |
| Illumination/Viewing Geometry | n-D (Normal-Diffuse, optimized for transmittance) |
| Aperture | 14 mm × 45 mm |
| Measurement Area | 7 mm Ø (illuminated), 20 mm Ø (incident port) |
| Compliance | JIS Z 8722, JIS Z 8729, JIS Z 8730, JIS Z 8715, ASTM E 308, ASTM E 313, ASTM D 1925, ISO 7724, CIE Publication No. 15.2 |
| Accuracy | ΔE* ≤ ±0.02 (std. dev., measured 20× on white reference after 20-min warm-up) |
| Interface | RS-232C |
| Dimensions | 425 mm (W) × 415 mm (D) × 189 mm (H) |
| Weight | 13 kg |
| Power | 100–240 V AC, 50/60 Hz, 140 W |
| Operating Environment | 10–40 °C, 30–80 % RH (non-condensing) |
| Origin | Taiwan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Regional Origin | Asia-Pacific |
| Model | YT680 |
| Pricing | Available Upon Request |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | PG-2M |
| Measurement Angles | 20°, 60°, 85° |
| Measurement Range | 0.0–2000 GU |
| Accuracy | ±1 GU (0.0–199.9 GU), ±10 GU (200–2000 GU) |
| Repeatability | ±1 GU |
| Spot Size | 20°: 10.0 × 10.6 mm |
| 60° | 10.0 × 20.0 mm |
| 85° | 10.0 × 40.1 mm |
| Power Supply | 9 V alkaline battery (1×) |
| Dimensions | 150 × 49 × 80 mm |
| Weight | 0.42 kg (without battery) |
| Light Source | 5 V / 125 mA halogen lamp |
| Interface | RS-232C |
| Compliance | JIS Z 8722, JIS K 5400, ISO 2813, ISO 7688, ASTM D 523, ASTM D 2457, DIN 67530, TAPPI T 480 |
| Origin | Taiwan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Production Status | PRC-assembled |
| Model | YT-669 |
| Price Range | USD 14,000 – 28,000 |
| CCD Sensor | Photopic Luminosity-Weighted (CIE V(λ)-matched) |
| Light Source | 100 W Tungsten-Halogen Lamp |
| Illumination Area | 140 mm × 110 mm |
| Operating System | Windows 10 IoT Enterprise |
| Data Storage | Local SSD + CSV/PDF Export |
| Measurement Points | Configurable 3×3 grid (9-point) or user-defined multi-point array |
| Fixture Options | Integrated eyeglass frame holder + adjustable bare-lens stage (interchangeable) |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | R750 |
| Pricing | Available Upon Request |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | MG-II 400 |
| Light Source | Halogen lamp (5 V, 9 W) or optional white LED |
| Incident Angle | 25° |
| Detection Method | Integrating sphere |
| Measurement Aperture | Φ40 mm |
| Reflectance Range | 0.0–100.0% |
| Repeatability | Standard deviation ≤ 0.1% (10 consecutive measurements at 10 s intervals) |
| Measurement Time | Approx. 1 s |
| Compliance | JIS D 5705, ISO 5740 |
| Power Supply | 100 V AC, 50/60 Hz |
| Power Consumption | 40 VA (optical unit), 26 VA (measurement unit) |
| Dimensions (Optical Unit) | 215 × 430 × 205 mm (W×D×H), 12 kg |
| Dimensions (Measurement Unit) | 350 × 360 × 110 mm (W×D×H), 5 kg |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DOT-7 |
| Price Range | USD 42,000 – 70,000 |
| Light Source | Broadband White LED |
| Spectral Range | 380–720 nm (standard), 390–730 nm (optional) |
| Wavelength Interval | 10 nm |
| Sensitivity Adjustment | Auto-Gain Calibration |
| Optical Configuration | Dual-Beam with Top-Illumination Integrating Sphere |
| Sample Thickness Capacity | Up to 30 mm |
| Polarization Measurement Capability | Crossed-Nicol configuration supported |
| Detection Sensitivity | 10× higher than predecessor model (DOT-6) |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | AccuDot |
| Pricing | Upon Request |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Model | T5 Plus |
| Measurement Range | 0.00–6.00 D (Optical Density) |
| Transmittance | 100.0% to 0.0001% |
| Dot Area | 0.0–100.0% |
| Aperture Sizes | φ1 mm, φ2 mm, φ3 mm |
| Repeatability | ±0.01 D (at <4.0 D, φ3 mm aperture) |
| Accuracy | ±0.02 D (at <4.0 D, φ3 mm aperture) |
| Light Source | Halogen lamp |
| Detector | Filter-integrated photodiode |
| Optical Standard | ANSI PH2.19 (specular reflection geometry) |
| Interface | RS-232C (9600 bps, 8 data bits, no parity, 1 stop bit) |
| Operating Temperature | 5–40 °C |
| Dimensions (unit) | 251 × 103 × 125 mm |
| Light Table Area | 80 × 70 mm |
| Arm Length | 185 mm |
| Weight | ~1.2 kg |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | DOT-3C |
| Price Range | USD 42,000 – 70,000 |
| Light Source | Tungsten-Halogen Lamp |
| Spectral Range | 380–720 nm (standard), 390–730 nm (optional) |
| Wavelength Interval | Fixed at 10 nm |
| Calibration & Sensitivity Adjustment | Manual SPAN Knob |
| Sample Height Limit | ≤30 mm |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | MG-I 7000 |
| Illumination Angle | 25° |
| Receiving Angle | 25° |
| Standard Calibration Geometry | 0°–0° |
| Reflectance Range | 0.0–100.0% |
| Light Source | 5 V, 9 W Halogen Lamp (White LED optional) |
| Measurement Time | Approx. 1 s |
| Aperture Diameter | Φ40 mm |
| Reflectance Repeatability | Standard Deviation ≤ 0.1% (10 consecutive measurements within 10 s) |
| Display | Reflectance (%), ΔReflectance (%) |
| Compliance | ISO 5740 |
| Power Supply | 100 V AC, 50/60 Hz |
| Optical Unit | 40 VA, Measurement Unit: 26 VA |
| Dimensions (Optical Unit) | 463 mm (W) × 325 mm (D) × 500 mm (H), 19 kg |
| Dimensions (Measurement Unit) | 350 mm (W) × 360 mm (D) × 110 mm (H), 5 kg |
| Optional | Data Transfer Software, LED Light Source Module |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | SD7000 |
| Illumination/Viewing Geometry | d/8° (SCI & SCE) and D/0° (transmittance) |
| Spectral Range | 380–780 nm |
| Interval | 5 nm |
| Measurement Time | ~3 s (SCI/SCE) |
| Aperture Options | LAV (Ø19 mm / Ø25.4 mm), MAV (Ø8 mm / Ø12.7 mm), SAV (Ø3 mm / Ø6.4 mm) |
| Detector | CMOS linear image sensor |
| Light Source | Pulsed xenon lamp |
| Reflectance Accuracy | σ < 0.1% (standard white tile, 30 measurements in 10 s) |
| Color Difference Repeatability | ΔE*ab σ < 0.01 |
| Compliance | JIS Z8715, Z8722, Z8729, Z8730 |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions | 316 × 462 × 251 mm (W×D×H) |
| Weight | 14 kg (main unit only) |
| Optional | CUII controller |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | R700 |
| Pricing | Available Upon Request |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Model | TM-5 |
| Measurement Principle | Optical Transmission Densitometry (ANSI PH2.19 compliant) |
| Measuring Apertures | φ3 mm, φ2 mm, φ1 mm |
| Density Range | 0.0–6.0 D |
| Repeatability | ±0.01 D (0–5.0 D) |
| Instrumental Accuracy | ±0.02 D (0–4.0 D), ±0.03 D (4.0–5.0 D) |
| Operating Temperature | 5–40 °C |
| Light Source | Halogen Lamp |
| Detector | Filtered Photodiode Assembly |
| Output Interface | RS-232C |
| Data Storage Capacity | 100 measurements |
| Included Accessories | Calibration Films (Glossy, φ3/φ2/φ1 mm), AC Adapter (9 V, 500 mA), Instruction Manual |
| Optional | Communication Cable, Replacement Case |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Model | R710 |
| Type | Handheld Reflective Densitometer |
| Display | Graphical LCD with bilingual (English/Japanese) UI |
| Power | Rechargeable internal battery + AC adapter (9 V, 500 mA) — measurement possible during charging |
| Accessories Included | Calibration plate, instruction manual, soft carrying case |
| Optional | Communication cable |
| Compliance | Designed for ISO 5-3, ISO 2846-1, and ASTM E284-compliant reflective density measurement in print quality control |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SR-5100 |
| Price Range | USD 13,500 – 27,000 |
| Brand | X-Rite |
|---|---|
| Origin | Japan |

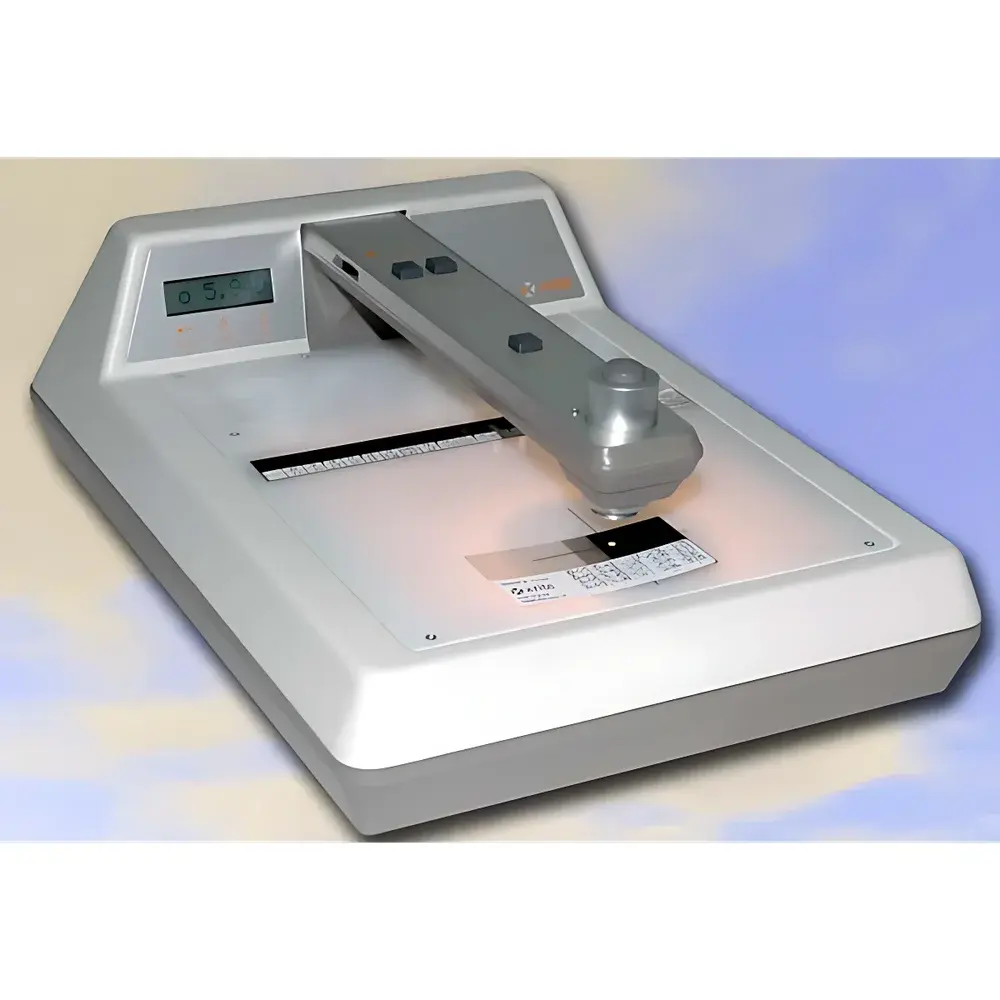

| Model | 361T (V) |
| Optical Response | ISO Visual (Photopic) |
| Measurement Range | 0–6.0 D (OD) |
| Accuracy | ±0.01 D (0–5.0 D), ±2% (5.0–5.5 D), ±3% (5.5–6.0 D) |
| Zero Stability | ±0.02 D / 8 h |
| Aperture Sizes | Φ1 mm, Φ2 mm, Φ3 mm |
| Warm-up Time | 2 min (visible), 5 min (UV) |
| Power Supply | 90–130 V AC, ≤80 W |
| Operating Temperature | 10–35 °C, non-condensing |
| Dimensions | H152 × W330 × D435 mm |
| Weight | 8.63 kg |
Show next
