| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | MG-II 7000 |
| Illumination Angle | 25° |
| Receiving Method | Integrating Sphere |
| Reflectance Range | 0.0–100.0% |
| Light Source | Halogen Lamp (5 V, 9 W) or Optional White LED |
| Measurement Time | Approx. 1 s |
| Aperture Diameter | Φ40 mm |
| Reflectance Repeatability | Standard Deviation ≤ 0.1% (10 measurements within 10 s) |
| Displayed Parameters | Reflectance (%), ΔReflectance |
| Compliance | ISO 5740 |
| Power Supply | 100 V AC, 50/60 Hz |
| Power Consumption | 40 VA (Optical Unit), 26 VA (Measurement Unit) |
| Dimensions & Weight | Optical Unit — 463 × 325 × 500 mm, 12 kg |
| Optional | Data Transfer Software |
| Brand | Ihara Electronic |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | R800 |
| Pricing | Available Upon Request |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | SD5000 |
| Instrument Type | Benchtop |
| Light Source | 12 V / 50 W Halogen Lamp |
| Spectral Range | 380 nm – 780 nm |
| Spectral Interval | 5 nm |
| Illumination/Viewing Geometry | d/8° (Diffuse/8°) and D/0° (Diffuse/0°) configurable |
| SCI/SCE Modes | Motorized, automatic switching |
| Measurement Apertures | Reflectance – 6 mm, 10 mm, 28 mm Ø |
| Integrating Sphere Diameter | 150 mm |
| Detector | 256-element CCD image sensor |
| Optical System | Post-dispersion via diffraction grating |
| Measurement Method | Dual-beam (sample/reference) |
| Compliance | JIS Z 8722, ISO 7724-1/2/3, ASTM E308, ASTM E313, ASTM D2244, DIN 5033 |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TS-7400TH |
| Price Range | USD 42,000 – 70,000 |
| Power Supply | Single-phase AC 200 V |
| Dimensions (W×D×H) | 600 mm × 1120 mm × 1560 mm |
| Weight | 270 kg |
| Throughput | Up to 1000 kg/hr |
| Detection Capability | Sub-100 µm black specks in transparent pellets |
| Illumination | Spherical LED lighting system |
| Camera Type | Linear CCD monochrome camera |
| Pixel Count | 7400 pixels |
| Minimum Resolvable Feature Size | 40 µm |
| Feed System | Vibratory feeder |
| Transport System | Drum-type conveyor |
| Separation Mechanism | Velocity-differential ejection via feed drum coordination |
| Ejection | 16-channel solenoid valves |
| Human-Machine Interface | 8.4-inch color touch panel |
| Optional | PC-based monitoring and data logging system |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

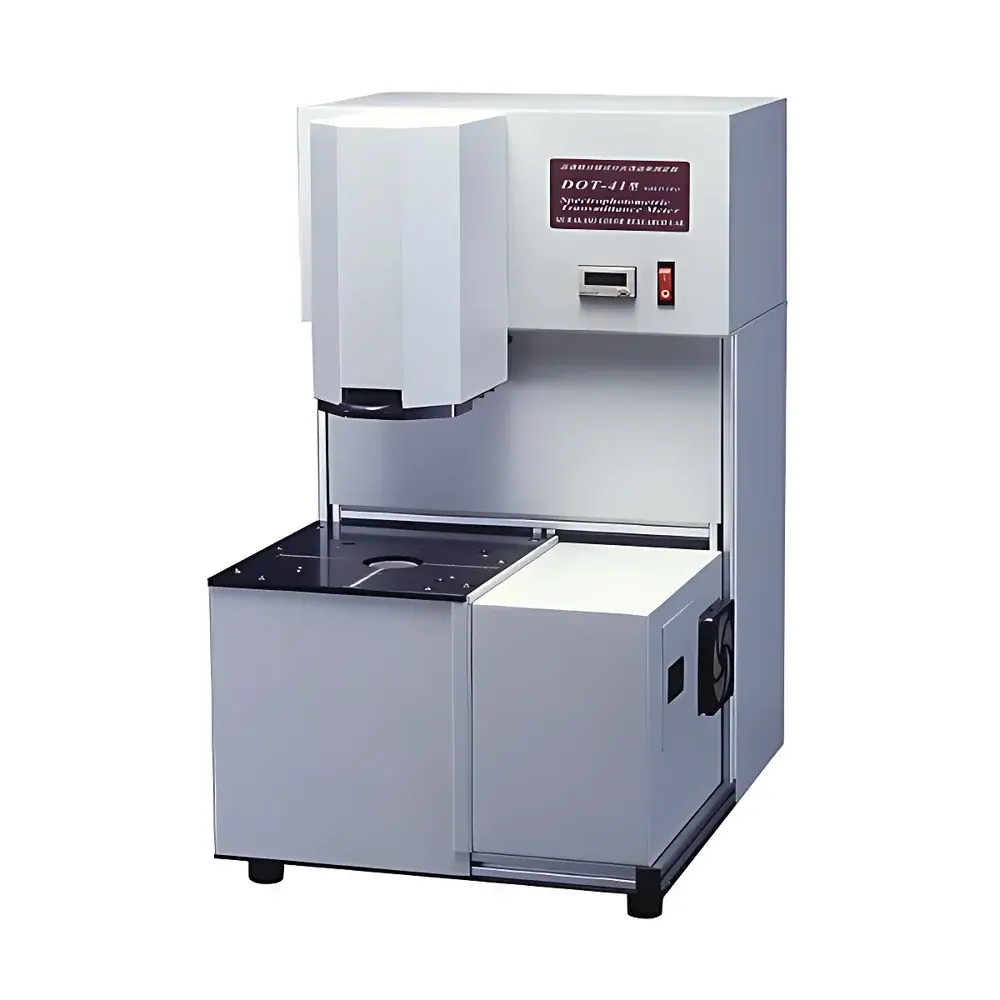

| Model | DOT-41 |
| Price Range | USD 70,000 – 112,000 (FOB Japan) |
| Optical Configuration | Dual-beam, integrating sphere |
| Wavelength Range | 380–780 nm (standard) |
| Wavelength Interval Options | 1, 5, 10, 20, or 50 nm |
| Sensitivity Enhancement | Optional 100× gain module for low-transmittance and polarization degree measurement |
| Sample Chamber Depth | 15 cm from optical axis to sample stage |
| Maximum Sample Width | 30 cm (centered on stage) |
| Illumination Geometry | Diffuse illumination via integrating sphere |
| Polarization Measurement Capability | Yes, with crossed-Nicol configuration |
| Calibration Method | Manual SPAN knob adjustment |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | VG Series |
| Light Source | White LED |
| Measurement Angles | 20°, 45°, 60°, 75°, 85° |
| Compliance | ISO 8254-1, ISO 8254-3, ISO 2813, ISO 7668, JIS Z 8741, JIS P 8142, ASTM D523, ASTM D1223, TAPPI T480, TAPPI T653, DIN 67530 |
| Measurement Aperture | 14 mm × 45 mm |
| Measurement Range (GU) | 20°: 0.1–2038 |
| 45° | 0.1–1675 |
| 60° | 0.1–1000 |
| 75° | 0.1–378 |
| 85° | 0.1–162 |
| Repeatability | ±0.1% after 30-min warm-up (23 °C, standard white tile, 20 measurements at 10-s intervals) |
| Measurement Time | ~1 s (single angle), ~2 s (dual angle), ~4 s (full 5-angle scan) |
| Operating Environment | 10–40 °C, 30–80% RH (non-condensing) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | 20 W |
| Optical Unit Dimensions | 483 × 157 × 240 mm (W×D×H) |
| Control Unit Dimensions | 220 × 255 × 100 mm (W×D×H) |
| Weight | ~13 kg |
| Detector | High-sensitivity silicon photodiode |
| Interface | RS-232C |
| Origin | Taiwan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Domestic Production | Yes |

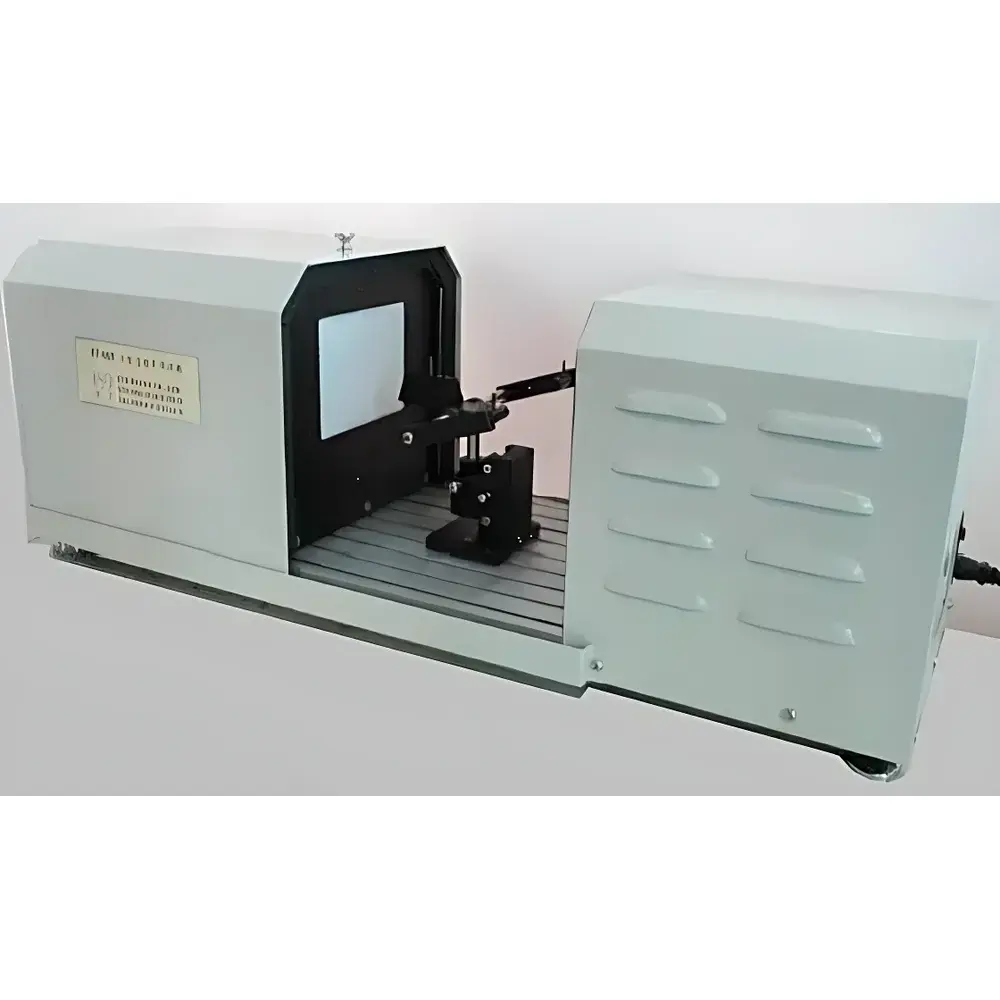

| Model | YT-669 |
| Price Range | USD 28,000 – 42,500 |
| Light Source | 100 W halogen lamp |
| Illuminated Area | 140 mm × 110 mm |
| Detector | Photopic-response-calibrated CCD sensor |
| Operating System | Windows 10 embedded industrial PC |
| Software | Integrated transmittance analysis suite with report generation and data logging |
| Origin | Netherlands |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VF0600 / VF1200 |
| Price Range | USD 6,800 – 13,600 |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | D25/DP-9000 |
| Pricing | Upon Request |
| Key | Origin: Guangdong, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China-made) |
| Model | T60(5) |
| Voltage Options | 220 V / 50 Hz or 115 V / 60 Hz |
| Light Sources | D65 (6500 K, 18 W), TL84 (4000 K, 18 W), CWF (4150 K, 20 W), F (F-type incandescent, 40 W), UV (365 nm peak, 15 W) |
| Quantity per Source | D65×2, TL84×2, CWF×2, F×4, UV×1 |
| Dimensions (W×D×H) | 710 × 405 × 570 mm |
| Weight | 30 kg |
| Compliance | Meets ISO 3664:2009, ASTM D1729–19, and CIE Publication No. 51 for color evaluation lighting |
| Optional Accessories | Diffuser panel, 45° standard viewing台, spare lamp kit |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | COH7700 |
| Product Type | Spectrophotometric Color & Haze Analyzer |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | White LED |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
| Integrating Sphere Diameter | Ø150 mm |
| Measurement Principle | Dual-beam, post-dispersion spectrophotometry |
| Detector | Silicon photodiode array |
| Display | 5.7-inch color TFT LCD |
| Measurement Time | ~5 s (color only), ~10 s (simultaneous color + haze) |
| Sample Compartment | Open-type sliding drawer (120 mm × 120 mm) |
| Compliance Standards | ASTM D1003, ASTM D5386, ASTM D6166, ISO 13468, ISO 14782, JIS K7136, JIS K7361-1, JIS Z8722, GB/T 2410, GB/T 6324.6 |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IG-331 |
| Pricing | Available Upon Request |
| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Product Type | Portable |
| Measurement Range | 0–2000 NTU |
| Resolution | 0.01 NTU (0.00–19.99 NTU), 0.1 NTU (20.0–199.9 NTU), 1 NTU (200–2000 NTU) |
| Operating Temperature | 0–50 °C |
| Accuracy | ±0.02 NTU or ±2% (0.00–1000 NTU) |
| Calibration Points | Up to 4 (0.02, 20, 100, 800 NTU) |
| IP Rating | IP67 |
| Display | Backlit monochrome LCD |
| Data Storage | 2000 measurements with timestamp |
| Light Source | 860 nm infrared LED |
| Detector | Silicon photodiode |
| Sample Volume | 10 mL |
| Power | 4×AA batteries |
| Dimensions | 210 × 110 × 55 mm |
| Weight | 510 g (with batteries), 410 g (without) |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | MiniScan XE Plus |
| Pricing | Upon Request |
| Geometry | 45°/0° and Integrating Sphere |
| LAV Aperture (mm) | 31.8 / 25.0 |
| SAV Aperture (mm) | 6.0 / 14.3 / 6.0 (VSAV) |
| Observation Area (mm) | 25.0 / 5.0 / 20.0 / 8.0 / 4.0 |
| Repeatability (ΔE* on BCRA II) | 0.05 / 0.25 / 0.15 / 0.15 / 0.15 |
| Spectral Range | 400–700 nm |
| Wavelength Resolution | <3 nm |
| Effective Bandpass | <12 nm (Triangular) |
| Reporting Interval | 10 nm |
| Photometric Range | 0–150% |
| Light Source | Pulsed Xenon Lamp |
| Lamp Lifetime | >500,000 flashes |
| Display | 6.4 cm × 6.4 cm LCD |
| Display Orientation | 0°, 90°, 180°, 270° |
| Power | Rechargeable NiCd Battery or 120/220 VAC Adapter |
| Dimensions (W×H×L) | 10.2 cm × 12.7 cm × 25.4 cm |
| Weight | 1.3 kg (3.0 lb) |
| Color Spaces | CIE L*a*b*, L*C*h°, XYZ, Yxy, Hunter Lab, FMC II |
| Color Difference Metrics | ΔE*, ΔE(CMC), ΔE(ISO 11664-4), ΔL*, ΔC*, ΔH*, ΔZ%, Lightness, Metamerism Index (MI), ISO Gray Scale (Method 5-5-5), Hue Classification Code |
| Illuminants | A, C, D65, F2, F7, F11 (TL84), F12 |
| Observers | 2° and 10° Standard Observer |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | NE5500 |
| Instrument Type | Benchtop |
| Optical Geometry | 8°/diffuse (d) for reflectance |
| Light Source | White LED (rated lifetime: 20,000 h) |
| Spectral Range | 400–700 nm (10 nm interval) |
| Repeatability | ΔE*ab ≤ 0.03 |
| Measurement Time | ~6.5 s |
| Aperture Options (Reflectance) | LAV Φ22 mm (Φ28 mm), MAV Φ6 mm (Φ10 mm), SAV Φ4 mm (Φ6 mm) |
| Aperture (Transmittance) | Φ12 mm |
| Display | 5.7-inch TFT color LCD |
| Data Storage | Internal memory (100 reference + 2,000 measurement records), SD card (FAT32), CSV export |
| Interfaces | USB, parallel port, SD slot |
| Operating Environment | 15–35 °C, ≤80 % RH (non-condensing) |
| Power | AC 100–240 V, 50/60 Hz, ≤25 VA |
| Dimensions & Weight | 425 × 350 × 188 mm, ~8 kg |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ColorQuest XE |
| Pricing | Available Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VSR-300A |
| Pricing | Available Upon Request |
| Measurement Areas | Φ0.05 mm, Φ0.1 mm, Φ0.2 mm, Φ0.5 mm |
| Illumination/Reception Geometry | 45°–0° (45° annular illumination, perpendicular detection) |
| Sample Stage Travel Range | X: 120 mm, Y: 90 mm, Z: 50 mm |
| Light Source | 12 V / 4 A Halogen Lamp |
| Detector | Color CCD Camera |
| Compliance Standards | JIS Z 8722, ASTM E 308 |
| Display | 14" Color Monitor |
| Power Consumption | 90 W AC |
| Optical Unit Dimensions | 360 × 360 × 460 mm (W × D × H) |
| Measurement Unit Dimensions | 350 × 360 × 110 mm (W × D × H) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | NR-1 |
| Pricing | Upon Request |
| Measurement Geometry | 0°/45° (JIS Z 8722 compliant) |
| Measured Color Spaces | CIELAB (ΔL* a* b*), CIELCH (ΔL* C* H*), ΔE*ab, ΔEab, ΔLab |
| Pass/Fail Threshold Evaluation | User-definable ΔE*ab or ΔEab |
| Aperture Size | Φ10 mm |
| Illuminant | Tungsten Halogen Lamp (3 V / 1.5 A) |
| Repeatability (ΔE*ab) | ≤0.1 (based on SD of 20 measurements on certified white reference tile) |
| Dimensions (W × D × H) | 200 × 70 × 68 mm |
| Weight | 0.6 kg |
| Power Supply | AC adapter (400 mW) |
| Optional Accessories | Windows-compatible data acquisition & analysis software, RS-232C interface cable, thermal printer |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DDS-5000 |
| Pricing | Available Upon Request |
| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Model | HU-200TB |
| Type | Online Turbidimeter |
| Measurement Range | 0–1000 NTU |
| Resolution | 0.01 NTU |
| Operating Ambient Temperature | ±25 °C |
| Accuracy | ±1% of reading |
| Optical Configuration | Quadruple-light-path detection system |
| Compliance | Designed for continuous process monitoring in water treatment and environmental applications |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TS-7500C |
| Price Range | USD 42,000 – 70,000 |
| Power Supply | Single-phase AC 200 V |
| Dimensions (W×D×H) | 600 mm × 1120 mm × 1560 mm |
| Weight | 270 kg |
| Throughput | Up to 1000 kg/hr |
| Illumination | Spherical LED lighting |
| Camera Type | Linear CCD full-color RGB camera |
| Effective Resolution | ≤40 µm |
| Feed Mechanism | Vibratory feeder + roller conveyor |
| Particle Separation Principle | Velocity-differential separation between feeder and roller |
| Ejection | 20-channel solenoid valves |
| Human-Machine Interface | 8.4-inch color touch panel |
| Optional | PC-based remote monitoring system |
| Brand | NIPPON DENSHOKU |
|---|---|
| Origin | Japan |
| Model | TZ-6000 |
| Light Source | 12 V / 4 A Halogen Lamp (20 W) |
| Illumination/Viewing Geometry | n-D (Normal-Diffuse, optimized for transmittance) |
| Aperture | 14 mm × 45 mm |
| Measurement Area | 7 mm Ø (illuminated), 20 mm Ø (incident port) |
| Compliance | JIS Z 8722, JIS Z 8729, JIS Z 8730, JIS Z 8715, ASTM E 308, ASTM E 313, ASTM D 1925, ISO 7724, CIE Publication No. 15.2 |
| Accuracy | ΔE* ≤ ±0.02 (std. dev., measured 20× on white reference after 20-min warm-up) |
| Interface | RS-232C |
| Dimensions | 425 mm (W) × 415 mm (D) × 189 mm (H) |
| Weight | 13 kg |
| Power | 100–240 V AC, 50/60 Hz, 140 W |
| Operating Environment | 10–40 °C, 30–80 % RH (non-condensing) |
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Model | ColorQuest XT |
| Product Type | Color Difference Meter |
| Instrument Type | Benchtop |
| Light Source / Observer | C/2°, D65/10° |
| Color Spaces | CIE L*a*b*, Hunter Lab, Yxy, XYZ and ΔE*ab, ΔE00 |
| Color Scales | ASTM D1209 (APHA/PtCo/Hazen), ASTM E313 (Yellowness Index), ASTM D6166 (Gardner), ASTM D156 (Saybolt), ASTM D1500 (ASTM Color), ASBC, EBC, ADMI, Y Transmittance |
| Measurement Modes | Total and Directional Transmittance |
| Transmission Chamber Dimensions | 10.2 cm (D) × 35.6 cm (W) × 16.5 cm (H) |
| Display | Backlit LCD with capacitive touchscreen |
| Optical System | Dual-beam spectrophotometer |
| Spectral Range | 400–700 nm |
| Wavelength Interval | 10 nm |
| Effective Bandwidth | 10 nm (triangular) |
| Light Source | Pulsed xenon lamp |
| Lamp Lifetime | >1,000,000 flashes |
| Measurement Time | <1.5 s |
| Inter-measurement Interval | ≥3 s |
| Compliance Standards | CIE No. 15.2, ASTM E1164, ASTM D5386, DIN 5033 |
| Communication Interface | RS-232C (D-sub 9-pin female) |
| Operating Environment | 10–40 °C, 10–90% RH (non-condensing) |
| Storage Environment | −21–66 °C, 10–90% RH (non-condensing) |
| Power Supply | 100–240 VAC, 47–63 Hz |
| Power Consumption | 60 W (standby), 120 W (continuous) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | COH400 |
| Pricing | Available Upon Request |
Show next
