| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Thermemcmastor-Z, 300 kN, 1000 mm/s |
| Max. Load | 300 kN |
| Max. Strain Rate | 1 × 10⁻³ to 1 × 10³ mm/s |
| Heating Methods | High-Frequency (HF) Induction + Low-Frequency (LF) Direct Resistance |
| Temperature Range | RT to 1600 °C (material-dependent) |
| Cooling Media | He, Ar, N₂, or Water |
| Max. Cooling Rate | 500 °C/s (water, φ8×12 mm specimen) |
| Expansion Measurement | Non-contact GaN LED shadow method, ±3 µm accuracy |
| Atmosphere Control | Vacuum (≤5 × 10⁻² Torr), inert gas, or ambient air |
| Control Precision | ±0.1 mm (displacement), ±3 °C (temperature), ±2 kgf/mm² (load) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

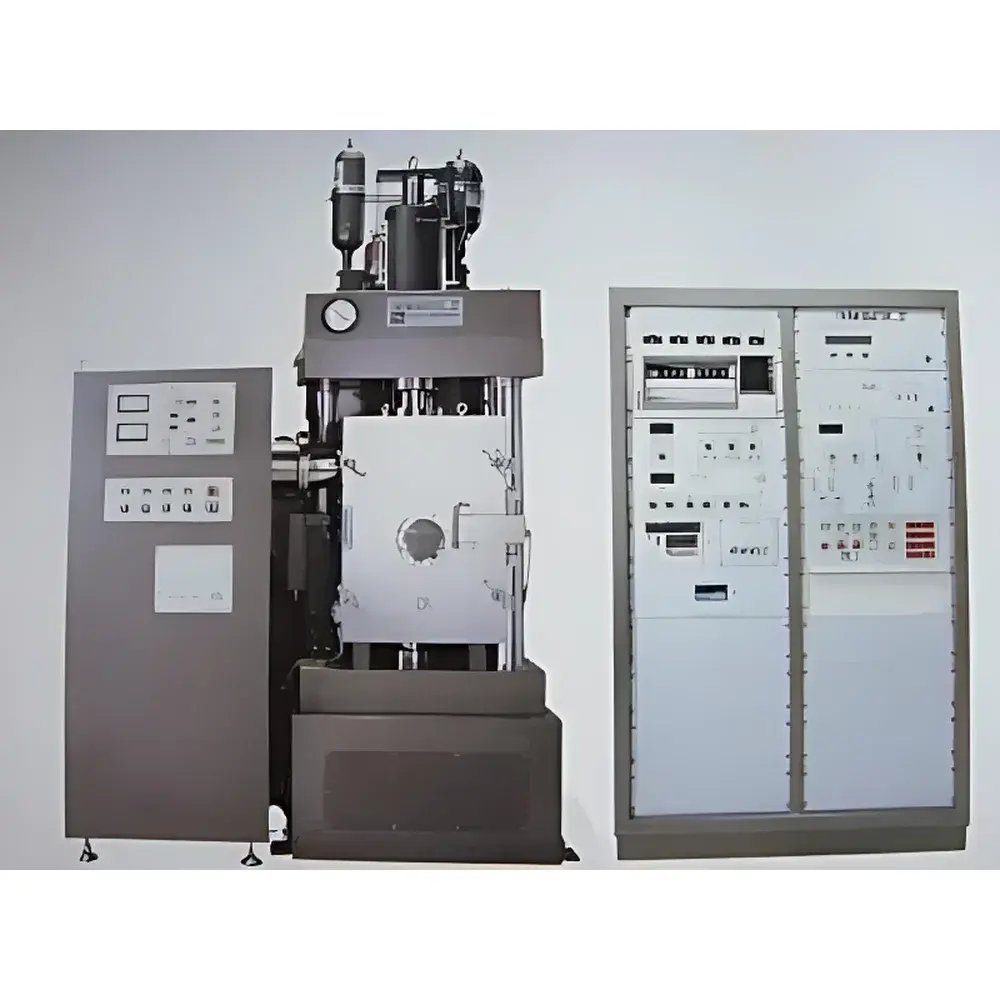

| Model | Thermecmaster-Z, 100 kN, 1000 mm/s |
| Max. Load Capacity | 100 kN |
| Heating Range | RT to 1600 °C |
| Max. Heating Rate | 70 °C/s (tensile specimen) |
| Max. Cooling Rate | 300 °C/s (water quench, tensile) |
| Temperature Control Accuracy | ±3 °C (static) |
| Uniform Temperature Zone | ±5 mm from specimen center (all modes) |
| Atmosphere Control | Vacuum (≤1.3×10⁻² Pa), N₂, Ar, He |
| Cooling Media | Inert gas or deionized water |
| Loading Speed Range | 1×10⁻³ to 1×10³ mm/s |
| Stroke | 100 mm |
| Control Modes | Displacement, Load, and Hybrid (switching time: 1 ms) |
| Data Acquisition | Synchronized LED-based non-contact dilatometry, real-time load/displacement/temperature logging |
| Origin | Japan |
|---|---|
| Supplier Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | HS-Heat |
| Price | USD 950,000 (FOB Yokohama) |
| Specimen Thickness | 0.2–3.2 mm |
| Specimen Width | 30–200 mm |
| Specimen Length | 200–300 mm |
| Electrical Supply | 45–150 kVA, 50/60 Hz (Secondary Voltage: 6–24 V) |
| Max. Heating Temperature | 1400 °C |
| Max. Heating Rate | 500 °C/s |
| Cooling Media | Compressed Air, Nitrogen, Water Mist, Direct Spray |
| Cooling Rate Range | 0.1–1000 °C/s |
| Tensile Load Capacity | 50 kN |
| Actuator Stroke | 50 mm |
| Anti-Buckling Mechanism | Hydraulic Preload System |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | PHI 700 SAM |
| Price | Upon Request |
| Detection Limit | 0.1 at.% |
| Minimum Probe Spot Size | 6 nm |
| Information Depth | ≤ 5 nm |
| Elemental Coverage | All elements except H and He |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Thermecmaster-TS |
| Price | USD 940,000 (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | kSA400 RHEED |
| Pricing | Available Upon Request |
| Compliance | RoHS Directive 2011/65/EU |
| Beam Energy Range | 10–30 keV |
| Incidence Angle | < 5° (grazing incidence) |
| Emission Current | Standard Mode / Low-Emission Mode (MCP-enhanced, ~0.02–0.35% of conventional RHEED current) |
| Origin | Japan |
|---|---|
| Manufacturer | Fuji Denpa Co., Ltd. |
| Type | Imported Industrial Sintering System |
| Model | HIGH-MULTI-5000 / HIGH-MULTI-10000 |
| Maximum Pressing Force | 5,000 kN (HIGH-MULTI-5000) / 10,000 kN (HIGH-MULTI-10000) |
| Operating Modes | Vacuum Sintering, Controlled-Atmosphere Sintering, Hot Pressing (Manual & Automated) |
| Temperature Range | Up to 2,200 °C |
| Vacuum Level | ≤5 × 10⁻³ Pa |
| Heating Method | Graphite or Molybdenum Heater with PID-Controlled Zoning |
| Chamber Dimensions (Typical) | Ø300 × H400 mm (5,000 kN variant) |
| Compliance | ISO 9001–certified manufacturing |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Thermecmaster-W |
| Price | USD 1.4M (FOB Yokohama) |
| Sample Geometry | Cylindrical Ø8–10 mm × L140–200 mm |
| Heating System | Dual-mode — High-frequency induction (15 kW, 100 kHz) + Resistive direct-current heating (75 kVA, 50–60 Hz) |
| Restraint Actuation | Hydraulic servo-controlled load frame (100 kN max force, ±5.5 mm displacement range) |
| Thermal Ramp Rates | Heating up to 500 °C/s |
| Cooling Rate | Up to 60 °C/s (800–500 °C range, helium gas quenching) |
| Control Modes | Load control, displacement control, and load–displacement hybrid switching |
| Key | Origin: Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HT-CRE-30 |
| Quotation | Upon Request |
| Max Test Load | 5–30 kN |
| Temp Range (Standard) | 300–900 °C |
| Max Temp | 1000 °C |
| Optional | High-Temp Creep Extensometer |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | ZEM-3 |
| Pricing | Available Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | Formastor-F |
| Price | USD 280,000 (FOB Japan) |
| Key | Origin: Japan |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | High-Speed Impact Testing Machine (Hydraulic Servo Type) |
| Pricing | Upon Request |
| Max Impact Energy | 5250 J |
| Rated Specimen Absorption Energy | 4500 J |
| Rated Specimen Reaction Force | ±400 kN |
| Loading Velocity Range | ±2 to ±10 m/s |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | GT500FX |
| Pricing | Available Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | Formastor-FII |
| Price | USD 295,000 (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Ed-PAS |
| Instrument Type | Graphite Crucible Furnace |
| Max. Pressure | 50–300 kN |
| Pulse Current | 800–2,000 A |
| Max. Output Current | 2,000–15,000 A |
| Max. Input Power | 19–315 kVA |
| Max. Operating Temperature | 1,200–2,800 °C |
| Ram Stroke | 70–200 mm |
| Cooling Water Requirement | 0.2–0.3 MPa, ≥20 L/min |
| Sintering Atmosphere | Ambient Air, Vacuum, or Controlled Gas (e.g., Ar, N₂, H₂) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Thermecmaster-MD |
| Price | USD 1.95M (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Frequency | 2.45 GHz |
| Pricing | Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HTDS-002 |
| Price | USD 620,000 (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SPS-211Lx |
| Pricing | Available Upon Request |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PHI Quantera SXM |
| Price | USD 900,000 |
| Vacuum Base Pressure | <5×10⁻¹⁰ Torr |
| Ag 3d₅/₂ FWHM Energy Resolution | <0.50 eV |
| PET C1s (O=C–O) FWHM Energy Resolution | <0.85 eV |
| Minimum Monochromated X-ray Spot Size | 9.0 µm (X) × 9.0 µm (Y) |
| Typical X-ray Spot Sizes | 10.0 µm @ ≤1.25 W |
| XPS Sensitivity | >125 kcps @ 20.0 µm, <1.00 eV resolution |
| Ion Gun Max Current | >5.0 µA at 5 kV |
| Ion Sputtering Pressure | <5×10⁻⁸ Torr during operation |
| Analysis Chamber Material | UHV-compatible stainless steel |
| Ion Pump Speed | 360 L/s (with Ti sublimation pump) |
| Software | MultiPeak™, CasaXPS-compatible data processing suite (peak fitting, least-squares deconvolution, multivariate analysis, chemical-state imaging, line scan extraction, depth profile quantification) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TRF-1000/5-H |
| Load Range | 1–10 kN (lever ratio 1:30) |
| Load Accuracy | ±1% of indicated value |
| Rotational Speed | 0–1500 rpm (±3%, 50 Hz) |
| Max Test Temperature | 200 °C |
| Temp. Stability | ±2 °C |
| Heating Power | 480 W (dual 240 W elements) |
| Specimen | Ø60 × 15 mm disc |
| Steel Balls | Ø3/8 inch (3 pcs per test) |
| Vibration Detection Range | 0.03–3 G, 5 Hz–10 kHz |
| Counter Resolution | 9-digit cumulative rotation count |
| Cooling Water Requirement | 10 L/min at ≤0.2 MPa, inlet temp ≤30 °C |
| Net Weight | ~1200 kg (excl. dead weights) |
| Power Supply | 3P AC 380 V, 50 Hz, 30 A |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | PICO-RHEED |
| Price | USD 220,000 (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | VersaProbe III |
| Price | USD 950,000 (FOB Yokohama) |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | SAS-120D-DH |
| Price | USD 165,000 (FOB Yokohama) |
