| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | SW-8400 (for 6"/8" wafers) & SW-12400 (for 12" wafers) |
| Instrument Type | Secondary Thermal Desorber |
| Desorption Temperature Range | Ambient to 500 °C |
| Desorption Recovery Rate | 70% |
| Sample Capacity | 1 wafer per run |
| Sealing Material | Polyimide O-ring (220 mm ID) |
| Cooling | Integrated water-circulation system |
| Safety Features | Overheat protection (15 A/30 mA), interlock mechanism, emergency stop button (red mushroom type), optional water-leak sensor |
| Power Supply | Single-phase AC 200 V, 15 A and AC 100 V, 20 A |
| Dimensions (W×H×D) | 1140 × 1106 × 750 mm |
| Weight | 280 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | LC-9102 / LC-9103 |
| Pump Type | L-7100 (LC-9102) / L-7150 (LC-9103) |
| Max Pressure | 39.2 MPa (LC-9102) / 20 MPa (LC-9103) |
| Flow Range | 0.001–9.999 mL/min (LC-9102) / 0.01–30.00 mL/min (LC-9103) |
| Gradient Capability | Low-pressure quaternary mixing, linear or multi-segment profiles |
| Flow Precision | <2% RSD at 1 mL/min |
| Column Capacity | Up to four 40 × 600 mm columns |
| Wetted Materials | SUS316, sapphire, ruby, PTFE, PEEK, ceramic, fused silica |
| Power | AC 100–240 V, 50/60 Hz, 800 VA |
| Weight | 100 kg (LC-9102) / 120 kg (LC-9103) |
| Dimensions (W×H×D) | 860 × 675 × 500 mm |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | JHI-07 |
| Pyrolyzer Type | Microfurnace Pyrolyzer with Curie-Point Capability |
| Dual-Mode Operation | Curie-Point & Microfurnace |
| EGA Support | Yes |
| Quick-Release Interface | Yes |
| Column Head Cooler Compatibility | CIC-07 (Liquid Nitrogen Cooled) |
| Re-analysis Kit Included | Tenax GR Trap System for Targeted Peak Re-injection |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SD-900 |
| Pricing | Available Upon Request |
| Distillation Method | Simple Distillation |
| Heating Method | Electric Oil Bath |
| Temperature Control Range | Ambient to 78 °C |
| Distillation Vessel Material | SUS316 with PTFE Coating |
| Distillation Vessel Capacity | 19 L (Usable Volume: ~15 L) |
| Cooling Tower | Glass Ball Condenser, 500 mm Height |
| Temperature Controller | Digital PID Display |
| Timing Function | Digital Stopwatch |
| N₂ Pressure Control | Integrated Digital Pressure Sensor |
| Heater Type | Stirred Oil Bath Heater |
| Power Rating | 1.5 kW |
| Control Logic | Sequential Automated Control |
| Transfer Pump | Electromagnetic Gear Pump (Max Flow: 1.5 L/min) |
| Valves | Four 3-Way Solenoid Valves |
| Emergency Shutdown | Manual Master Power Cut-off Button |
| Tubing & Fittings | PTFE Tubing, PTFE Connectors, SUS316/SUS303 Hardware |
| Dimensions (W×H×D) | 600 × 1530 × 480 mm |
| Electrical Supply | Single-phase AC 200 V / 10 A or AC 100 V / 5 A |
| Net Weight | 100 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | LC-9110NEXT / LC-9130NEXT |
| Instrument Type | High-Pressure Preparative Liquid Chromatograph |
| Maximum Pressure | 30 MPa (LC-9110NEXT) / 20 MPa (LC-9130NEXT) |
| Flow Rate Range | 0.001–9.999 mL/min (LC-9110NEXT) / 0.01–30.00 mL/min (LC-9130NEXT) |
| Touchscreen Interface | 8.4-inch LCD with capacitive touch |
| Sample Loop Options | 3 mL (std), 5/10 mL (LC-9110NEXT) |
| Auto-Recirculation Cycles | Up to 99 cycles (programmable) |
| Fraction Collection | Standard, up to 33 fractions (time- or signal-triggered) |
| Backflow Prevention | Patented solenoid-valve-based anti-backflow system |
| Maintenance Access | Front-accessible pump, detector, and fluidic modules |
| Power Supply | 85–240 V AC, 800 VA |
| Dimensions (W×H×D) | 464 × 492 × 504 mm |
| Weight | ~38 kg |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | JHP-22 |
| Instrument Type | Curie-Point Pyrolyzer |
| Heating Method | High-Frequency Induction with Curie-Point Ferromagnetic Foil |
| Sample Tube | Quartz, 4.5 mm ID (Pyrolysis Chamber) |
| Furnace Temperature Range | Ambient to 200 °C |
| Pyrolysis Duration | 1–99 s |
| Transfer Line Temperature Range | Ambient to 300 °C, Length: 0.7 m |
| RF Power Output | 48 W |
| Flow Path Switching | Solenoid Valve |
| Dimensions (W×H×D) | 305 × 190 × 465 mm |
| Weight | 18 kg |
| Power Supply | AC 100 V, 7 A |
| GC Compatibility | Universal GC Interface (Excluding Proprietary Direct-Coupled Systems) |
| Optional Curie Temperatures | 1040, 920, 764, 740, 670, 650, 590, 500, 485, 445, 423, 386, 358, 333, 315, 280, 255, 235, 220, 170, 160 °C |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

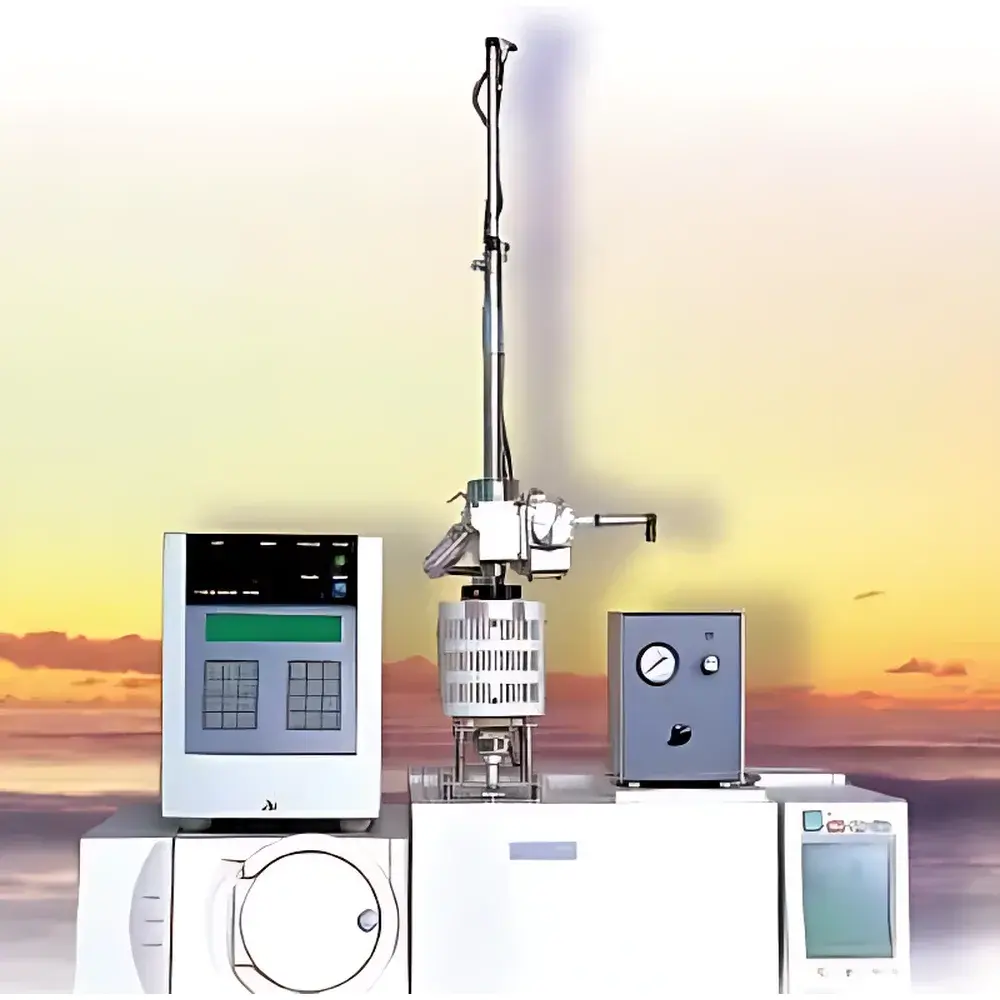

| Model | JPS-700 |
| Instrument Type | Curie-Point Pyrolyzer |
| Maximum Sample Capacity | 40 samples |
| Pyrolysis Temperature Range | Up to 400 °C (typical operating range ≤300 °C) |
| Heating Method | High-Frequency Induction |
| RF Frequency | 600 kHz |
| RF Power Output | 48 W |
| Pyrolysis Duration Control | 1–9,999 s |
| Inter-Analysis Interval | 0.01–999.99 min |
| Carrier Gas Purge | Dual-point dry air purge (pressure ≥0.4 MPa) |
| GC Interface | Universal GC-mount adapter |
| Compliance | Compatible with ASTM D7250, ISO 11348, and USP <621> chromatographic system integration requirements |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | RI-7s |
| Detector Type | Differential Refractometer (RID) |
| Flow Cell Volume | 8 µL |
| Refractive Index Range | 1.00–1.75 |
| Attenuation Settings | 1–2000 and ∞ (12-step) |
| Temperature Control | Fixed at 34 °C, max 50 °C |
| Reference Cell Cleaning | Solenoid-valve actuated |
| Integrator Output | 1 V |
| Recorder Output | 100 mV / 10 mV |
| Zero Adjustment | Automatic |
| Dimensions (W×H×D) | 160 × 210 × 400 mm |
| Power Supply | AC 85–135 V, 50/60 Hz, 200 VA |
| Weight | 12 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | LC-9210NEXT / LC-9225NEXT |
| Instrument Type | High-Pressure Preparative Liquid Chromatograph |
| Pump Type | Dual-Piston Reciprocating Pump |
| Max Pressure | 25 MPa (LC-9225NEXT), 20 MPa @ 0.1–9.9 mL/min (LC-9210NEXT) |
| Flow Rate Range | 0.01–10.0 mL/min (LC-9210NEXT), 0.1–25.0 mL/min (LC-9225NEXT) |
| Injector | Rheodyne 7725i with 3 mL standard loop (5/10 mL optional for LC-9210NEXT |
| Backflow Prevention | Patented electromagnetic valve-based anti-backflow system |
| Auto-Cleaning | Programmable solvent flush module |
| Control Interface | Dedicated function keys for pump, detector, fraction collection, cycle initiation, and cleaning sequence |
| Dimensions (W×H×D) | 464 × 492 × 504 mm |
| Weight | ~38 kg |
| Power Supply | 85–240 V AC, 800 VA |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | UV-3702 |
| Detector Type | Ultraviolet-Visible (UV-Vis) Detector |
| Wavelength Range | 195–600 nm |
| Optical System | Dual-beam |
| Light Source | Deuterium Lamp |
| Noise | ≤0.00005 AU |
| Drift | ≤0.0005 AU/hr |
| Flow Cell Pathlength | 0.5 mm (standard), 0.2 mm / 1.0 mm optional |
| Flow Cell Volume | 20 µL |
| Full-Scale Output | 100 mV / 10 mV |
| Auto-Zero Function | Yes |
| Dimensions (W×H×D) | 156 × 225 × 450 mm |
| Power Supply | AC 85–135 V, 50/60 Hz, 200 VA |
| Weight | 14 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Instrument Type | Dual-Stage Thermal Desorber |
| Heating Method | Curie-Point (Standard 280 °C) + Resistive (–99 °C to 350 °C) |
| Cooling | Liquid Nitrogen (–99 °C) |
| Sample Capacity | Up to 48 sequential analyses (15 PAT tubes + programmable repeat/swap logic) |
| PAT Tube Dimensions | 12 mm ID × 50 mm height, 10 mL internal volume |
| Transfer Line Temp Range | Ambient +10 °C to 300 °C |
| GC Interface | Direct column connection or syringe-type injection |
| Power Supply | AC 100 V, 50/60 Hz, 15 A |
| RF Generator | 600 kHz, 48 W |
| Dimensions (Main Unit) | 355 × 210 × 130 mm, 3.1 kg |
| Liquid Nitrogen Dewar | 50 L (JTD-505III) / 20 L (JTD-505MIII), 460 mm Ø × 930 mm H, 24.8 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | JRS-86 |
| Control System | CPU-controlled |
| Sample Injection Volume Range | 100 µL to 50 mL |
| Injection Interval | 1–999 minutes |
| Maximum Number of Repetitive Injections | 99 |
| Compatible Systems | Integrated with JAI 9102 and 9103 Recirculating Preparative HPLC Units |
| Configuration | Rack-mounted, in-line installation at pump suction side |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | UV-3740 |
| Detector Type | Ultraviolet-Visible (UV-Vis) Detector |
| Wavelength Range | 195–600 nm |
| Optical Design | Dual-beam |
| Light Source | Deuterium Lamp |
| Noise | ≤0.00002 AU |
| Drift | ≤0.0005 AU/hr |
| Flow Cell Pathlength | 0.5 mm (standard), optional 0.2 mm and 1.0 mm |
| Flow Cell Volume | 20 µL |
| Saturation Concentration | 4% (with 0.5 mm cell) |
| Output Signal | 10 mV full scale |
| Auto-zero Function | Yes |
| Dimensions (W×H×D) | 140 × 140 × 450 mm |
| Power Supply | AC 85–135 V, 50/60 Hz, 100 VA |
| Weight | 8 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | LaboACE LC7080 |
| Application Level | Laboratory-grade |
| Instrument Type | Medium-to-Low Pressure Preparative LC |
| Flow Rate Range | 0.1–80.0 mL/min |
| Flow Accuracy | CV < 0.3% |
| Flow Precision (Repeatability) | CV < 0.3% |
| Maximum Operating Pressure | 20 MPa |
| Wavelength Range | 190–700 nm |
| Wavelength Repeatability | ±0.5 nm |
| Baseline Noise | ≤0.00005 AU (at 254 nm, 1 s time constant) |
| Data Acquisition Rate | 50–100 Hz |
| Footprint | 382 mm (W) × 432 mm (D) |
| Recycling Capability | Fully Automated Solvent-Saving Loop Mode with Real-Time Fraction Re-injection Logic |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | LC-9104 |
| Pump Type | Dual-piston reciprocating high-pressure solvent delivery system |
| Max. Pressure | 20 MPa (0.01–15.00 mL/min), 15 MPa (15.01–25.00 mL/min), 10 MPa (25.01–30.00 mL/min) |
| Flow Rate Range | 0.01–30.00 mL/min |
| Injection Volume | 100 µL–50 mL (manual Rheodyne 7725i with 10 mL loop standard) |
| Column Compatibility | Up to four 20×600 mm or four 40×600 mm preparative columns |
| Fraction Collector | FC-339, touchscreen-controlled, up to 33 fractions, waste/fraction flow switching |
| Solvent Reservoir | One 5 L bottle |
| Wetted Materials | SUS316 stainless steel, ruby/sapphire, ceramic, PTFE, fluororesin, fused silica |
| Dimensions (W×H×D) | 560×675×500 mm |
| Power | AC 100–115 V / 200–240 V, 50/60 Hz, 800 VA |
| Weight | 70 kg (fully loaded) |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | JHF-122 |
| Fraction Capacity | 90 positions |
| Collection Modes | Time-based, Peak-triggered, Manual, Memory-programmed |
| Input Signals | Start/Stop TTL-compatible (10 mV / 1 V threshold) |
| Output Signals | Event Marker (TTL) |
| Program Storage | One dedicated file per collection method |
| Accessories | Benchtop mounting stand, 20 × glass collection tubes (standard size), 20 × PTFE inlet tubing, 3-way solenoid valve |
| Dimensions (W×H×D) | 286 × 335 × 387 mm |
| Power Supply | AC 100–240 V, 50/60 Hz, 50 VA |
| Weight | 8 kg |
| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | JHP-5 |
| Instrument Type | Curie-Point Pyrolyzer |
| Heating Method | High-Frequency Induction (600 kHz, 48 W) |
| Pyrolysis Time Range | 1 s – 99 h |
| Flow Path Switching | Solenoid Valve |
| Sensor Unit Dimensions/Weight | 90 × 280 × 160 mm / 2.5 kg |
| RF Power Supply Dimensions/Weight | 160 × 250 × 380 mm / 8 kg |
| Power Input | AC 100–240 V, 5 A |
| GC Compatibility | Universal (all standard GC systems, excluding proprietary non-standard interfaces) |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | JSP-20 |
| Sample Capacity | 1–20 vials |
| Injection Volume Range | 0.1–5.0 mL |
| Injection Precision | CV ≤ 1% |
| Maximum Operating Pressure | 20 MPa |
| Injection Repetition | 1–99 times per vial |
| Sequence Programmability | 1–20 order |
| Maximum Run Time | 999 minutes |
| Wash Mode | Dual solvent/air flush |
| Vial Type | 5 mL screw-thread glass vials |
| Sealing Materials | Silicone and PTFE |
| Needle Design | Dual-side-port stainless steel needle |
| Power Supply | AC 100 V / 3 A |
| Control Interface | Touchscreen LCD panel |
| Dimensions (W×H×D) | 250 × 300 × 435 mm |
| Weight | 15 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | UV-310 |
| Wavelength Range | 195–370 nm |
| Detection Principle | Dual-Beam UV Absorbance |
| Light Source | Deuterium Lamp |
| Noise | ≤0.00005 AU |
| Drift | ≤0.002 AU/hr |
| Flow Cell Pathlength | 0.5 mm (standard), optional 0.2 mm and 1.0 mm |
| Flow Cell Volume | 20 µL |
| Maximum Sample Concentration Tolerance | 4% (with 0.5 mm cell) |
| Output Signals | 100 mV and 10 mV analog outputs |
| Zero Adjustment | Dual-stage coarse + fine tuning |
| Dimensions (W×H×D) | 156 × 225 × 450 mm |
| Power Supply | AC 85–135 V, 50/60 Hz, 200 VA |
| Weight | 14 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Instrument Type | UV Detector (UVD) |
| Wavelength | Fixed at 254 nm |
| Detection Principle | Dual-Beam Filter Photometry |
| Light Source | Low-Pressure Mercury Lamp |
| Noise | ≤0.00015 AU |
| Drift | ≤0.002 AU/hr |
| Flow Cell Pathlength | 0.5 mm (standard), optional 0.2 mm and 1.0 mm |
| Flow Cell Volume | 20 µL |
| Maximum Sample Concentration Tolerance | 4% (with 0.5 mm cell) |
| Output Signal | 100 mV full scale |
| Zero Adjustment | Manual potentiometer |
| Dimensions (W×H×D) | 150 × 120 × 370 mm |
| Power Supply | AC 85–240 V, 50/60 Hz, 200 VA |
| Weight | 4 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Model | UV-4ch DAD Detector |
| Detection Principle | Diode Array Detection (DAD) |
| Wavelength Range | 190–840 nm (operational range 200–800 nm) |
| Simultaneous Channels | 4 independent wavelength channels |
| Light Source | Deuterium lamp + Tungsten-halogen lamp |
| Flow Cell Options | 0.3 mm (standard), 1.4 mm, 2.4 mm pathlength |
| Sensitivity | 5 × 10⁻⁵ AUFS |
| Drift | ≤ 1 × 10⁻³ AU/h |
| Zero Adjustment | Automatic |
| Software Compatibility | JAI Scan, Clarity™ (Windows Vista) |
| Power Supply | Direct LC system power |
| Dimensions (W×H×D) | 150 × 157 × 337 mm |
| Weight | ~6.0 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | UV-50 |
| Instrument Type | Ultraviolet Detector (UVD) |
| Wavelength Range | 200–380 nm (selectable via interchangeable interference filters) |
| Standard Wavelength | 254 nm |
| Detection Method | Dual-Beam Filter Photometry |
| Light Source | Deuterium Lamp |
| Noise | ≤0.00005 AU |
| Drift | ≤0.002 AU/hr |
| Flow Cell Path Length | 0.5 mm (standard), optional 0.2 mm or 1.0 mm |
| Flow Cell Volume | 20 µL |
| Saturation Concentration | 4% (at 0.5 mm path length) |
| Output Signals | 100 mV and 10 mV full-scale analog outputs |
| Zero Adjustment | Automatic |
| Dimensions (W×H×D) | 150 × 120 × 420 mm |
| Power Supply | AC 85–135 V, 50/60 Hz, 100 VA |
| Weight | 8 kg |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Instrument Type | High-Pressure Preparative HPLC |
| Model | LC-250HS |
| Pump | K-200 Dual-Piston Reciprocating Pump |
| Max Pressure | 10 MPa |
| Flow Rate Range | 2–199 mL/min |
| Flow Accuracy | ±2% |
| Injector | Syringe Pump with 1–160 mL Loop Selection |
| Column Oven | Electric Heating, 5–80 °C |
| Detector | UV-310B Variable-Wavelength UV Detector (195–370 nm, 0.5 mm Pathlength, 20 µL Cell, Noise: 5×10⁻⁵ AU) |
| Fraction Collector | JHF-122 (90 Fractions, Time/Peak/Programmed Collection) |
| Control System | Touchscreen PLC Interface |
| Dimensions (W×H×D) | 760×750×690 mm |
| Weight | 98 kg |
| Wetted Materials | SUS316, Sapphire, Ruby, Ceramic, PTFE, Fluororesin, Fused Silica |
| Brand | JAI |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | LaboACE LC-5060 |
| Application Level | Laboratory-Scale |
| Instrument Type | High-Pressure Preparative HPLC System |
| Flow Rate Range | 0.1–60.0 mL/min |
| Flow Accuracy | RSD ≤ 0.5% |
| Flow Precision (Repeatability) | RSD ≤ 0.1% |
| Maximum Operating Pressure | 20 MPa |
| Wavelength Range | ±1 nm |
| Wavelength Repeatability | 1 nm |
| Baseline Noise | 0.001 AU/hr |
| Data Acquisition Frequency | 50 Hz |
Show next
