| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

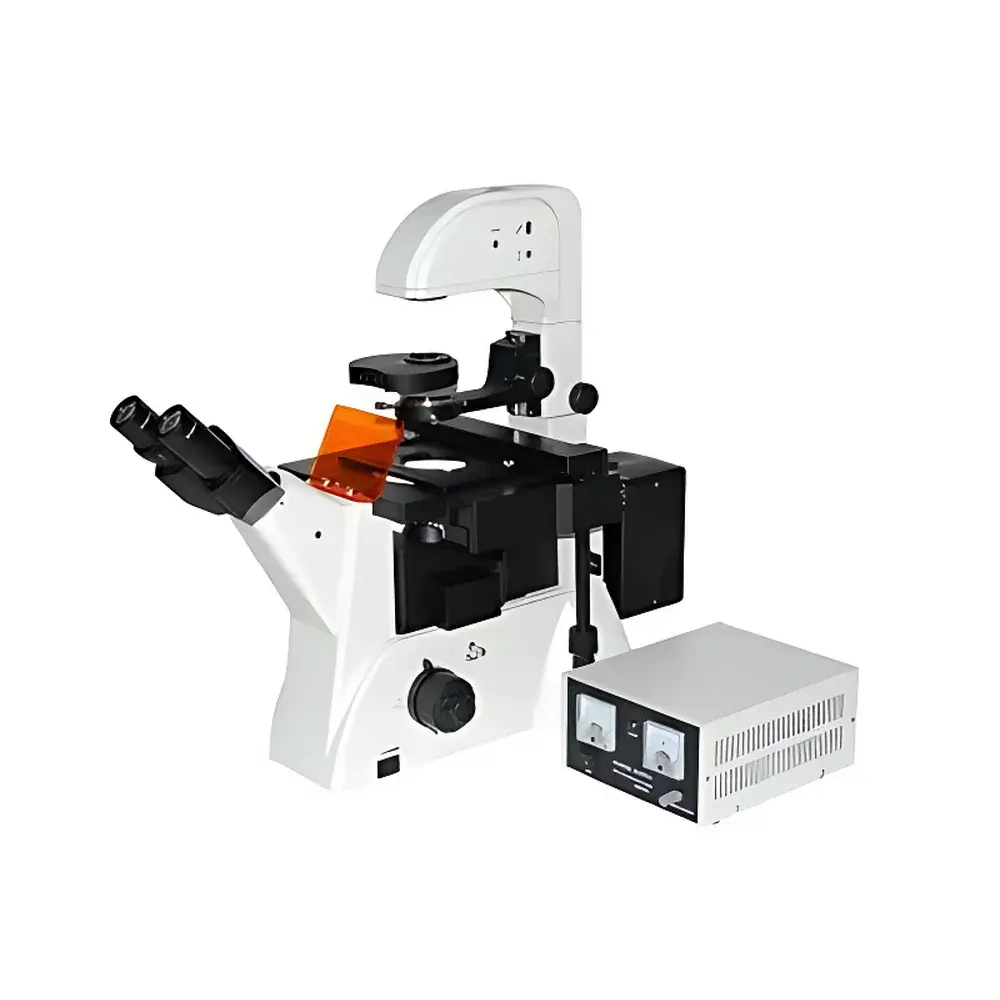

| Model | XD200-FL |
| Price | USD 6,300 (FOB Beijing) |
| Optical Design | Infinity-Corrected Optical System |
| Objective Mount | Quintuple Nosepiece |
| Eyepiece | Widefield WF10X (Field Number Φ22 mm) |
| Objective Lenses | Plan Achromatic PLL 10X/0.25 (WD 4.3 mm), 20X/0.40 (WD 8.0 mm), 40X/0.60 (WD 3.5 mm) |
| Fluorescence Excitation Bands | UV (330–400 nm), Violet (395–415 nm), Blue (420–485 nm), Green (460–550 nm) |
| Emission Filters | 425 nm, 455 nm, 515 nm, 590 nm |
| Light Sources | 100 W DC Mercury Arc Lamp (Fluorescence), 6 V/30 W Halogen Lamp (Transmitted Light) |
| Focus Mechanism | Coaxial Coarse/Fine Adjustment with Locking & Upper/Lower Limits |
| Fine Focus Graduation | 2 µm |
| Stage | Fixed Mechanical Stage (227 × 208 mm) |
| Condenser | Rotating Phase Contrast Annulus Condenser (WD 55 mm) |
| Eyepiece Tube | 45° Inclined, Interpupillary Distance 53–75 mm |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Country of Origin | Domestic (PRC) |
| Model | XD20 |
| Instrument Type | Inverted Fluorescence Microscope |
| Optical System | CSIS Infinity-Corrected Achromatic Optics |
| Illumination | 6V30W Halogen Lamp (Pre-centered) |
| Objective Working Distance | Long Working Distance (LWD) |
| Phase Contrast Capability | Yes |
| Fluorescence Excitation | Standard Filter Cube Set (e.g., DAPI/FITC/TRITC) |
