| Origin | Zhejiang, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | LSS820 |
| Price Range | USD 7,000 – 14,000 |
| Automation Level | Fully Automatic |
| Instrument Type | Rotary-Style Stainer |
| Slide Capacity per Rack | 30 slides |
| Max Concurrent Racks | 10 |
| Total Stations | 36 |
| Reagent Stations | 26 (2 configurable as empty stations) |
| Wash Stations | 5 |
| Reagent Jar Volume | 500 mL |
| Load Stations | 2 |
| Unload Stations | 3 |
| Stored Protocols | 10 |
| Power Supply | 220 VAC ±10%, 50/60 Hz |
| Power Consumption | 200 W |
| Touchscreen | 10.4-inch Color TFT LCD with Graphical User Interface (GUI), Role-Based User Management |
| Dimensions (L×W×H) | 1050 × 615 × 590 mm |
| Throughput | Up to 400 slides/hour |
| Robotic Arm Speed | <1 s station-to-station movement |
| Rack Lift Cycles | Programmable |
| Brand | ZEEDO |
|---|---|
| Origin | Zhejiang, China |
| Model | LSS800 |
| Automation Level | Fully Automatic |
| Instrument Type | Non-rotary Staining System |
| Dimensions (W×D×H) | 1200 × 500 × 600 mm |
| Weight | 80 kg |
| Power Supply | 220 V, 50 Hz |
| Power Consumption | 200 W |
| Staining Capacity | 30 slides per basket, up to 1200 slides/day (routine H&E) |
| Total Stations | 26 tanks (including 3 dedicated rinse tanks) |
| Temperature Control Range | Ambient to 85 °C |
| Staining Time Resolution | 1–9999 s (1 s increments) |
| Control Interface | Touchscreen + PLC, English UI |
| Positioning | Photoelectric sensor-based auto-alignment |
| Programmability | 5 preloaded protocols, 3 baskets operable simultaneously |
| Water Supply | Pressure-regulated, demand-activated |
| Loading/Unloading | Independent upper and lower drawers (non-interruptive operation) |
| Brand | ZEEDO |
|---|---|
| Origin | Zhejiang, China |
| Model | HS-1145 |
| Automation Level | Semi-Automatic |
| Instrument Type | Non-Rotary |
| Temperature Range | Ambient to 90 °C (independently adjustable for floating, drying, and baking zones) |
| Floating Bath Volume | 135 × 185 × 80 mm |
| Dimensions (W×D×H) | 510 × 340 × 220 mm |
| Weight | 16 kg |
| Voltage | 220 V, 50 Hz |
| Power Consumption | 1000 W |
| Drying Rack Capacity | 70 glass slides (60° angled insertion) |
| Baking Chamber Capacity | 3 standard staining racks (30–40 slides each) or two 250 mL beakers for paraffin melting |
| Brand | ZEEDO |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |

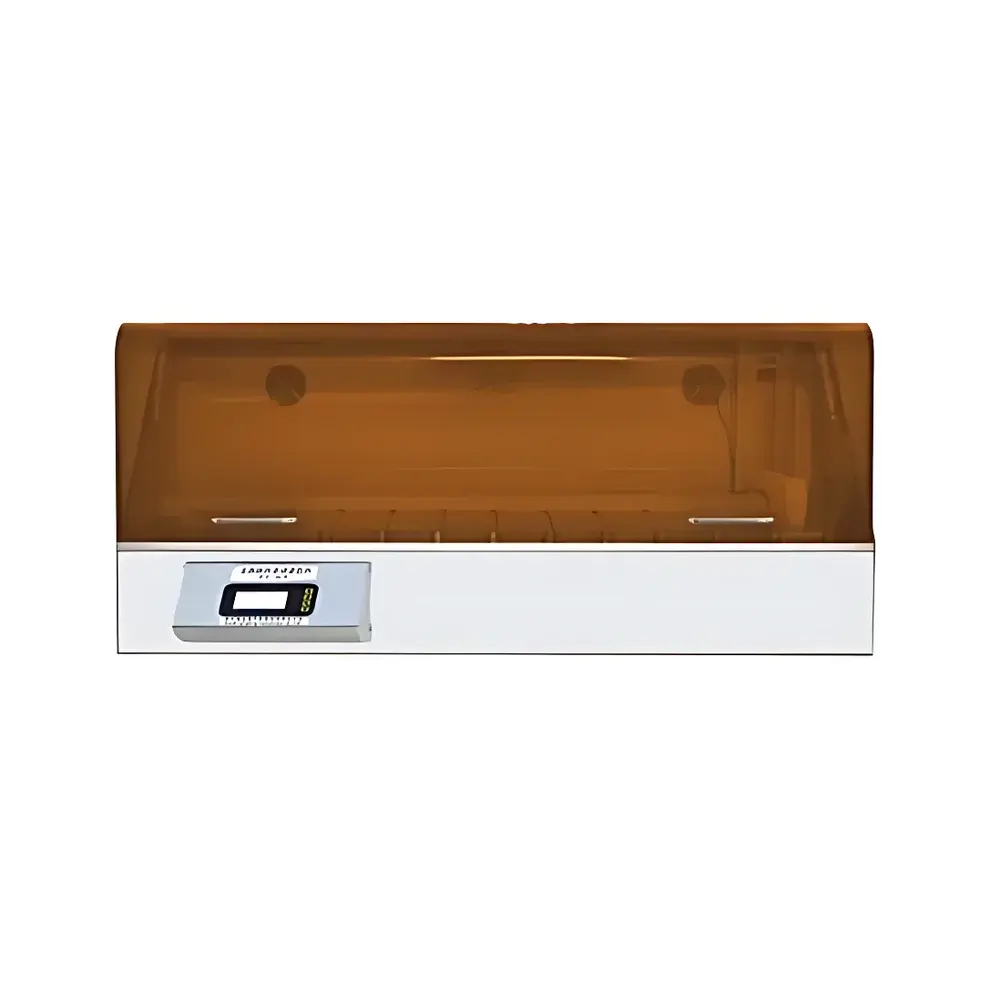

| Model | LSD-600 |
| Price | USD 7,300 (FOB) |
| Automation Level | Fully Automatic |
| Instrument Type | Rotary Staining System |
| Processing Tanks | 14 (12 reagent tanks + 1 rinse tank + 1 drying tank) |
| Tank Capacity | ≥1000 mL per tank |
| Staining Capacity | 72 glass slides per cycle |
| Time per Tank | 0–59 min 59 sec (adjustable) |
| Power Supply | AC 220 V / 50 Hz or AC 110 V / 60 Hz |
| Power Consumption | 500 VA |
| Dimensions (W×D×H) | 1130 × 460 × 400 mm |
| Net Weight | 85 kg |
