| Brand | ZEEDO (Huasu) |
|---|---|
| Origin | Zhejiang, China |
| Model | ES-600 |
| Wax Reservoir Capacity | 6.5 L |
| Cold Plate Temperature Range | −20 °C to ambient |
| Working Surface Area | 830 cm² (287 mm × 205 mm + 330 mm × 73 mm) |
| Embedded Mold Heater Volume | 0.93 L |
| Cold Plate Dimensions | 365 mm × 330 mm |
| Net Weight | 40 kg (main unit), 25 kg (cold plate) |
| Power Supply | 220 V, 50 Hz |
| Total Rated Power | 800 W (main unit) + 100 VA (cold plate) |
| Brand | ZEEDO |
|---|---|
| Model | ES-500-2C |
| Origin | Zhejiang, China |
| Type | Paraffin Embedding Station |
| Cold Plate Temperature Range | Ambient to –20 °C |
| Hot Plate Temperature Range | 30–99 °C |
| Wax Bath Capacity | 400 wax blocks per melt |
| Cold Plate Power | 100 VA |
| Hot Plate Power | 400 VA |
| Total System Power | 1500 VA |
| Dimensions (Embedding Unit) | 600 × 650 × 450 mm (W × D × H) |
| Dimensions (Cold Plate) | 410 × 660 × 450 mm (W × D × H) |
| Weight (Embedding Unit) | 40 kg |
| Weight (Cold Plate) | 14 kg |
| Voltage | 220 V, 50 Hz |
| Operating Ambient | 5–45 °C, ≤85% RH |

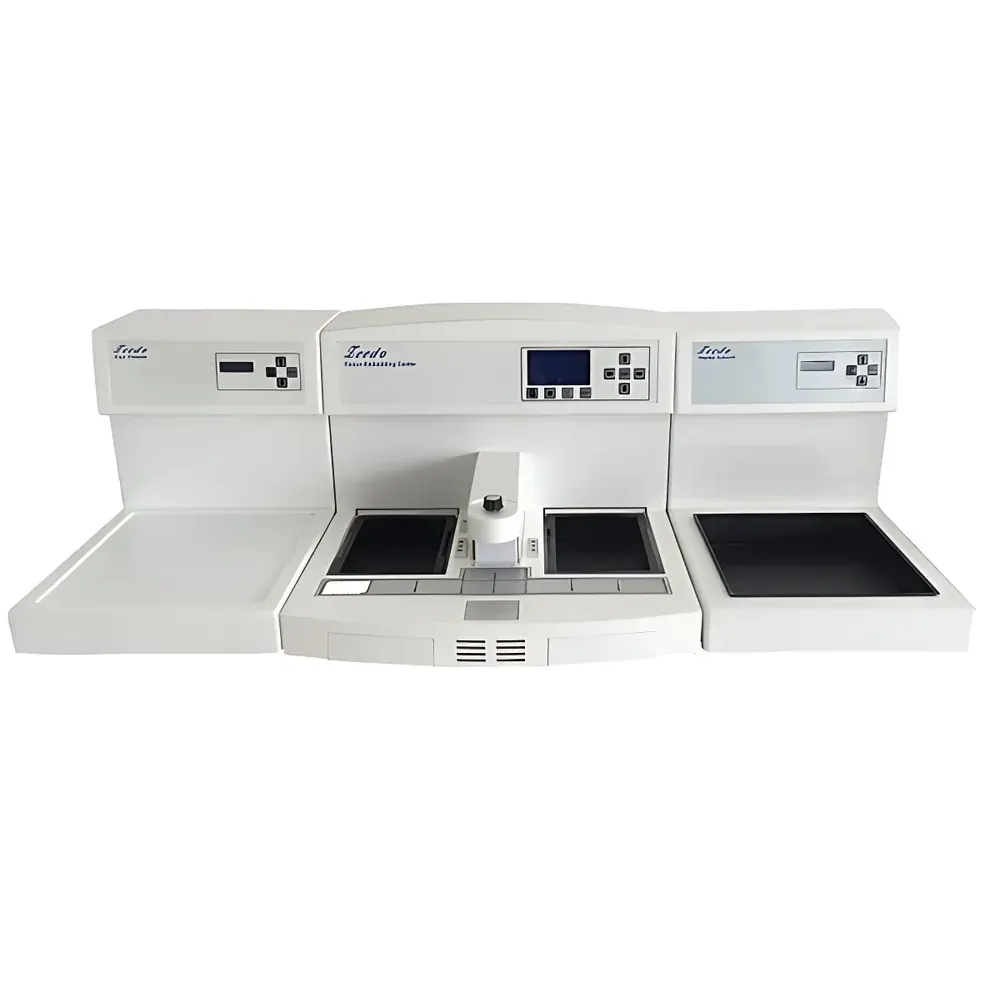

| Brand | ZEEDO (Huasu) |
|---|---|
| Model | ES-500 |
| Origin | Zhejiang, China |
| Type | Automated Paraffin Embedding System with Integrated Cryo-Station |
| Wax Tank Capacity | 6 L |
| Temperature Control Range (Wax/Work Surface/Storage) | 0–99 °C |
| Cryo-Station Setpoint Range | Ambient to –20 °C |
| Heating Stage Range | 30–90 °C |
| Power | Main Unit 800 W, Cryo-Station 200 W, Heating Stage 500 W |
| Dimensions (Main Unit) | 650 × 647 × 465 mm |
| Net Weight (Main Unit) | 25.5 kg |
| Compliance | CE-marked per IEC 61010-1 (Laboratory Equipment Safety), Designed for GLP/GMP-Compliant Histology Labs |
