| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM2700M |
| Illumination | White LED (4500 K) |
| Contrast Methods | Brightfield, Darkfield, DIC, Polarization, Oblique Illumination |
| Maximum Specimen Size | 100 × 100 mm |
| Maximum Specimen Height | 80 mm |
| Macro Viewing Field | Ø40 mm |
| LED Lifetime | ≥35,000 h |
| Focus Mechanism | Coaxial coarse/fine focusing with adjustable torque and integrated focus stop |
| Objective Turret | 5× or 6–7× BF/DF or BF/FLUO configuration |
| Compliance | CE, ISO 9001, ISO 13485 (as applicable to lab instrumentation), GLP-ready documentation support |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMI LM |
| Optical System | HC Infinite Correction |
| Observation Modes | Brightfield, Polarized Light |
| Eyepieces | 10× (WF18), optional 12.5×/16×/25× |
| Objectives | 1.25×, 5×, 10×, 20×, 50×, 100×, 250× |
| Magnification Range | 50×–1000× (with 10× eyepiece) |
| Nosepiece | 4-position, M25 brightfield turret |
| Stage | 247 × 230 mm fixed platform, XY travel 60 × 40 mm |
| Focus Mechanism | Coaxial coarse/fine adjustment (7 mm up / 2 mm down) |
| Illumination | LED cold-light source (≥20,000 h lifetime), integrated polarizer/analyzer modules, removable filter sets |
| Camera Interface | C-mount |
| Tube | 30° inclined binocular tube, interpupillary adjustment 48–75 mm, 100% side-port photo output |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | MST |
| Price | USD 2,100 (FOB) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM4000M |
| Imaging Interface | FireWire (IEEE 1394) |
| CCD Resolution Options | 1.3 MP to 12 MP |
| Color Depth | 14-bit |
| Illumination Modes | Reflected & Transmitted Light |
| Automated Components | Motorized Filter Turret (4-position), Encoded Revolving Nosepiece (6-position), Motorized Field & Aperture Diaphragms, Motorized Condenser, Auto-Intensity Management (Reflected & Transmitted), Precise CCT Stabilization |
| Observation Modes | Brightfield, Darkfield, Polarization, DIC, Phase Contrast (transmitted), Fluorescence (reflected) |
| Display | Integrated LCD Status Panel |
| Software Control | Leica Application Suite (LAS) X-compatible, Free Download Available |
| Compliance | Designed for ISO/IEC 17025-compliant labs, supports GLP/GMP audit trails via optional LAS X modules |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMI 3000M |
| Type | Manual inverted metallurgical microscope |
| Illumination | 12 V / 100 W halogen lamp |
| Eyepieces | 10×, 25 mm field number |
| Objective turret | 5-position M32 manual nosepiece |
| Magnification range | 50×–1000× (depending on objective configuration) |
| Observation modes | Brightfield, darkfield, polarized light, oblique illumination |
| Stage | Ceramic-coated mechanical stage with >20 sample holders |
| Optical system | HC (Harmonic Contrast) apochromatically corrected optical path |
| Dual-camera ports | Side port (0%/100% or 80%/20% beam splitter) + trinocular tube port |
| Focus and stage controls | Ergonomically co-located left/right hand controls with thermal drift compensation chassis |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | XLB-100 |
| Price | USD 1,600 (approx.) |
| Eyepieces | 10× (18 mm FOV), 12.5× (14 mm FOV) |
| Objectives | 4×/0.10 (WD 17.9 mm), 10×/0.25 (WD 6.5 mm), 40×/0.65 (WD 0.74 mm) |
| Total Magnification Range | 40×–500× |
| Illumination | Integrated 8 V / 9 W Tungsten Halogen Lamp with Continuously Variable Brightness Control |
| Base | Magnetic Mounting System for Ferromagnetic Surfaces |
| Weight | < 1.8 kg |
| Dimensions (L×W×H) | 195 × 85 × 140 mm |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | MDS-20 |
| Price | USD 2,500 (FOB Guangdong) |
| Optical System | Infinity-Corrected |
| Observation Modes | Brightfield (BF), Optional Polarized & Darkfield (BD) |
| Eyepieces | Widefield WF10X, Field Number Φ22 mm |
| Objectives | Infinity Long Working Distance Plan Achromatic (PL L series), BF or BF/BD variants |
| Focusing | Coaxial coarse/fine focus with lock and 2 µm fine adjustment increment |
| Stage | Mechanical XY stage (30 × 30 mm travel), rotatable circular plate (Φ130 mm max, central aperture <Φ12 mm) |
| Illumination | 6V/30W halogen (MDS-20), 12V/50W halogen (MDS-20BD), adjustable intensity, built-in field & aperture diaphragms, slider-mounted polarizer, ground glass + yellow/green/blue filters |
| Brand | De'ers / DS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | MST-R |
| Price | USD 2,700 (approx.) |
| Configuration | Upright |
| Total Magnification Range | 50× to 1000× |
| Eyepieces | Wide-Field 10× (Φ22 mm) |
| Objectives | Infinity-Corrected Long Working Distance Achromatic Plan Objectives — 5×/0.12, 10×/0.25, 20×/0.40, 40×/0.60, 60×/0.70, 100×/0.85 (dry) |
| Focusing Mechanism | Coaxial coarse/fine adjustment with 2 µm fine-focus graduation, tension adjustment, and upper/lower limit locks |
| Stage Travel | 75 mm × 50 mm (mechanical), 30 mm vertical clearance |
| Illumination | Dual-path — reflected (epi-illumination) and transmitted (Köhler illumination via Abbe condenser NA 1.25) |
| Built-in Polarizing System | Rotatable polarizer and analyzer, push-pull configuration |
| Trinocular Tube | 30° inclination, 100% light path diversion for imaging |
| Certifications | Compliant with ISO 10934-1 (optical microscopy terminology), GB/T 22057–2008 (Chinese national standard for metallurgical microscopes) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM8000M |
| Illumination | Integrated High-Efficiency LED (Reflected & Transmitted) |
| Sample Stage | 200 mm × 200 mm (8″ compatible) |
| Objective Turret | Motorized 6-position |
| Macro Objective | 0.7× with 25 mm field of view |
| Optical Path | Achromatic-Corrected, 25 mm FOV Field Number |
| Observation Modes | Brightfield, Darkfield, Polarization, Differential Interference Contrast (DIC), Oblique Illumination, UV & OUV (Oblique UV) |
| UV Source | High-Power LED-based UV (365 nm), OUV-capable |
| Focus System | Motorized or Manual Coaxial Focus |
| Software Integration | Leica Application Suite (LAS X), Supports ASTM E112, ISO 9276, ISO 4497, USP <788>, and GLP/GMP-compliant metadata logging |
| Compliance | CE, ISO 13485–compatible design, FDA 21 CFR Part 11–ready audit trail (with LAS X Security Pack) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM750M |
| Configuration | Upright |
| Total Magnification | 1000× |
| Eyepiece | 10× |
| Objective Lenses | 40×–100× |
| Illumination | LED Reflected Light (Brightfield, Polarized, Oblique) |
| Stage | Universal Mechanical Stage (Compatible with Transmitted & Reflected Light) |
| Image Analysis System | Integrated |
| Objective Turret | 4- or 5-Position |
| LED Lifetime | >20,000 hours |

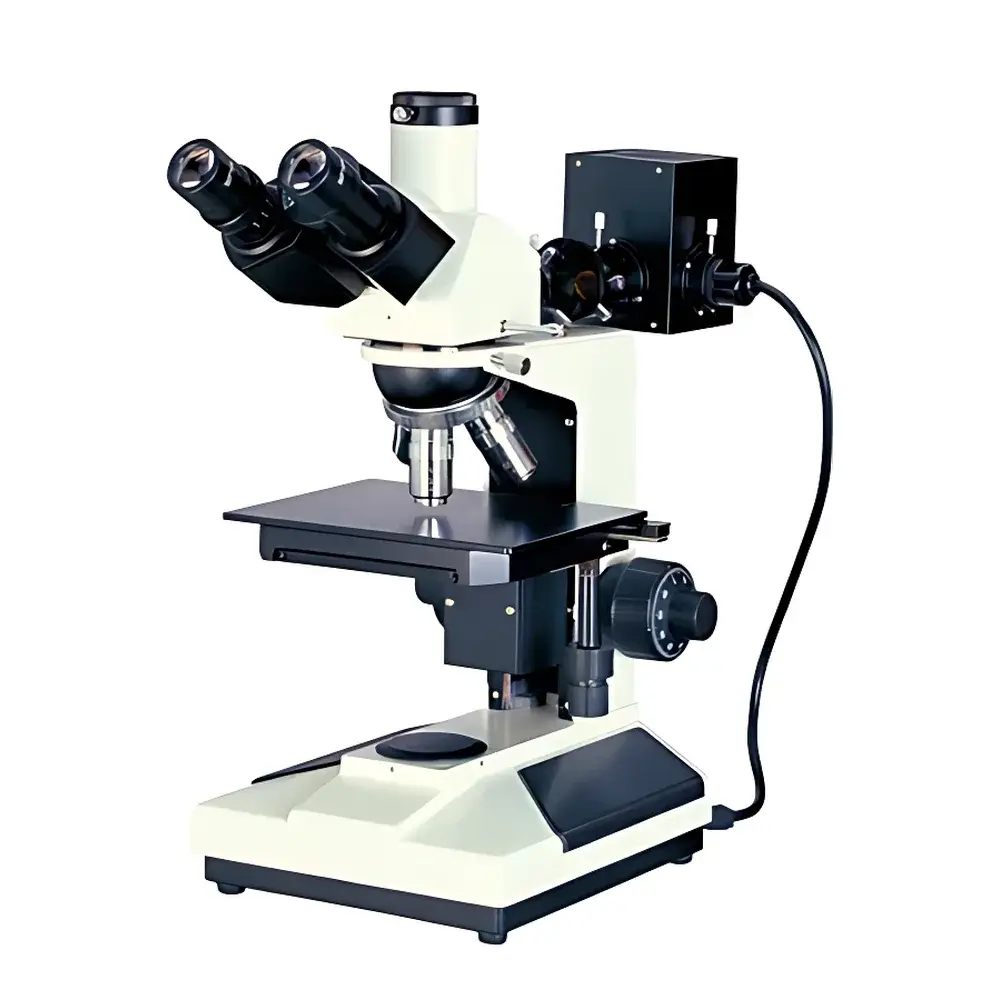

| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | L2003 |
| Price | USD 1,390 (FOB Guangdong) |
| Illumination | 6 V / 20 W Halogen Lamp, Continuously Adjustable Brightness |
| Focus Mechanism | Coaxial Coarse/Fine Adjustment, Fine Focus Graduation: 2 µm, Locking & Travel Limiter |
| Objective Mount | Internal Ball-Bearing Quad- or Penta-Position Turret |
| Stage | Dual-Layer Mechanical Stage (185 mm × 140 mm), 75 mm × 50 mm Travel Range |
| Eyepiece Tube | Trinocular, 30° Inclination, Integrated Analyzer with Toggle for Polarized Light Observation |
| Standard Objectives | Long Working Distance Plan Achromatic (Cover-Slip Free): PL 5×/0.12, PL L10×/0.25, PL L40×/0.60, PL L60×/0.75 (Spring-Loaded) |
| Optional Objectives | PL L50×/0.70, PL L80×/0.80, PL L100×/0.85 (Spring), PL 100×/1.25 (Oil Immersion) |
| Filters | Yellow, Blue, Green Interference Filters + Ground Glass Diffuser |
| Condenser | Reflected-Light Köhler Illumination System with Adjustable Field & Aperture Diaphragms |
| Camera Adapters | 0.4×, 0.5×, 1× C-Mount |
| Digital Imaging Compatibility | USB/Video Output CCD Cameras (DV-1, DV-2, DV-3), DSLR Adapters (Canon A6xx Series), Phototube Couplers (2.5×–4× Zoom w/ 10× Finder) |
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DMI 5000M |
| Eyepieces | 10×, 25 mm field of view |
| Viewing Angle Adjustment | 20–45°, height-adjustable up to 10 cm |
| Objectives | HCX PL FL 5×, 10×, 20×, 50×, 100× (32 mm diameter, metallurgical grade) |
| Stage | 248 × 204 mm mechanical stage with 100 × 60 mm X–Y travel |
| Focus Travel | 9 mm total range, 1 µm step resolution |
| Magnification Range | 50×–1000× (with standard objectives and eyepieces) |
| LCD Display | 77 × 49 mm |
| Objective Turret | 5-position, M32 thread, motorized and fully encoded |
| Illumination | 12 V / 100 W halogen lamp |
| Condenser Turret | motorized, 4-position reflector turret |
| Field & Aperture Diaphragms | motorized |
| Focus Drive | motorized (5 speed settings) or manual |
| Observation Mode Management | automatic optical component alignment per objective and contrast method |
| Illumination Management | real-time brightness, field diaphragm, and aperture diaphragm adjustment based on objective and mode |
| Controller | 7 programmable buttons + dedicated function keys |
| SmartMove Remote | integrated focus and stage control |
| Motorized Scanning Stage | optional |
| Compliance | Designed for ISO 9001-aligned manufacturing |

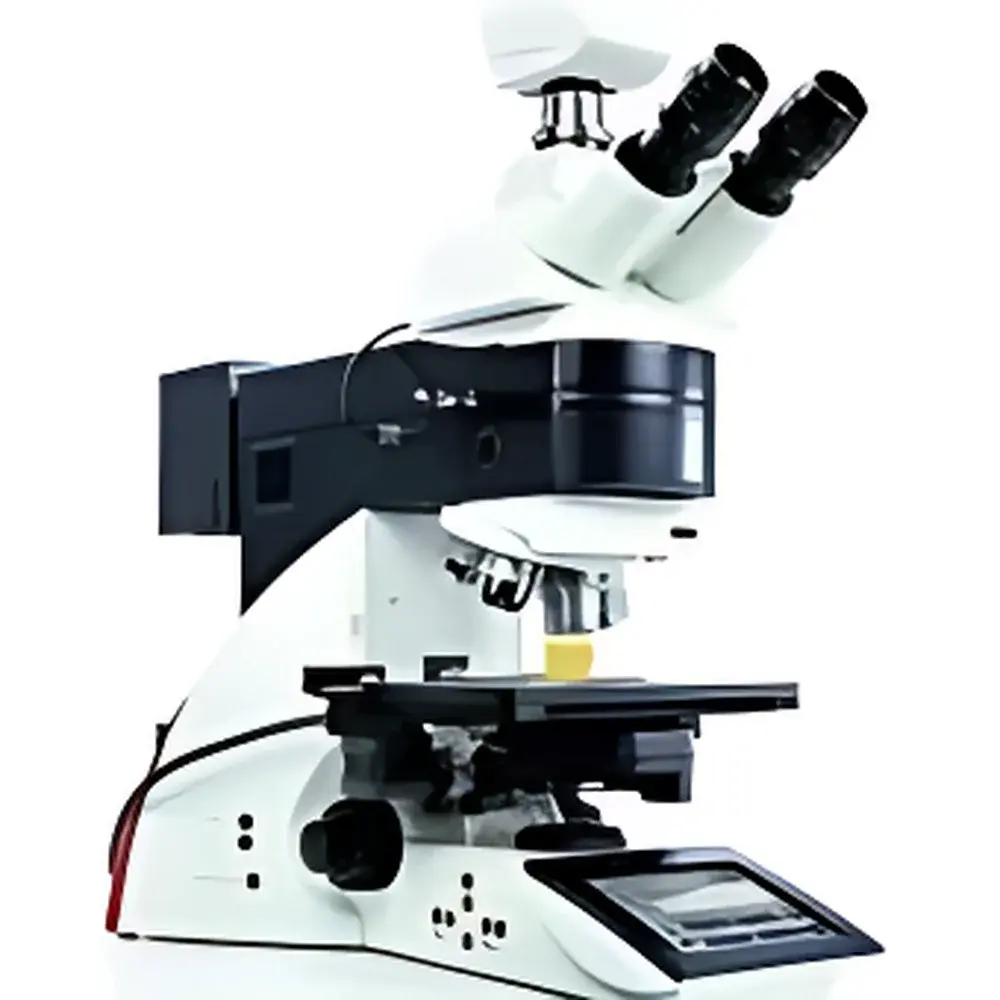

| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | DM6000M |
| Optical Design | HC Infinity-Corrected Achromatic & Apochromatic Dual-Axis Correction |
| Objective Turret | 6-Position Encoded Motorized |
| Illumination | Motorized Reflected & Transmitted Light Management with Constant CCT Control |
| Observation Modes | Brightfield, Darkfield, Polarized Light, Differential Interference Contrast (DIC), Fluorescence (optional) |
| Eyepieces | 10×, 25 mm Field of View |
| Eyepiece Tube | Adjustable Interpupillary Distance (55–75 mm) |
| Objectives | 5×/0.15, 10×/0.30, 20×/0.50, 50×/0.85, 100×/0.90 (Plan Apo/Plan Semi-Apo/Plan Achro for BF/DF/POL/DIC) |
| Motorized Focus | 50 mm Travel, Step Resolution Options: 0.015 µm, 0.1 µm, 0.7 µm, 1.5 µm, 5 µm |
| Motorized XY Stage | 76 × 38 mm Travel, Positioning Accuracy < 30 µm |
| Integrated LCD Touchscreen | 76 × 49 mm Display Showing Real-Time Parameters (Objective ID, Aperture/Field Diaphragm Positions, Illumination Intensity, Z-Position, Magnification) |
| Remote Control | Leica SmartMove with Programmable X/Y/Z Axes and Four Customizable Function Keys |
| Compliance | Designed for ISO 9001-aligned QA/QC workflows |
