| Brand | Jiayuan |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | FW-4 |
| Instrument Type | Manual Hydraulic Pellet Press |
| Pressure Range | 0–24 T (0–38 MPa) |
| Maximum Piston Stroke | 20 mm |
| Oil Cylinder Diameter | Φ70 mm |
| Pressure Gauge | Dual-Scale Analog Pressure Gauge |
| Working Table Diameter | 80 mm |
| Working Chamber Dimensions | 120 × 120 × 130 mm |
| Pressure Stability | ≤1 MPa/10 min |
| Net Weight | 25 kg |
| Overall Dimensions | 240 × 170 × 390 mm |
| Construction | Monolithic Cast Aluminum Base Plate, Chrome-Plated Oil Cylinder, Four-Guided Column Architecture |
| Handle & Crank Material | Anodized Aluminum Alloy |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

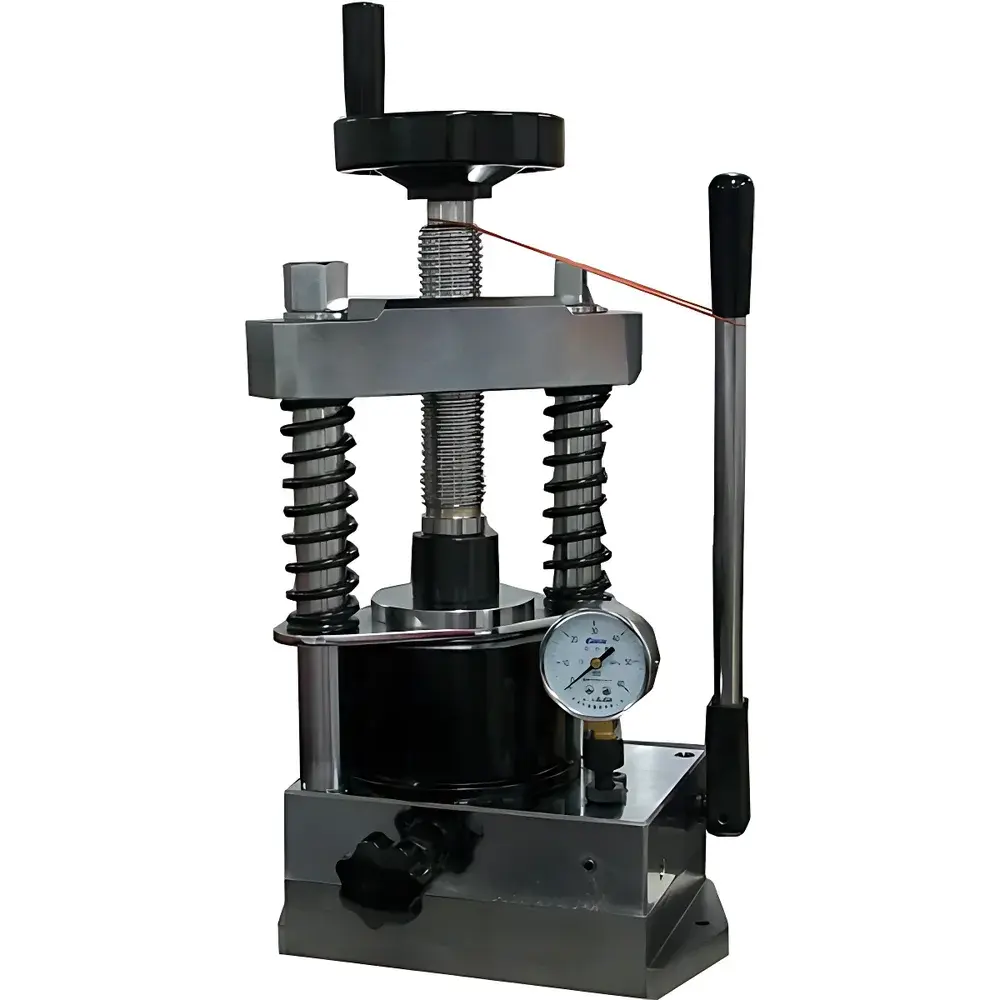

| Model | FW-4A |
| Price | USD 820 (FOB Beijing) |
| Instrument Type | Manual Hydraulic Pellet Press |
| Rated Working Pressure | 240 kN (24 metric tons, 38 MPa) |
| Ultimate Pressure | 300 kN (30 metric tons, 47 MPa) |
| Pressure Stability | ≤1 MPa drop over 5 min |
| Piston Stroke | 30 mm |
| Working Chamber Dimensions | 100 × 100 × 100 mm |
| Hydraulic Fluid | ISO VG 32 mineral oil |
| Overall Dimensions | 200 × 250 × 450 mm |
| Net Weight | 33 kg |
